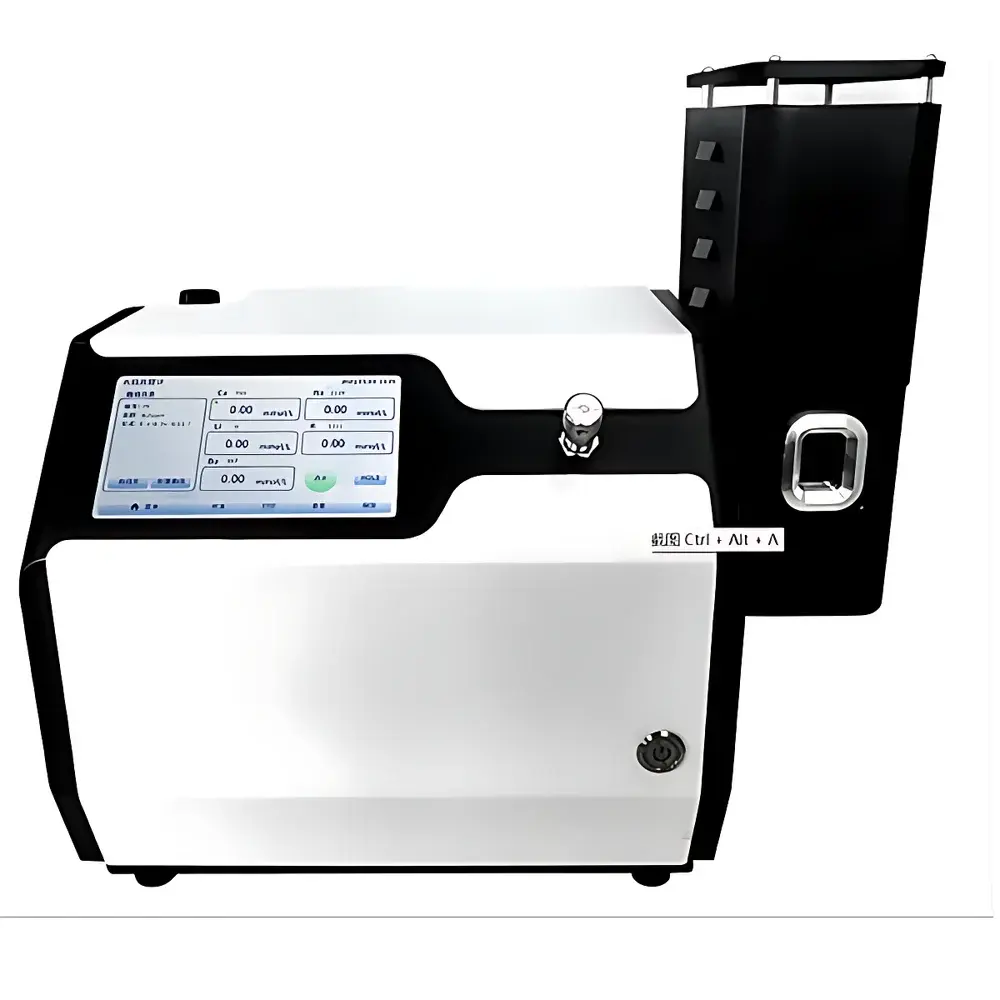

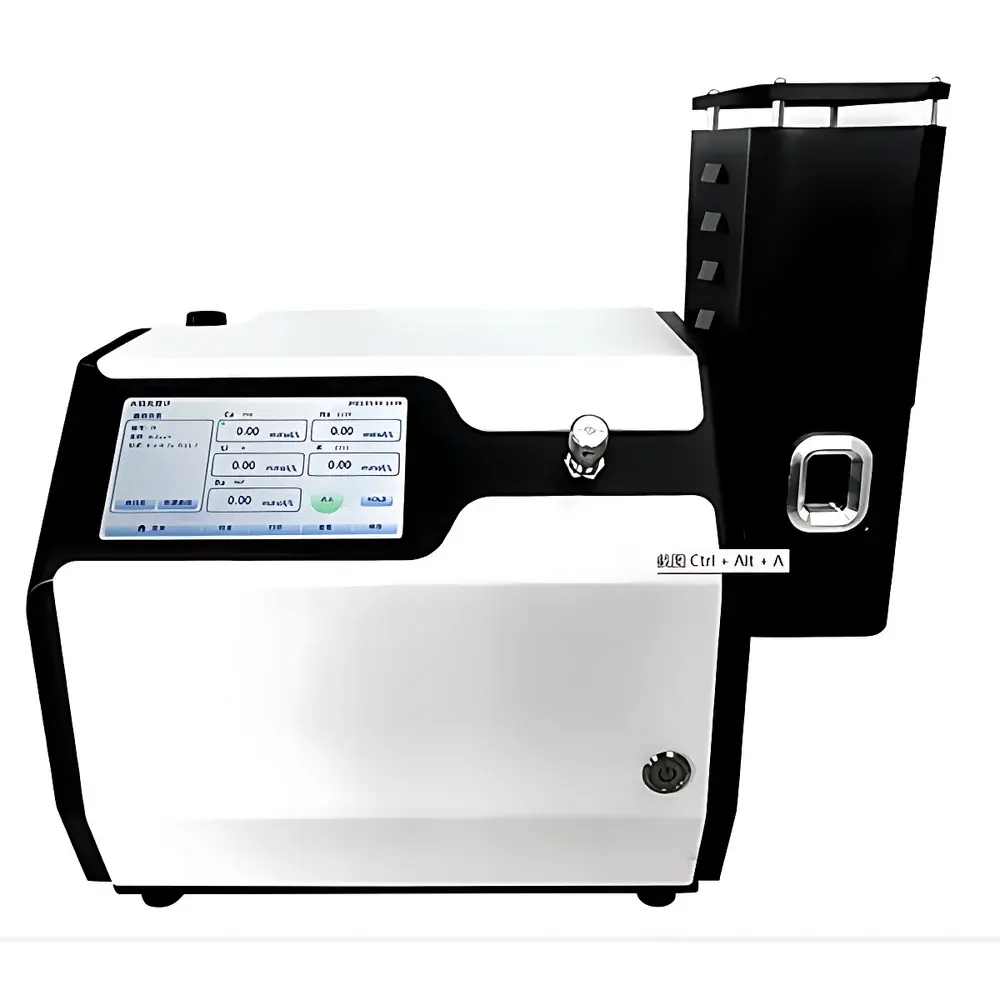

Yoke T-U8 Xenon Lamp Dual-Beam UV-Vis Spectrophotometer

Overview

The Yoke T-U8 Xenon Lamp Dual-Beam UV-Vis Spectrophotometer is a precision optical instrument engineered for quantitative and qualitative analysis across the ultraviolet, visible, and near-infrared spectral regions (190–1100 nm). It operates on the fundamental principle of Beer–Lambert law-based absorption spectroscopy, utilizing a dual-beam optical architecture to simultaneously measure sample and reference beam intensities—thereby compensating for source drift, detector instability, and environmental fluctuations in real time. Unlike conventional tungsten-halogen/deuterium lamp systems, the T-U8 employs a high-stability pulsed xenon lamp as its broadband light source. This solid-state excitation method eliminates warm-up time, delivers consistent spectral output over extended operational lifetimes (>1 × 10⁹ pulses), and enables stable performance for up to seven years without lamp replacement—a critical advantage for laboratories requiring long-term measurement continuity and reduced maintenance overhead.

Key Features

• Dual-beam optical path with real-time reference compensation ensures high photometric stability and baseline reproducibility across repeated scans.
• Pulsed xenon lamp technology provides instantaneous startup, eliminating preheating delays and enabling immediate measurement readiness.
• 7-inch high-resolution TFT color LCD with intuitive graphical user interface (GUI) supports touch-sensitive Omron membrane keys for ergonomic operation.
• Advanced 32-bit ARM Cortex-M3 microcontroller (120 MHz clock speed) enables rapid spectral acquisition, on-board data processing, and seamless multitasking.
• Suspended optical bench design with reinforced aluminum baseplate minimizes mechanical vibration transmission and thermal deformation effects on optical alignment.
• Optoelectronic signal detection module optimized for low-noise amplification improves signal-to-noise ratio (SNR) and enhances detection sensitivity at low absorbance levels.
• Modular hardware architecture separates optical and electronic compartments via double-layer chassis design, reducing electromagnetic interference (EMI) and thermal crosstalk.
• Bilingual firmware (English/Chinese) facilitates international deployment and multi-regional operator training without software reconfiguration.

Sample Compatibility & Compliance

The T-U8 accommodates standard 10-mm pathlength quartz, glass, or plastic cuvettes, and supports optional 8-position rotating cuvette holders for automated sequential analysis of multiple samples or standards. Its optical design maintains beam centering accuracy across all positions, ensuring consistent photometric response independent of cuvette placement. The instrument complies with core international performance criteria defined in ISO 6425 (spectrophotometer verification), ASTM E275 (description of ultraviolet and visible spectrophotometric measurements), and USP (UV-Vis spectrophotometry). While not certified under FDA 21 CFR Part 11 out-of-the-box, its audit-trail-capable data logging system—including timestamped absorbance values, wavelength metadata, and operator ID fields—supports GLP/GMP-aligned documentation when integrated into validated laboratory workflows.

Software & Data Management

Data acquisition, visualization, and export are fully managed through embedded firmware—no external PC is required for routine operation. Measurement results can be stored internally (32 GB flash memory) or exported directly to USB mass storage devices in four interoperable formats: comma-separated values (*.csv), proprietary quantitation files (*.qua), plain-text reports (*.txt), and bitmap images (*.bmp). Exported datasets retain full traceability—including date/time stamps, instrument serial number, wavelength range, slit width, and user-defined sample IDs. RS-232C serial output enables direct connection to legacy thermal printers for hard-copy record generation, while USB Device mode permits remote control and spectral data retrieval via host PC applications compatible with standard HID protocols.

Applications

The T-U8 serves as a versatile analytical platform across academic research, pharmaceutical quality control, environmental monitoring, food safety testing, and industrial R&D laboratories. Typical use cases include concentration determination of nucleic acids and proteins (e.g., A260/A280 ratios), kinetic enzyme assays, dissolution profile analysis, colorimetric endpoint detection in ELISA workflows, impurity profiling in small-molecule APIs, and spectral characterization of nanomaterials and dye formulations. Its broad spectral coverage and sub-nanometer wavelength repeatability make it suitable for method development under ICH Q2(R2) guidelines, particularly where robustness testing demands precise wavelength positioning and low stray light contribution.

FAQ

Does the T-U8 require lamp warm-up before measurement?
No—the pulsed xenon lamp enables immediate operation upon power-on; no warm-up period is necessary.
What is the maximum number of spectra that can be stored internally?
The instrument supports up to 5,000 individual absorbance measurements or 500 complete calibration curves in non-volatile memory.
Is the 2 nm spectral bandwidth setting factory-configurable or user-selectable?
Both 1 nm and 2 nm slit widths are user-selectable via the instrument’s setup menu; no hardware modification is required.
Can the T-U8 be integrated into a LIMS environment?
Yes—via RS-232C or USB Device interface, raw spectral data and metadata can be transmitted to third-party LIMS platforms using ASCII-based command protocols.
What validation documentation is provided with the instrument?
Each unit ships with a factory calibration report referencing NIST-traceable standards at key wavelengths (e.g., 200 nm, 300 nm, 500 nm, 800 nm), including measured absorbance accuracy and stray light verification data.
