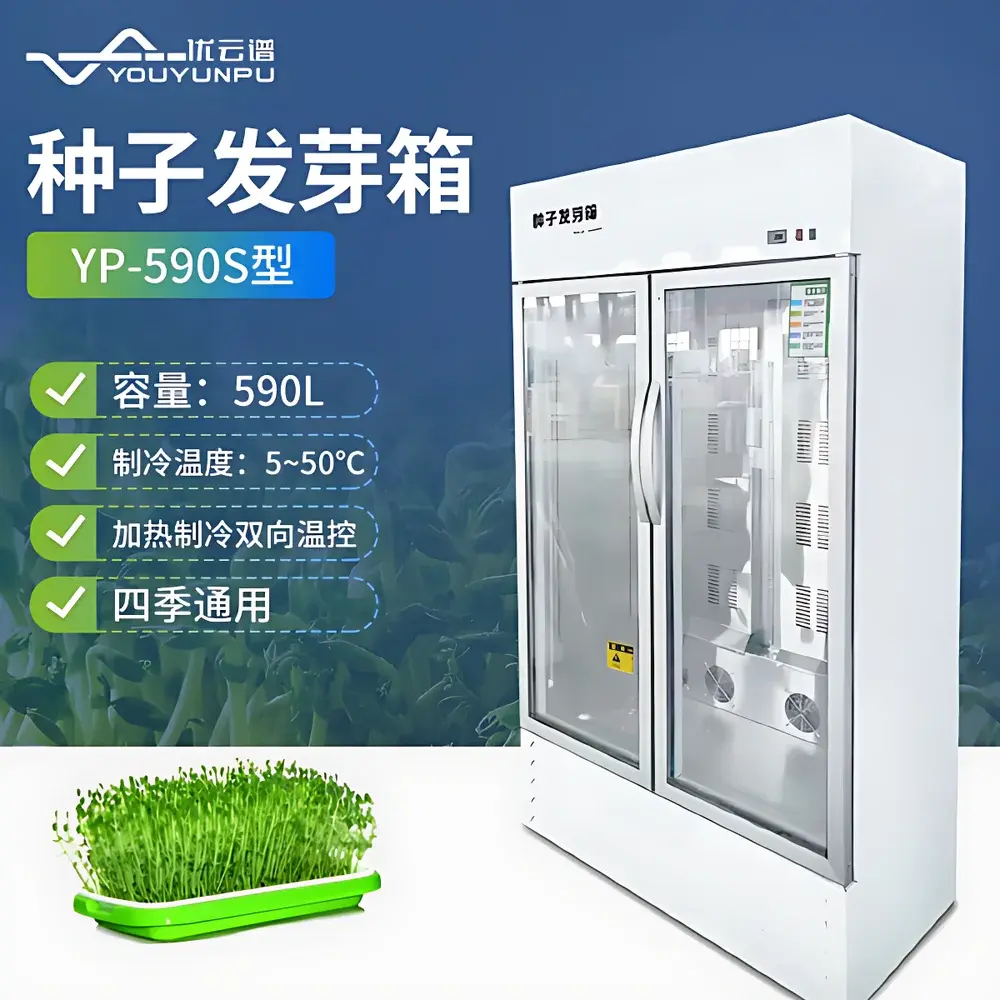

Youyunpu YP-590S Plant Growth Chamber

Overview

The Youyunpu YP-590S Plant Growth Chamber is a purpose-engineered environmental incubation system designed for standardized seed germination testing, plant seedling development, and controlled-condition microbiological cultivation. It operates on a dual-mode thermoregulatory principle—combining resistive heating and vapor-compression refrigeration—to maintain precise, stable temperature setpoints across its full operational range of 5–50 °C. Unlike ambient-dependent growth cabinets, the YP-590S actively regulates internal thermal dynamics to eliminate diurnal or seasonal fluctuations, thereby ensuring consistent biochemical activation in seeds—including accelerated enzymatic hydrolysis of storage proteins and starches via optimized thermal kinetics. This controlled thermal profile directly supports improved seedling vigor, enhanced disease resistance, and higher germination uniformity—key performance indicators required by national seed quality standards (e.g., GB/T 3543.4–1995, ISO 11260:2021). Its 590 L chamber volume and dual-door architecture support high-throughput batch processing while minimizing cross-contamination risk and thermal load disruption during access.

Key Features

• Stable dual-mode temperature control (heating + cooling) with ±0.5 °C uniformity across the chamber volume at steady state
• Digital LED display with real-time temperature readout and intuitive keypad interface for setpoint adjustment
• Integrated thermocouple-based sensing with automatic cold-junction compensation for measurement traceability
• Robust structural design: 1.2 mm pre-galvanized steel exterior, 0.8 mm stainless-steel interior lining, and high-density polyurethane insulation (≥50 mm thickness)

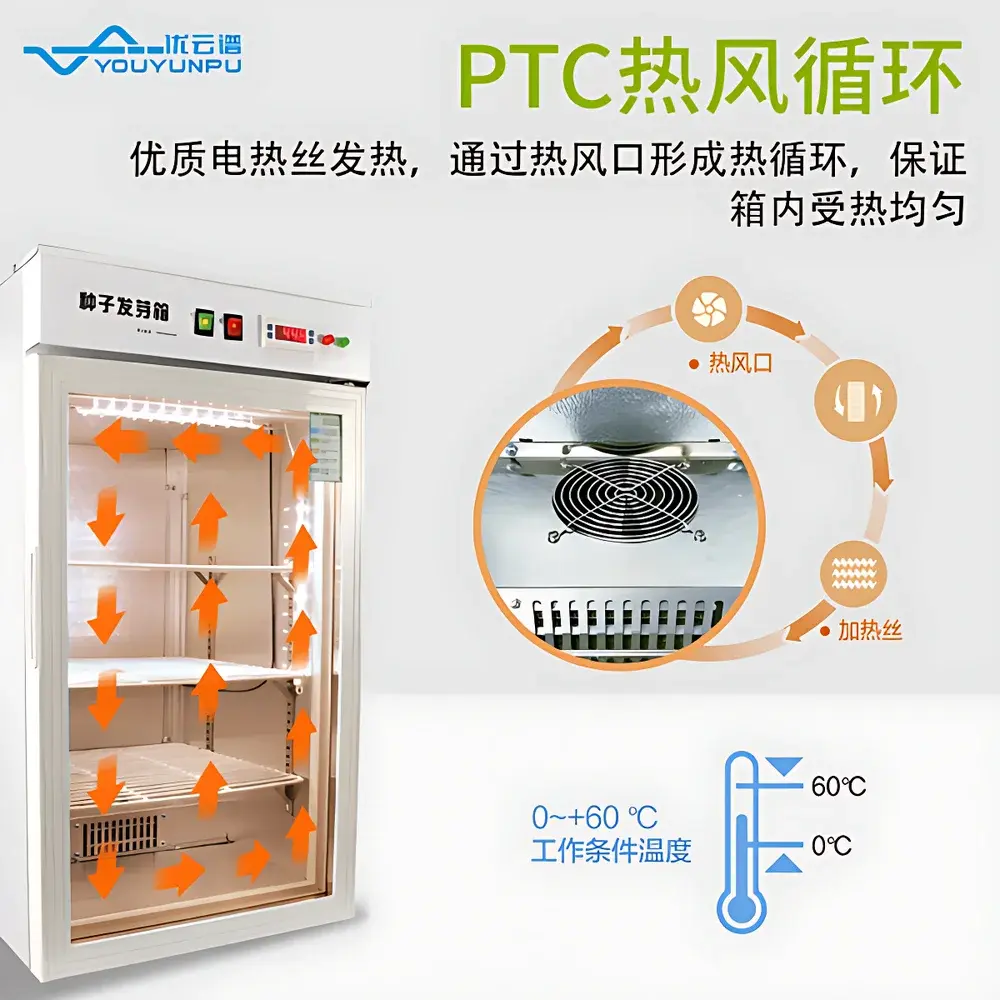

• Optimized airflow distribution via rear-mounted axial fans and perforated shelf supports to ensure ≥90% spatial temperature homogeneity (per ASTM E145-22 Class II criteria)

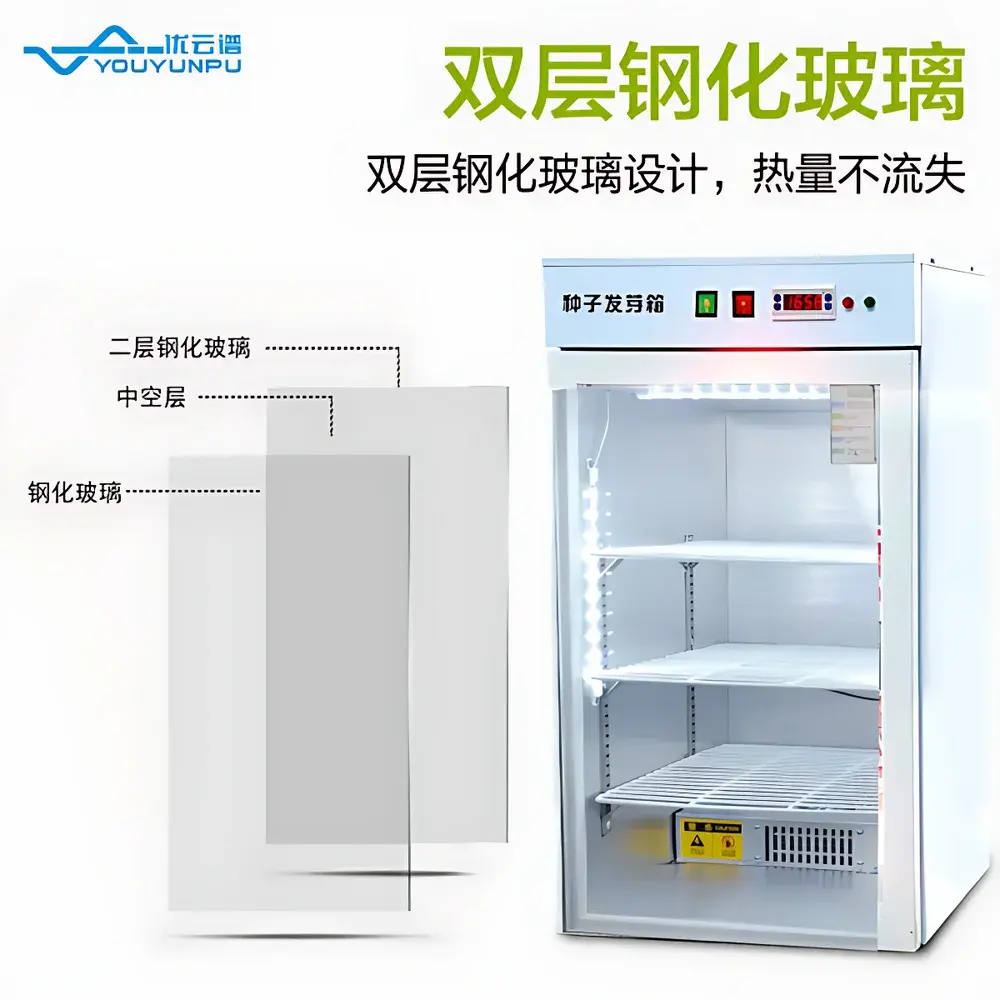

• Dual-door configuration with magnetic gaskets and reinforced tempered glass windows for visual monitoring without thermal loss
• Low-noise operation (<55 dB[A] at 1 m), suitable for shared laboratory environments
• Compliance-ready electrical architecture: grounded 220 V input, overcurrent protection, and thermal cut-off safeguards per IEC 61000-6-2/6-4 EMC requirements

Sample Compatibility & Compliance

The YP-590S accommodates standard seed trays (up to 10 × 12 grid format), Petri dishes, multi-well plates, and microbiological culture vessels on adjustable stainless-steel shelves (load capacity: 15 kg/shelf). Its operating envelope meets critical requirements for regulatory seed testing workflows under GB/T 3543.4 (China National Standard for Seed Germination Testing) and aligns with FAO/IBPGR guidelines for baseline germinability assessment. While not certified to GLP or ISO/IEC 17025 out-of-the-box, the chamber’s stable thermal performance, data-accessible interface, and reproducible setpoint response make it suitable for method validation and internal QC protocols in agricultural research labs, seed certification centers, and university plant science departments. Environmental operation limits (–10 to 35 °C ambient, ≤90% RH) ensure reliable deployment in temperate and subtropical climate zones without auxiliary HVAC conditioning.

Software & Data Management

The YP-590S operates via embedded microcontroller-based firmware with no external PC dependency. All temperature setpoints, runtime duration, and alarm status are stored in non-volatile memory with battery-backed retention (≥72 h power interruption tolerance). Optional RS-485 Modbus RTU output (available upon request) enables integration into centralized lab monitoring systems for time-stamped logging, remote setpoint adjustment, and audit-trail generation—supporting basic 21 CFR Part 11 readiness when paired with validated third-party SCADA platforms. No proprietary software installation is required; configuration remains fully accessible through the front-panel interface. Data export functionality is not natively included but may be added via OEM firmware upgrade path.

Applications

• Standardized germination assays for cereal, legume, vegetable, and ornamental seeds per ISTA and AOSA protocols
• Pre-germination conditioning and stratification studies in plant breeding programs
• Controlled-environment propagation of tissue-cultured explants and callus induction
• Microbial growth profiling under defined thermal regimes (e.g., mesophilic bacteria, yeast, fungal spores)
• Long-term stability testing of seed-borne biocontrol agents and inoculants
• Teaching laboratory use in undergraduate botany, agronomy, and biotechnology curricula

FAQ

Is the YP-590S compliant with international seed testing standards such as ISTA?
Yes—the chamber’s temperature uniformity, stability, and operational range satisfy the environmental control prerequisites outlined in ISTA Rules Section 5 (Germination Equipment Requirements), though formal ISTA accreditation requires independent verification by an accredited test lab.
Can the unit operate continuously at 5 °C in a 35 °C ambient room?
Yes—its 260 W compressor-based cooling system and insulated enclosure enable sustained sub-ambient operation within the specified ambient envelope.
What maintenance is required for long-term reliability?
Routine cleaning of condenser coils (every 3 months), verification of door seal integrity, and periodic calibration of the temperature sensor using a NIST-traceable reference thermometer are recommended.
Are replacement shelves or custom shelving options available?
Yes—stainless-steel wire mesh shelves (standard), solid perforated trays, and height-adjustable acrylic inserts can be ordered separately with lead times of 2–3 weeks.
Does the unit include humidity control?
No—humidity is not actively regulated; users should manage ambient moisture levels externally or employ desiccant trays for low-RH applications.
