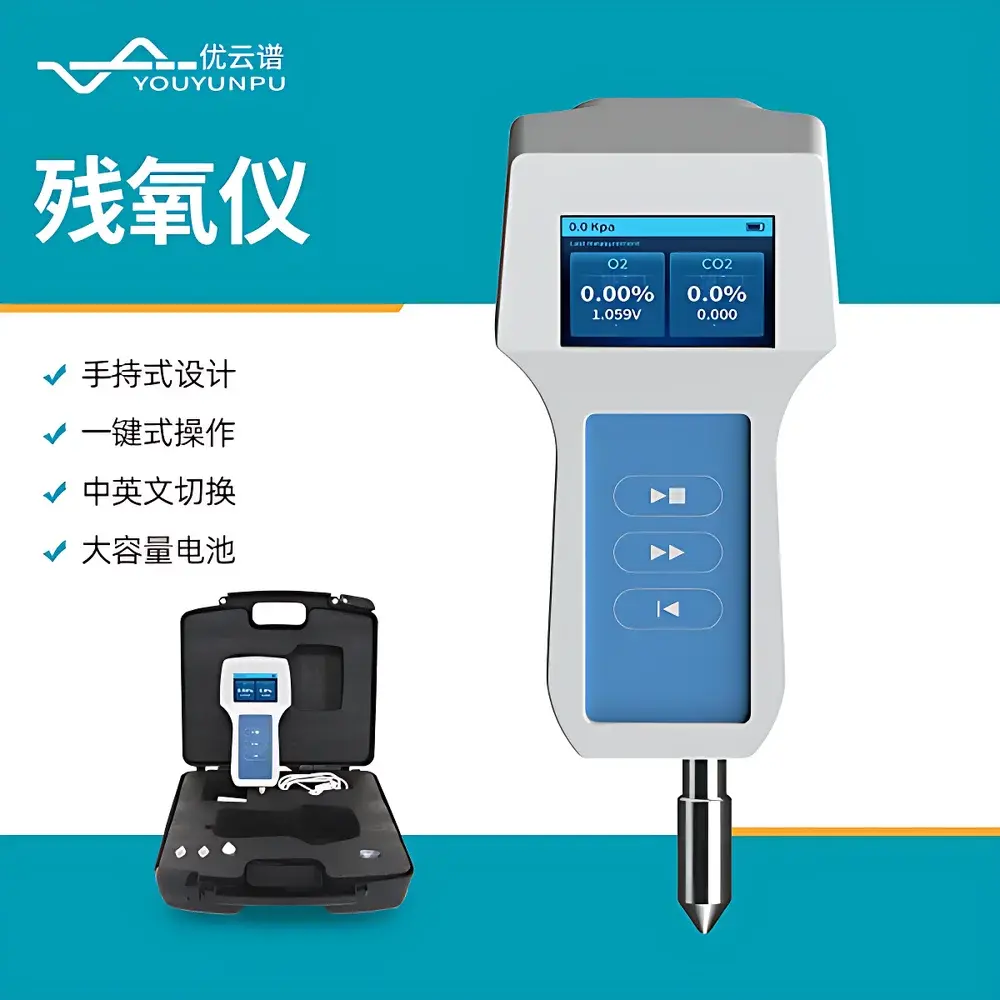

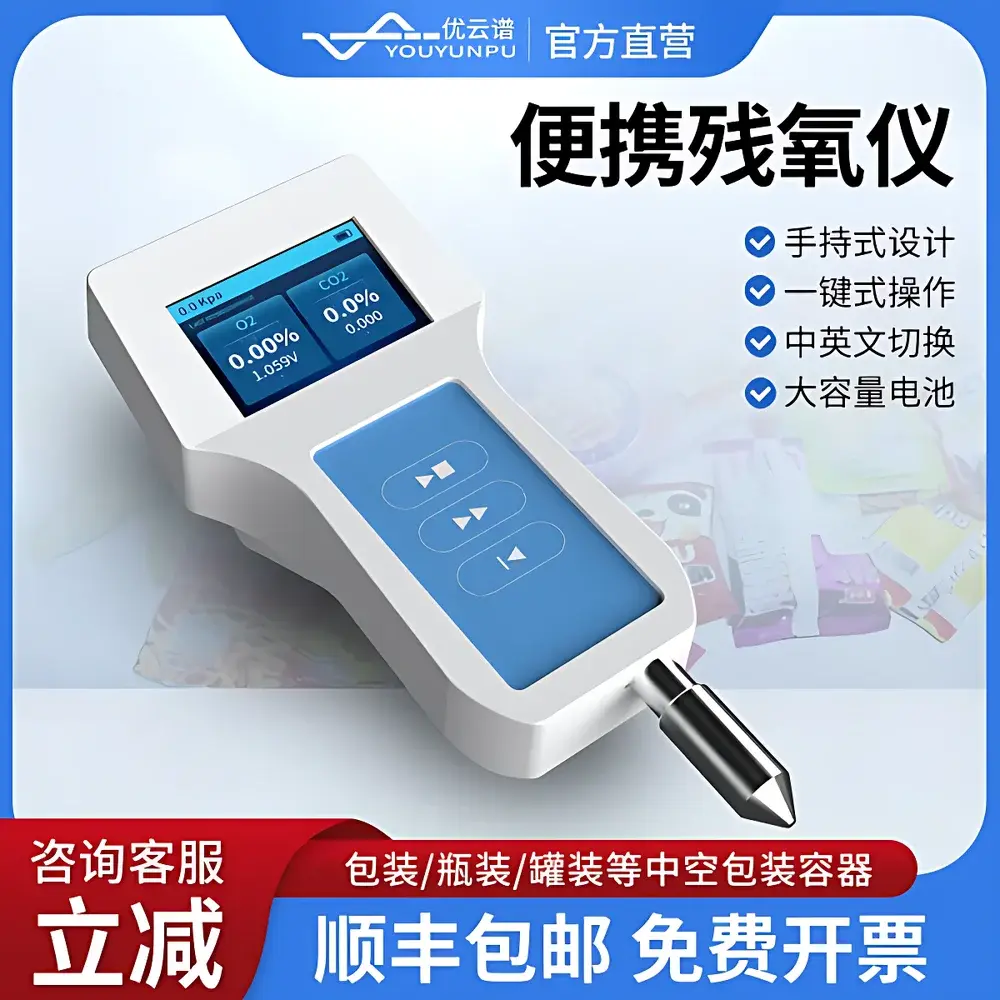

Youyunpu YP-DK3 Portable Headspace Oxygen & CO₂ Analyzer

Overview

The Youyunpu YP-DK3 Portable Headspace Oxygen & CO₂ Analyzer is a handheld electrochemical gas analyzer engineered for rapid, non-destructive quantification of residual oxygen (O₂) and carbon dioxide (CO₂) concentrations in sealed food and pharmaceutical packaging. Designed in accordance with the metrological verification regulation JJG 365–2008 “Verification Regulation for Electrochemical Oxygen Analyzers”, the instrument employs dual electrochemical sensor technology—separate galvanic O₂ and infrared (NDIR) or electrochemical CO₂ sensing modules—to deliver trace-level accuracy under variable headspace pressure conditions. Its core application lies in quality assurance for modified atmosphere packaging (MAP), vacuum-sealed containers, and sterile barrier systems where precise gas composition directly correlates with microbial stability, oxidative degradation kinetics, and shelf-life validation. Unlike benchtop analyzers requiring gas extraction and external manifolds, the YP-DK3 performs direct puncture sampling via integrated stainless-steel probe, enabling real-time measurement at line-side, warehouse, or QC lab environments without sample transfer artifacts.

Key Features

• Handheld ergonomic form factor (weight: < 0.8 kg) optimized for single-hand operation during high-frequency production-line audits;
• Quick-connect protective sleeve for sampling needle—mechanically shields the probe tip and prevents accidental puncture injury or sensor contamination;
• Dual-sensor architecture: factory-calibrated electrochemical O₂ sensor (range: 0–25% v/v, resolution: 0.01%); interchangeable CO₂ sensor (electrochemical or NDIR variant, range: 0–100% v/v, resolution: 0.1%);
• Integrated absolute pressure transducer (range: –100 to +100 kPa, accuracy: ±0.5 kPa) enables simultaneous vacuum level assessment and pressure-compensated gas concentration calculation;
• Sensors sourced from Tier-1 international suppliers (e.g., Alphasense, Figaro), certified for long-term stability (typical drift < 2% FS/year) and mean time between failures (MTBF) > 20,000 hours;
• One-touch workflow: auto-zero, span calibration, and measurement initiation—all accessible via intuitive tactile buttons and backlit LCD;
• Firmware supports over-the-air (OTA) updates via USB-C interface; embedded bootloader ensures secure remote maintenance without hardware intervention;
• Bilingual UI (English/Chinese) switchable with single key press—compliant with multinational manufacturing site requirements;
• Intelligent power management: auto-shutdown after 10 min idle; volatile memory retention during battery swap; full data persistence across power cycles;
• Onboard storage capacity: 2,000 test records with timestamp, pressure reading, O₂/CO₂ values, and operator ID tag; export via USB 2.0 to CSV or Excel-compatible formats.

Sample Compatibility & Compliance

The YP-DK3 accommodates a broad spectrum of commercial packaging formats without modification: flexible laminated pouches (e.g., coffee, cheese, infant formula), rigid plastic tubs, aluminum cans, glass jars, Tetra Pak® cartons, and pharmaceutical-grade ampoules. It meets mechanical and electrical safety requirements per IEC 61010-1:2010 for portable measurement equipment. While not certified to ISO 8573 (compressed air purity) or ASTM F2476 (headspace analysis of medical packaging), its measurement methodology aligns with principles referenced in ISO 11607-2 (packaging validation) and USP <1207> (package integrity testing). Data logging functionality supports basic GLP documentation needs—each record includes date/time stamp, sensor ID, calibration status flag, and ambient temperature (via internal thermistor).

Software & Data Management

No proprietary PC software is required for basic operation. Raw data export via USB mass-storage mode enables direct import into LIMS, SAP QM, or Excel-based trending dashboards. Optional companion software (provided free upon request) adds batch reporting, statistical process control (SPC) charts (X̄–R, Cpk), and audit trail generation compliant with FDA 21 CFR Part 11 Annex 11 expectations—including user authentication, electronic signature fields, and immutable log files. All firmware and calibration coefficients are digitally signed to prevent unauthorized modification.

Applications

• Real-time MAP verification on dairy powder filling lines;
• Post-packaging O₂ ingress screening of vacuum-sealed smoked salmon trays;
• CO₂ flush efficiency validation for carbonated beverage cans;
• Stability protocol monitoring of lyophilized biologics in nitrogen-purged vials;
• Root cause analysis of premature spoilage in ready-to-eat meal kits;
• Supplier qualification audits for contract packaging facilities.

FAQ

What gas standards are required for calibration?
A certified 21% O₂/N₂ mixture and 10% CO₂/N₂ mixture (or zero air) are recommended for initial setup. Single-point calibration suffices for routine use; two-point calibration improves accuracy across full range.
Can the YP-DK3 measure nitrogen or argon?
No—it is configured exclusively for O₂ and CO₂. Nitrogen is inferred by difference only when total gas volume is known and other components (e.g., moisture, ethanol vapor) are negligible.
Is the sampling needle compatible with all package materials?
The 0.8 mm stainless-steel needle penetrates standard PET/PE, aluminum foil, and multilayer laminates. For ultra-thin (< 30 µm) or metallized films, optional blunt-tip probes reduce leakage risk.
How often must the sensors be recalibrated?
Electrochemical O₂ sensors require quarterly verification against traceable standards; CO₂ modules retain calibration for ≥6 months under typical storage conditions (15–25°C, <60% RH).
Does the device support GMP-compliant electronic signatures?
Yes—when used with optional software, it logs operator credentials, timestamps, and action history in tamper-evident binary format meeting ALCOA+ data integrity criteria.
