Youyunpu YP-GHA Portable Photosynthesis Measurement System

Overview

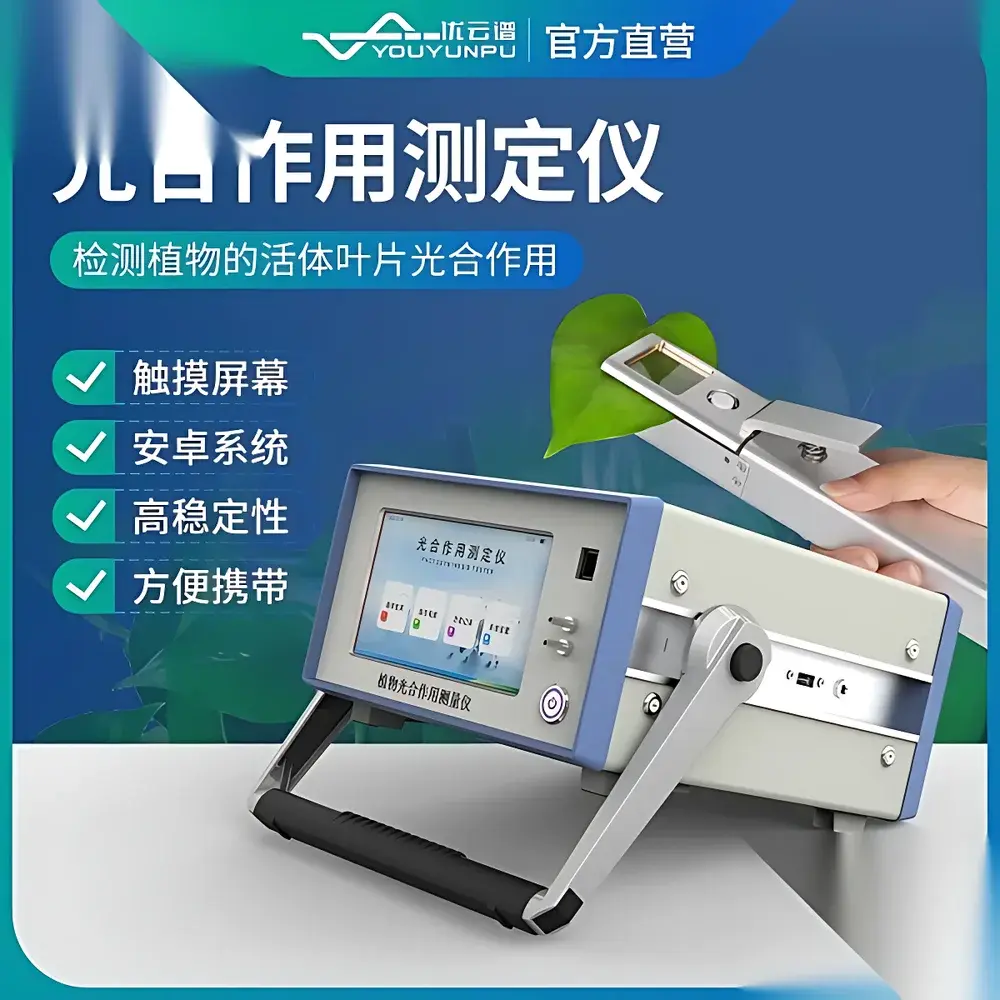

The Youyunpu YP-GHA Portable Photosynthesis Measurement System is an integrated field-deployable instrument engineered for real-time, non-destructive assessment of leaf-level gas exchange in plant physiology and ecology research. It operates on the principle of open-path infrared gas analysis (IRGA), utilizing dual-wavelength nondispersive infrared detection to quantify carbon dioxide (CO₂) concentration differentials across a leaf chamber with high temporal resolution. Coupled with concurrent measurement of photosynthetically active radiation (PAR, 400–700 nm), leaf and ambient temperature, relative humidity, atmospheric pressure, and thermocouple-based leaf surface temperature, the system calculates key physiological parameters—including net photosynthetic rate (Pn), stomatal conductance (Gs), transpiration rate (Tr), intercellular CO₂ concentration (Ci), water use efficiency (WUE), dark respiration rate (Rd), and transpiration ratio (TR)—in accordance with established methodologies described in ASTM E1334-22 and ISO 18562-3 for biological gas exchange instrumentation.

Key Features

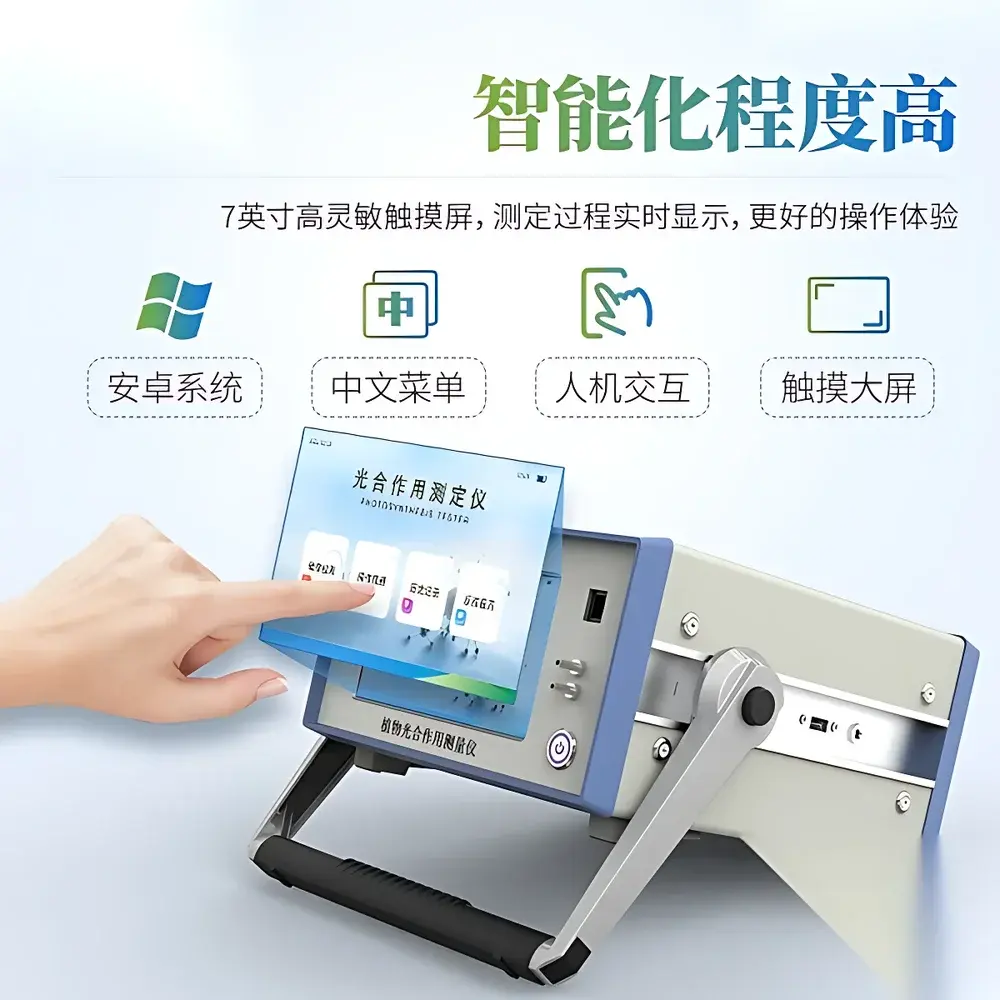

• Android-based operating system with 7-inch capacitive touchscreen interface, enabling intuitive navigation, real-time parameter visualization, and context-aware workflow guidance

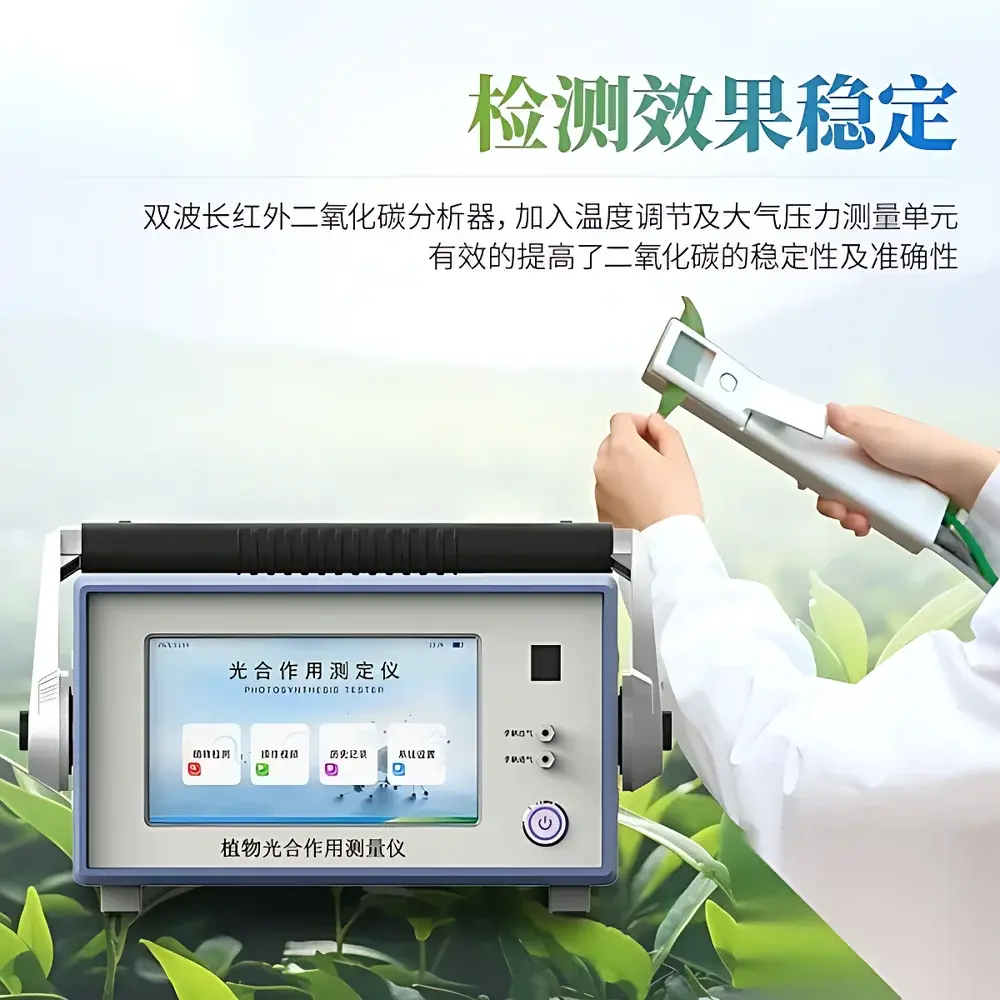

• Dual-wavelength IRGA module with integrated temperature stabilization and barometric pressure compensation—minimizing drift induced by ambient thermal fluctuations and altitude-related pressure variance
• ARM Cortex-A7 quad-core processor (RK3288, 1.88 GHz) with 1 GB RAM and 16 GB onboard flash storage, supporting concurrent data acquisition, on-device computation, and multi-session logging

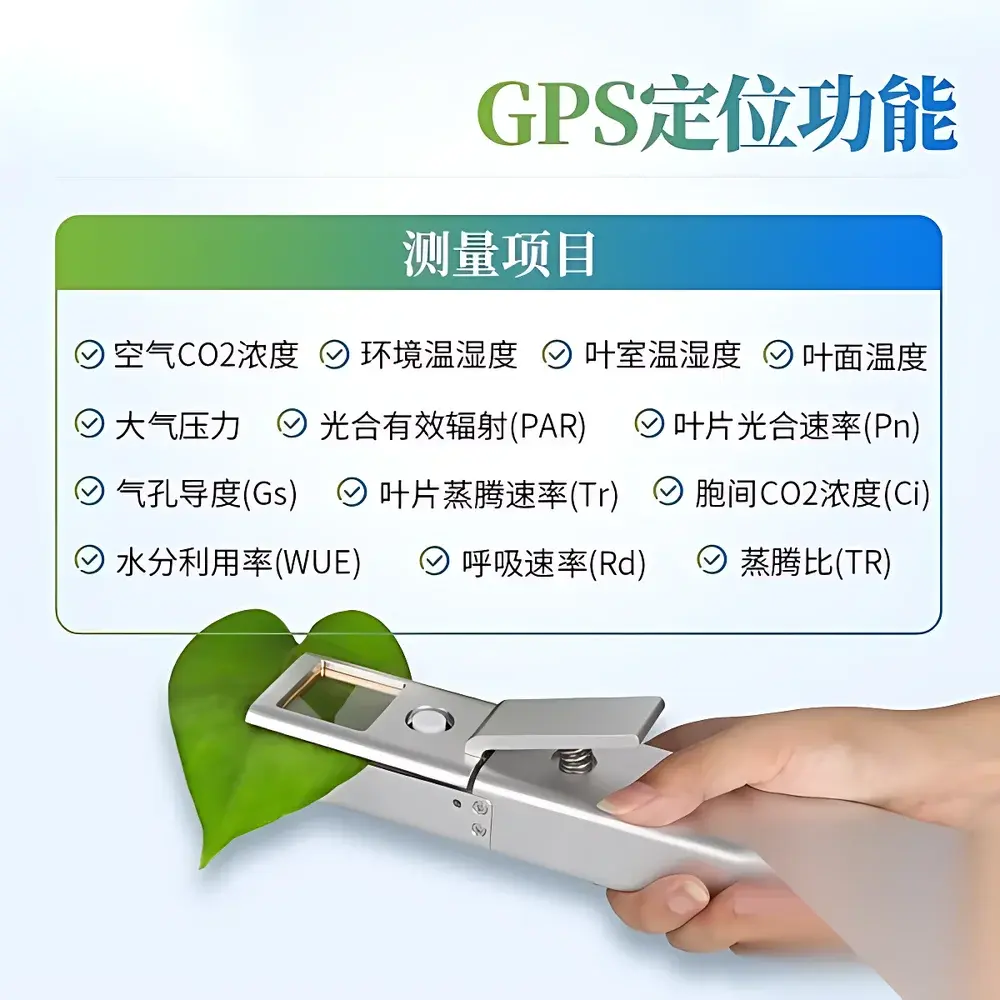

• Modular leaf chamber (3.3 cm × 3.3 cm standard aperture) designed for rapid attachment/detachment and minimal boundary layer disturbance; compatible with broadleaf, needle, and grass species
• Rechargeable 8000 mAh lithium-ion battery providing ≥10 hours of continuous operation under typical field conditions (25°C, 50% RH, PAR < 1500 µmol·m⁻²·s⁻¹)
• USB 2.0 host interface for direct U-disk data export—no driver installation required; supports FAT32-formatted removable storage up to 128 GB

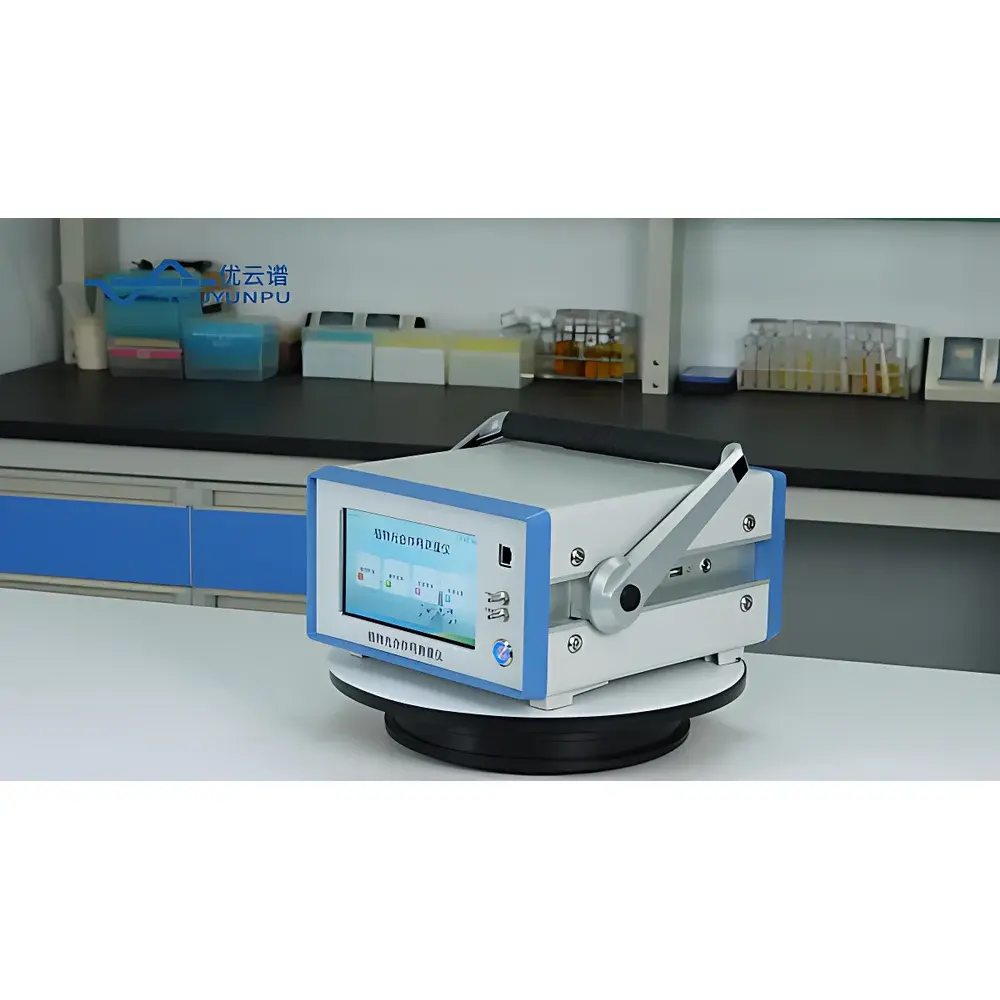

• Ergonomic handheld configuration: main unit (312.3 × 308.5 × 186 mm, 4.0 kg) + detachable grip handle (250 × 30 × 48 mm, 0.7 kg), housed in shock-absorbing carry case for single-operator mobility

Sample Compatibility & Compliance

The YP-GHA accommodates intact, attached leaves from herbaceous crops (e.g., wheat, maize, soybean), horticultural species (tomato, cucumber, strawberry), woody perennials (apple, poplar), and native grasses—provided leaf thickness permits secure chamber sealing without tissue compression. Chamber gasket design ensures leak-tight closure across variable leaf morphologies while maintaining laminar airflow. All optical and thermal sensors are calibrated traceably to NIST-certified references. The system meets functional requirements for GLP-compliant environmental physiology studies and aligns with data integrity expectations outlined in FDA 21 CFR Part 11 for electronic records where audit trails are enabled via optional software modules. It is routinely deployed in USDA-ARS field trials, university agronomy programs, and EU-funded agroecology monitoring networks.

Software & Data Management

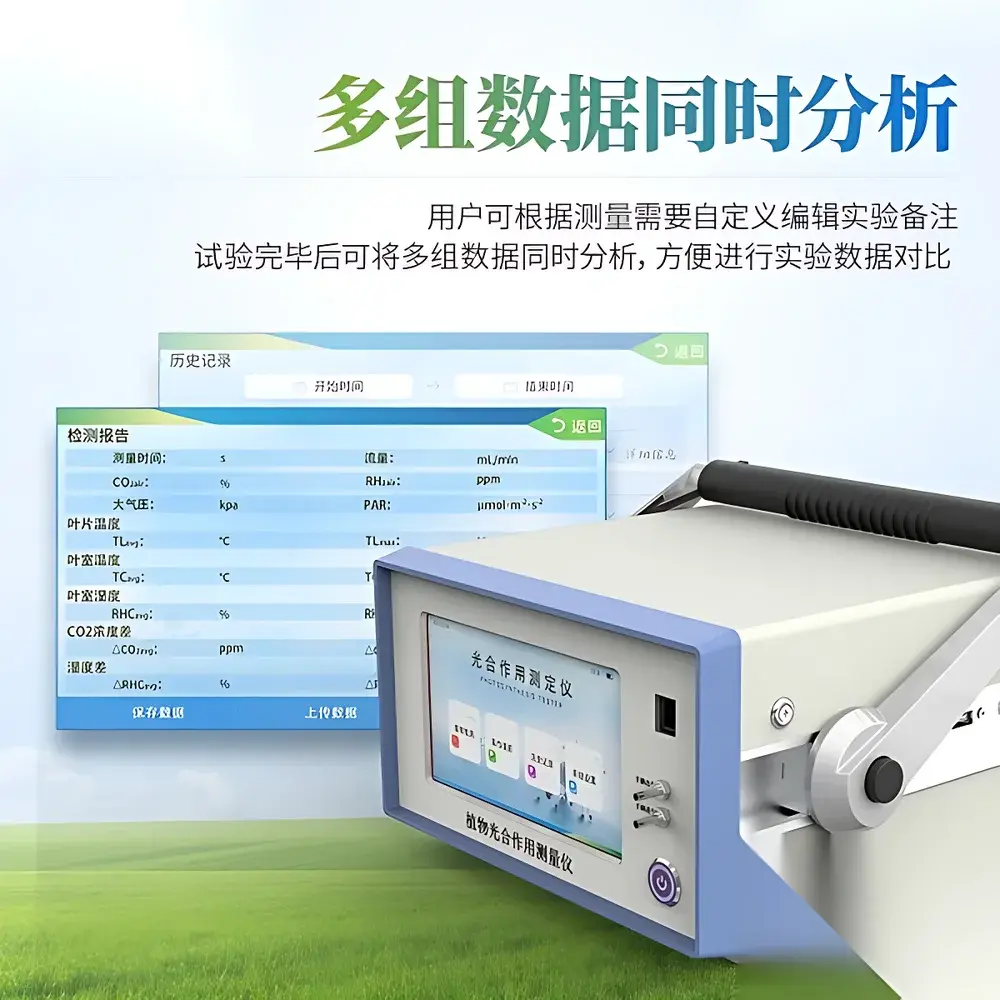

Data acquisition, annotation, and preliminary analysis are managed through the embedded Android application, which supports user-defined experiment metadata tagging (e.g., cultivar ID, treatment group, sampling time). Post-acquisition, datasets (CSV/Excel-compatible) can be synchronized to desktop platforms for advanced statistical modeling (e.g., nonlinear regression of A/Ci curves, sensitivity analysis of Gs-PAR response). Firmware updates are delivered OTA or via USB. Optional PC software provides time-series alignment across multiple instruments, outlier detection based on Cook’s distance thresholds, and automated generation of publication-ready figures compliant with Plant Physiology and Global Change Biology formatting standards.

Applications

• Evaluation of drought, heat, or salinity stress responses via dynamic tracking of Pn decline, Ci accumulation, and Gs modulation
• Screening of elite germplasm for intrinsic WUE under controlled-environment chambers and open-field plots
• Validation of canopy-scale eddy covariance flux measurements using leaf-level scaling relationships
• Teaching laboratories: demonstration of light-response curves, CO₂-response kinetics, and stomatal limitation analysis
• Long-term ecological monitoring: seasonal phenology mapping of photosynthetic capacity across elevation gradients
• Urban forestry assessments: quantifying carbon sequestration potential of street tree species under air pollution exposure

FAQ

What calibration protocols does the YP-GHA support?
The instrument includes zero-air and span-gas calibration routines using certified CO₂ standards (0 ppm and 1000 ppm); factory calibration certificates are supplied with each unit.
Can the system operate unattended for extended periods?
No—it is designed for operator-assisted, discrete leaf measurements rather than continuous autonomous logging; however, sequential measurements across multiple leaves/sites can be scheduled manually within a single battery cycle.
Is PAR sensor cosine correction validated per ISO 9060:2018?
Yes—the silicon photodiode sensor features a precision diffuser meeting Class C spectral responsivity and angular response specifications per ISO 9060:2018.
Does the device meet IP rating requirements for outdoor use?
It carries an IP54 rating—protected against limited dust ingress and water splashes from any direction—suitable for daytime fieldwork under variable weather, but not for prolonged rain exposure or immersion.
How is temperature gradient error minimized during leaf surface measurement?
A thermally isolated copper-constantan thermocouple is embedded flush with the chamber’s upper gasket surface, ensuring direct contact with the adaxial epidermis while decoupling from chamber wall conduction paths.
