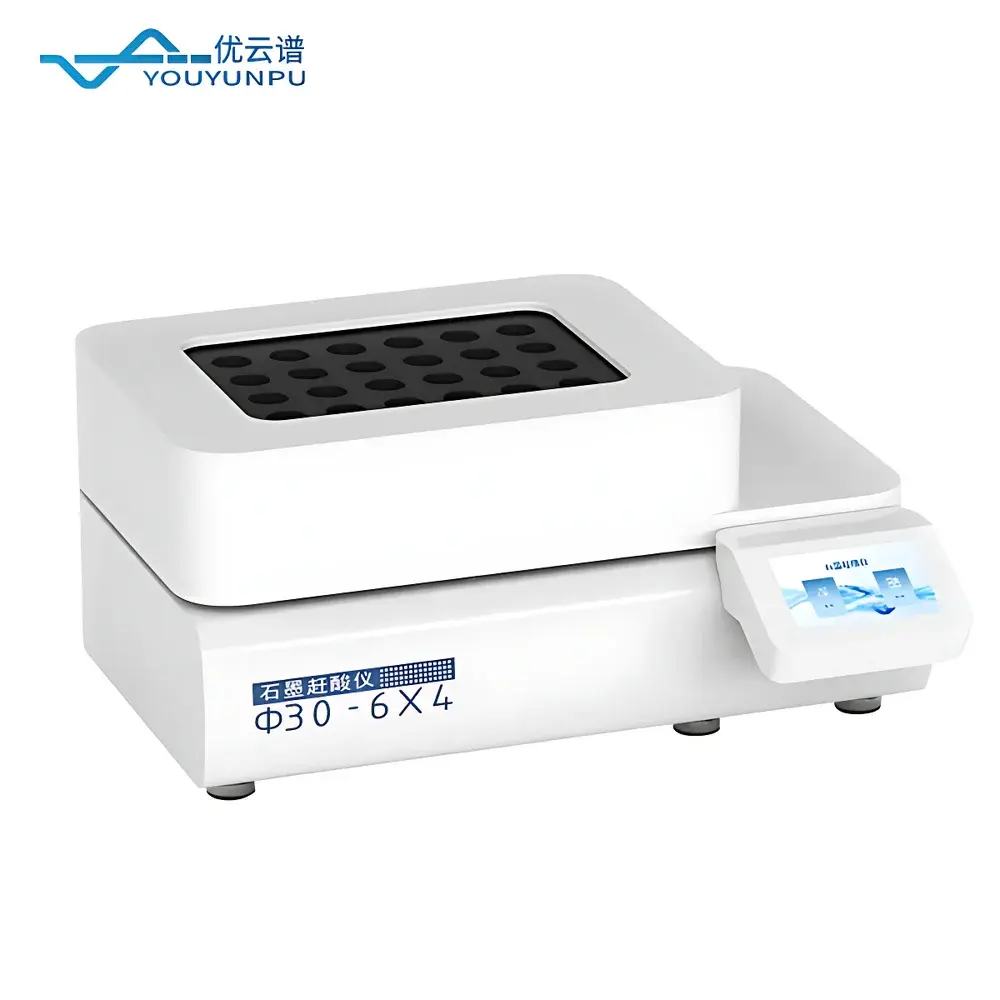

Youyunpu YP-GS04 Graphite Acid Evaporation System

Overview

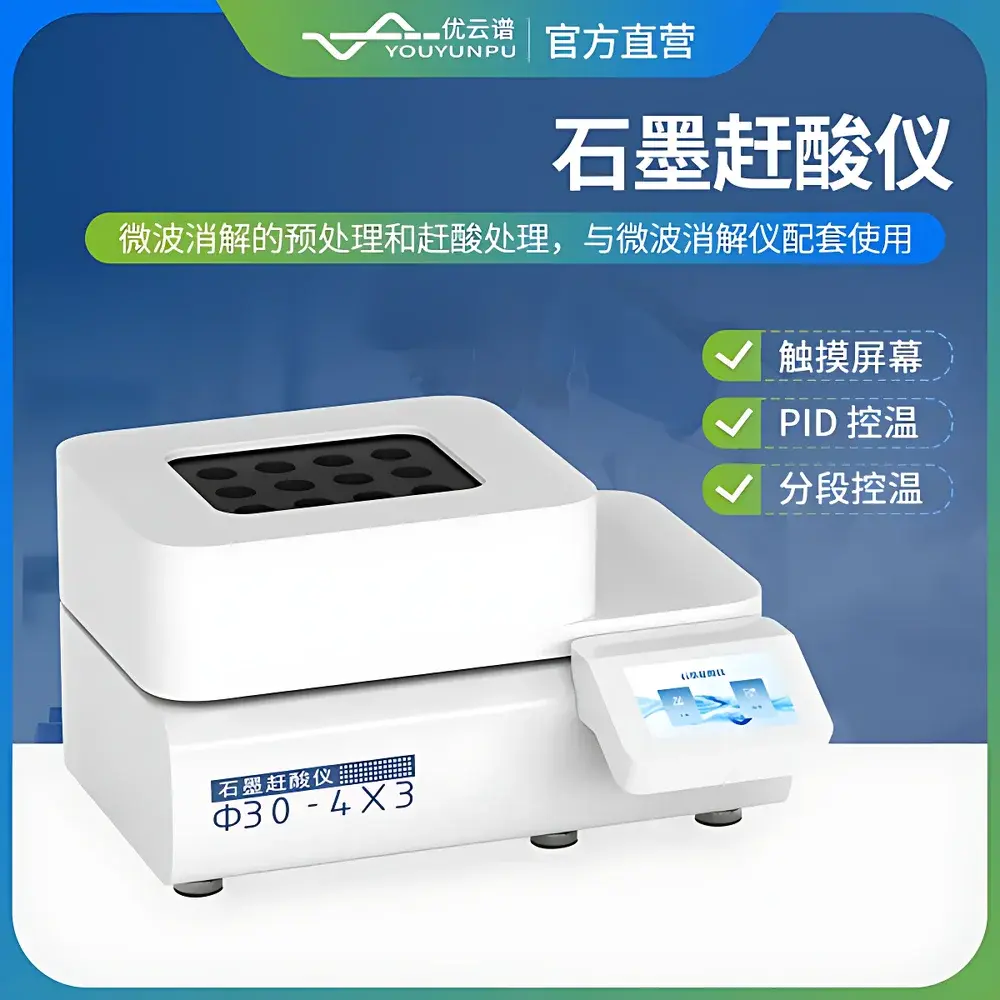

The Youyunpu YP-GS04 Graphite Acid Evaporation System is a precision-controlled, benchtop thermal digestion accessory engineered for post-microwave acid digestion sample preparation. It operates on the principle of uniform conductive heating via high-purity graphite blocks, enabling controlled, low-temperature evaporation (or “acid removal”) of residual nitric, hydrochloric, and perchloric acids from digested samples. Unlike open-vessel hot plates or ceramic heaters, the YP-GS04 delivers spatially homogeneous thermal profiles across all sample positions—critical for trace metal analysis where analyte volatility, contamination risk, and matrix effects must be minimized. Designed explicitly as a complementary unit to microwave digestion systems, it supports standardized workflows aligned with EPA Method 3050B, ISO 11885, and ASTM D5682 for environmental and biological matrices, as well as USP <231> and ICH Q2(R2) guidelines for pharmaceutical elemental impurities testing.

Key Features

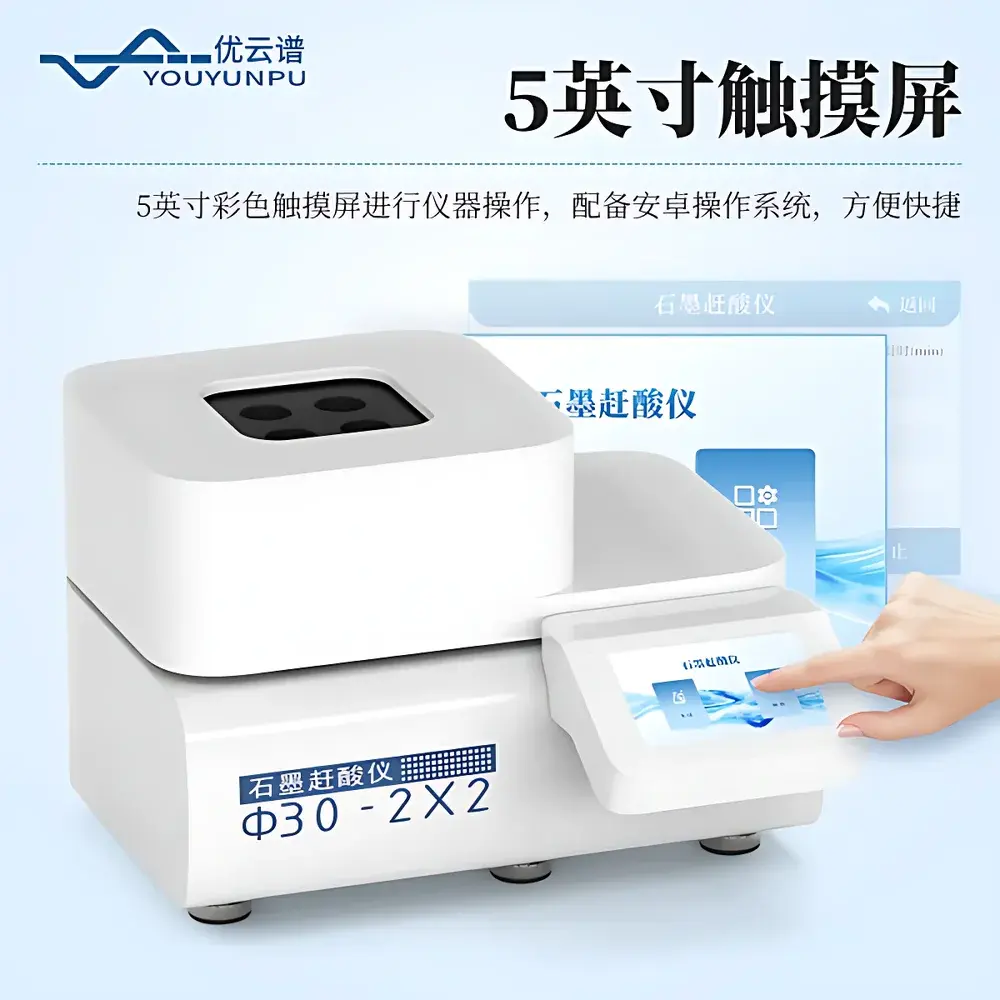

• 5-inch full-color capacitive touchscreen interface running a customized Android-based OS—enabling intuitive navigation, real-time temperature monitoring, and parameter logging without external PCs.

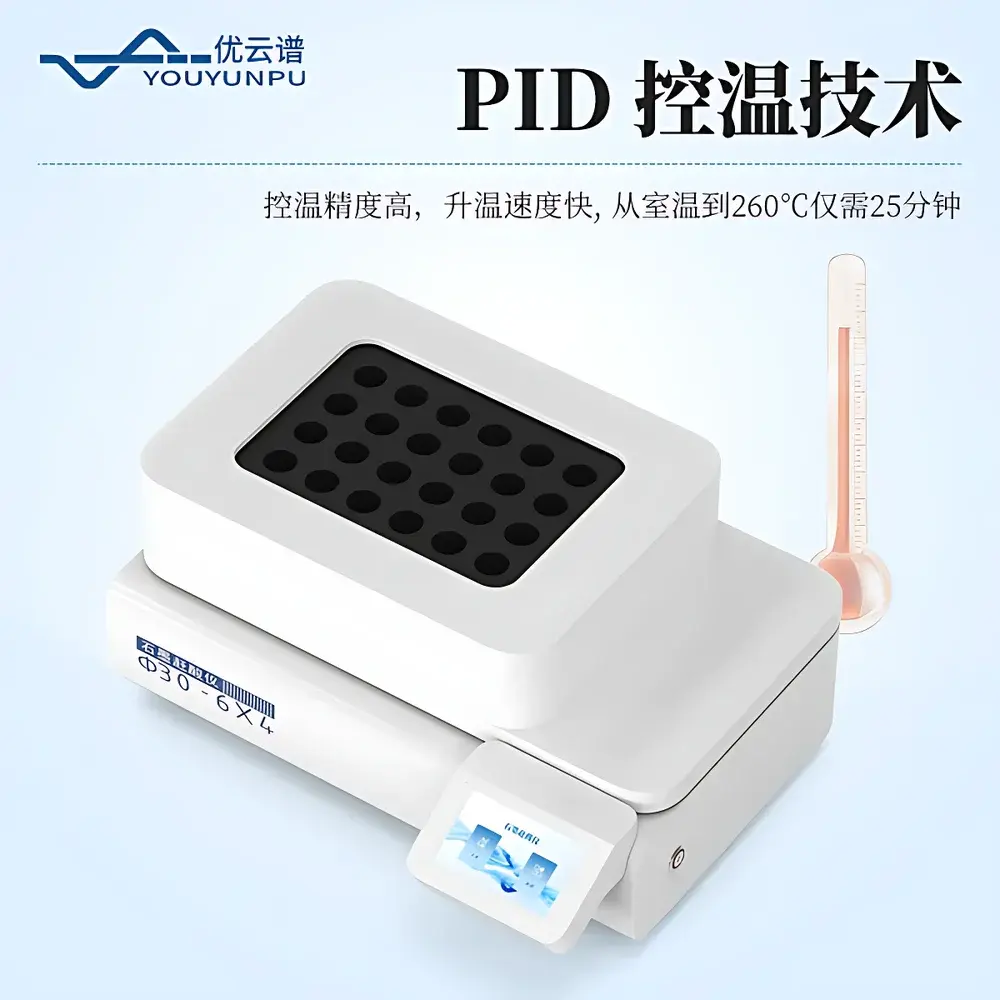

• PID-driven temperature control with ±0.5 °C accuracy over the operational range (room temperature to 260 °C); achieves 260 °C in ≤25 minutes from ambient under standard load conditions.

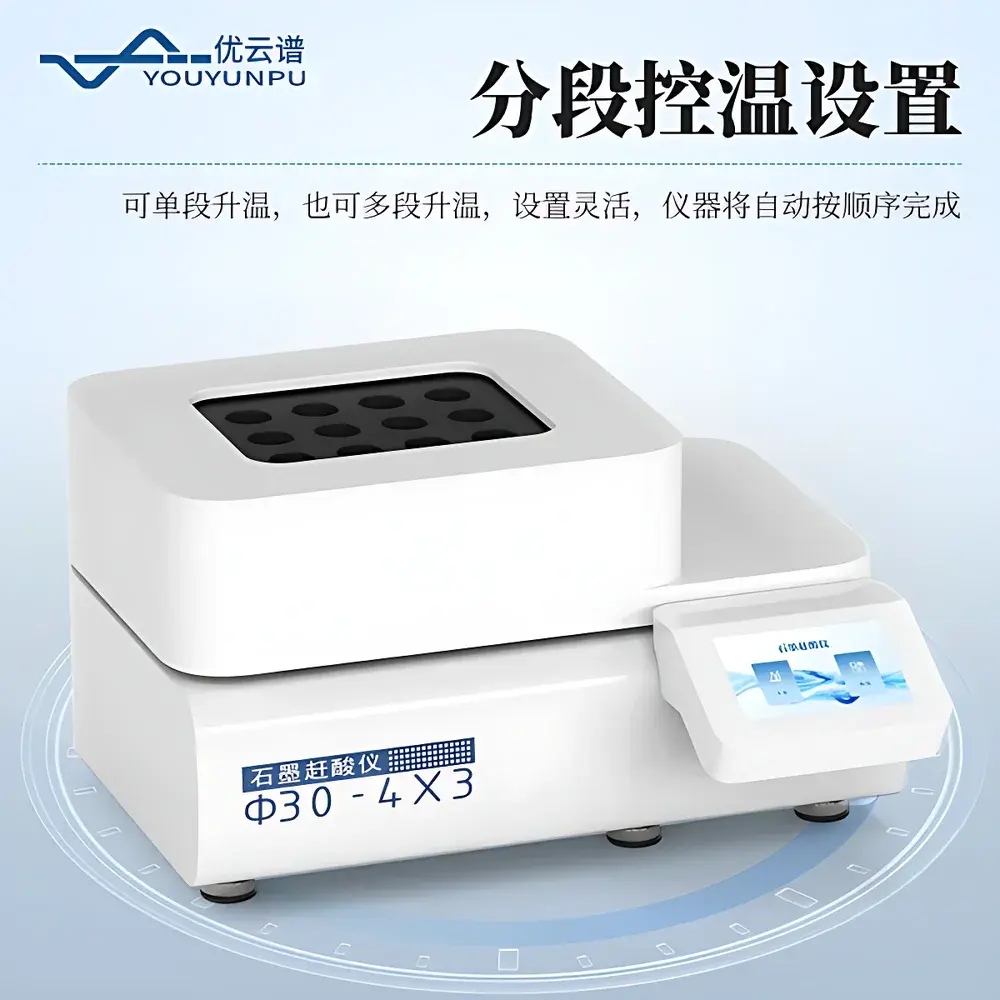

• Multi-segment programmable ramp-and-hold protocol support: users may define up to 5 independent temperature/time steps per run, with automatic sequential execution and hold termination triggers.
• Monolithic high-density graphite heating block with uniform thermal conductivity (≥120 W/m·K), minimizing inter-well temperature deviation to <±1.2 °C at 180 °C (n=12, measured per ISO/IEC 17025 calibration practice).
• Electrostatically applied PTFE (polytetrafluoroethylene) coating on all graphite surfaces—resistant to concentrated HNO₃, HCl, HF (≤5%), and aqua regia fumes; extends service life beyond 5,000 operational hours under routine QC use.
• Optimized cavity geometry and recessed well design reduce foaming and splashing during volatile acid removal—particularly beneficial for high-sugar, high-protein, or surfactant-containing samples (e.g., dairy, plant tissue, wastewater sludge).

Sample Compatibility & Compliance

The YP-GS04 accommodates standard 50 mL PTFE, quartz, or borosilicate glass digestion tubes (diameter: 28–32 mm). Its thermal stability and corrosion resistance make it suitable for digestates derived from food, clinical, soil, sediment, sludge, polymer, and pharmaceutical samples. The system complies with GLP documentation requirements through onboard event logging (date/time-stamped setpoints, actual temperatures, runtime, error codes). While not certified to IEC 61000-6-3 or UL 61010-1 out-of-the-box, its electrical architecture conforms to Class I safety principles and includes overtemperature cut-off (280 °C hardware limit), ground-fault protection, and thermal insulation meeting EN 60529 IP20 enclosure standards.

Software & Data Management

The embedded Android OS stores up to 1,000 complete method records locally, including user ID, method name, segment parameters, start/end timestamps, and peak temperature history. Data export is supported via USB flash drive (CSV format) for integration into LIMS or ELN platforms. Audit trails meet FDA 21 CFR Part 11 foundational requirements—including electronic signature placeholders, operator authentication (PIN-based), and immutable log entries. No cloud connectivity or remote access is implemented, preserving data sovereignty in regulated environments.

Applications

• Acid removal prior to analysis by Flame Atomic Absorption Spectrometry (FAAS), Graphite Furnace AAS (GFAAS), Hydride Generation AFS (HG-AFS), and Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES).
• Pre-concentration of trace metals (e.g., Pb, Cd, As, Hg, Cr) in EPA 6020B-compliant environmental digests.
• Residual acid neutralization in pharmacopeial heavy metal tests (USP <231>, Ph. Eur. 2.4.8).
• Routine QA/QC in food safety labs performing multi-element analysis per GB 5009.12–2023 or AOAC 999.10.
• Method development for high-viscosity or foaming-prone matrices requiring gentle, staged evaporation profiles.

FAQ

What sample tube types are compatible with the YP-GS04?
Standard 50 mL digestion tubes made of PTFE, quartz, or borosilicate glass (outer diameter 28–32 mm) fit securely into the graphite block wells.
Does the system support GLP-compliant data archiving?
Yes—onboard logging captures method parameters, timestamps, and thermal profiles; CSV exports enable traceable transfer to validated LIMS or ELN systems.
Can the YP-GS04 be used without a microwave digester?
It is optimized for post-digestion acid evaporation but may also serve as a stand-alone graphite heater for controlled drying or low-temperature ashing when paired with appropriate vessels and SOPs.
Is PTFE coating resistant to hydrofluoric acid (HF)?
The coating resists HF concentrations ≤5% v/v; prolonged exposure to >5% HF or anhydrous HF is not recommended and will degrade the surface layer.
What maintenance is required for long-term performance?
Monthly visual inspection of PTFE integrity, annual verification of PID calibration against NIST-traceable reference thermometers, and cleaning of exterior surfaces with isopropanol—no lubrication or internal servicing is required.
