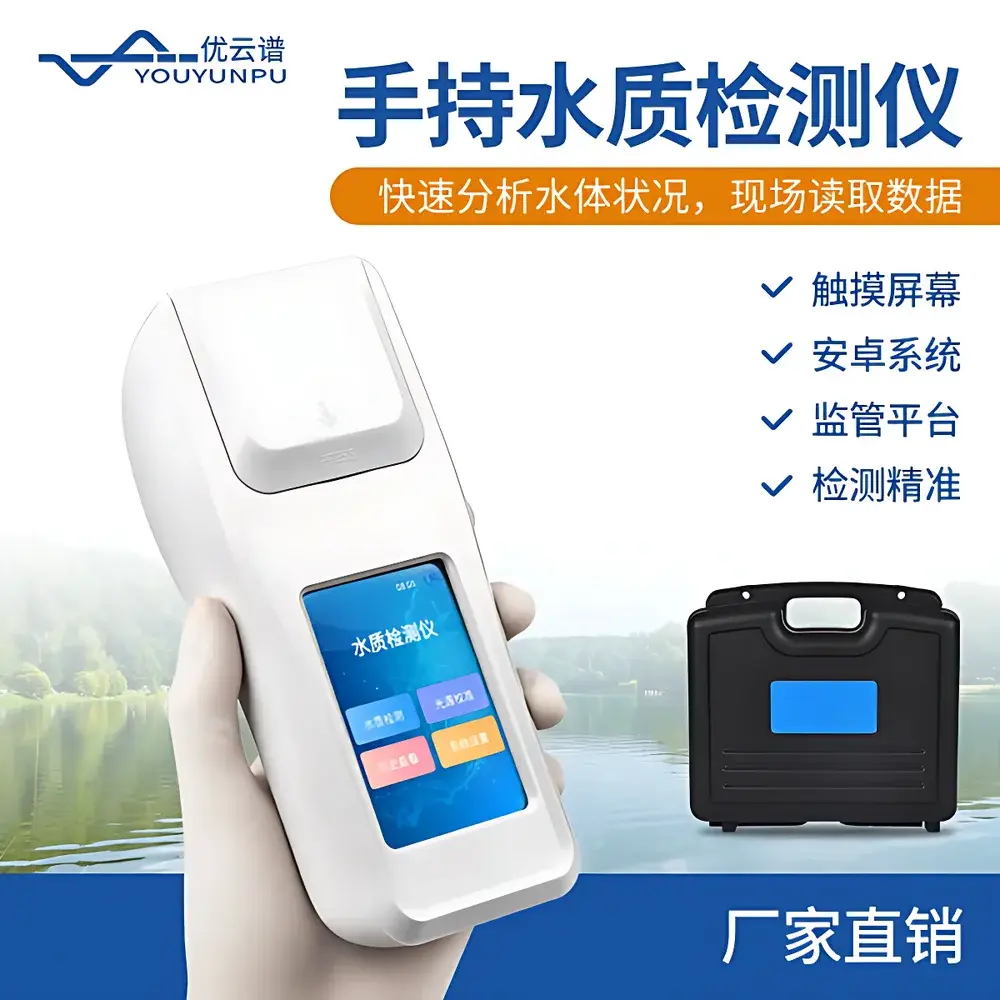

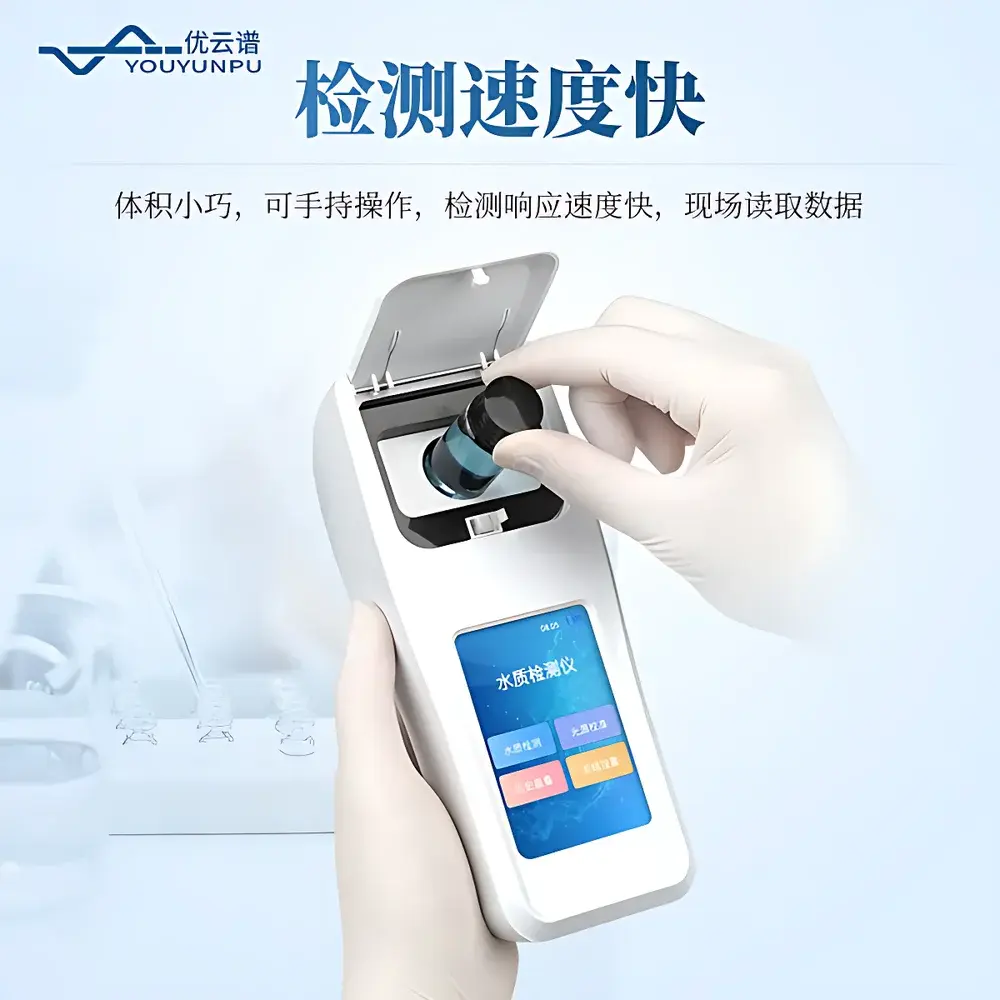

Youyunpu YP-S60 Portable Multi-Parameter Water Quality Analyzer

Overview

The Youyunpu YP-S60 Portable Multi-Parameter Water Quality Analyzer is a field-deployable spectrophotometric instrument engineered for rapid, on-site quantification of critical physicochemical water quality parameters. It operates on the principle of visible-light absorption spectroscopy—where analyte-specific colorimetric reactions generate absorbance signals proportional to concentration across a calibrated 420–680 nm spectral range. Unlike benchtop lab spectrometers, the YP-S60 integrates pre-optimized reagent chemistry with embedded optical path control and temperature-compensated photodetection to deliver laboratory-grade reproducibility in handheld form. Designed for routine monitoring rather than research-grade speciation, it targets compliance-driven applications where regulatory thresholds (e.g., WHO drinking water guidelines, EPA Clean Water Act discharge limits, or ISO 14001 environmental management system verification) require consistent, auditable measurements under variable ambient conditions.

Key Features

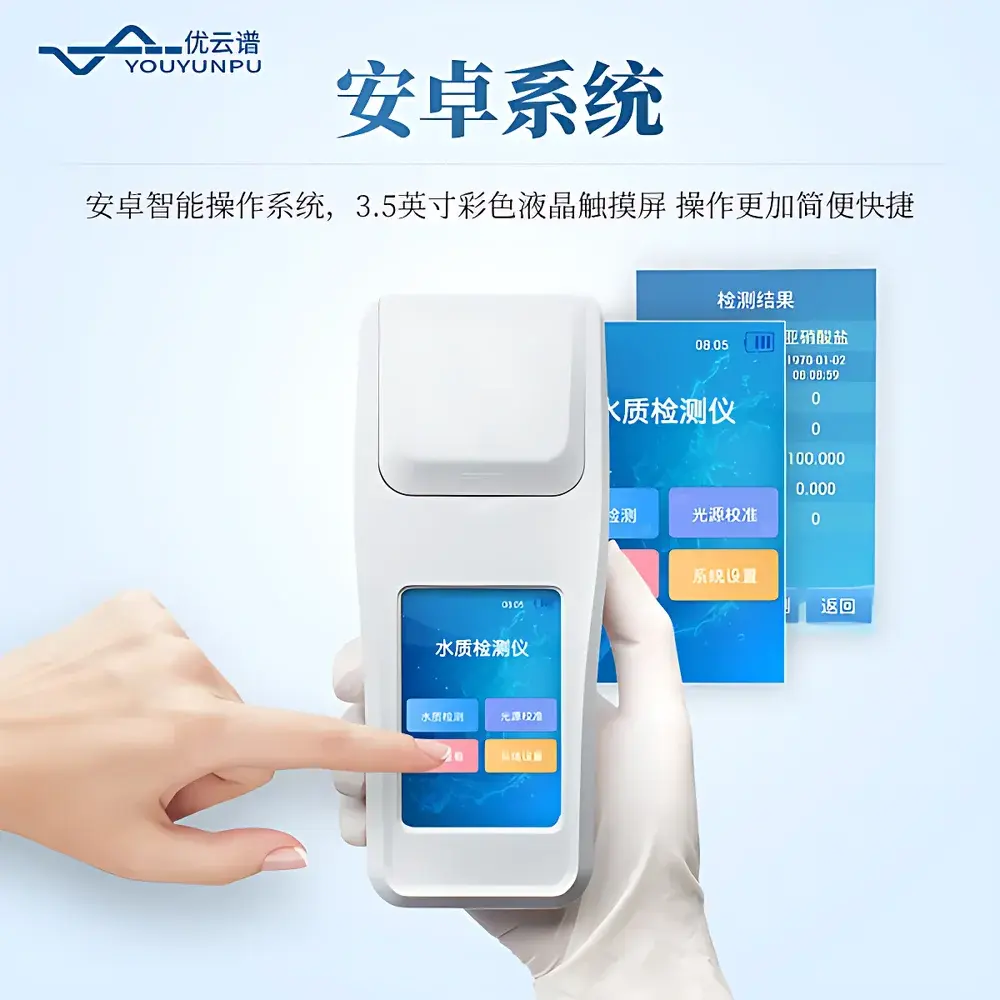

• Integrated Android-based operating system (Android 9.0, quad-core Cortex-A53, 2 GB RAM / 16 GB storage) enabling intuitive touchscreen navigation, real-time data visualization, and offline method execution without cloud dependency.
• Dual-power architecture: rechargeable lithium-ion battery (≥8 hours continuous operation at 25 °C) plus universal AC adapter—certified to IEC 62133 for safe field deployment in humid or dusty environments.

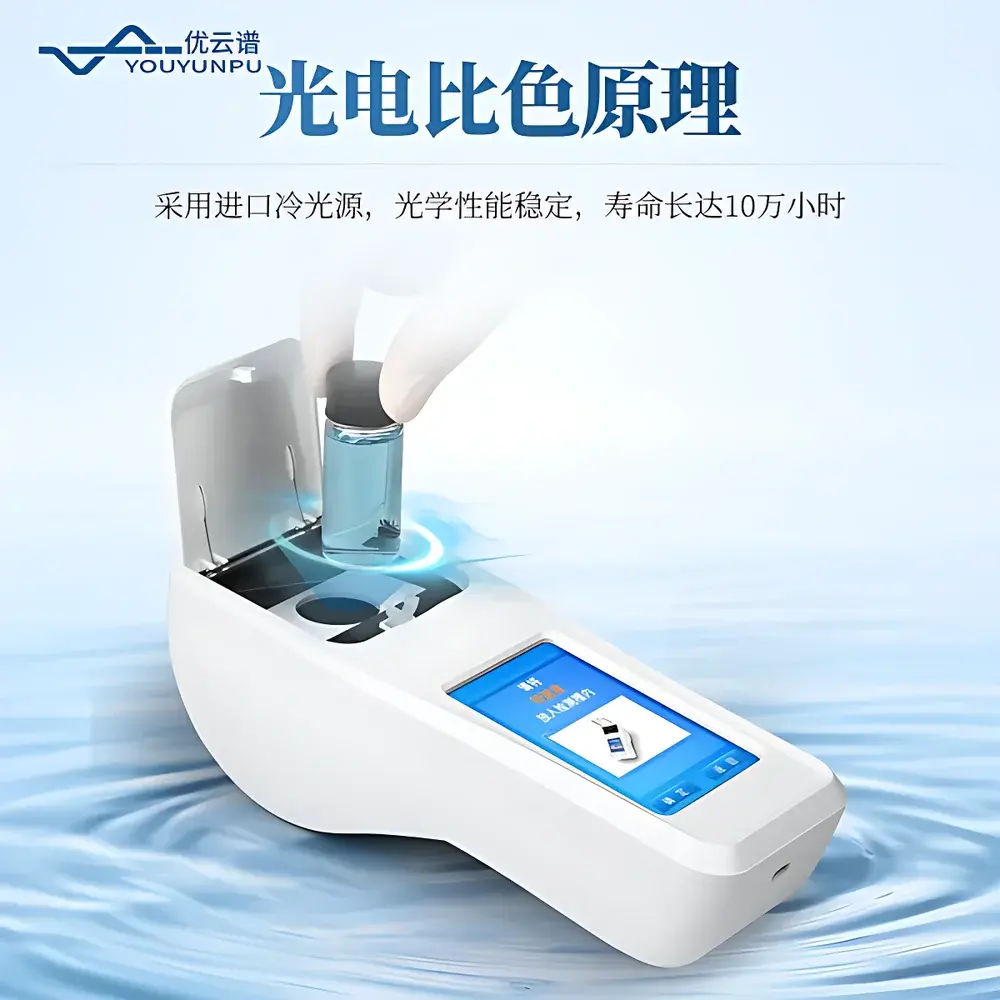

• Optical subsystem featuring imported cold LED light sources with spectral stability ±0.5 nm over 100,000 h lifetime; no warm-up delay required between measurements.
• Pre-programmed calibration curves for 21 parameters—including NH₃-N (0–10 mg/L), NO₂⁻ (0–3 mg/L), free chlorine (0–5 mg/L), pH (0.00–14.00), DO (0.00–20.00 mg/L), and salinity (0.00–50.00 ppt)—all traceable to NIST-traceable standard solutions.
• Ruggedized IP65-rated enclosure with rubberized grip, shock-absorbing corners, and anti-glare display—tested per MIL-STD-810G for drop resistance (1.2 m onto concrete).
• Onboard data logging capacity for ≥10,000 test records with timestamp, GPS coordinates (via optional external Bluetooth GNSS module), operator ID, and QC flagging (e.g., “calibration expired”, “reagent lot mismatch”).

Sample Compatibility & Compliance

The YP-S60 accepts aqueous samples from natural surface waters, wastewater effluents, recirculating aquaculture systems, potable distribution networks, and swimming pool circuits. Sample volume requirements range from 5 mL (for pH/conductivity modules) to 25 mL (for colorimetric assays). All test protocols align with established regulatory frameworks: ammonia and nitrite methods conform to EPA Method 350.1 and 354.1; phosphate analysis follows EPA 365.3; free chlorine adheres to Standard Methods 4500-Cl G; and pH measurement satisfies ASTM D1293. The device supports GLP-compliant workflows via mandatory electronic signature capture, audit trail generation (per 21 CFR Part 11 Annex 11 principles), and encrypted SD-card export for third-party LIMS integration.

Software & Data Management

Firmware v3.2 includes native support for CSV/Excel export, QR-code-based report sharing, and secure Wi-Fi/Bluetooth 5.0 transmission to Youyunpu’s cloud-based WaterGuard™ Supervisory Platform (optional subscription). Platform features include automated trend analysis, threshold-based SMS/email alerts, multi-site dashboard aggregation, and customizable PDF certificate generation with digital watermarking. Local software permits user-defined method creation using absorbance-concentration regression models, provided validation documentation (linearity R² ≥ 0.995, LOD ≤ 3×SDblank) is archived per ISO/IEC 17025 Clause 7.7.

Applications

• Wastewater treatment plants: daily effluent screening for NH₃-N, NO₂⁻, and residual chlorine prior to discharge reporting.
• Aquaculture operations: real-time DO and pH monitoring during feeding cycles to prevent hypoxia-induced mortality.
• Municipal water utilities: spot-checking of distribution system endpoints for free chlorine decay and alkalinity buffering capacity.
• Environmental agencies: field verification of riverine nutrient loading (phosphate, nitrite) during seasonal bloom surveillance programs.
• Recreational facility management: compliance verification against CDC Model Aquatic Health Code (MAHC) standards for pool/spa water quality.
• Academic teaching labs: hands-on instruction in colorimetric assay fundamentals, Beer-Lambert law application, and QA/QC protocol implementation.

FAQ

Is the YP-S60 compliant with ISO/IEC 17025 for accredited testing laboratories?

The instrument itself is not accredited, but its measurement procedures—when executed within validated SOPs, traceable calibrations, and documented uncertainty budgets—support ISO/IEC 17025 Clause 7.2.1 implementation.
Can reagent kits from other manufacturers be used with the YP-S60?

No. Only Youyunpu-certified reagent lots (with unique QR-coded lot tracking) are supported to ensure optical path alignment and algorithmic compensation for batch-to-batch chromophore variability.
What is the recommended calibration frequency for field use?

Zero-point and span calibration required before each sampling shift; full multi-point verification recommended weekly using certified reference materials (CRM) supplied by Youyunpu.
Does the device support Bluetooth printer output?

Yes—via standard RFCOMM profile; compatible with Zebra ZQ510 and Brother QL-720NW portable thermal printers for immediate hard-copy field reports.
How is data integrity ensured during wireless transmission?

All Wi-Fi/Bluetooth transfers use TLS 1.2 encryption; platform-side ingestion enforces SHA-256 hash validation and automatic rejection of tampered payloads.
