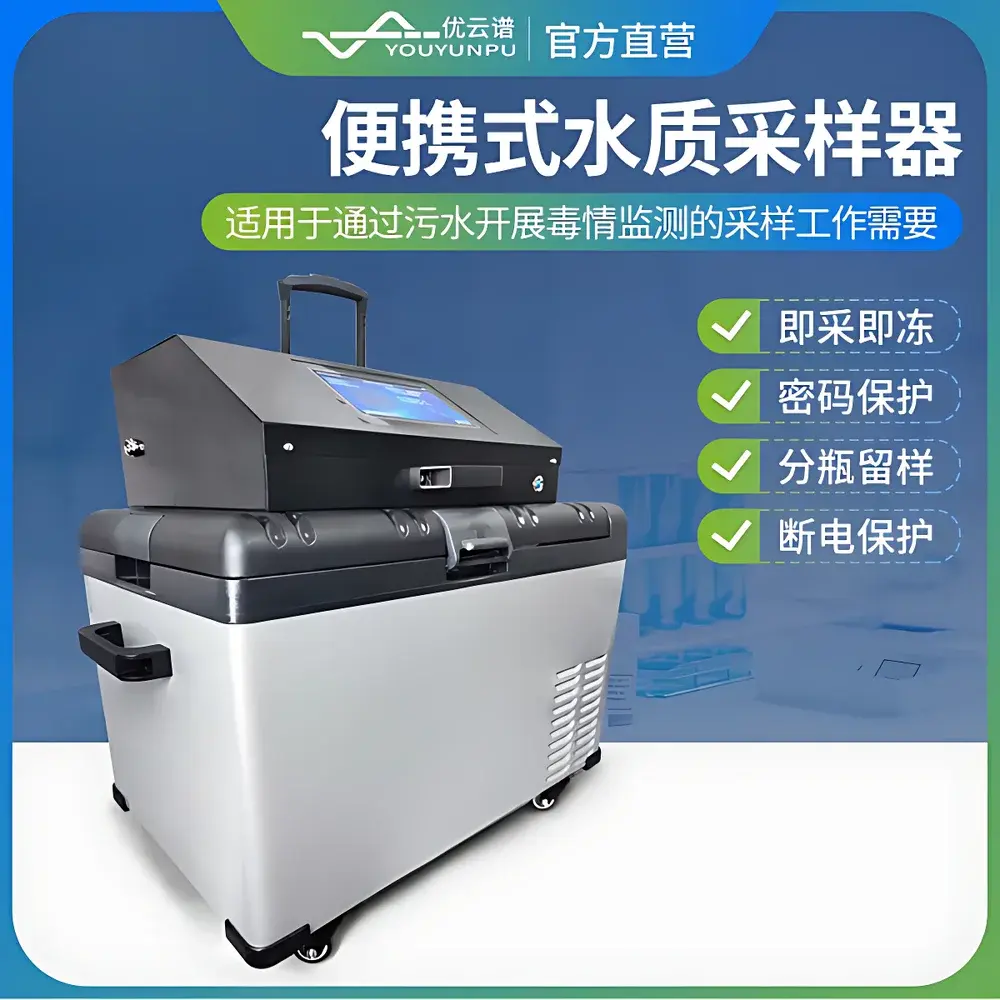

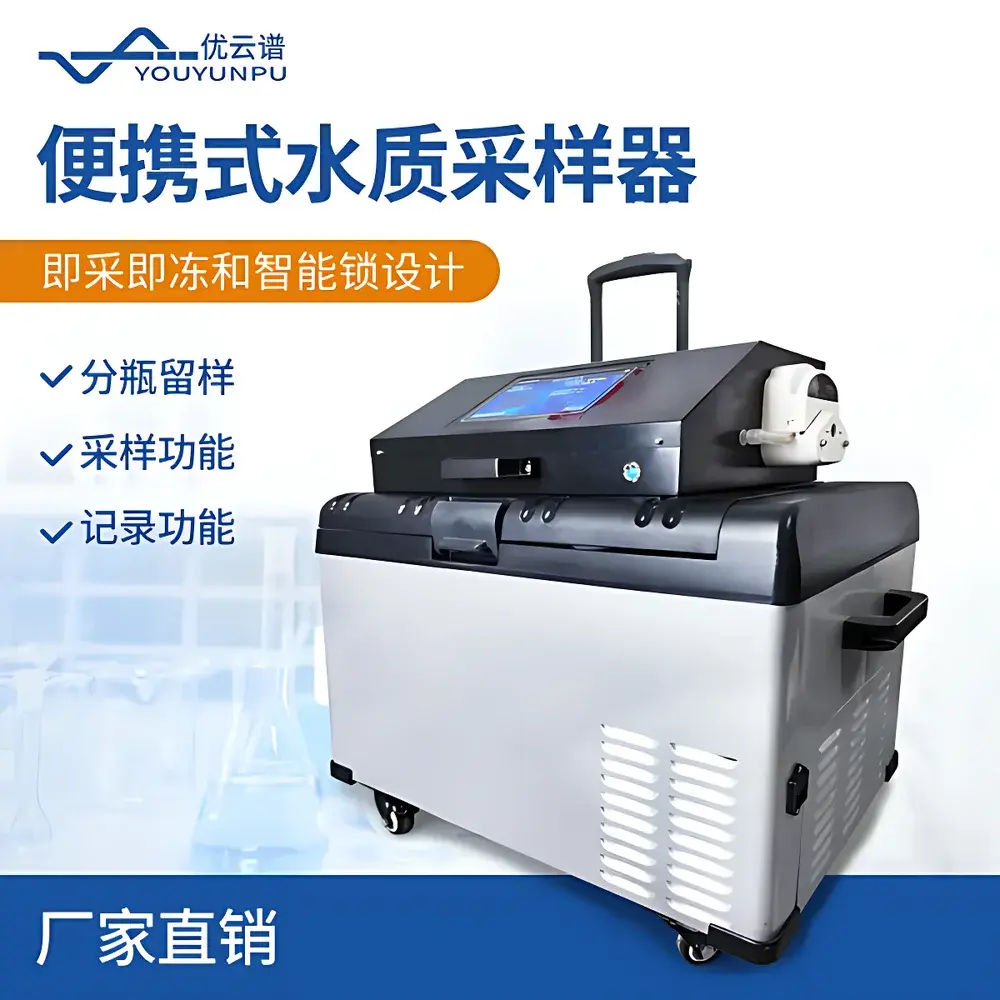

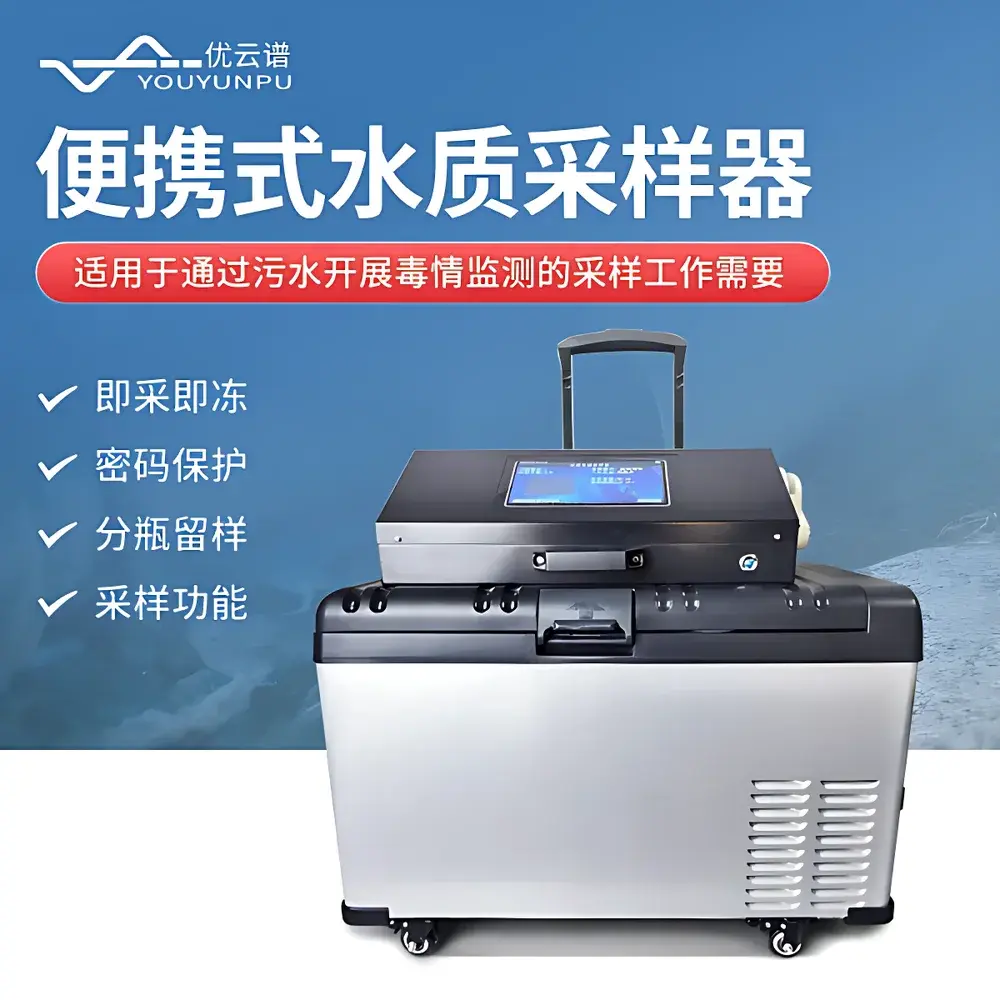

Youyunpu YP-SZA Portable Proportional Water Sampler

Overview

The Youyunpu YP-SZA Portable Proportional Water Sampler is an engineered field-deployable instrument designed for automated, representative water sampling in municipal wastewater, industrial effluent, and environmental surveillance applications—particularly where forensic-level sample integrity is critical, such as wastewater-based epidemiology (WBE) and narcotics monitoring programs. It operates on the principle of flow-proportional and time-proportional sampling, ensuring statistically valid composite representation of dynamic discharge streams over extended periods. Unlike fixed-station samplers, its portable architecture enables rapid deployment across multiple sampling points without infrastructure dependency. The integrated refrigerated storage module maintains collected samples at 0–4 °C (±1.5 °C), suppressing microbial activity and minimizing analyte degradation—key requirements for trace-level detection of illicit drugs, pharmaceuticals, and priority pollutants under ISO 5667-10 and EPA Method 1694 protocols.

Key Features

• Multi-Mode Proportional Sampling: Supports time-proportional (programmable interval from 1 to 9999 minutes), flow-proportional (triggered by analog 4–20 mA flow meter signal), external trigger (dry contact or analog threshold), and serial command-driven sampling via RS485 interface.
• 12-Bottle Fractional Storage: Configurable bottle selection (1–12 bottles); each 1000 mL HDPE or glass bottle accommodates 10–1000 mL aliquots with ±10% volumetric accuracy at 200 mL nominal volume.
• Onboard Data Logging: Stores up to 1000 event records including bottle ID, timestamp, sample volume, and optional auxiliary parameters (e.g., real-time COD/NH₃-N if interfaced with compatible sensors).
• Cold Chain Integrity: High-efficiency thermoelectric cooling sustains 0–4 °C storage throughout sampling campaigns; temperature stability complies with WHO/UNODC guidelines for forensic wastewater analysis.
• Field-Ready Robustness: IP54-rated enclosure; self-priming diaphragm pump with ≥8 m suction lift and ≥60 m horizontal transfer capability; air-tight fluid path (≤−0.07 MPa vacuum retention) prevents cross-contamination and sediment buildup.
• Fault-Resilient Operation: Non-volatile memory retains all configuration and calibration data during power interruption; automatic recovery to pre-failure state upon re-energization; auto-purge cycle clears residual water from tubing post-sampling.
• Security & Compliance Safeguards: Password-protected parameter access; tamper-evident mechanical lock; audit-ready logging with timestamped user actions—supporting GLP-aligned workflows and internal QA/QC documentation.

Sample Compatibility & Compliance

The YP-SZA is validated for use with municipal sewage, industrial process effluents, surface runoff, and combined sewer overflows. Its chemically inert wetted path (EPDM tubing, stainless-steel pump head, PTFE valves) ensures compatibility with pH 4–10 aqueous matrices containing suspended solids ≤50 mg/L. The system meets structural and electrical safety requirements per IEC 61000-6-2 (EMC immunity) and IEC 61010-1 (safety for laboratory equipment). While not certified to UL/CE for permanent installation, its design aligns with ASTM D3370 (Standard Practices for Sampling Water) and supports compliance with ISO/IEC 17025 clause 7.5.2 (sample handling) when operated within specified environmental limits (10–40 °C ambient, ≤85% RH).

Software & Data Management

Data export is supported via USB mass storage or RS485 Modbus RTU protocol. Logged events—including bottle assignment, sampling time, volume dispensed, and external trigger status—are stored in CSV-compatible format with ISO 8601 timestamps. No proprietary software is required; raw logs integrate directly into LIMS platforms or custom Python/R analysis pipelines. Optional firmware updates maintain alignment with evolving regulatory reporting formats (e.g., China’s HJ 353–2019, EU WFD Annex V reporting structures). All configuration changes are logged with user ID (if enabled) and timestamp, satisfying basic FDA 21 CFR Part 11 traceability expectations for non-GxP field use.

Applications

• Wastewater-based epidemiology (WBE) for community-level drug consumption monitoring (e.g., cocaine, methamphetamine, opioids)
• Regulatory compliance sampling at municipal wastewater treatment plant (WWTP) influent/effluent points
• Industrial pretreatment program verification under local discharge ordinances
• Emergency response sampling during chemical spills or illicit discharge investigations
• Research-grade longitudinal studies requiring temporally resolved, refrigerated composite samples
• Calibration validation of online water quality sensors (e.g., UV-Vis COD/NH₃-N analyzers)

FAQ

What sampling modes does the YP-SZA support?
It supports five operational modes: scheduled time-based sampling, time-proportional sampling, flow-proportional sampling (via 4–20 mA input), external digital/analog trigger, and RS485 serial command control.
Can the instrument operate unattended for extended periods?
Yes—designed for continuous field deployment up to 1440 hours (60 days) mean time between failures, with battery backup optional for critical off-grid sites.
Is the refrigeration system reliable under high ambient temperatures?
The thermoelectric cooler maintains 0–4 °C internal chamber temperature when ambient conditions remain within 10–40 °C and relative humidity ≤85% RH.
How is sample integrity ensured during transport after collection?
Each bottle is sealed mechanically post-filling; the insulated cold chamber retains target temperature for ≥4 hours without power, facilitating secure handover to accredited laboratories.
Does the device support integration with SCADA or telemetry systems?
Yes—RS485 Modbus RTU interface allows bidirectional communication with PLCs, RTUs, and central monitoring platforms for remote status polling and parameter adjustment.
