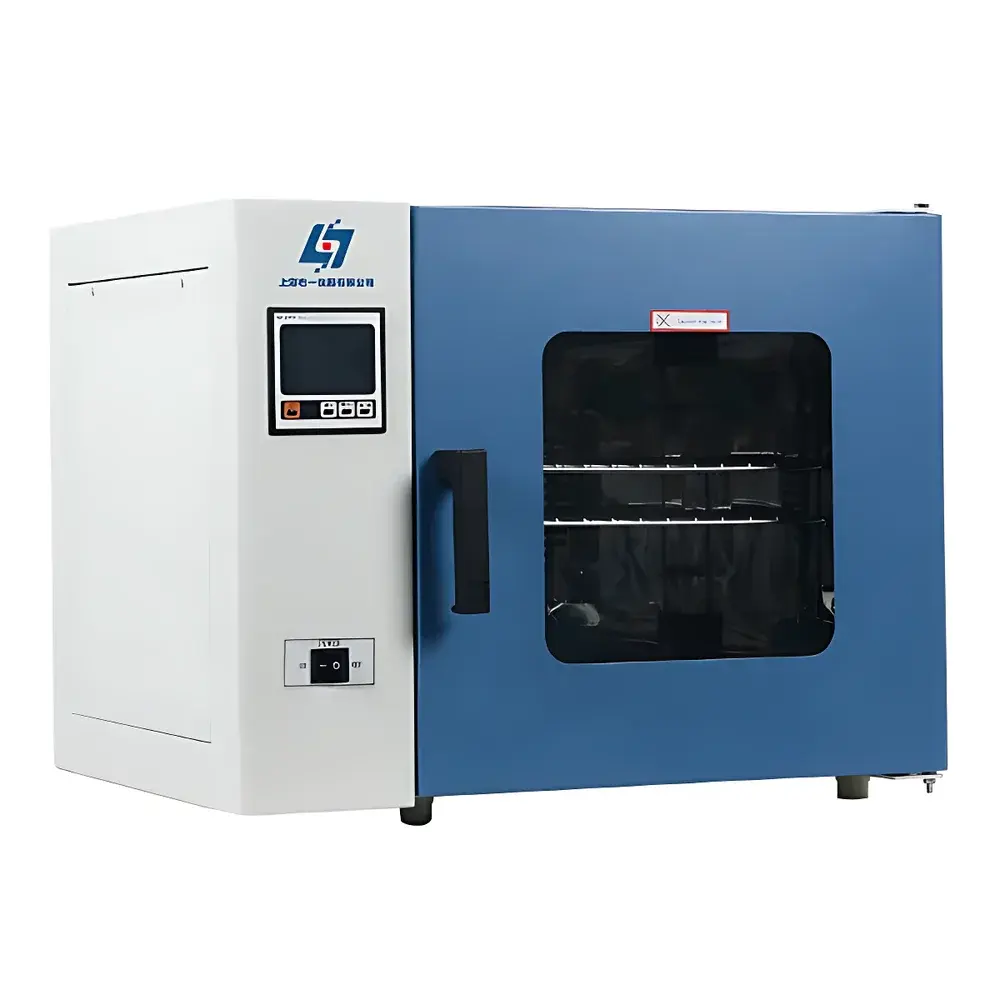

Yoyilab DHG-9053A Precision Forced-Air Constant-Temperature Drying Oven

Overview

The Yoyilab DHG-9053A is a precision forced-air constant-temperature drying oven engineered for reproducible thermal processing in research laboratories, quality control environments, and industrial R&D settings. It operates on the principle of convective heat transfer via a balanced, rear-mounted air circulation system—featuring an axial fan, optimized duct geometry, and symmetrical inlet/outlet ports—to ensure uniform thermal distribution across the working chamber. Unlike natural convection ovens, this design actively homogenizes temperature gradients, minimizing spatial deviation and enhancing process repeatability. The unit meets the technical requirements of GB/T 30435–2013, the national standard governing performance evaluation of electric heating drying and forced-air drying ovens in China, including specifications for temperature stability, uniformity, recovery time, and safety interlocks. Its operational envelope—spanning ambient +10°C to 280°C—supports applications ranging from moisture removal and polymer curing to pre-sterilization conditioning and accelerated aging tests.

Key Features

• Microprocessor-based PID temperature controller with 0.1°C resolution, real-time digital display, and programmable ramp-soak profiles (via optional multi-segment controller)
• Forced-air circulation architecture with rear-mounted centrifugal blower and dual-directional airflow channels, achieving ≤±2.5% temperature uniformity at 100°C (per GB/T 30435–2013 test protocol)

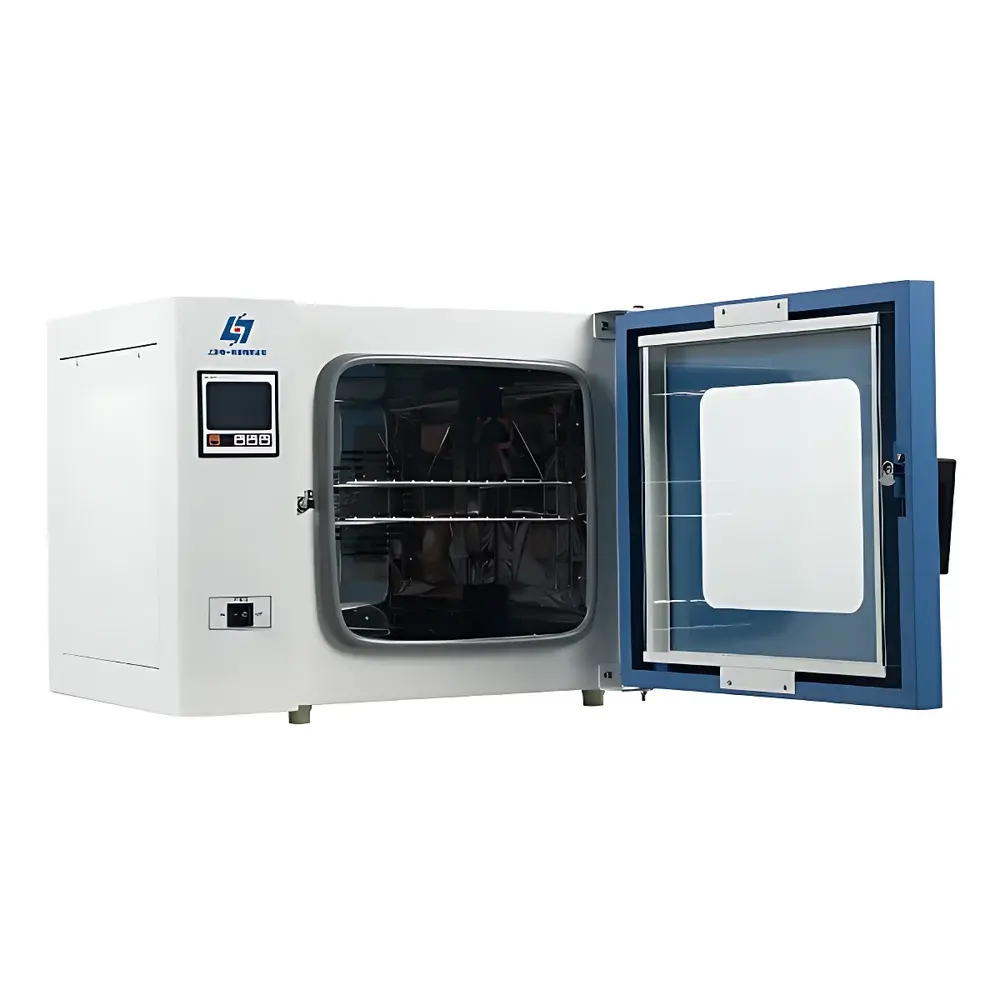

• Double-layer tempered glass observation window with silicone-gasketed door seal, enabling non-intrusive monitoring without thermal disturbance
• Mirror-finish 304 stainless steel interior chamber and adjustable stainless steel shelving (2 standard trays), resistant to corrosion and easy to decontaminate
• Robust cold-rolled steel exterior with epoxy-polyester powder coating for mechanical durability and chemical resistance
• Independent over-temperature cut-off circuit (optional) compliant with IEC 61000-4-2 ESD immunity and EN 60519-2 safety standards for thermal equipment
• Integrated power failure recovery function: retains set parameters—including target temperature, timer status, and alarm thresholds—after unexpected shutdown

Sample Compatibility & Compliance

The DHG-9053A accommodates a broad range of sample types, including but not limited to: biological specimens (pre-drying prior to lyophilization), pharmaceutical excipients, polymer pellets, ceramic green bodies, electronic components (e.g., PCB preconditioning), and agricultural samples for moisture content analysis (AOAC 950.46). Its stainless steel chamber and absence of volatile organic coatings make it suitable for GLP-compliant environments where material compatibility and traceability are critical. While not certified to ISO/IEC 17025 or FDA 21 CFR Part 11 out-of-the-box, the optional RS485 interface supports integration into validated data acquisition systems when paired with audit-trail-capable software. All electrical design conforms to GB 4793.1–2019 (equivalent to IEC 61010-1), ensuring protection against electric shock, fire hazard, and mechanical instability under normal and single-fault conditions.

Software & Data Management

The standard configuration includes local parameter logging via the built-in LCD interface, displaying current temperature, setpoint, elapsed time, and remaining hold duration. For extended traceability, optional accessories enable external data capture: an embedded thermal printer provides hard-copy records of temperature vs. time (with timestamp and operator ID fields); the RS485 port—when used with Modbus RTU protocol—allows bidirectional communication with SCADA platforms or LIMS systems. When deployed in regulated environments, users may configure the optional multi-segment programmable controller (up to 30 segments) to enforce SOP-defined thermal cycles, with event-triggered alarms logged to non-volatile memory. All firmware updates are performed via USB port using signed binaries to maintain integrity per IEC 62443-3-3 guidelines.

Applications

• Moisture content determination in food, feed, and soil samples per AOAC, ASTM D445 or ISO 712 methodologies
• Pre-conditioning of composite materials and adhesives prior to tensile or peel testing (ASTM D638, D903)
• Drying of filter papers, crucibles, and volumetric glassware in analytical chemistry workflows
• Thermal stabilization of reference standards and calibration artifacts before gravimetric analysis
• Baking of thin-film coatings and photoresists in microfabrication support labs
• Accelerated shelf-life testing of packaging materials under controlled thermal stress (ISO 11607-1 Annex B)
• Pre-sterilization drying of surgical instruments and labware in ISO 13485-certified facilities

FAQ

What is the maximum operating temperature and its certified accuracy?
The DHG-9053A is rated for continuous operation up to 280°C. Temperature accuracy is ±1°C (fluctuation) and uniformity is ±2.5% at 100°C, verified per GB/T 30435–2013 under no-load, static ambient conditions (20°C, 50% RH).
Can this oven be used under inert atmosphere conditions?
Yes—when equipped with the optional inert gas inlet kit (including stainless steel quick-connect fitting and calibrated rotameter), nitrogen or argon can be introduced to suppress oxidation during thermal treatment of sensitive metals or battery electrode materials.
Is the unit compatible with laboratory information management systems (LIMS)?
With the RS485 interface option and appropriate middleware, temperature logs and alarm events can be exported in CSV or XML format for ingestion into LIMS or ELN platforms supporting Modbus RTU or custom TCP/IP protocols.
How many shelves are included, and are additional ones available?
Two adjustable stainless steel shelves are supplied as standard. Additional shelves (part number YO-DHG-SH-304-420) are available separately and designed for load capacity up to 15 kg per shelf.
Does the oven support validation documentation (IQ/OQ/PQ)?
While the base unit does not ship with vendor-issued validation protocols, Yoyilab provides technical drawings, calibration certificates for the integrated PT100 sensor, and electrical safety test reports—serving as foundational inputs for customer-led IQ/OQ execution per GAMP 5 principles.
