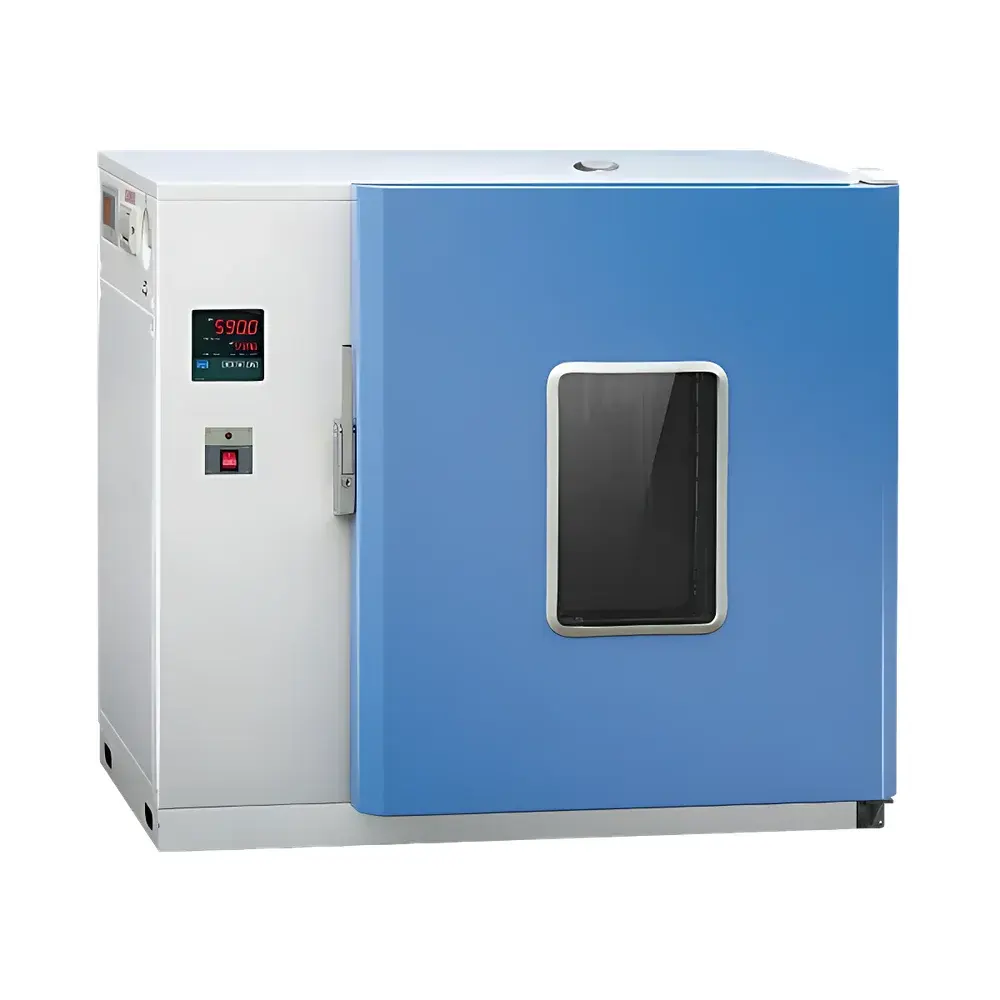

YSEI CS101-3ABN Forced-Air Laboratory Drying Oven

Overview

The YSEI CS101-3ABN Forced-Air Laboratory Drying Oven is a precision-engineered thermal processing instrument designed for consistent, repeatable drying, baking, sterilization, and temperature-stabilized testing in regulated laboratory environments. Utilizing a forced-air convection principle—where a calibrated axial fan circulates heated air uniformly across the chamber—the oven achieves high thermal stability and spatial homogeneity essential for quality-critical workflows. Its operational range spans from ambient +20°C to 250°C, making it suitable for applications requiring moderate-to-high temperature treatment without exceeding Class B oven safety thresholds. The unit complies with fundamental design requirements outlined in ISO 17025 for calibration traceability of temperature control systems and aligns with general-purpose thermal equipment expectations under ASTM E145 and IEC 61000-4-3 for electromagnetic compatibility in lab settings.

Key Features

• Mirror-finish SUS304 stainless steel interior chamber—resistant to corrosion, easy to clean, and compliant with GLP hygiene standards for repeated use in analytical and biological labs.
• Precision digital PID temperature controller with real-time display, enabling setpoint accuracy within ±1°C fluctuation and spatial uniformity maintained at ±2.5°C across the full working volume.
• Independent over-temperature cut-off protection circuit—hardware-based safety interlock that deactivates heating elements if chamber temperature exceeds user-defined or factory-set limits, satisfying IEC 61010-1 safety requirements.
• Forced-air circulation system with rear-mounted centrifugal blower ensures rapid heat recovery and minimizes thermal stratification, critical for batch consistency in moisture analysis (e.g., AOAC 950.46) or residual solvent removal.
• Two-tier adjustable stainless steel shelving system—load-rated for uniform weight distribution up to 15 kg per shelf, facilitating flexible sample arrangement without airflow obstruction.
• Robust structural frame with insulated double-wall construction (min. 80 mm mineral wool insulation) and silicone-sealed door gasket—reducing external surface temperature rise and improving energy efficiency during extended operation.

Sample Compatibility & Compliance

The CS101-3ABN accommodates standard laboratory glassware (e.g., weighing dishes, Petri dishes, desiccators), metal trays, ceramic crucibles, and polymer-based containers rated for continuous exposure up to 250°C. It supports routine protocols including gravimetric moisture determination (USP & EP methods), pre-conditioning of filters and membranes, thermal aging of polymers per ASTM D3045, and dry-heat sterilization validation per ISO 14937 Annex C. While not certified as a medical device sterilizer, its thermal performance meets baseline criteria for auxiliary sterilization steps in non-invasive device manufacturing environments. The unit operates within environmental specifications defined by ISO 14644-1 Class 8 cleanroom-compatible conditions (5–35°C ambient, ≤85% RH), and its electrical architecture conforms to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD).

Software & Data Management

This model features an embedded microcontroller-based interface with no external software dependency. All operational parameters—including set temperature, elapsed time, current chamber temperature, and fault codes—are displayed on a backlit LCD panel. Optional RS-485 Modbus RTU output (available upon request) enables integration into centralized lab monitoring systems for audit-ready data logging. When paired with third-party DAQ hardware and validated software (e.g., LabVIEW or Delta Tau PMAC), users may generate 21 CFR Part 11-compliant electronic records—including operator ID, timestamped temperature profiles, and deviation alerts—for GMP/GLP documentation. Calibration certificates traceable to NIM (China National Institute of Metrology) are provided with each unit shipment.

Applications

• Moisture content analysis in pharmaceutical excipients, food powders, and soil samples per ISO 5551 and AOAC Official Methods.
• Drying of chromatography sample vials, filtration membranes, and HPLC column packing materials prior to conditioning.
• Thermal stabilization of reference standards and calibration weights before metrological evaluation.
• Baking of printed circuit board (PCB) substrates and epoxy-coated components in electronics QA laboratories.
• Pre-heating of catalyst supports and ceramic monoliths in catalysis research workflows.
• Accelerated aging studies for packaging materials under controlled thermal stress (ASTM F1980).

FAQ

What is the maximum allowable operating temperature, and is it certified for 300°C?
The CS101-3ABN is rated for continuous operation up to 250°C. Although short-term excursions to 300°C are physically possible, such use voids warranty coverage and violates design safety margins defined in IEC 60519-1 for industrial heating equipment.
Can this oven be used for sterilization of surgical instruments?
No. This unit lacks validated cycle programming, steam generation, and pressure control required for medical device sterilization. It is intended only for dry-heat depyrogenation of glassware or auxiliary thermal treatment in non-sterile manufacturing zones.
Is the temperature sensor calibrated and traceable?
Yes. Each unit includes a factory-calibrated PT100 sensor with a certificate of calibration traceable to national standards (NIM, China). On-site recalibration services are available through authorized YSEI service centers.
Does the oven support data export for regulatory audits?
Standard configuration includes local display only. RS-485 Modbus RTU interface and compatible SCADA integration kits are available as optional accessories to support ALCOA+ data integrity principles in regulated environments.
What maintenance is required to sustain temperature accuracy?
Annual verification of chamber uniformity and controller response using NIST-traceable thermocouples is recommended. Door gasket integrity and fan motor lubrication should be inspected biannually per manufacturer’s maintenance log template.
