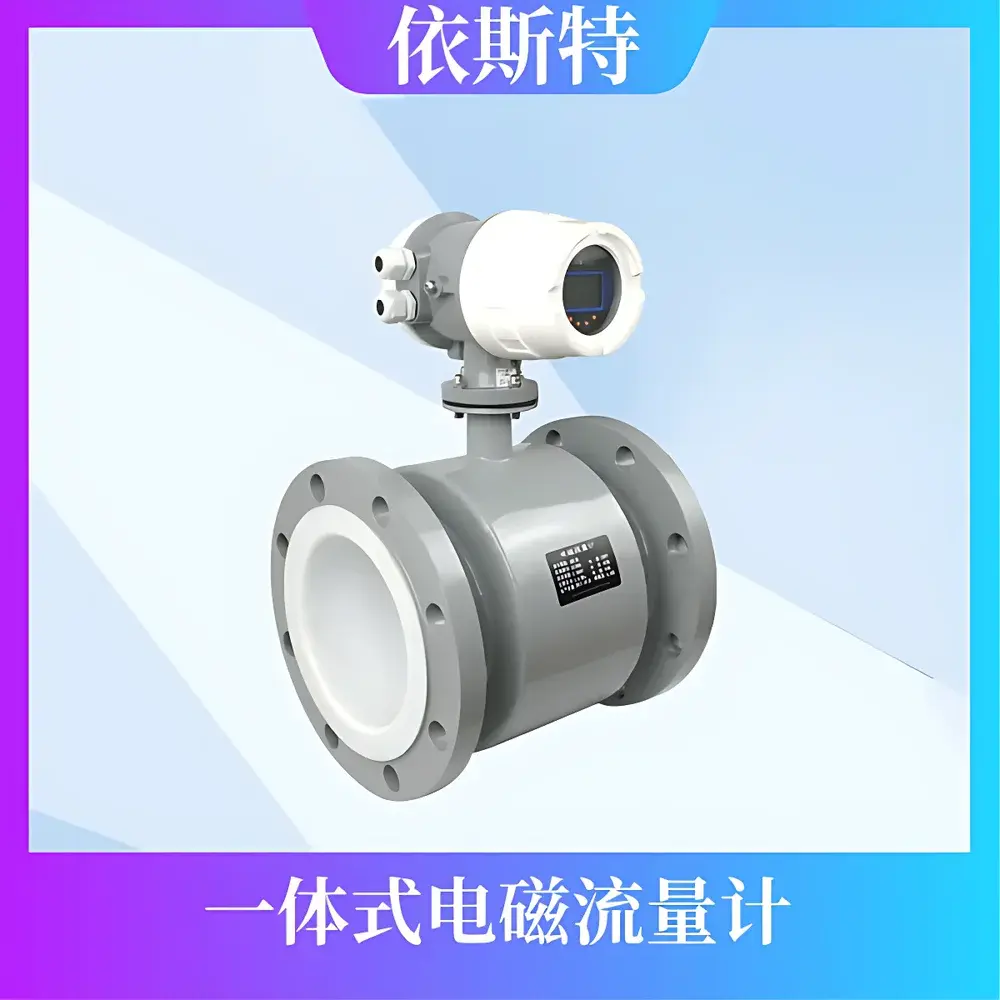

YST Electromagnetic Flow Meter YST183F-A50XL for DN250 Pipe

Overview

The YST Electromagnetic Flow Meter YST183F-A50XL is a fully integrated, DN250 (10-inch) industrial-grade electromagnetic flowmeter engineered for continuous volumetric flow measurement of conductive liquids in large-diameter piping systems. Operating on the fundamental principle of Faraday’s law of electromagnetic induction, the device generates a magnetic field perpendicular to the direction of fluid flow and measures the induced electromotive force (EMF) across two electrodes mounted on opposite sides of the pipe. This EMF is directly proportional to the average fluid velocity—enabling accurate, non-intrusive, and pressure-loss-free flow quantification without mechanical moving parts. Designed specifically for municipal water supply, wastewater treatment, chemical processing, and industrial cooling applications, the YST183F-A50XL delivers stable performance under variable conductivity, particulate-laden, or mildly abrasive service conditions—provided liquid conductivity remains ≥5 µS/cm. Its compact one-piece construction eliminates alignment and sealing concerns associated with remote-mounted converter configurations, enhancing long-term reliability in fixed-installation environments.

Key Features

• Zero-pressure-drop measurement: Full-bore, unobstructed flow path ensures no hydraulic resistance—critical for energy-efficient operation in high-flow, low-head-loss systems such as municipal distribution networks and recirculating cooling loops.
• Robust wetted materials: PTFE-lined measuring tube provides exceptional chemical resistance against acids, alkalis, oxidants, and organic solvents; standard 316L stainless steel electrodes offer balanced corrosion resistance and mechanical durability—optional electrode alloys (e.g., Hastelloy C, titanium, tantalum) are available for aggressive media.
• Low-frequency rectangular wave excitation: Minimizes polarization effects and noise interference from stray currents, enabling stable signal acquisition at low flow velocities (down to 0.1 m/s) and maintaining repeatability over extended operational cycles.
• Dual-power flexibility: Supports both 220 VAC (±10%, 50 Hz) and 24 VDC (±10%) input, facilitating integration into diverse power infrastructures—from utility-fed pump stations to battery-backed or solar-powered remote monitoring sites.
• Integrated IP65-rated housing: Sealed converter and sensor assembly withstands outdoor exposure, dust ingress, and occasional water splashing—suitable for installation in pump houses, lift stations, and open-air process skids without additional weatherproof enclosures.

Sample Compatibility & Compliance

The YST183F-A50XL is validated for use with conductive liquids—including potable water, raw sewage, activated sludge, brine solutions, caustic soda, sulfuric acid (dilute), and other electrolyte-based fluids—with minimum electrical conductivity ≥5 µS/cm. It accommodates heterogeneous flows containing suspended solids (e.g., grit, fibers, biomass) and moderate viscosity variations, provided flow remains turbulent (Re > 5,000) and electrode fouling is managed via routine inspection or optional cleaning protocols. While not certified to IEC 61508 (SIL) or ATEX/IECEx for hazardous areas, the device complies with general-purpose industrial electromagnetic compatibility (EMC) requirements per IEC 61326-1 and meets basic environmental stress testing per IEC 60068-2 series. Its measurement accuracy (±0.5% of reading) aligns with ISO 4064-2:2014 for water meters used in non-revenue and process control applications, and its output signals conform to widely adopted industrial communication standards including Modbus RTU over RS485 and analog 4–20 mA with HART-compatible load impedance.

Software & Data Management

The YST183F-A50XL does not include embedded firmware-based data logging or cloud connectivity; instead, it functions as a deterministic field-level transducer optimized for integration into existing supervisory control architectures. Its 4–20 mA analog output provides direct interface with PLCs (e.g., Siemens S7, Rockwell ControlLogix), DCS systems (e.g., Emerson DeltaV, Honeywell Experion), and SCADA platforms. The RS485 port supports Modbus RTU protocol at configurable baud rates (9.6 kbps to 115.2 kbps), enabling multi-drop network deployment and retrieval of real-time flow rate, totalized volume, status flags, and diagnostic codes (e.g., empty pipe detection, electrode contamination warning). For regulatory traceability, when connected to a compliant host system supporting audit trail functionality (e.g., FDA 21 CFR Part 11-compliant historian), the meter’s time-synchronized output enables GMP/GLP-aligned data capture for process validation, batch reconciliation, or environmental reporting.

Applications

• Municipal water distribution: Accurate custody transfer and leakage detection at water plant outlet lines (DN250 corresponds to typical trunk main sizing), where minimal pressure loss preserves system head and long-term stability supports billing-grade monitoring.
• Wastewater treatment: Reliable flow measurement in return activated sludge (RAS), waste activated sludge (WAS), and influent channels—withstanding abrasion from suspended solids and chemical attack from chlorinated or sulfide-rich streams.
• Industrial process cooling: Continuous monitoring of closed-loop cooling water circulation, ensuring thermal efficiency while avoiding throttling losses introduced by orifice plates or turbine meters.
• Chemical dosing feedlines: Integration upstream of coagulant, polymer, or pH-adjustment injection points where consistent volumetric delivery is essential for process stoichiometry and effluent compliance.

FAQ

What is the minimum conductivity required for reliable operation?
The meter requires a minimum liquid conductivity of 5 µS/cm. Below this threshold, signal-to-noise ratio degrades significantly, leading to unstable or erroneous readings.
Can this flowmeter be used for bidirectional flow measurement?
Yes—the YST183F-A50XL supports bidirectional flow detection and totalization, with polarity-sensitive output signaling directionality in real time.
Is temperature compensation built into the device?
No internal temperature compensation is applied to the raw flow signal; however, optional external Pt100 RTD inputs can be configured via host system logic to correct for conductivity drift due to temperature variation.
How often should calibration verification be performed?
For non-custody-transfer applications, annual verification using a portable clamp-on ultrasonic reference meter or master meter is recommended; for critical process or regulatory reporting, interval frequency should follow site-specific QA/QC procedures aligned with ISO/IEC 17025 or internal SOPs.
Does the PTFE lining accommodate thermal expansion mismatches with the pipe material?
Yes—the lining is bonded using industry-standard vulcanization techniques and designed with controlled elongation properties to maintain integrity across the full specified process temperature range (–20°C to +80°C), including cyclic thermal loading.
