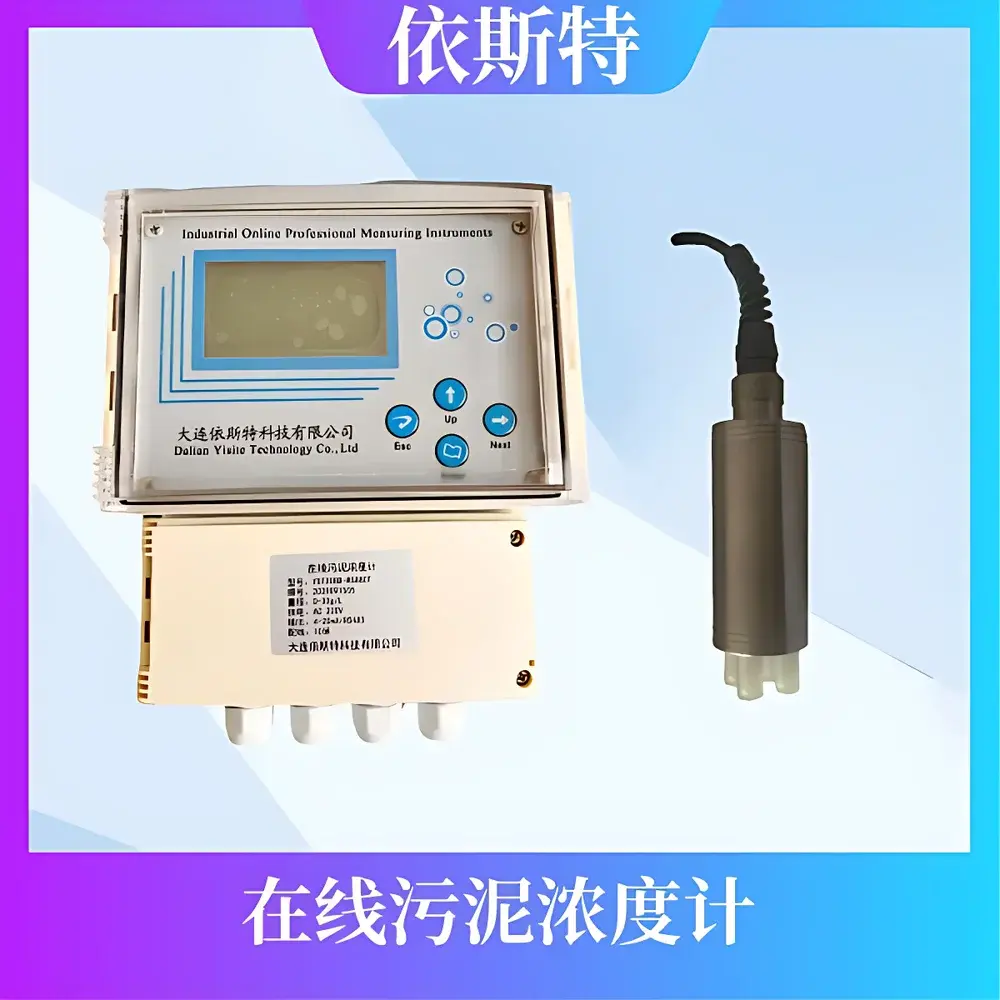

YST308B-MS880T Online Sludge Concentration Meter

Overview

The YST308B-MS880T Online Sludge Concentration Meter is an optical transmission-based in-situ monitoring instrument engineered for continuous, real-time measurement of suspended solids concentration in activated sludge, return activated sludge (RAS), waste activated sludge (WAS), and thickened sludge streams within municipal and industrial wastewater treatment plants. It operates on the principle of near-infrared (NIR) light attenuation—measuring the degree of light absorption and scattering induced by suspended particulate matter in the aqueous matrix. Unlike grab sampling or laboratory-based gravimetric analysis, this meter delivers high-reproducibility data at user-defined intervals (1–30 minutes), enabling dynamic process feedback control without manual intervention. Its robust mechanical architecture, combined with integrated temperature compensation and turbidity interference correction algorithms, ensures stable performance across variable hydraulic loading conditions, salinity shifts, and seasonal temperature fluctuations commonly encountered in secondary clarifiers, aeration basins, and sludge thickeners.

Key Features

• Optical sensing module with dual-wavelength NIR detection for enhanced discrimination between organic flocs and inorganic particulates
• Automatic temperature compensation (ATC) and adaptive turbidity correction to minimize drift under fluctuating ambient and process conditions
• Self-cleaning mechanism utilizing periodic ultrasonic vibration or mechanical wiper (configurable) to mitigate biofilm and sludge fouling on the optical window
• IP68-rated submersible sensor probe designed for direct immersion in open channels, circular clarifiers, and sludge blanket zones—no bypass loop required
• Low-power consumption (<15 W) optimized for 24/7 operation in energy-sensitive treatment facilities
• Modular design supporting field-replaceable optical components and firmware-upgradable signal processing units

Sample Compatibility & Compliance

The YST308B-MS880T is validated for use in mixed liquor suspended solids (MLSS), return activated sludge (RAS), and anaerobic digester feed streams with total suspended solids (TSS) concentrations ranging from 0.1 to 100 g/L. It maintains linearity and repeatability in high-turbidity environments (up to 5000 NTU) and exhibits minimal sensitivity to dissolved organic carbon (DOC) interference. While not certified to ISO 7027 or ASTM D3921 as a standalone analytical device, its output signals comply with IEC 61000-6-2/6-4 electromagnetic compatibility standards and are compatible with SCADA systems adhering to IEC 60870-5-104 and Modbus RTU protocols. For regulated operations, the 4–20 mA analog output supports integration into GMP-compliant process control architectures where audit trails and calibration logs are maintained per internal QA procedures.

Software & Data Management

The meter interfaces with YST’s optional WebHMI software suite via RS485 Modbus RTU, enabling remote configuration, real-time trend visualization, and historical data export in CSV format. Calibration parameters—including zero offset, span factor, and temperature coefficient—are stored in non-volatile memory with write-protection options. The system supports dual-point calibration using standard reference slurries traceable to NIST-traceable TSS suspensions (e.g., kaolin or activated sludge homogenates). Data logging intervals, alarm thresholds (high/low concentration, sensor fault, communication timeout), and output scaling are fully programmable. When deployed in conjunction with centralized plant SCADA, the device contributes to digital twin modeling of sludge inventory dynamics and supports predictive control strategies for sludge wasting and return flow optimization.

Applications

• Real-time monitoring of sludge blanket depth and concentration in primary and secondary clarifiers to prevent effluent carryover
• Feedback control of return activated sludge (RAS) pumping rates based on dynamic MLSS profiles in aeration basins
• Optimization of gravity thickener and dissolved air flotation (DAF) unit performance through continuous underflow concentration tracking
• Supporting membrane bioreactor (MBR) operations by maintaining optimal mixed liquor concentration to reduce fouling risk
• Compliance reporting for NPDES permits requiring periodic sludge concentration documentation
• Process troubleshooting during shock load events, nitrification failures, or filamentous bulking episodes

FAQ

What measurement principle does the YST308B-MS880T employ?
It uses near-infrared optical transmission attenuation, calibrated against gravimetric TSS standards.
Can the sensor be installed directly in an aeration basin with high turbulence?
Yes—the IP68 probe is rated for continuous submersion and features a reinforced mounting bracket to withstand shear forces up to 2.5 m/s flow velocity.
Is factory calibration sufficient for long-term accuracy?
Field verification with a representative sludge sample is recommended every 3–6 months; zero calibration in clean water and span calibration at ~20 g/L MLSS are supported.
Does the device support digital communication for integration with PLCs?
Yes—RS485 Modbus RTU is standard; optional protocol converters enable Profibus DP or EtherNet/IP compatibility.
How is sensor fouling mitigated during extended deployment?
The built-in cleaning system operates on a programmable schedule (e.g., every 2 hours for 30 seconds), reducing manual maintenance to quarterly inspection only.
