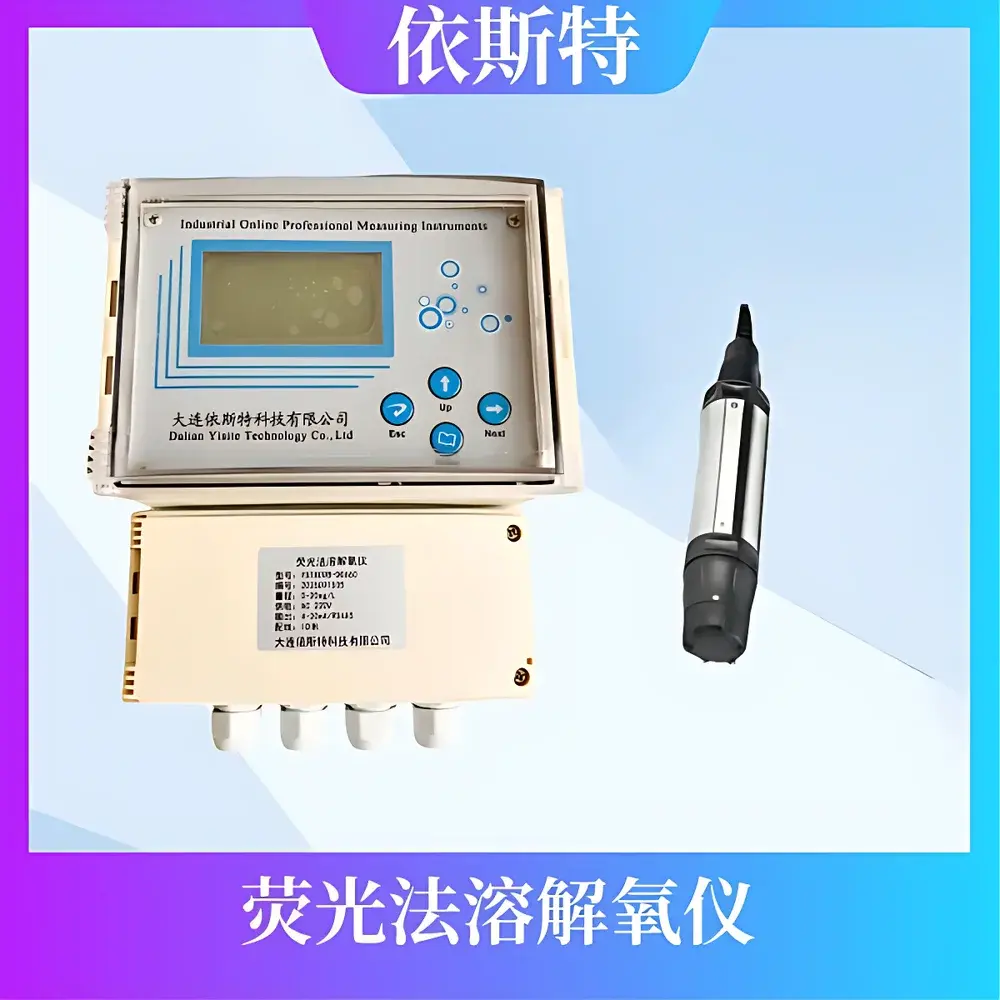

YST809B-DO660 Fluorescence-Based Dissolved Oxygen Monitor by YST (Dalian Yist Instrument Co., Ltd.)

Overview

The YST809B-DO660 is a robust, field-deployable fluorescence-based dissolved oxygen (DO) monitor engineered for continuous, high-reliability measurement in demanding water treatment and environmental monitoring applications. Unlike electrochemical (Clark-type) sensors that rely on oxygen diffusion through membranes and electrolyte solutions—processes susceptible to fouling, drift, and frequent recalibration—the YST809B-DO660 employs optical fluorescence quenching technology. In this principle, molecular oxygen modulates the intensity and lifetime of fluorescent emission from a proprietary ruthenium-complex dye immobilized on a replaceable optical cap. The sensor measures phase shift or intensity decay of the emitted light, enabling absolute, zero-current, membrane-free DO quantification. This architecture eliminates electrolyte depletion, cathode poisoning, and flow-dependency, resulting in superior long-term stability, reduced calibration frequency, and minimal maintenance—particularly critical in wastewater, surface water, and remote deployment scenarios where access and service intervals are constrained.

Key Features

• Fluorescence Quenching Sensing: Non-consumptive, solid-state optical detection with no oxygen consumption during measurement—ensures accuracy independent of sample flow rate or pressure.
• Extended Optical Cap Lifetime: Factory-calibrated fluorescent sensing element rated for ≥12 months under typical operational conditions (e.g., municipal wastewater, river water), significantly reducing consumables cost and downtime.
• Ruggedized IP68 Housing: Fully submersible design certified to IP68 (continuous immersion up to 3 m), suitable for permanent underwater installation, open-channel monitoring, and outdoor exposure to rain, dust, and temperature extremes.
• Wide-Automatic Temperature Compensation: Integrated Pt1000 RTD enables real-time compensation across 0–50 °C, ensuring traceable DO values per ISO 5814:2012 and ASTM D888-12 standards.
• Dual-Power Flexibility: Operates on AC 220 V mains or DC 12 V input—including compatibility with solar-charged battery systems—ideal for off-grid stations, rural water networks, and distributed sensor nodes.
• Industrial-Grade Signal Integrity: RS485 Modbus RTU output supports daisy-chain integration into SCADA, PLC, or cloud-based water intelligence platforms (e.g., OSIsoft PI, Ignition, or custom IoT dashboards) with configurable polling intervals and alarm thresholds.

Sample Compatibility & Compliance

The YST809B-DO660 demonstrates exceptional resilience in heterogeneous aqueous matrices. Its stainless steel (Hastelloy C-276) probe body and hydrophobic fluoropolymer-coated optical window resist adhesion of oils, surfactants, sulfides, and suspended solids—common interferents in hospital effluent, chemical industry discharges, and anaerobic digester supernatant. It meets functional requirements aligned with ISO 5814 (water quality — determination of dissolved oxygen — electrochemical probe method) for optical alternatives, and its data integrity supports GLP-aligned logging when integrated with audit-trail-capable host systems. While not intrinsically certified for hazardous locations, its IP68 rating satisfies IEC 60529 for environmental protection in non-explosive zones per EN 60079-0.

Software & Data Management

The device operates as a standalone transmitter with embedded firmware supporting factory calibration storage, user-defined offset correction, and dual-point (zero-air/saturated-water) calibration routines via intuitive menu navigation. Raw DO (mg/L), temperature (°C), and status flags (e.g., cap aging warning, signal saturation) are transmitted over RS485 at configurable baud rates (9600–115200 bps). When interfaced with compliant supervisory software, it supports time-stamped data logging, trend visualization, threshold-based SMS/email alerts, and export to CSV or OPC UA for regulatory reporting. Though native firmware does not implement FDA 21 CFR Part 11 electronic signature controls, its deterministic Modbus register map allows full traceability when deployed within validated enterprise platforms adhering to Part 11 Annex 11 requirements.

Applications

• Municipal Wastewater Treatment: Real-time DO control in aerobic bioreactors and oxidation ditches—enabling dynamic aeration optimization to reduce energy consumption by up to 15% while maintaining nitrification efficiency and meeting discharge limits for NH₃-N and COD.
• Drinking Water Distribution: Continuous monitoring at clearwell outlets or booster station inlets to detect oxidative stress events, chlorine decay anomalies, or cross-connection incidents affecting residual disinfectant stability.
• Surface Water & Ecological Monitoring: Solar-powered deployment in rivers, reservoirs, and wetlands for long-term DO profiling—supporting eutrophication assessment, hypoxia early warning, and compliance with EU WFD (Water Framework Directive) ecological status indicators.
• Healthcare & Industrial Effluent: Reliable operation in high-BOD, chemically complex streams (e.g., pharmaceutical rinse water, dialysis center discharge) where conventional amperometric sensors exhibit rapid signal drift or membrane clogging.

FAQ

What calibration procedures are required?
The YST809B-DO660 supports one-button air-saturation calibration and optional zero-oxygen (sodium sulfite) verification. No routine electrolyte refills or membrane replacements are needed.
Is the fluorescent cap field-replaceable?
Yes—the optical cap is a modular, snap-fit component designed for tool-free replacement in under 2 minutes without recalibration, provided the new cap is from the same production batch.
Does the device support temperature-compensated % saturation output?
Yes—firmware calculates % saturation based on local barometric pressure (user-input) and water temperature, conforming to APHA Standard Methods 4500-O G.
Can it be used in seawater or brackish environments?
While not specifically rated for long-term marine immersion, the Hastelloy probe body and hydrophobic coating provide enhanced corrosion resistance; salinity compensation is not automatic but may be applied post-acquisition using standard conversion tables.
How is data security handled in RS485 communication?
RS485 is a physical-layer protocol without built-in encryption. Secure data transmission requires implementation at the network level (e.g., TLS tunneling via gateway) or adherence to site-specific cybersecurity policies for industrial control systems.
