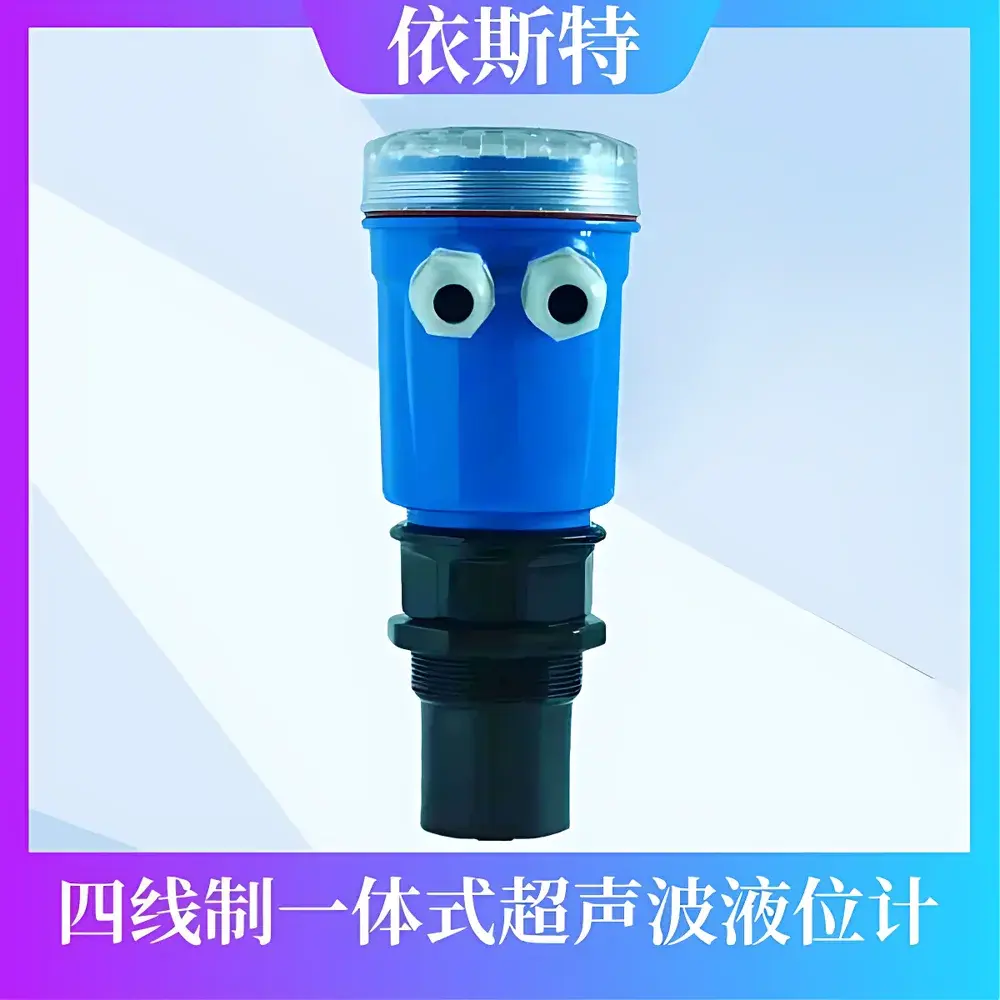

YST820CY10 Ultrasonic Sewer Manhole Level Meter by YST (Dalian Yist Instrument Co., Ltd.)

Overview

The YST820CY10 Ultrasonic Sewer Manhole Level Meter is an integrated, non-contact level sensing solution engineered specifically for real-time monitoring of liquid levels in municipal stormwater and wastewater manholes. Designed for deployment in constrained urban infrastructure environments, it operates on the principle of time-of-flight ultrasonic echo ranging: a high-frequency transducer emits acoustic pulses toward the liquid surface, measures the elapsed time until the reflected echo returns, and calculates distance using sound velocity corrected for ambient temperature. This physics-based measurement approach eliminates mechanical wear, avoids direct contact with corrosive or sediment-laden media, and ensures long-term stability under intermittent submersion and high-humidity conditions typical of underground drainage networks. The device integrates transducer, temperature compensation circuitry, signal conditioning, and communication interface into a single compact housing—eliminating external cabling between sensor and controller—and is certified for continuous operation in outdoor, unsheltered manhole chambers per IEC 60529 (IP67).

Key Features

• Integrated ultrasonic transducer and electronics in one ruggedized enclosure—no separate transmitter or wiring conduit required.
• Temperature-compensated time-of-flight algorithm delivering ±0.5% full-scale accuracy across −20 °C to +60 °C ambient range.
• 1 mm resolution enables detection of subtle level changes critical for early-stage flood warning and pump control logic.
• Dual-output capability: simultaneous 4–20 mA analog output (HART-compatible) and RS485 Modbus RTU digital interface for seamless integration with SCADA, PLC, and DCS systems.
• IP67-rated housing constructed from UV-stabilized ABS polymer; transducer face made of abrasion- and chemical-resistant polyurethane (PU), suitable for prolonged exposure to sewage, road runoff, and biofilm accumulation.
• Flexible mounting options—including M30×1.5 threaded base and adjustable stainless-steel bracket—accommodate varying manhole cover configurations and installation heights.
• Low power consumption (≤10 W) supports both DC 24 V (e.g., solar-battery hybrid systems) and AC 220 V mains supply without external converters.

Sample Compatibility & Compliance

The YST820CY10 is validated for use in municipal gravity-fed drainage infrastructure where liquid surfaces may be turbulent, foamy, or partially obstructed by debris. It is insensitive to conductivity, density, turbidity, or chemical composition—making it compatible with raw stormwater, mixed sewer overflows, and diluted wastewater effluent. While not intended for pressurized pipelines or closed tanks requiring intrinsically safe certification, its design complies with common municipal procurement specifications for smart city infrastructure monitoring. The device meets electromagnetic compatibility requirements per EN 61326-1 (industrial environment), carries CE marking for EMC and LVD directives, and supports audit-ready data logging when paired with compliant SCADA platforms. Though not FDA- or ISO 17025-accredited (as it is not a laboratory metrology instrument), its performance parameters align with ASTM D7727-14 (Standard Guide for Selection of Sensors for Water-Level Monitoring) and support GLP-aligned operational validation protocols used in municipal asset management.

Software & Data Management

The YST820CY10 operates as a field-level edge sensor and does not include embedded firmware-based configuration software. Instead, it communicates via standardized industrial protocols: the 4–20 mA loop provides immediate analog integration with legacy analog input cards, while the RS485 interface implements Modbus RTU (function codes 03/04 for register read, 06/16 for write), enabling remote parameter adjustment—including damping time, zero offset, and alarm thresholds—via standard SCADA HMI tools or open-source Modbus utilities (e.g., QModMaster, Simply Modbus). When deployed at scale, multiple units can be daisy-chained on a single RS485 bus (up to 32 nodes, 1200 m max cable length with proper termination). All output signals are timestamp-agnostic at the device level; time synchronization and data aggregation occur upstream in the central monitoring system. For regulatory traceability, end-user platforms may implement 21 CFR Part 11-compliant audit trails during configuration changes or alarm event logging—though such functionality resides entirely in the host SCADA or cloud platform, not within the meter itself.

Applications

• Real-time manhole level surveillance in urban stormwater drainage networks for flood risk assessment and predictive maintenance.
• Integration into intelligent drainage control systems—triggering automatic pump activation, gate opening, or diversion valve actuation upon threshold exceedance.
• Performance verification of combined sewer overflow (CSO) structures during wet-weather events.
• Baseline monitoring of dry-weather flow patterns to detect illicit connections or infiltration anomalies.
• Supporting digital twin development for municipal water infrastructure by feeding high-frequency level time-series into hydraulic modeling engines (e.g., EPA SWMM, InfoWorks ICM).
• Deployment in climate-resilient infrastructure projects across temperate, subtropical, and monsoonal regions—validated in field trials across Dalian (humid continental), Xi’an (semi-arid), and Guiyang (subtropical monsoon) climates.

FAQ

Is the YST820CY10 suitable for submerged installation?
No—it is rated IP67 for temporary water immersion up to 1 m for 30 minutes, but must be mounted above the maximum anticipated water level inside the manhole chamber. The transducer requires an unobstructed acoustic path to the liquid surface.
Can it measure level through ice or heavy foam?
Ice layers will block ultrasonic transmission and result in invalid readings; dense, persistent foam may attenuate the signal and reduce effective range. Best practice is to install in locations with minimal surface disturbance.
Does it support wireless telemetry out of the box?
No—wireless connectivity (e.g., NB-IoT, LoRaWAN, LTE-M) requires an external gateway or RTU. The device provides only wired 4–20 mA and RS485 interfaces.
What calibration is required after installation?
Factory calibration is traceable to NIST-equivalent reference standards. Zero-point verification (empty chamber) is recommended post-installation; span calibration is not user-adjustable.
How often does the transducer require cleaning?
Under typical urban drainage conditions, quarterly visual inspection and gentle wipe-down with isopropyl alcohol is sufficient. No routine recalibration is needed unless physical damage or coating buildup exceeds 2 mm thickness.
