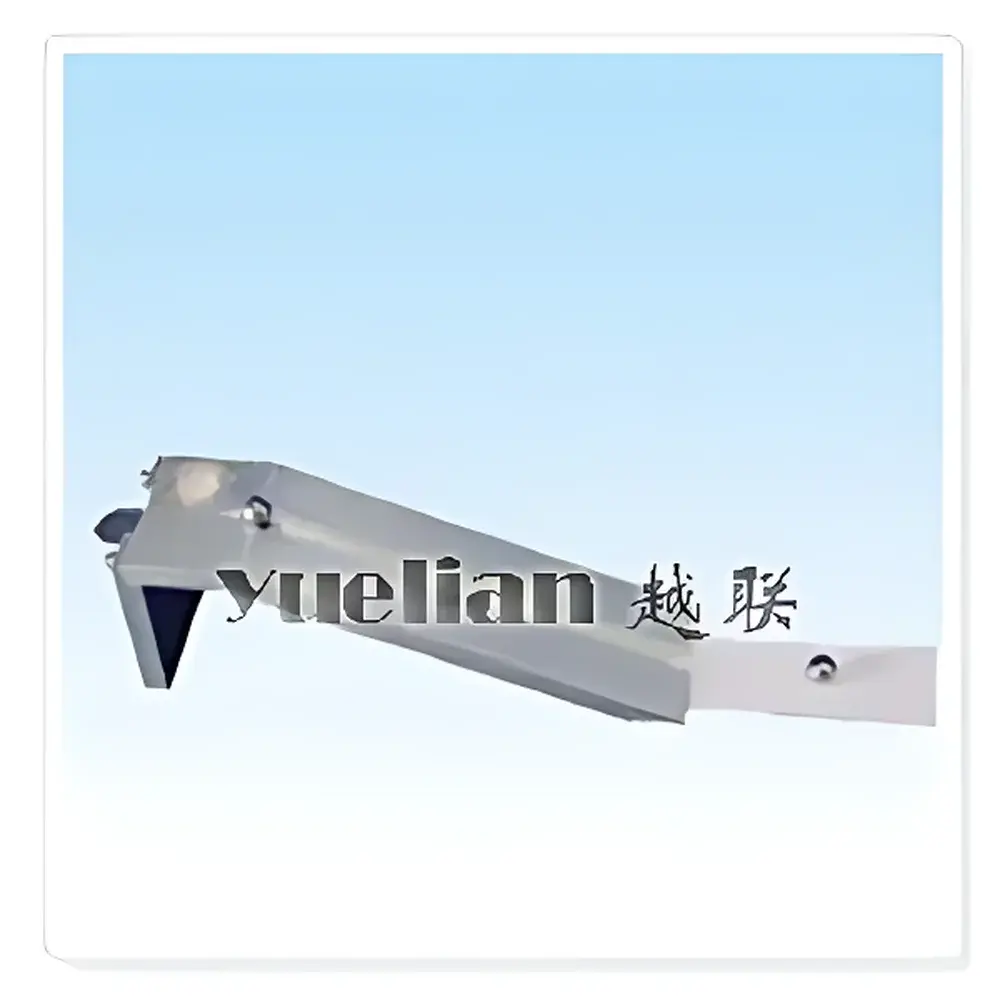

Yuelian YL-8801B Tape Initial Adhesion Tester (Steel Ball Rolling Method)

Overview

The Yuelian YL-8801B Tape Initial Adhesion Tester is a precision-engineered mechanical instrument designed to quantify the initial tack—also known as “quick-stick” adhesion—of pressure-sensitive adhesive (PSA) tapes and films. It operates on the standardized steel ball rolling method, wherein a calibrated stainless-steel ball is released from the top of an inclined ramp with a fixed 21.3° angle, allowing it to roll freely across the adhesive surface under gravity. The distance traveled before being arrested by adhesion serves as the primary metric for initial tack performance. This principle is grounded in classical mechanics and interfacial energy theory, where the balance between gravitational driving force, rolling resistance, and instantaneous viscoelastic bond formation determines the stopping point. Unlike peel or shear testing, this method isolates the earliest-stage contact interaction—critical for applications requiring instant grab, such as labeling, masking, and temporary bonding in industrial assembly lines.

Key Features

• Fixed-angle ramp geometry precisely maintained at 21.3°, conforming to both GB/T 4852–2002 and PSTC-7 international test protocols;
• Standardized 7/16-inch (14#) hardened stainless-steel test balls supplied with traceable dimensional certification;
• Compact benchtop footprint (23 × 6 × 7 cm) and lightweight construction (0.8 kg), enabling rapid setup and portability across QC labs, production floors, and R&D environments;
• Smooth anodized aluminum ramp surface with low coefficient of friction to ensure consistent ball acceleration and minimal kinetic interference;
• No electrical components or software dependency—fully manual operation ensures high repeatability and eliminates calibration drift associated with electronic sensors;
• Modular design facilitates easy cleaning, ball replacement, and tape substrate interchange without tools.

Sample Compatibility & Compliance

The YL-8801B supports a broad range of PSA-based materials including acrylic, rubber, silicone, and hot-melt adhesive tapes; transfer tapes; labels; protective films; and medical-grade adhesive patches. Sample mounting requires only a flat, rigid backing (e.g., stainless steel plate or glass slide) and uniform tensioning per ASTM D3330 Annex A1 guidelines. Test validity is contingent upon strict adherence to ambient conditioning (23 ± 2°C, 50 ± 5% RH per ISO 291) prior to measurement. Results are reported as “ball stop distance” in inches or millimeters, directly comparable across laboratories when conducted under identical environmental and procedural controls. The instrument satisfies foundational requirements for GLP-compliant documentation workflows and is routinely referenced in internal SOPs aligned with FDA-regulated manufacturing environments where initial tack consistency impacts label integrity and device assembly reliability.

Software & Data Management

The YL-8801B is a purely mechanical test device and does not incorporate embedded electronics, firmware, or data logging capabilities. All measurements are recorded manually using calibrated rulers or digital calipers, with raw data entered into laboratory information management systems (LIMS) or Excel-based QA templates. While no proprietary software is provided, the simplicity of the output format—single-value distance measurement per test—ensures seamless integration into existing 21 CFR Part 11–compliant audit trails when paired with controlled documentation practices. Users may assign unique test IDs, operator signatures, environmental logs, and sample lot numbers to each test record to support full traceability during regulatory audits or customer qualification reviews.

Applications

• Quality control of incoming PSA tape rolls prior to converting or die-cutting operations;
• Formulation screening during R&D of new acrylic or rubber-based adhesives;
• Batch-to-batch consistency verification for medical transdermal patch carriers;
• Process validation of coating line parameters (e.g., drying temperature, solvent residual, coat weight);
• Supplier qualification against contractual tack specifications (e.g., “must arrest 14# ball within ≤ 5.0 cm”);
• Root cause analysis of delamination or misalignment in automated labeling systems.

FAQ

What standards does the YL-8801B comply with?
GB/T 4852–2002 (Chinese National Standard) and PSTC-7 (Pressure-Sensitive Tape Council Test Method).
Is calibration required before use?
No periodic calibration is mandated; however, users must verify ramp angle with a certified inclinometer and confirm ball diameter with a micrometer prior to qualification runs.
Can I test non-tape substrates such as adhesive-coated foams or fabrics?
Yes—provided the sample is mounted on a rigid, flat backing and exhibits sufficient surface planarity to maintain consistent ball contact throughout the ramp descent.
How many tests can be performed per hour?
Typical throughput is 15–20 determinations per hour per operator, assuming standardized sample preparation and dual-ramp configurations for parallel testing.
Does the instrument include test balls and mounting fixtures?
The standard configuration includes one set of five 7/16-inch (14#) stainless-steel balls and a universal tape clamping fixture compatible with widths up to 50 mm.
