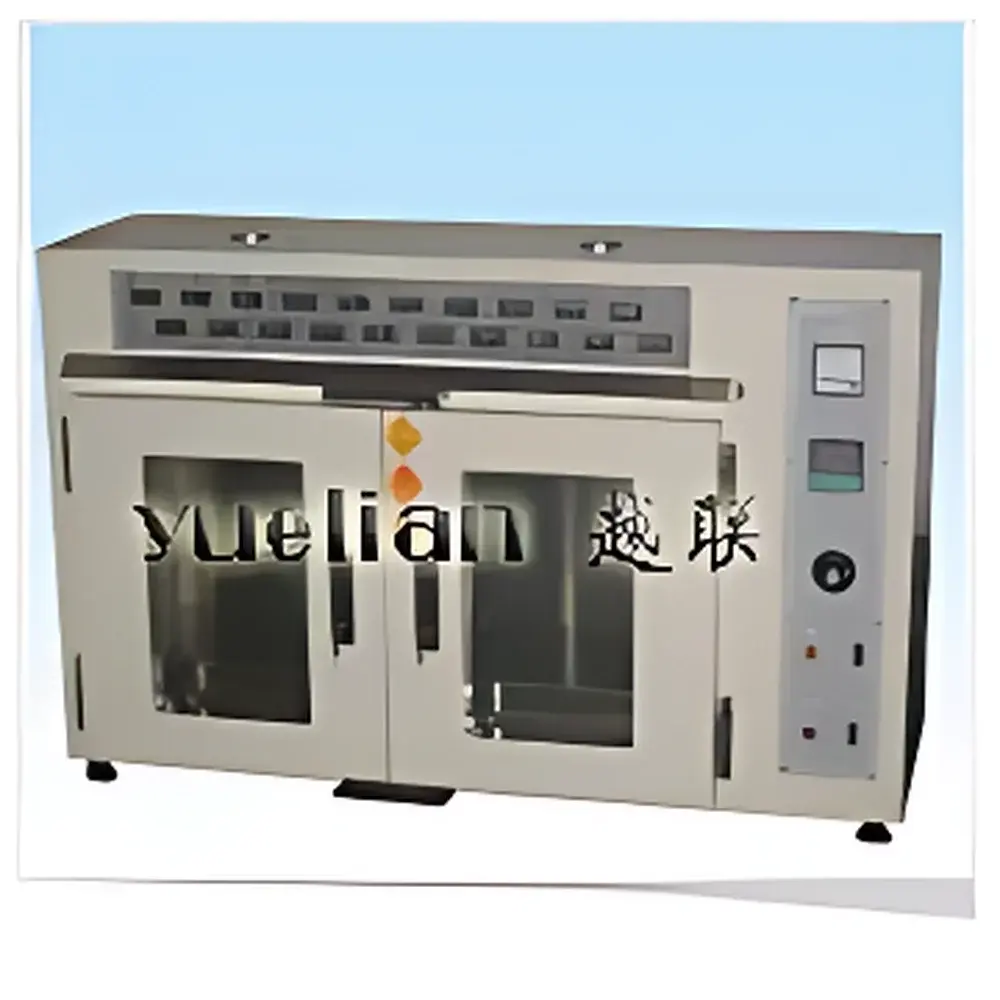

Yuelian YL-8808B Oven-Type Adhesion Retentivity Tester (20-Station)

Overview

The Yuelian YL-8808B Oven-Type Adhesion Retentivity Tester is an engineered solution for evaluating the thermal stability and long-term adhesive integrity of pressure-sensitive tapes under elevated temperature conditions. Designed in strict accordance with international and regional adhesion testing standards—including GB/T 2792, GB/T 4851, PSTC-7, CNS 11887, and CNS 11888—the instrument implements a standardized vertical peel-and-hold methodology: a pre-conditioned tape specimen is affixed to a vertically oriented SUS304 stainless steel plate, loaded with a precisely calibrated 1 kg mass, and subjected to a user-defined temperature environment ranging from ambient +5°C to 150°C. The system continuously monitors the duration until complete detachment occurs, automatically capturing and retaining the elapsed time upon failure. This principle—based on controlled gravitational shear stress under thermally accelerated aging—provides quantifiable data for assessing adhesive formulation robustness, polymer chain mobility, and interfacial degradation kinetics under service-relevant thermal loads.

Key Features

• 20 independent test stations enable parallel evaluation of multiple specimens or comparative studies across batch variations, adhesive chemistries, or substrate treatments—significantly improving throughput and statistical confidence.
• Uniform temperature distribution within the insulated chamber is achieved through optimized airflow design and microprocessor-driven PID control, ensuring ±0.3°C thermal stability across all test positions (verified per ISO 17025 calibration traceability protocols).
• Each station integrates a dedicated electronic timer with automatic hold functionality triggered by mechanical release detection—eliminating operator intervention and minimizing timing uncertainty.
• Stainless steel construction (SUS304 interior, powder-coated structural frame) ensures corrosion resistance, dimensional stability, and compliance with cleanroom-compatible material requirements for regulated environments.
• No external power supply is required for timer operation—each unit features self-contained circuitry, enhancing reliability during extended-duration tests (up to 999 hours).
• Integrated audible alarm and automatic heating cutoff activate upon full specimen detachment across all stations, supporting unattended operation while maintaining safety and energy efficiency.

Sample Compatibility & Compliance

The YL-8808B accommodates standard pressure-sensitive adhesive tapes up to 25 mm wide and 180 mm in length, mounted on 180 mm × 40 mm × 1.0 mm SUS304 test plates conforming to ASTM D3330 and ISO 29862 substrate specifications. Its operational envelope supports validation workflows aligned with GLP and GMP documentation frameworks. The instrument’s adherence to GB/T 4851 (Chinese national standard for “Test Method for Holding Power of Pressure-Sensitive Adhesive Tapes”) and PSTC-7 (Pressure Sensitive Tape Council standard for “Holding Power at Elevated Temperatures”) enables direct comparability with global R&D and QC benchmarks. All thermal and timing parameters are fully recordable for audit readiness under FDA 21 CFR Part 11–compatible data management systems.

Software & Data Management

While the YL-8808B operates as a standalone hardware platform, its modular timer outputs support analog voltage or TTL signal interfacing for integration into laboratory information management systems (LIMS) or custom SCADA architectures. Time-stamped detachment events can be logged via RS-232 or optional USB-to-serial adapters (sold separately), enabling automated CSV export for statistical process control (SPC) analysis in JMP, Minitab, or Python-based analytics pipelines. Audit trails—including temperature setpoint history, timer initialization timestamps, and detachment event logs—are retained locally and exportable for regulatory submissions requiring traceability per ISO/IEC 17025 clause 7.7.

Applications

• Formulation development of high-temperature acrylic, silicone, and rubber-based PSAs used in automotive trim bonding, electronics shielding tapes, and aerospace masking applications.
• Quality assurance of medical-grade tapes subjected to sterilization cycles or prolonged skin contact under elevated ambient conditions.
• Accelerated aging studies correlating retentivity loss with Arrhenius-based thermal degradation models.
• Supplier qualification testing where contractual specifications mandate minimum holding times at defined temperatures (e.g., ≥10,000 min at 70°C).
• Failure mode analysis of adhesive delamination mechanisms—including cohesive failure vs. interfacial separation—when coupled with post-test optical microscopy or FTIR surface analysis.

FAQ

What standards does the YL-8808B comply with?
It meets GB/T 2792, GB/T 4851, PSTC-7, CNS 11887, and CNS 11888 for adhesion retentivity testing under thermal stress.
Can test temperature be adjusted during operation?
Yes—the microprocessor PID controller allows real-time setpoint modification without interrupting active tests, subject to thermal equilibration time.
Is calibration documentation provided with the instrument?
Factory calibration certificates for temperature uniformity and timer accuracy are included; users may perform periodic verification using NIST-traceable thermocouples and stopwatch standards.
Are alternative load masses supported?
Standard configuration uses 1 kg stainless steel weights per station; custom weights (e.g., 0.5 kg or 2 kg) can be supplied upon request and validated against ASTM D3330 Annex A2 guidelines.
How is specimen detachment detected?
Mechanical linkage between the suspended weight and stainless steel plate triggers a limit switch upon full separation—activating both timer hold and alarm functions simultaneously.
