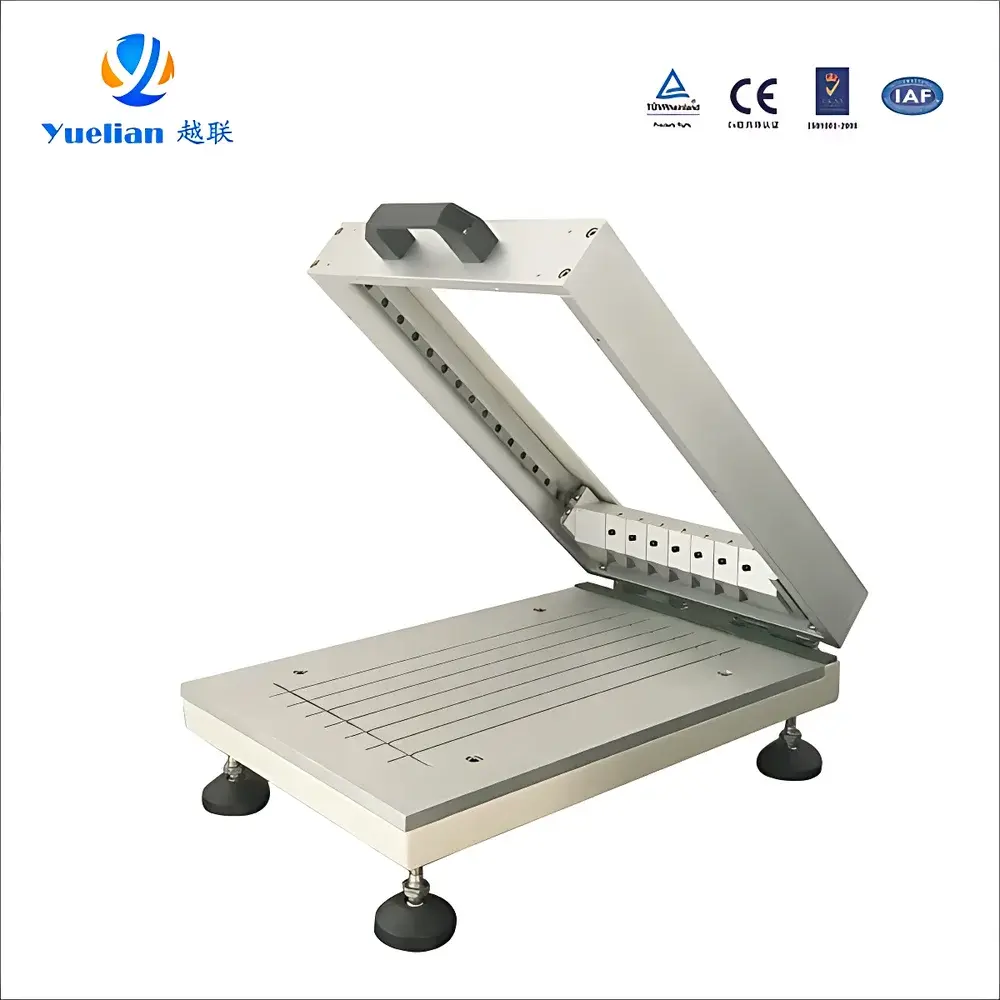

Yuelian YL-8809A Manual Release Liner Sampling Cutter

Overview

The Yuelian YL-8809A Manual Release Liner Sampling Cutter is a precision-engineered mechanical sampling device designed specifically for standardized specimen preparation in quality control laboratories serving the packaging, adhesive, and functional film industries. It operates on a manual lever-actuated cutting principle: users lift the support arm, position the material over a fixed template, lower the arm to secure the sample under consistent clamping force, then manually draw the knife carriage across the surface at controlled speed—ensuring reproducible, orthogonal cuts without thermal distortion or edge deformation. Unlike automated cutters requiring compressed air or electrical power, the YL-8809A delivers deterministic geometry through purely mechanical kinematics, eliminating variability from motor speed drift or pneumatic pressure fluctuations. Its design prioritizes dimensional fidelity, repeatability, and operator safety—critical when preparing specimens for peel strength (ASTM D3330, PSTC-101), shear resistance (ASTM D3654), or tensile testing (ISO 527-3) where specimen width and thickness directly influence measured performance.

Key Features

• Fixed-length cutting stroke of 300 mm ensures uniform specimen length across all cycles—eliminating manual measurement errors prior to mechanical testing.
• Dual-width interchangeable templates (15 mm and 24 mm) allow rapid reconfiguration for different test standards: 15 mm aligns with ISO 2922 peel protocols; 24 mm satisfies ASTM D1000 tape width requirements.
• Calibrated clamping mechanism applies uniform compressive load across the sample surface, minimizing lateral slippage during blade traversal and preserving edge integrity.
• Hardened stainless-steel cutting blade mounted on a low-friction linear guide guarantees straight-line motion with minimal deflection—even when processing high-tack silicone-release liners or embossed PET films.
• Robust aluminum alloy frame with anti-scratch anodized finish provides long-term dimensional stability and resistance to solvent exposure common in cleanroom or QC lab environments.
• No external power supply required—fully compliant with Class I electrical safety standards and suitable for use in explosion-proof or static-controlled areas.

Sample Compatibility & Compliance

The YL-8809A accommodates a broad spectrum of flexible substrate types used in packaging and industrial conversion: silicone-coated release liners (glassine, PET, PP), acrylic or rubber-based pressure-sensitive adhesives (PSAs), polyolefin protective films, and fabric-reinforced tapes. Its adjustable thickness tolerance—0.1–1.5 mm—covers standard foam tapes (e.g., 3M™ 4952), thin PET films (e.g., Toray™ Lumirror®), and woven cloth tapes (e.g., tesa® 51025). All cutting dimensions conform to ISO/IEC 17025-accredited laboratory practices for specimen preparation. The ±0.1 mm width tolerance meets the pre-test dimensional verification criteria outlined in ASTM D6252 (for tape width measurement) and supports GLP-compliant documentation workflows where specimen traceability is mandatory.

Software & Data Management

As a fully manual, non-electronic instrument, the YL-8809A does not incorporate embedded firmware, connectivity interfaces, or onboard data logging. This architecture intentionally avoids regulatory complexity associated with FDA 21 CFR Part 11 compliance for electronic records—making it ideal for laboratories maintaining paper-based SOPs or integrating specimen prep into validated LIMS workflows via external barcode labeling. Each unit ships with a calibration certificate traceable to NIM (National Institute of Metrology, China), documenting blade alignment and width template verification. Users may log usage parameters (date, operator ID, material batch, specimen count) in their existing QA database using standardized Excel templates aligned with ISO 9001 clause 8.5.2.

Applications

• Preparation of specimens for 90° and 180° peel tests per ASTM D3330, PSTC-101, and GB/T 7122.
• Standardized strip cutting for loop tack (ASTM D6195), rolling ball tack (ASTM D3121), and probe tack (FINAT FTM 9) evaluations.
• Generation of identical samples for comparative aging studies (thermal, UV, humidity) under ISO 11600 or JIS Z 1522.
• QC sampling of release liner batches prior to slitting or die-cutting operations in converting facilities.
• Teaching labs requiring hands-on demonstration of metrological principles in materials science curricula.

FAQ

Is the YL-8809A compatible with silicone-coated release liners?

Yes—the hardened steel blade and low-shear cutting geometry prevent silicone transfer or edge curling commonly observed with rotary cutters.
Can the 15 mm and 24 mm width settings be verified independently?

Yes—each template includes engraved reference marks and ships with a certified gauge block set for on-site verification per ISO 17025 internal audit requirements.
Does the device require periodic recalibration?

No scheduled recalibration is mandated; however, users should perform visual blade inspection before each shift and replace blades after 500–1,000 cuts depending on substrate abrasiveness.
What safety certifications does the YL-8809A hold?

It complies with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) as a Class A non-electrical device, and meets CE marking requirements for mechanical equipment under Directive 2006/42/EC.
Is technical support available outside mainland China?

Yuelian provides remote troubleshooting documentation in English and coordinates spare parts fulfillment through authorized regional distributors in Southeast Asia, the Middle East, and Latin America.
