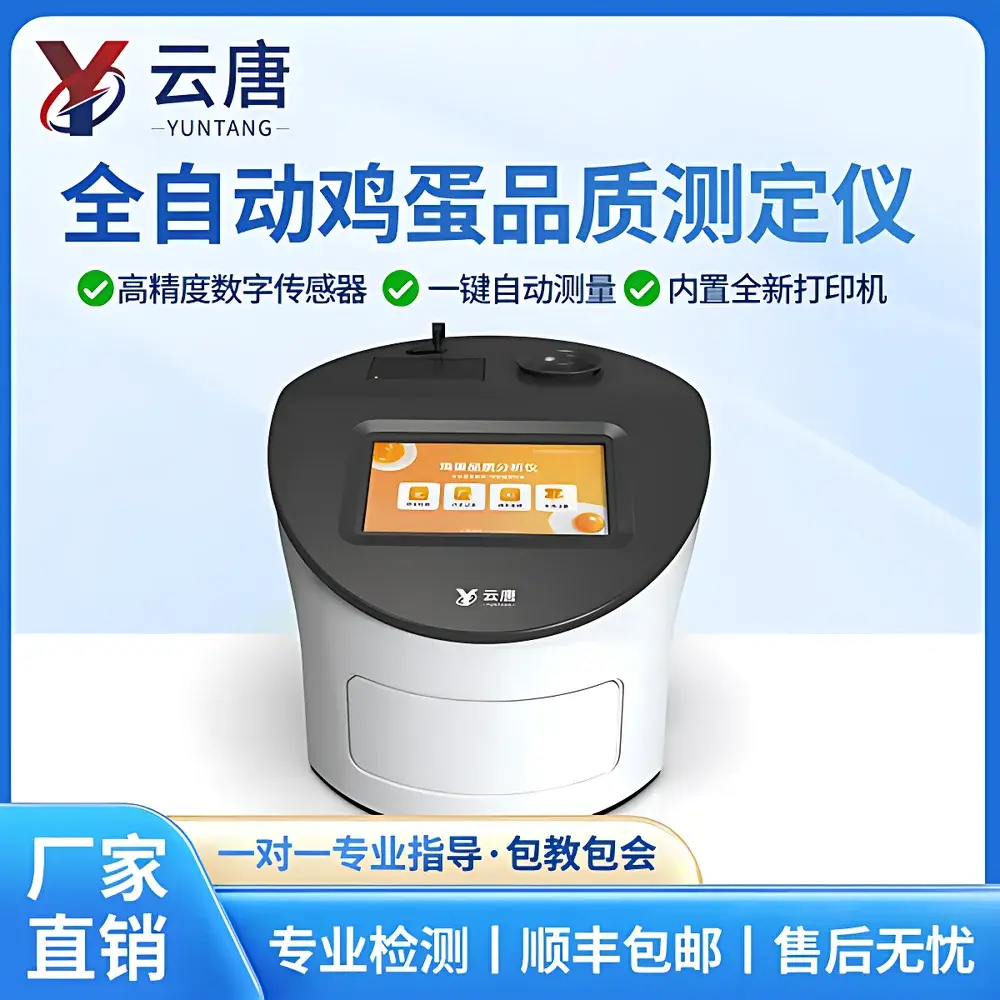

Yuntang YT-DP Egg Freshness Analyzer

Overview

The Yuntang YT-DP Egg Freshness Analyzer is a dedicated, non-destructive optical and ultrasonic measurement system engineered for objective, high-throughput assessment of hen egg quality in commercial hatcheries, processing plants, and food safety laboratories. It operates on internationally standardized physical principles: albumen height is measured via precision ultrasonic time-of-flight sensing; egg mass is determined using calibrated electromagnetic load cells; yolk color is quantified through spectrophotometric reflectance analysis (CIE L*a*b* space); shell thickness is acquired using dual-frequency ultrasonic pulse-echo transduction; and Haugh Units (HU) are computed in real time using the ISO 6633-1:2021 and USDA AMS 56.1000 formula: HU = 100 × log₁₀(H − 1.7 × W^0.37), where H is albumen height (mm) and W is egg mass (g). This fully automated workflow eliminates operator subjectivity and ensures metrological traceability to national reference standards.

Key Features

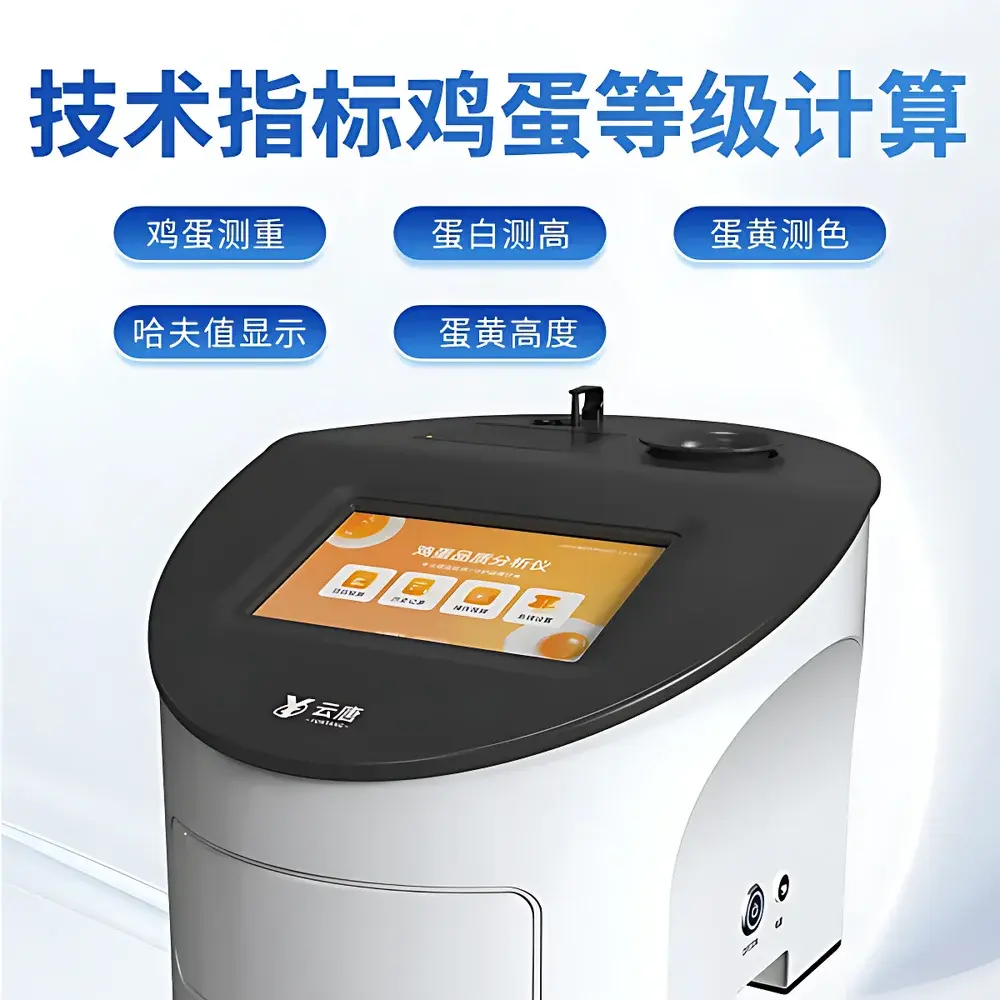

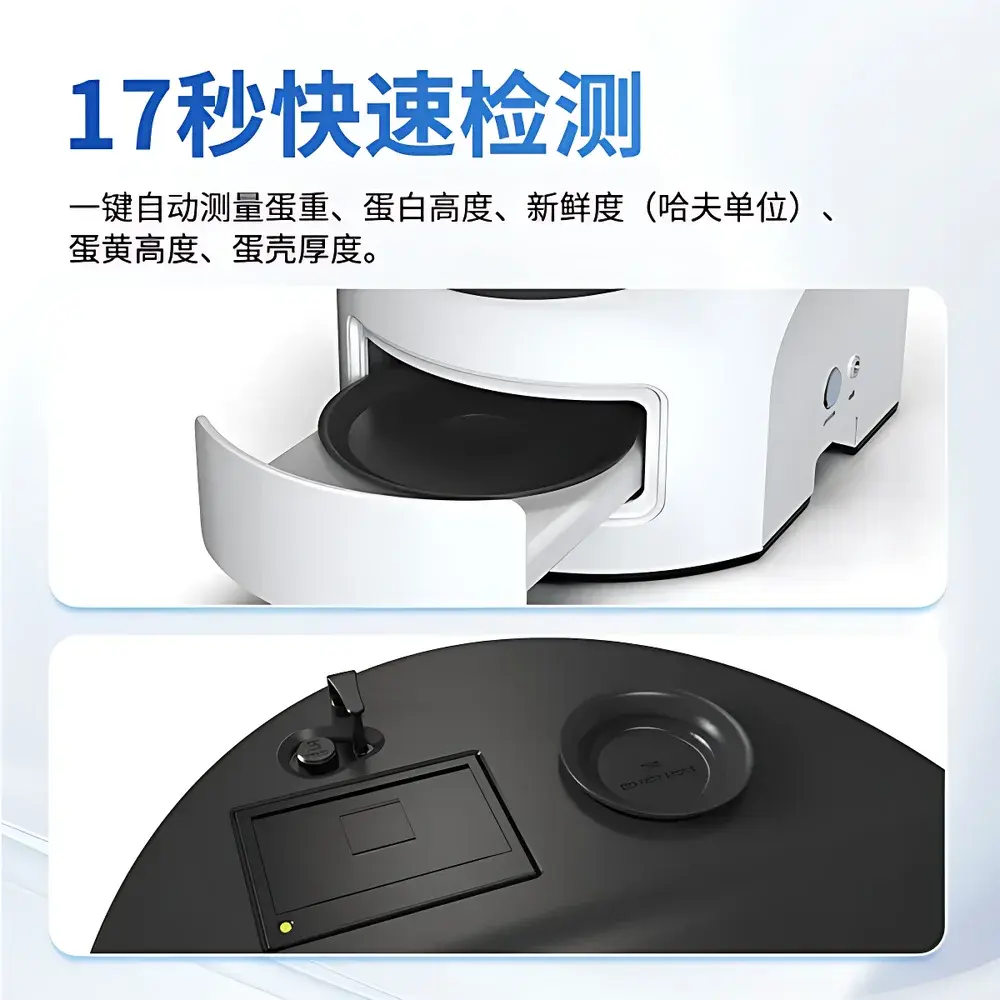

• Fully integrated multi-parameter acquisition: simultaneous measurement of egg mass, albumen height, yolk color index (YI), Haugh Unit, yolk height, and shell thickness in ≤17 seconds per sample.
• Non-contact ultrasonic albumen height sensor (0.0–40.0 mm, ±0.1 mm resolution) minimizes cross-contamination risk and preserves sample integrity for downstream use.
• Dual-wavelength optical sensor (450 nm / 550 nm) for standardized yolk color grading compliant with USDA Egg Grading Manual Section IV and ISO 21569:2019.

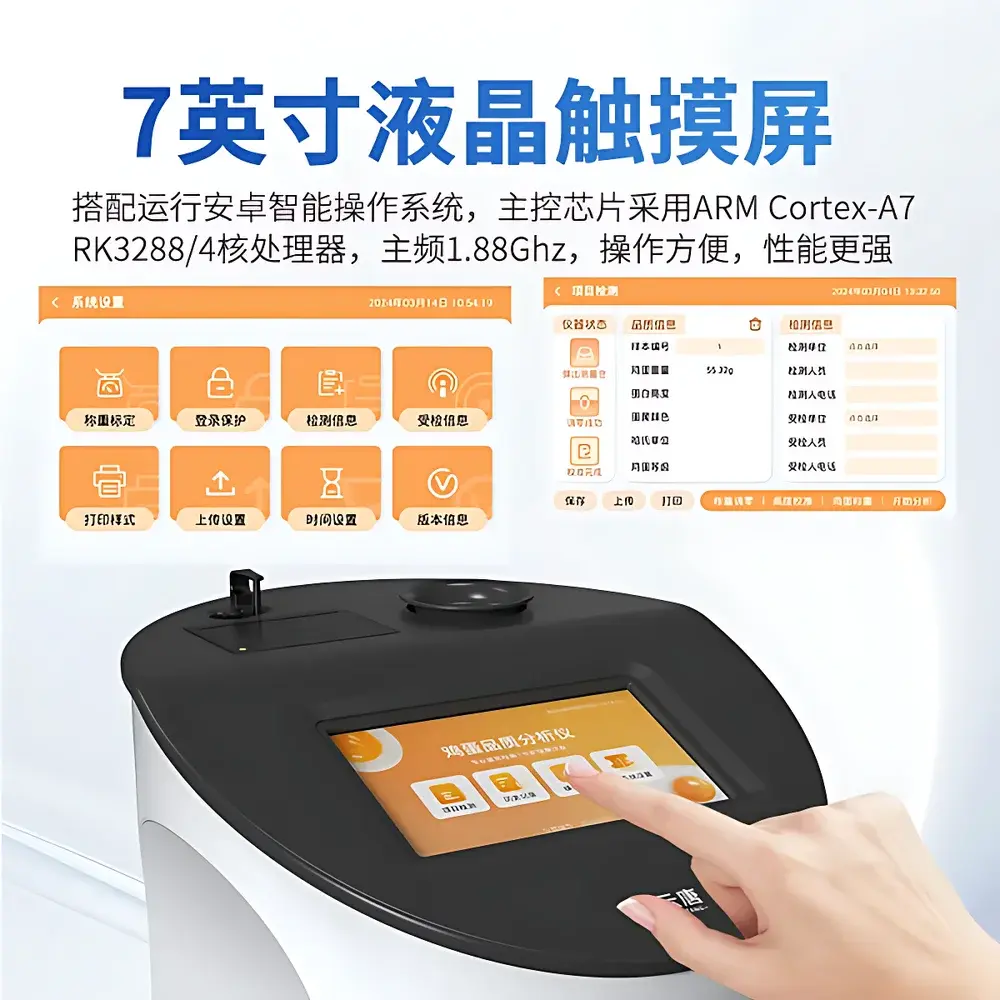

• Embedded ARM Cortex-A7 RK3288 quad-core processor (1.88 GHz) running Android OS enables responsive GUI navigation, local data caching, and secure firmware updates.
• Onboard thermal printer supports GLP-compliant reporting: includes QR-coded test ID, sampling timestamp, operator ID, instrument serial number, calibration status, and grade classification.
• Robust mechanical architecture with shock-absorbing cradle design accommodates eggs across weight classes (45–75 g) without manual repositioning.
• DC 12 V operation with optional 6 Ah Li-ion battery enables field deployment in mobile inspection units or off-grid farm settings.

Sample Compatibility & Compliance

The YT-DP is validated for use with Class A hen eggs (Gallus gallus domesticus) conforming to EU Regulation (EC) No 589/2008 and Codex Alimentarius Standard CXS 228-2003. It supports standard oval-shaped eggs (length 55–65 mm, width 40–45 mm) and tolerates minor surface irregularities (e.g., calcification, cuticle variation). All measurement algorithms adhere to ISO 6633-1:2021 (egg quality — determination of Haugh unit) and AOAC Official Method 977.17 (albumen height). Instrument calibration follows internal traceable procedures aligned with NIST SRM 2925 (eggshell thickness reference material) and ASTM E308-22 (colorimetry). Data audit trails meet FDA 21 CFR Part 11 requirements when deployed with configured user access controls and electronic signature protocols.

Software & Data Management

The embedded Android application provides role-based access control (administrator, technician, reviewer), configurable pass/fail thresholds, and batch-level statistical summaries (mean HU, SD, CV%). Raw sensor data and computed metrics are stored locally in SQLite format with SHA-256 hashing for integrity verification. Export options include CSV via USB 2.0, encrypted JSON over TLS 1.2 via Wi-Fi/Ethernet, and direct integration with LIMS platforms via RESTful API (OAuth 2.0 authentication supported). Cloud synchronization enables longitudinal trend analysis across production lots, supplier performance dashboards, and automated alerting for out-of-specification results (e.g., sustained HU < 60 over 3 consecutive batches).

Applications

• Quality assurance in commercial egg packing houses for real-time grade sorting (AA/A/B/C) prior to retail distribution.
• Monitoring storage degradation kinetics during cold chain validation studies (e.g., HU decline rate at 4°C vs. 20°C).
• Feed formulation trials assessing impact of dietary xanthophylls on yolk pigmentation stability.
• Regulatory compliance testing for national food safety authorities conducting routine market surveillance.
• Research applications in avian physiology labs investigating correlations between albumen pH, lysozyme activity, and ultrasonically derived HU values.
• Supplier qualification programs requiring auditable, repeatable metrics for contract farming agreements.

FAQ

What standards does the YT-DP comply with for Haugh Unit calculation?
It implements the exact algorithm defined in ISO 6633-1:2021 and USDA AMS 56.1000, using measured albumen height and egg mass without interpolation or estimation.
Can the instrument differentiate between washed and unwashed eggs?
Yes — the ultrasonic shell thickness module detects changes in acoustic impedance caused by cuticle removal, enabling empirical correlation with bloom integrity indices.
Is calibration traceable to national metrology institutes?
Factory calibration uses reference masses (OIML R111 Class E2) and certified thickness gauges (NIST-traceable step wedges); end-user recalibration is performed via guided on-screen procedure with documented certificate generation.
Does the system support multi-language UI for international deployment?
The Android OS framework supports UTF-8 localization; English, Spanish, Arabic, and Vietnamese language packs are available upon request.
How is data security maintained during network transmission?
All Wi-Fi/Ethernet communications employ TLS 1.2 encryption; device authentication uses X.509 certificates, and data payloads are AES-256 encrypted prior to upload.
