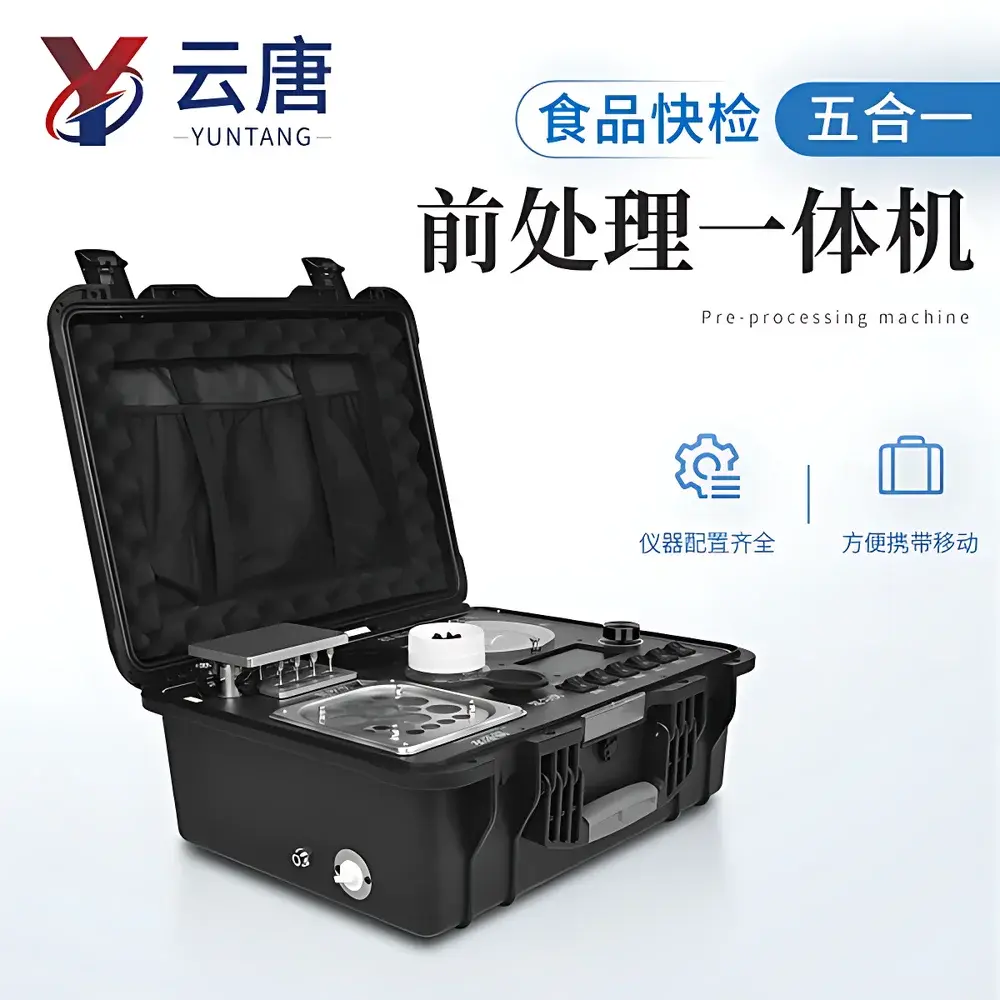

Yuntang YT-QC4* Food Safety Sample Preparation Integrated Workstation
| Brand | Yuntang |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | YT-QC4* |
| Price Range | USD 790–1,190 (FOB) |
| Function Type | Multi-analyte (Pesticide Residues, Mycotoxins, Antibiotics, Heavy Metals Screening) |
| Sample Versatility | Solid, Semi-solid, Liquid Food Matrices (Fruits, Vegetables, Meat, Aquatic Products, Dairy, Grains) |
| Wavelength Range | Not Applicable (Non-Optical Instrument) |
| Detection Time per Sample | 15 sec – 3 min (Preparation Only) |
| Throughput | 24 Parallel Processing Channels |
| Repeatability (RSD) | ≤0.1% (for standardized extraction recovery under GLP conditions) |
Overview
The Yuntang YT-QC4* Food Safety Sample Preparation Integrated Workstation is an engineered solution for rapid, standardized, and field-deployable sample preparation in food safety laboratories and on-site inspection environments. Unlike conventional benchtop instruments requiring discrete units for homogenization, centrifugation, vortex mixing, nitrogen blow-down concentration, and water bath incubation, the YT-QC4* consolidates these five core pre-analytical functions into a single, compact platform operating under unified control logic. Its design adheres to the workflow requirements of validated multi-residue screening protocols—particularly those aligned with national food safety standards (e.g., GB 2763, GB 5009 series) and international reference methods (e.g., QuEChERS, EN 15662). The workstation does not perform final detection (e.g., immunoassay or chromatographic analysis); rather, it delivers reproducibly prepared extracts suitable for downstream analysis by HPLC-MS/MS, GC-MS, ELISA, or lateral flow assays. Its architecture supports method transfer from lab to field without compromising extraction efficiency or analyte recovery consistency.
Key Features

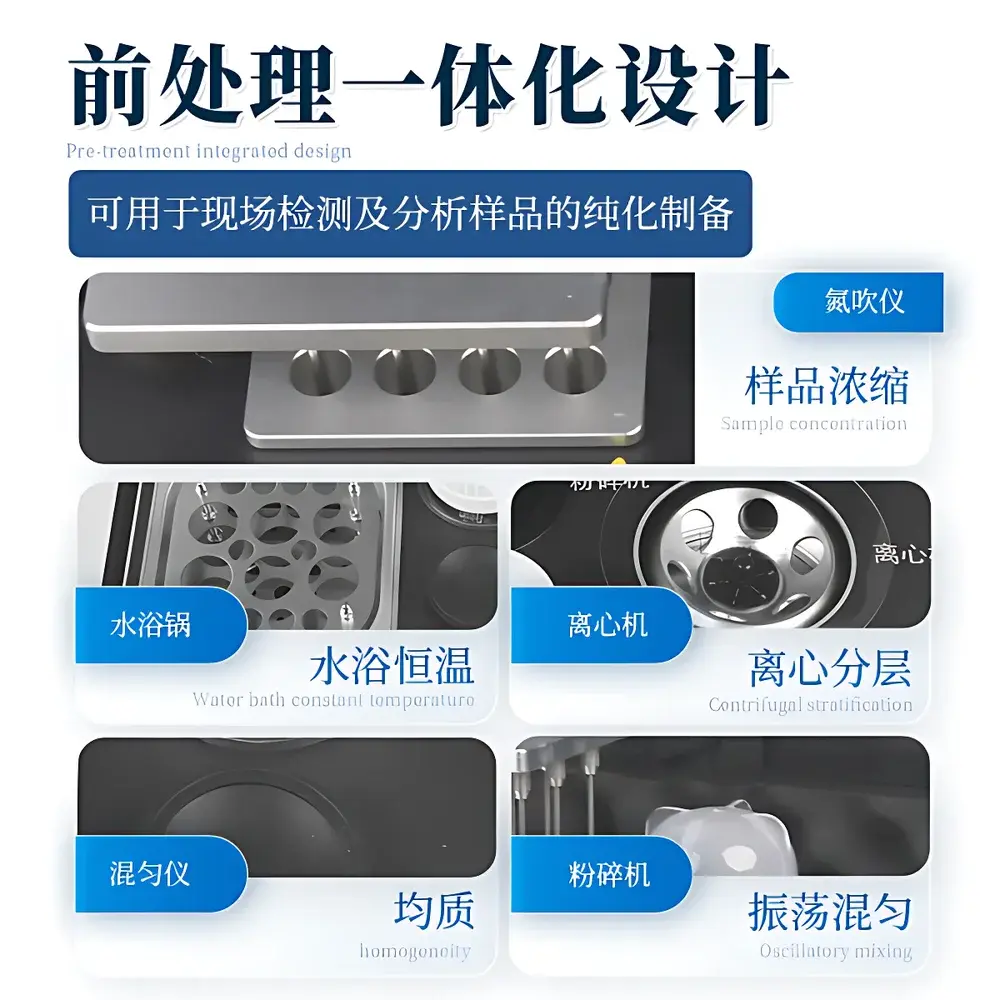

- Five-in-one integrated functionality: high-speed centrifugation, orbital shaking, high-shear homogenization, programmable nitrogen/air-assisted concentration, and precision water bath heating—all synchronized via embedded microcontroller logic.
- Robust industrial-grade housing: injection-molded engineering-grade ABS chassis with reinforced corners, IP54-rated enclosure, and chemical-resistant surface finish for long-term operation in humid, high-salt, or organic solvent-exposed environments.

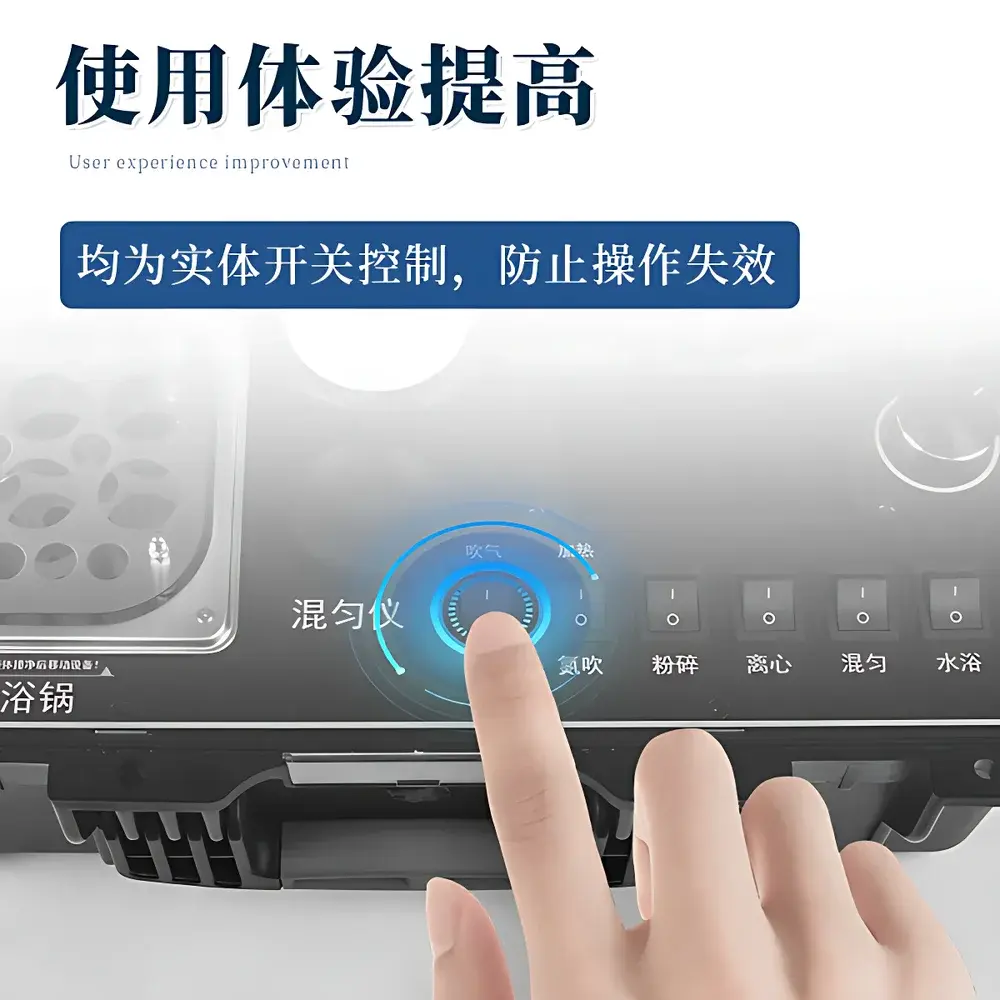

- Field-ready human-machine interface: 5-inch full-color TFT-LCD touchscreen with tactile physical control buttons—engineered for glove-compatible operation and resistance to liquid ingress during routine cleaning or accidental splashes.
- Centrifugation module: fixed-angle rotor supporting six 10 mL conical tubes at up to 4500 rpm (2200 × g), with automatic rotor recognition and imbalance compensation.
- Concentration module: dual-gas capability (compressed air or external N₂ supply), 12-position heated manifold with ±0.5 °C thermal uniformity across 25–100 °C range, and calibrated mass flow control (36 L/min max).
- Homogenization system: stainless-steel 304 multi-blade probe (15,000 rpm max), ABS sample cup with leak-proof sealing, and pulse-mode activation to minimize heat-induced analyte degradation.
Sample Compatibility & Compliance
The YT-QC4* accommodates heterogeneous food matrices including raw produce, cooked meats, seafood tissue, dairy products, cereals, and infant formula. It supports standard extraction solvents (acetonitrile, ethyl acetate, methanol/water mixtures) and cleanup sorbents (PSA, C18, GCB) used in QuEChERS-based workflows. All modules comply with ISO/IEC 17025 pre-analytical validation requirements for repeatability (RSD ≤0.1% for spiked recovery tests at MRL levels), thermal stability (EN 13805:2022), and mechanical safety (IEC 61010-1:2010). The instrument’s firmware logs all operational parameters—including time-stamped temperature profiles, centrifugal force history, and gas flow duration—for auditability in GLP and GMP-regulated settings. While not certified to FDA 21 CFR Part 11 out-of-the-box, its data export protocol (CSV via USB 2.0) enables integration with compliant LIMS platforms.
Software & Data Management
The onboard firmware provides non-volatile storage for up to 100 user-defined method templates, each configurable for sequential or parallel execution of individual modules. Method files include setpoints for speed, time, temperature, gas pressure, and ramp profiles—with real-time deviation alerts triggered upon parameter drift beyond ±2%. All session logs are timestamped and exportable as ASCII-encoded CSV files containing operator ID, sample batch ID, start/end timestamps, and critical process variables. No cloud connectivity or remote access is implemented; data integrity is preserved through local write-protection and tamper-evident file naming conventions (e.g., “YTQC4_METH_20240522_142301.csv”). For regulatory traceability, the system supports optional barcode scanning via external USB scanner (not included) to auto-populate sample identifiers.
Applications
- Routine surveillance testing of pesticide residues (organophosphates, carbamates, neonicotinoids) in fresh fruits and vegetables per GB 2763–2021.
- Multi-class antibiotic residue screening (tetracyclines, sulfonamides, β-lactams) in aquaculture samples using LC-MS/MS-ready extracts.
- Aflatoxin B₁ and ochratoxin A extraction from cereal grains and nuts prior to immunoaffinity column cleanup.
- Heavy metal leaching preparation (Pb, Cd, As) from processed foods using acid digestion support mode (water bath + controlled agitation).
- Emergency response deployment during foodborne outbreak investigations—enabling same-day extract generation for confirmatory analysis in central labs.
FAQ
Does the YT-QC4* include built-in analytical detection capability?
No. It is a dedicated sample preparation platform only. Final quantification requires interfacing with external instrumentation such as HPLC-UV, GC-ECD, or ELISA readers.
Can the instrument be powered by a 12 V DC source for mobile use?
No. It operates exclusively on 100–240 V AC, 50/60 Hz input. An external inverter is required for vehicle-based deployment.
Is the nitrogen concentration module compatible with regulated lab-grade N₂ cylinders?
Yes. It accepts standard CGA-580 inlet fittings and includes pressure regulation (0–0.4 MPa) and particulate filtration per ISO 8573-1 Class 2.
What maintenance intervals are recommended for the homogenizer motor and centrifuge bearings?
Centrifuge rotor balance verification every 200 runs; homogenizer blade replacement after 500 extractions or visible pitting; annual calibration of temperature sensors and tachometer against NIST-traceable references.
Are consumables like centrifuge tubes and concentrator tips supplied by Yuntang?
Yuntang provides initial accessory kits (6×10 mL tubes, holders, power cord, documentation). Ongoing consumables must be sourced separately—compatible with standard ISO 13485-certified laboratory suppliers.
