Yuntang YT-S Portable Soil Moisture Meter

Overview

The Yuntang YT-S Portable Soil Moisture Meter is a field-deployable, capacitance-based sensor system engineered for rapid, non-destructive measurement of volumetric soil water content (θ_v) in situ. Utilizing high-frequency dielectric permittivity sensing principles—calibrated against established soil-specific calibration curves—the instrument delivers repeatable readings across diverse soil textures (sand, loam, clay) without requiring site-specific recalibration. Its compact, handheld architecture enables single-operator deployment in remote or topographically constrained locations, supporting both spot-check surveys and time-series monitoring programs. Designed for long-term environmental observation networks, the YT-S complies with fundamental metrological requirements for field soil moisture instrumentation as referenced in ISO 11274 (soil physical properties) and ASTM D5859 (standard guide for soil moisture monitoring), making it suitable for use in GLP-aligned agricultural research, watershed management, and climate resilience studies.

Key Features

• Integrated capacitive probe with stainless-steel electrodes and temperature-compensated electronics for stable θ_v output under variable ambient conditions.
• Self-contained data logging: configurable sampling intervals (1 min to 24 h), automatic timestamping, and real-time low-battery indication.

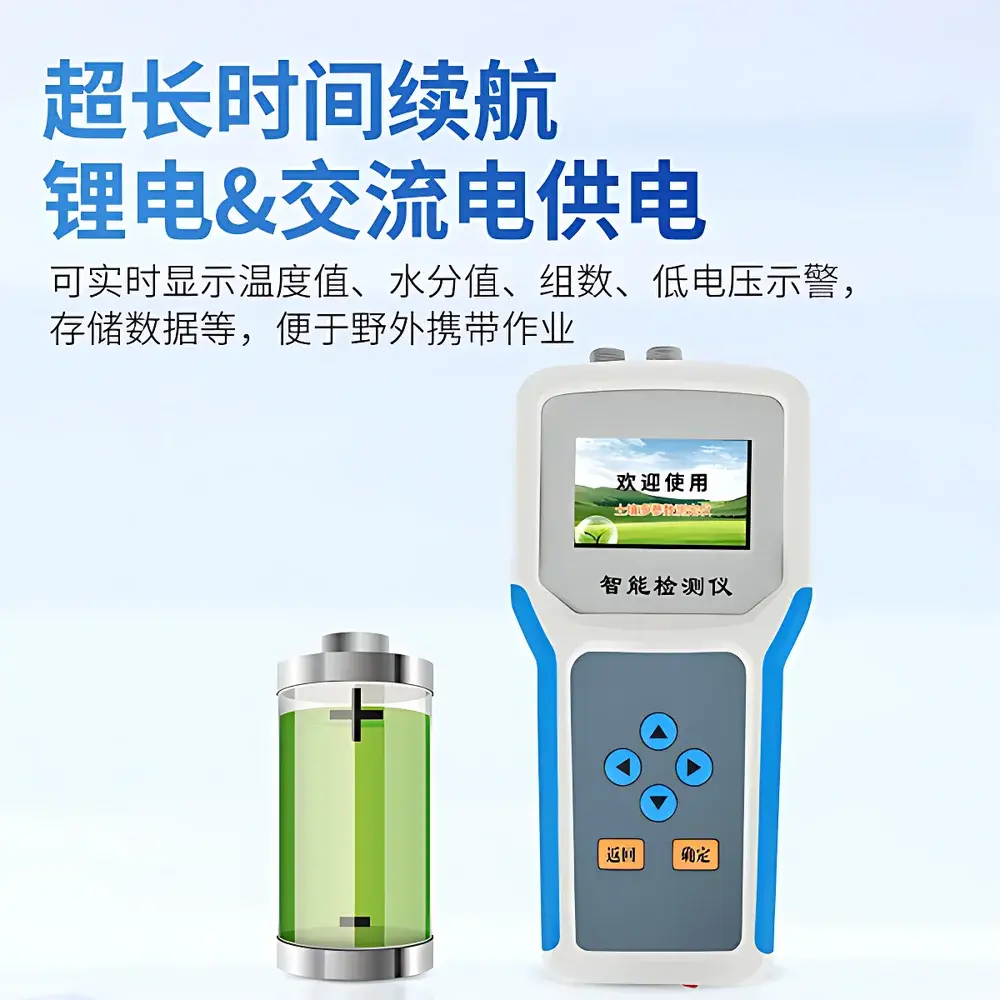

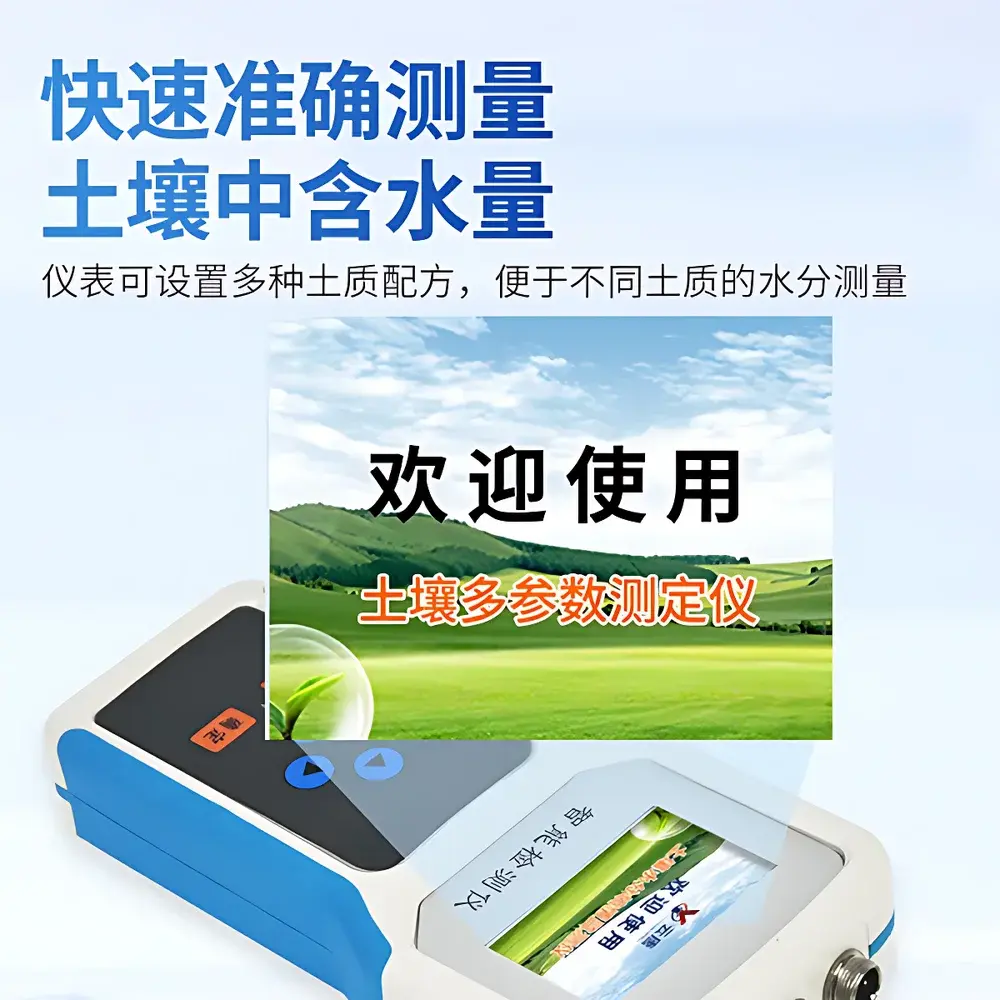

• High-contrast color LCD interface with intuitive menu navigation; displays current reading, unit, battery status, memory usage, and measurement history summary.

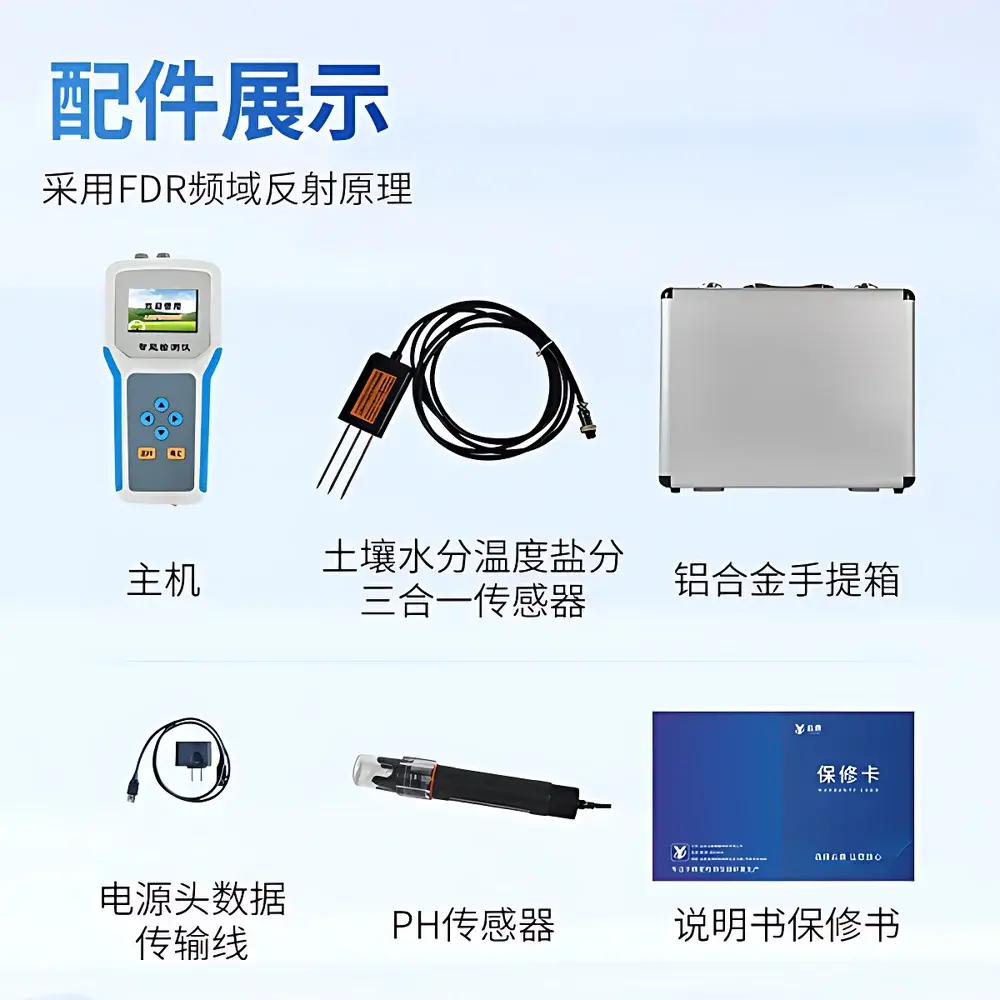

• Modular sensor architecture: supports hot-swappable plug-and-play integration of optional sensors (e.g., soil temperature, EC, pH) via standardized analog/digital interfaces—no firmware update required.
• Multi-channel capability: up to four simultaneous sensor inputs enabled via internal multiplexer, ensuring synchronized acquisition across heterogeneous plots or vertical soil profiles.

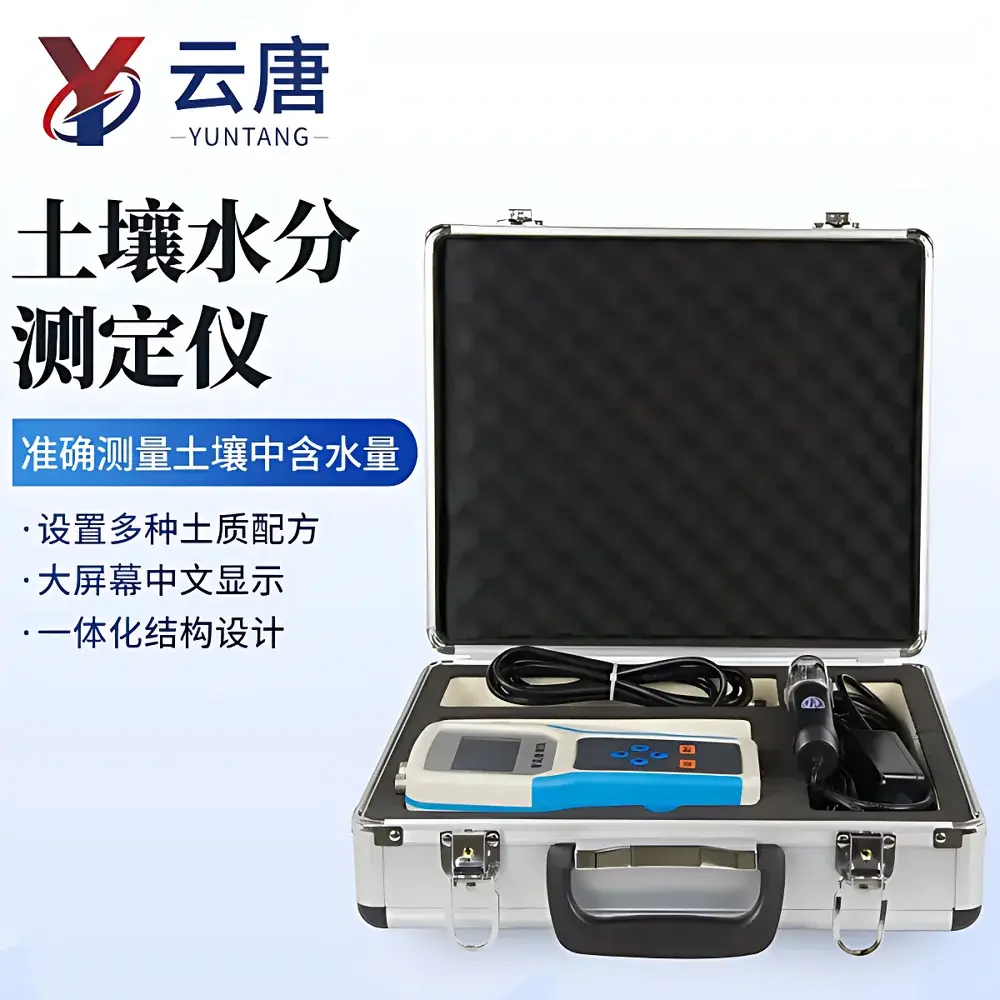

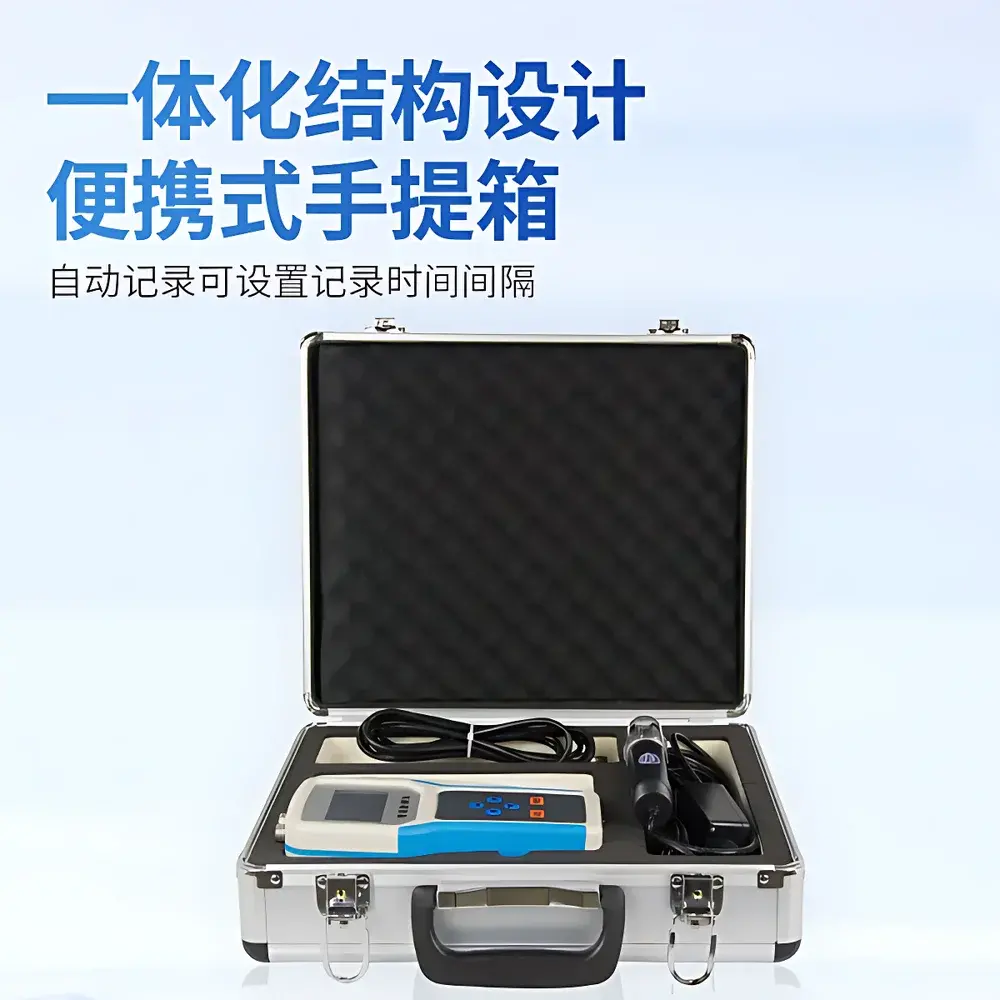

• Robust mechanical design: IP65-rated enclosure, reinforced housing, and shock-absorbing rubberized grip optimized for repeated field handling and transport.

Sample Compatibility & Compliance

The YT-S is validated for direct insertion into mineral soils ranging from coarse sand (≥50% sand fraction) to heavy clay (>40% clay), with minimal interference from organic matter (<15% OM) or salinity (EC < 4 dS/m). It meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and environmental robustness (EN 60529). While not certified for FDA 21 CFR Part 11 compliance (as it lacks audit-trail-enabled user authentication), its data export workflow supports traceable chain-of-custody documentation when paired with version-controlled lab notebooks and metadata tagging in Excel or LIMS environments. All firmware and calibration coefficients are stored in write-protected memory, ensuring integrity during power cycling or firmware updates.

Software & Data Management

The included Windows-compatible desktop application provides full control over device configuration, data retrieval, and post-acquisition analysis. Raw datasets are exported in UTF-8 CSV format with ISO 8601 timestamps and SI-unit headers, ensuring interoperability with R, Python (pandas), MATLAB, and GIS platforms (QGIS, ArcGIS). The software implements threshold-based visual alerts: values exceeding user-defined upper/lower bounds are highlighted in red/yellow within plotted time series, facilitating rapid outlier identification during QA/QC review. For networked deployments, the integrated 4G LTE module uploads encrypted JSON-formatted records at scheduled intervals to a secure, TLS 1.2-protected REST API endpoint hosted on Yuntang’s agro-cloud platform—accessible via role-based web dashboard with customizable reporting templates and automated PDF summary generation.

Applications

• Irrigation scheduling in precision agriculture: real-time feedback enables dynamic adjustment of drip or pivot systems to maintain optimal root-zone θ_v thresholds.
• Drought early-warning systems: longitudinal monitoring across sentinel sites informs regional water resource allocation models.
• Ecological restoration projects: tracking moisture dynamics in reforested or riparian buffer zones supports adaptive management decisions.
• Soil hydrology research: paired with lysimeters or neutron probes, the YT-S serves as a cost-effective validation tool for model parameterization (e.g., HYDRUS-1D).
• Environmental impact assessments: pre- and post-construction monitoring of soil desiccation or compaction effects near infrastructure corridors.
• Educational field labs: ruggedized form factor and intuitive interface support undergraduate pedagogy in soil physics and environmental science curricula.

FAQ

What calibration standards does the YT-S reference?
The factory calibration is traceable to gravimetric soil moisture measurements per ASTM D2216, with secondary verification using NIST-traceable dielectric reference materials.
Can the probe be used in saturated or flooded soils?
Yes—capacitance sensing remains functional up to full saturation (θ_v ≈ 100%), though prolonged submersion beyond 72 h may affect long-term electrode passivation.
Is sensor-to-sensor interchangeability verified across production batches?
Yes—each unit undergoes batch-level intercomparability testing against a master reference probe; reported interchangeability error (<3%) reflects 95% confidence interval across ≥50 units.
Does the software support automated report generation for regulatory submissions?
While no built-in regulatory template exists, the CSV/Excel export format conforms to data submission requirements for USDA NRCS, FAO WaPOR, and national soil monitoring networks.
How is data security managed during 4G transmission?
All payloads are AES-128 encrypted prior to transmission; certificate-pinned TLS handshake prevents man-in-the-middle interception; cloud storage adheres to ISO/IEC 27001 controls.
