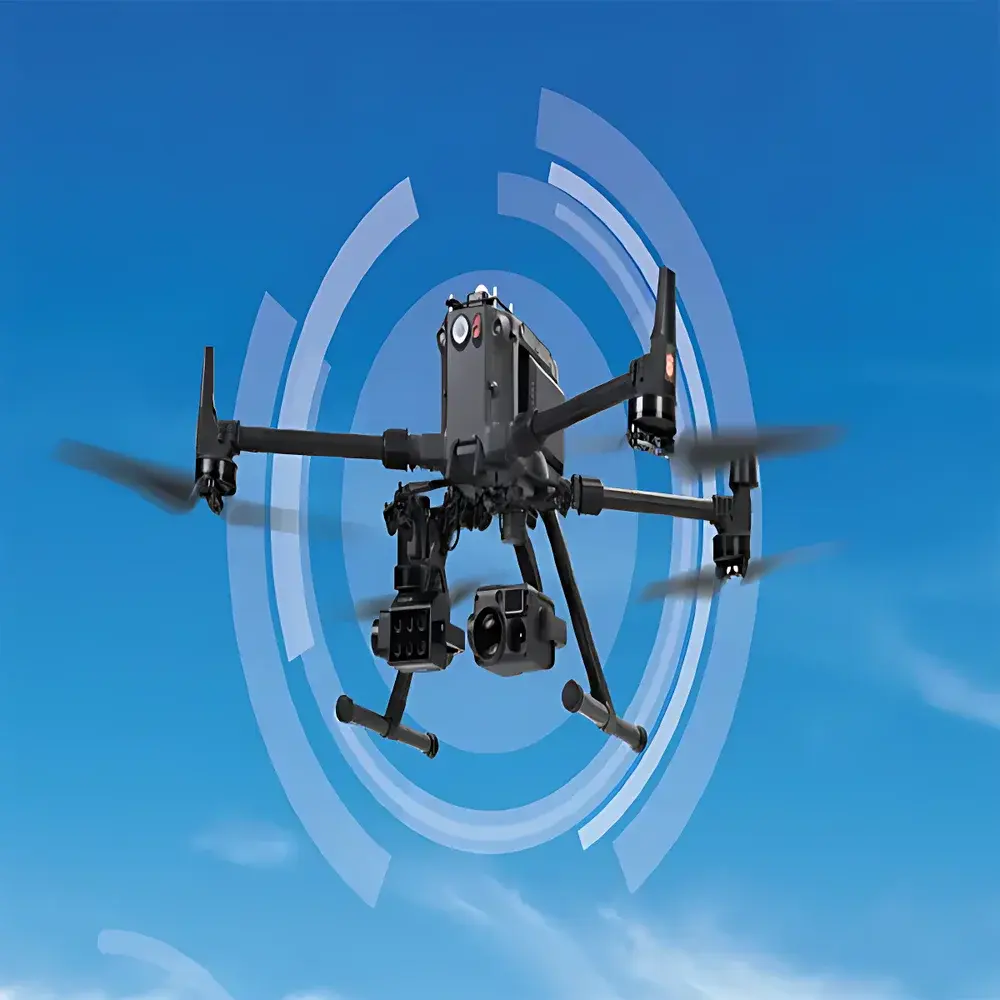

YUSENSE MS400 Multispectral Imaging System

Overview

The YUSENSE MS400 Multispectral Imaging System is a field-deployable, high-fidelity remote sensing instrument engineered for long-term ecological monitoring and vegetation phenotyping. It operates on the principle of spectral reflectance analysis—capturing discrete narrowband radiance in four user-selectable multispectral channels (e.g., blue, green, red, near-infrared) alongside a high-resolution RGB reference channel. This dual-path architecture enables robust calculation of vegetation indices—including NDVI, GNDVI, NDRE, and CIred-edge—with traceable radiometric calibration supported by its integrated downwelling light sensor (DLS). Designed for ground-based deployment on observation towers, agricultural information pillars, or portable tripods, the MS400 delivers synchronized, georeferenced image stacks under variable illumination and atmospheric conditions. Its optical-grade glass window, f/1.8 aperture, and sub-1% geometric distortion ensure consistent spatial fidelity across repeated acquisitions—critical for time-series change detection in dynamic ecosystems such as croplands, forests, grasslands, and wetlands.

Key Features

• Modular spectral configuration: Interchangeable filter wheel supports custom band selection (e.g., 550 nm, 660 nm, 730 nm, 790 nm) to align with specific biophysical parameter retrieval requirements.
• Dual-sensor imaging pipeline: Simultaneous acquisition of calibrated 1.3 MP multispectral data (12-bit global shutter) and 8.0 MP RGB imagery (8-bit rolling shutter) ensures pixel-aligned spectral–visual registration.
• Embedded radiometric normalization: Integrated DLS provides real-time incident irradiance measurement, enabling scene reflectance conversion compliant with ASTM E2593-21 and ISO 19130-2 standards.
• Flexible deployment interface: Gigabit Ethernet enables high-throughput image streaming and remote firmware updates; TTL serial port supports synchronization with environmental sensors (e.g., PAR, air temperature, humidity).
• On-device processing readiness: Onboard 64 GB microSD storage supports lossless RAW capture; Wi-Fi connectivity allows browser-based configuration without external software dependencies.
• Robust mechanical design: IP54-rated enclosure, wide operating temperature range (−10 °C to +50 °C), and standardized 1/4″-20 UNC tripod mount ensure compatibility with permanent phenotyping infrastructure.

Sample Compatibility & Compliance

The MS400 is optimized for non-contact, non-destructive observation of vegetative surfaces at spatial scales ranging from individual plant canopies (0.5–5 cm GSD at 2–10 m standoff distance) to landscape-level plots (up to 100 × 100 m when mounted on tall towers). It complies with data acquisition protocols referenced in USDA ARS Field Phenotyping Guidelines and aligns with FAO’s CropWatch framework for agro-ecological monitoring. All spectral bands are characterized per NIST-traceable procedures, and raw output adheres to GeoTIFF + sidecar metadata (EXIF/XMP) conventions for interoperability with QGIS, ENVI, and Google Earth Engine pipelines. The system supports GLP-compliant audit trails when deployed with timestamped, DLS-referenced acquisition logs.

Software & Data Management

No proprietary desktop application is required. Configuration, trigger scheduling, and live preview are managed via responsive HTML5 web interface accessible over local Wi-Fi or Ethernet. Image outputs are saved in standard TIFF/GeoTIFF format with embedded radiometric headers, including exposure time, gain, DLS irradiance values, and spectral band assignment. Batch processing workflows integrate seamlessly with open-source toolchains such as Python-based Rasterio, scikit-image, and the PlantCV library. For regulated environments, optional integration with time-stamped logging servers satisfies FDA 21 CFR Part 11 electronic record requirements when paired with network authentication and role-based access control.

Applications

• Long-term phenological monitoring of crop development stages (e.g., emergence, tillering, flowering, senescence) across breeding trials and commercial fields.
• Forest health assessment via chlorophyll absorption depth analysis and canopy structural heterogeneity mapping.
• Grassland productivity estimation using NDVI time-series modeling and fractional vegetation cover derivation.
• Wetland vegetation classification and invasive species detection through spectral signature divergence analysis.
• Validation of satellite-derived land surface products (e.g., Sentinel-2 L2A, Landsat Collection 2) at field scale.
• Integration into automated phenotyping platforms for high-throughput trait extraction under controlled or semi-field conditions.

FAQ

Does the MS400 support radiometric calibration with external reference panels?
Yes—while the integrated DLS enables relative reflectance correction, the system is compatible with standardized 99% Spectralon® or Labsphere® reference panels for absolute calibration workflows.
Can multispectral bands be reconfigured in the field without tools?
Yes—the filter wheel module is designed for rapid manual exchange using a single hex key; no optical realignment is required due to factory collimation verification.
Is the MS400 compatible with UAV mounting?
The MS400 is engineered for ground-based stability and thermal management; UAV integration is not supported due to vibration sensitivity, power constraints, and lack of onboard IMU/GNSS fusion.
What file formats does the MS400 output?
RAW 12-bit TIFF (multispectral) and 8-bit JPEG/TIFF (RGB), both embedded with EXIF tags containing GPS (if externally supplied), UTC timestamps, exposure parameters, and DLS irradiance values.
How is firmware updated?
Firmware updates are delivered as signed binary packages via the web interface; update integrity is verified using SHA-256 checksums prior to installation.
