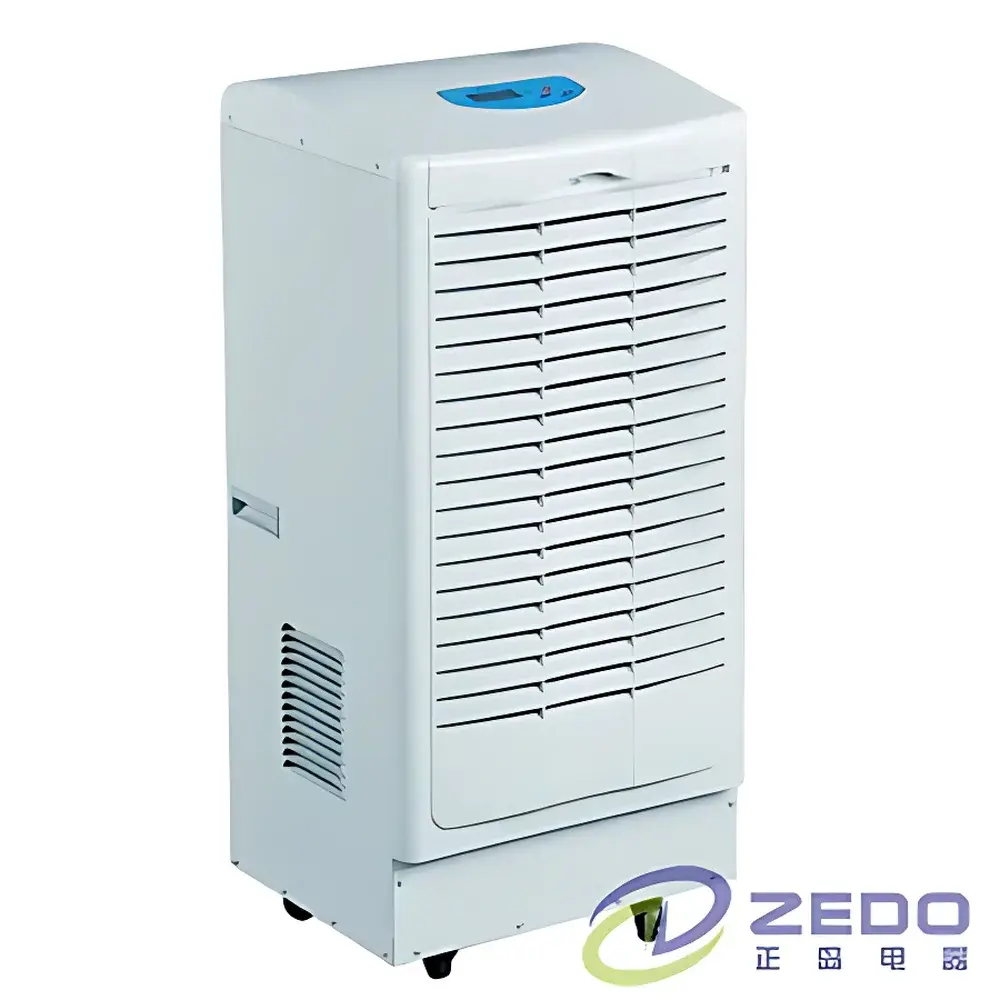

ZEDO ZD-8240C Industrial Condensation Dehumidifier

Overview

The ZEDO ZD-8240C Industrial Condensation Dehumidifier is an engineered solution for precise, continuous moisture removal in demanding non-residential environments. Utilizing refrigerant-based condensation technology—where ambient air is drawn across a cooled evaporator coil to induce water vapor condensation—the unit delivers stable, repeatable dehumidification performance under variable load conditions. Its design conforms to core thermodynamic principles governing latent heat extraction, ensuring consistent dew point suppression without reliance on desiccant regeneration cycles or consumables. The ZD-8240C is specifically calibrated for operation in industrial facilities where ambient temperatures range from 5 °C to 38 °C, making it suitable for year-round deployment in production floors, cold storage perimeters, and climate-sensitive storage zones. Unlike portable or residential-grade units, this system integrates structural rigidity, industrial-grade electrical architecture, and factory-aligned airflow dynamics to sustain uninterrupted operation over extended duty cycles—critical for GMP-aligned manufacturing, archival preservation, and precision instrumentation environments.

Key Features

• High-capacity refrigeration system featuring an internationally certified scroll compressor and eco-compliant refrigerant (R-410A or equivalent), optimized for energy efficiency and low acoustic emission (52 dB[A] at 1 m).
• Dual-centrifugal external rotor fan assembly delivering uniform static pressure distribution and laminar airflow across the evaporator surface—enhancing condensate yield and minimizing frost formation under marginal operating conditions.
• High-efficiency heat exchanger constructed with internally grooved copper tubing and hydrophilic aluminum fins, engineered to maximize surface contact area and thermal transfer coefficient while resisting corrosion and fouling.
• Microprocessor-based control platform incorporating a SHINYO capacitive humidity/temperature sensor (±2% RH accuracy, ±0.3 °C) and intuitive touch-interface HMI with real-time operational diagnostics—including compressor status, filter saturation alerts, and fault code logging.
• Robust mechanical architecture: welded steel frame, vibration-dampened mounting, and segregated refrigerant and airflow pathways—facilitating service access without system isolation or refrigerant recovery.
• Comprehensive safety suite compliant with IEC 60335-1 and GB 4706.32, including three-minute compressor restart delay, high/low pressure cutouts, thermal overload protection, undervoltage monitoring, and electromagnetic contactor redundancy.

Sample Compatibility & Compliance

The ZD-8240C is validated for use in environments requiring strict environmental control per ISO 14644-1 (cleanroom classification), ISO 18562 (biocompatibility of medical gas systems), and ASTM D6413 (fire testing of textiles). Its continuous drainage capability and sealed refrigerant circuit support unattended operation in Class C and D pharmaceutical manufacturing spaces governed by EU GMP Annex 1 and FDA 21 CFR Part 211. The unit’s non-shedding activated carbon pre-filter meets ISO 16890 particulate filtration standards for coarse dust and VOC adsorption—particularly relevant in archival repositories (ISO 11799), data centers (ASHRAE TC 90.4), and diagnostic imaging labs where humidity-induced lens fogging or detector drift must be mitigated. No regulatory certification (e.g., CE, UL, ETL) is implied unless explicitly stated on product nameplate or provided in technical documentation.

Software & Data Management

The embedded microcontroller supports local parameter configuration only—no cloud connectivity, remote firmware updates, or proprietary software dependencies. All operational data—including runtime hours, cumulative condensate volume (estimated), fault event timestamps, and sensor calibration history—are stored in non-volatile memory and accessible via the front-panel interface. Audit trail functionality satisfies basic GLP requirements for environmental monitoring equipment (per FDA 21 CFR Part 11 Subpart B §11.10), enabling manual export of event logs via USB or RS-485 (optional module). No password protection or electronic signature capability is integrated; user-level access remains open for technician-level intervention without administrative credentials.

Applications

• Pharmaceutical manufacturing: Maintaining ≤45% RH in tablet compression rooms, lyophilization suites, and API storage areas to prevent hygroscopic degradation and caking.
• Electronics assembly: Stabilizing humidity at 30–50% RH in SMT lines and cleanrooms to inhibit electrostatic discharge (ESD) and solder paste slump.
• Cultural heritage preservation: Controlling seasonal RH excursions in museum storage vaults and library basements per ISO 11799 guidelines for cellulose-based media longevity.
• Frozen food logistics: Preventing ice bridging and package delamination in chilled distribution hubs operating near 0 °C dew points.
• Medical device sterilization: Supporting ethylene oxide (EtO) chamber preconditioning and post-cycle drying by maintaining sub-40% RH in adjacent staging areas.
• Optical metrology labs: Eliminating micro-condensation on interferometer optics and coordinate measuring machine (CMM) granite tables during high-precision dimensional inspection.

FAQ

What is the recommended maintenance interval for the ZD-8240C?
Filter cleaning is advised every 14 days in high-dust environments; full coil inspection and refrigerant charge verification should occur annually or after 5,000 operational hours.
Can the unit operate continuously at 5 °C ambient temperature?
Yes—its low-temperature defrost logic and scroll compressor design enable stable operation down to 5 °C, though dehumidification capacity decreases approximately 12% per 5 °C drop below 25 °C reference.
Is the ZD-8240C compatible with building management systems (BMS)?
Standard models include dry-contact alarm outputs and analog 0–10 V humidity feedback; Modbus RTU integration requires optional communication module (ZEDO part #ZD-COM-MB).
Does the unit meet noise regulations for occupied laboratory spaces?
At 52 dB(A), it complies with ISO 15712-2 for “low-noise” HVAC equipment in semi-quiet zones but is not rated for direct installation in acoustically sensitive analytical labs without acoustic enclosures.
What is the expected service life under industrial duty cycle?
With scheduled maintenance, the compressor and fan assemblies are rated for ≥25,000 hours; structural frame and heat exchanger carry a 10-year corrosion warranty under indoor, non-marine conditions.
