ZEDO ZD-8240G High-Temperature Industrial Dehumidifier

Overview

The ZEDO ZD-8240G High-Temperature Industrial Dehumidifier is engineered for continuous moisture removal in thermally demanding environments where standard refrigerant-based dehumidifiers fail—specifically in drying chambers, curing ovens, and process rooms operating between 38°C and 55°C. Unlike conventional condensation dehumidifiers limited to ≤38°C ambient intake air, the ZD-8240G integrates a purpose-built high-temperature scroll compressor, enlarged copper-tube heat exchangers with enhanced surface area, and hydrophilic aluminum evaporator fins optimized for rapid condensate shedding under elevated thermal load. Its core principle relies on refrigerant-cycle condensation: warm, saturated process air is drawn across a cooled evaporator coil, where moisture condenses due to dew-point depression; the latent heat is rejected via a robust air-cooled condenser, while sensible heat is partially recovered within the system’s airflow path to maintain stable internal temperature profiles. This architecture enables energy-efficient dehumidification without exhausting heated air—reducing thermal energy loss by up to 60% compared to forced-exhaust drying methods.

Key Features

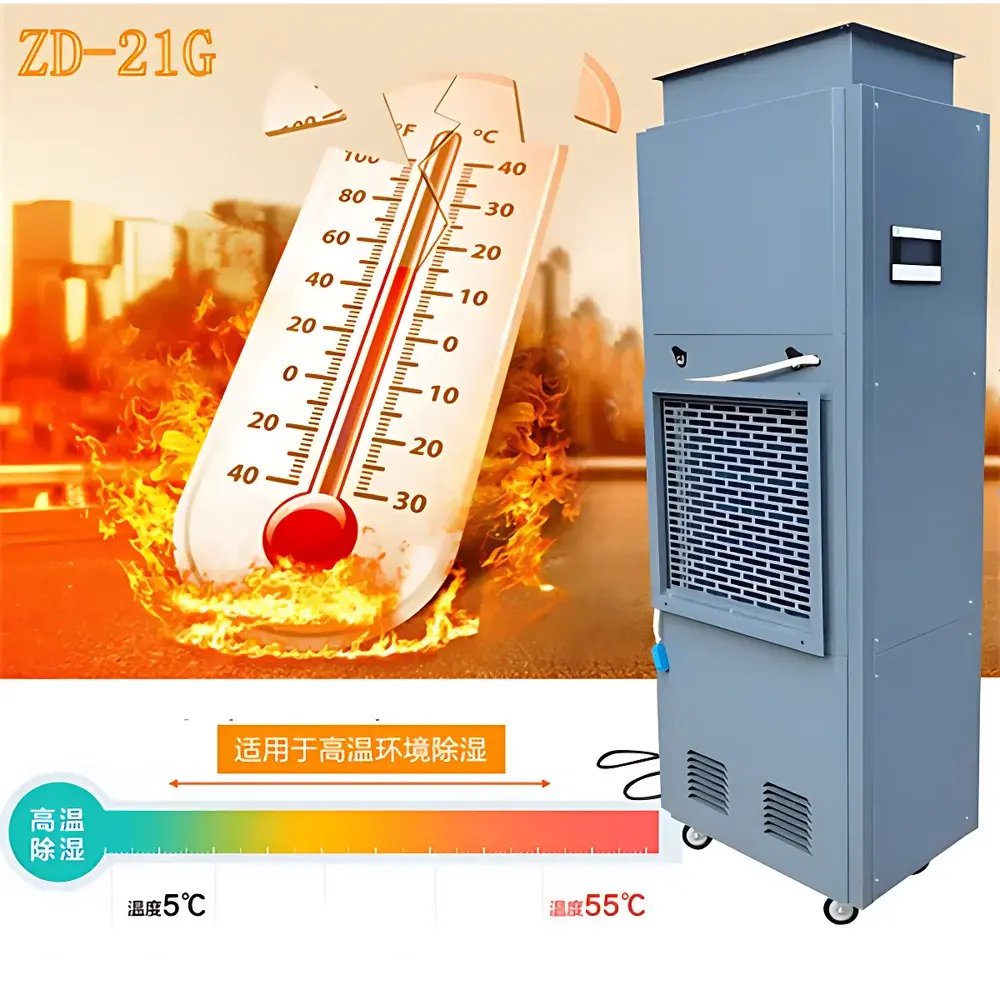

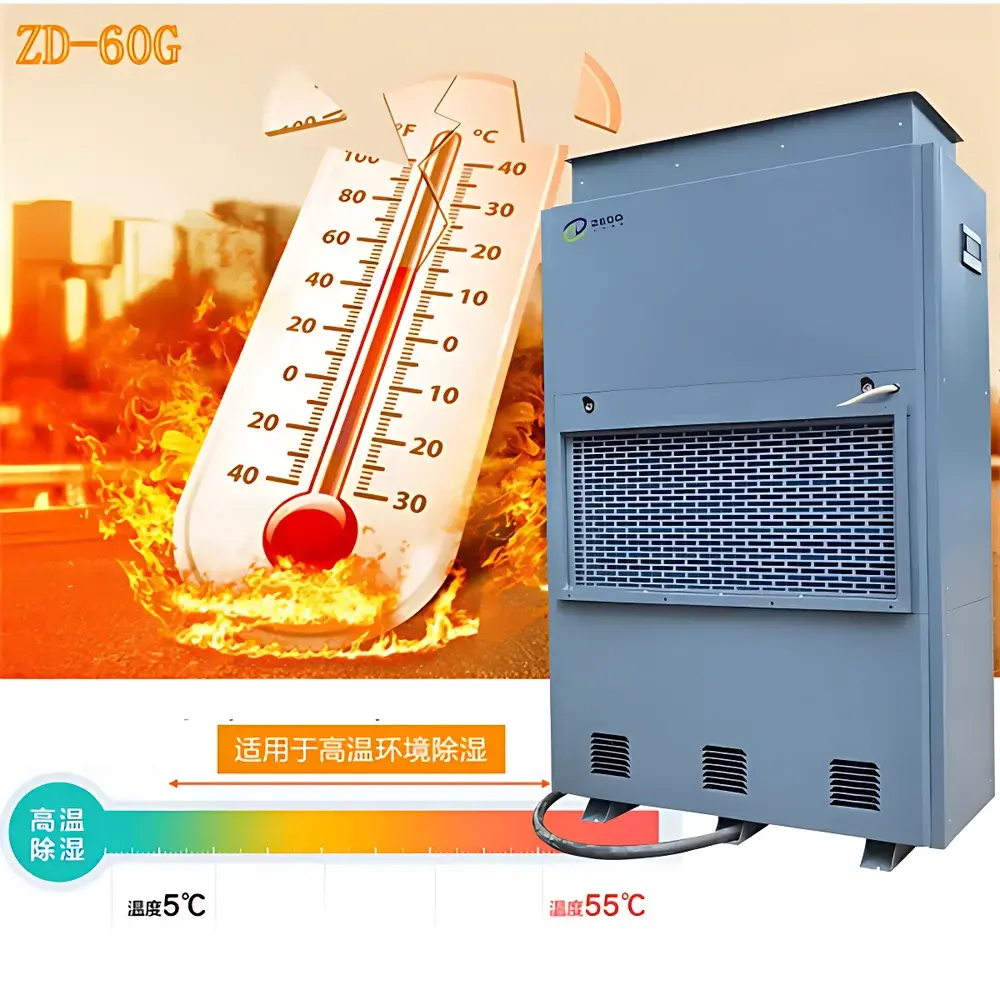

• High-temperature operation: Certified stable performance with inlet air up to 55°C, extending operational envelope beyond standard industrial dehumidifiers (typically rated ≤38°C).
• Dual-stage thermal protection: Integrated high/low pressure switches, phase sequence monitoring, and 3-minute compressor restart delay prevent thermal shock and mechanical stress during cyclic operation.
• Microprocessor-based humidity control: Programmable setpoint range (10–90% RH) with ±3% RH accuracy; real-time fault diagnostics displayed via LED interface.
• Optimized heat transfer design: Oversized copper-tube condenser with extended fin surface area; hydrophilic-coated evaporator fins accelerate water runoff and inhibit frost accumulation at elevated temperatures.
• Robust mechanical construction: Heavy-duty steel chassis (160 kg total mass), vibration-dampened compressor mounting, and IP54-rated electrical enclosure for dust/moisture resistance.
• Continuous drainage capability: Standard 1.5 m PVC drain hose with gravity-fed or optional condensate pump interface for unattended 24/7 operation.

Sample Compatibility & Compliance

The ZD-8240G is compatible with hygroscopic and thermosensitive materials requiring controlled desiccation under elevated temperatures—including pharmaceutical granules, herbal extracts, polymer resins, wood veneers, dried fruits, and coated electronic components. It complies with IEC 60335-1 (Household and Similar Electrical Appliances – Safety) and IEC 60335-2-43 (Particular Requirements for Dehumidifiers), and its 380 V / 50 Hz three-phase power configuration meets CE low-voltage directive requirements. While not intrinsically rated for hazardous locations, it may be deployed in non-classified zones adjacent to Class II, Division 2 areas when installed per NEC Article 500 guidelines. For GMP-regulated environments (e.g., API drying suites), optional audit-trail-capable data loggers (RS485 Modbus RTU) support 21 CFR Part 11-compliant record retention when integrated with validated SCADA systems.

Software & Data Management

The unit operates via embedded firmware with no external PC dependency. All operational parameters—including runtime hours, cumulative dehumidification volume, fault codes, and current RH/temperature readings—are stored in non-volatile memory and accessible via front-panel navigation. Optional RS485 Modbus RTU communication enables integration into centralized building management systems (BMS) or MES platforms for remote monitoring, alarm notification (via dry-contact relay or SNMP trap), and batch-level environmental documentation. When paired with calibrated external sensors (e.g., Vaisala HMP155), the controller supports closed-loop humidity modulation based on process-defined setpoints, satisfying GLP/GMP documentation requirements for critical drying validation protocols.

Applications

• Pharmaceutical manufacturing: Fluid-bed dryer exhaust recirculation, lyophilizer chamber purge conditioning, and granule drying tunnels (USP <1151> compliant moisture control).
• Food processing: Fruit leather dehydration, mushroom drying rooms, jerky curing chambers, and spice powder conditioning prior to milling.
• Woodworking & composites: Kiln drying acceleration for hardwoods, MDF edge-sealing pre-treatment, and bamboo laminating humidity stabilization.
• Chemical & polymer synthesis: Solvent recovery loop conditioning, resin curing ovens, and pigment drying cabinets.
• Electronics manufacturing: PCB conformal coating drying, transformer winding moisture extraction, and battery electrode drying hoods.

FAQ

What is the maximum allowable inlet air temperature for continuous operation?
The ZD-8240G is validated for uninterrupted service with inlet air up to 55°C. Operation above this threshold requires derating and engineering review.
Can this unit be integrated into an existing HVAC or process control system?
Yes—via standard RS485 Modbus RTU interface (optional), supporting read/write access to humidity setpoints, status flags, and accumulated runtime/dehumidification data.
Does the unit meet regulatory requirements for pharmaceutical drying applications?
The base model satisfies electrical safety and EMC standards (IEC 60335). For 21 CFR Part 11 compliance, pairing with a validated data logger and documented IQ/OQ protocols is required.
Is ducted or ceiling-mounted installation supported?

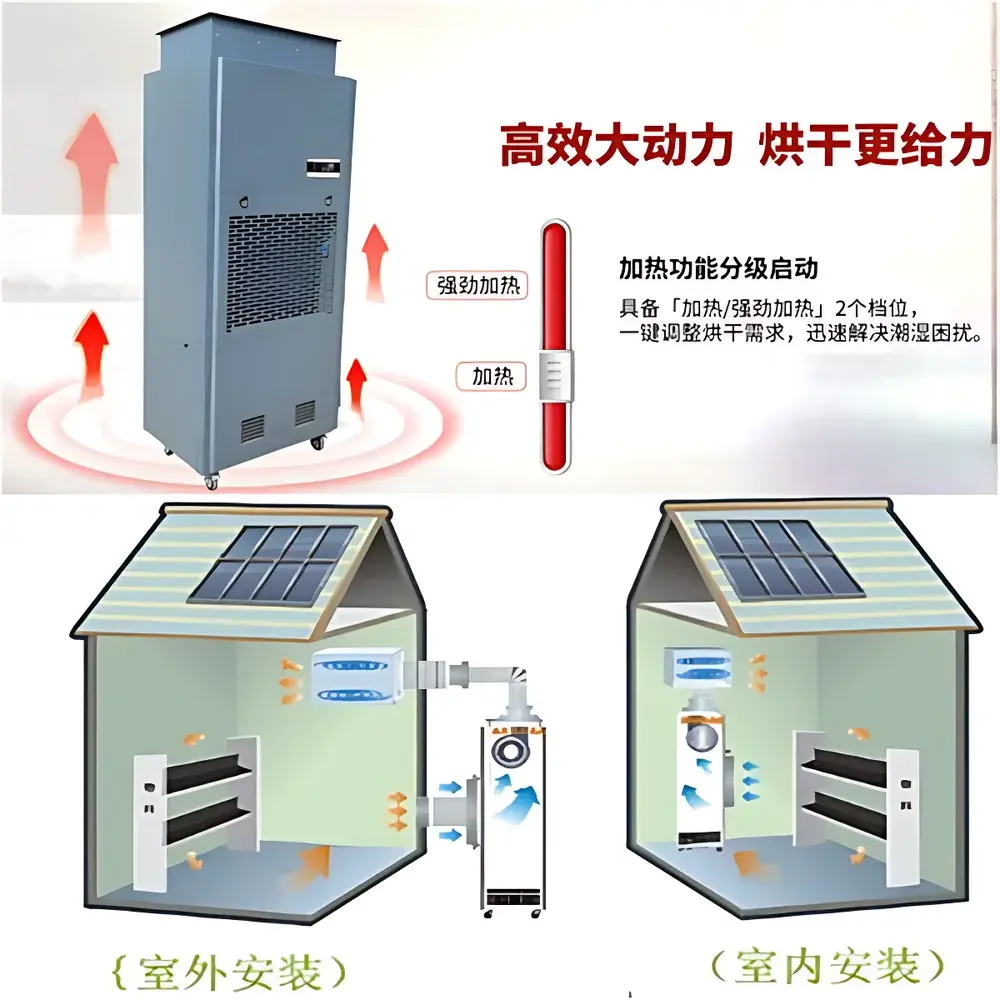

Custom ducted and ceiling-suspended configurations are available upon request, including reinforced mounting brackets and extended condensate lift kits.

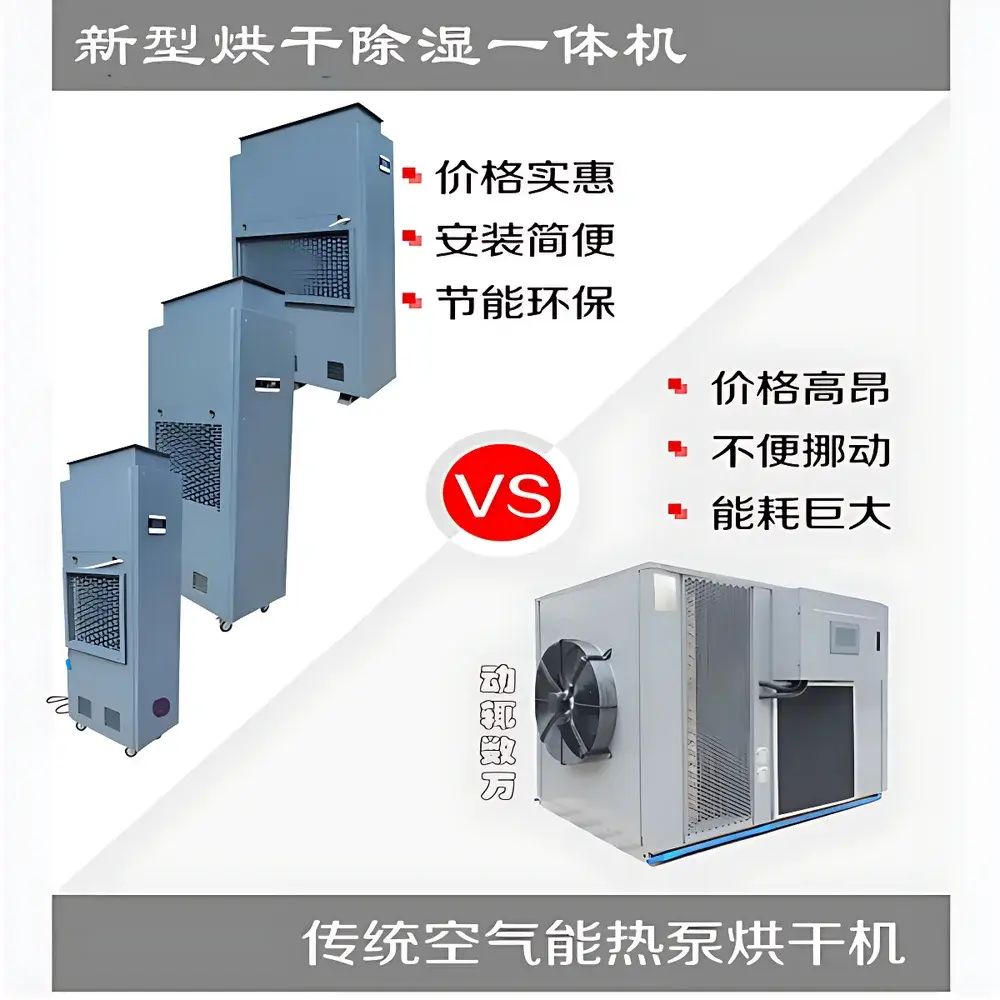

How does energy efficiency compare to traditional exhaust-based drying?
By recirculating conditioned air instead of venting heated exhaust, the ZD-8240G reduces thermal energy demand by approximately 40–60%, depending on room insulation and moisture loading profile.
