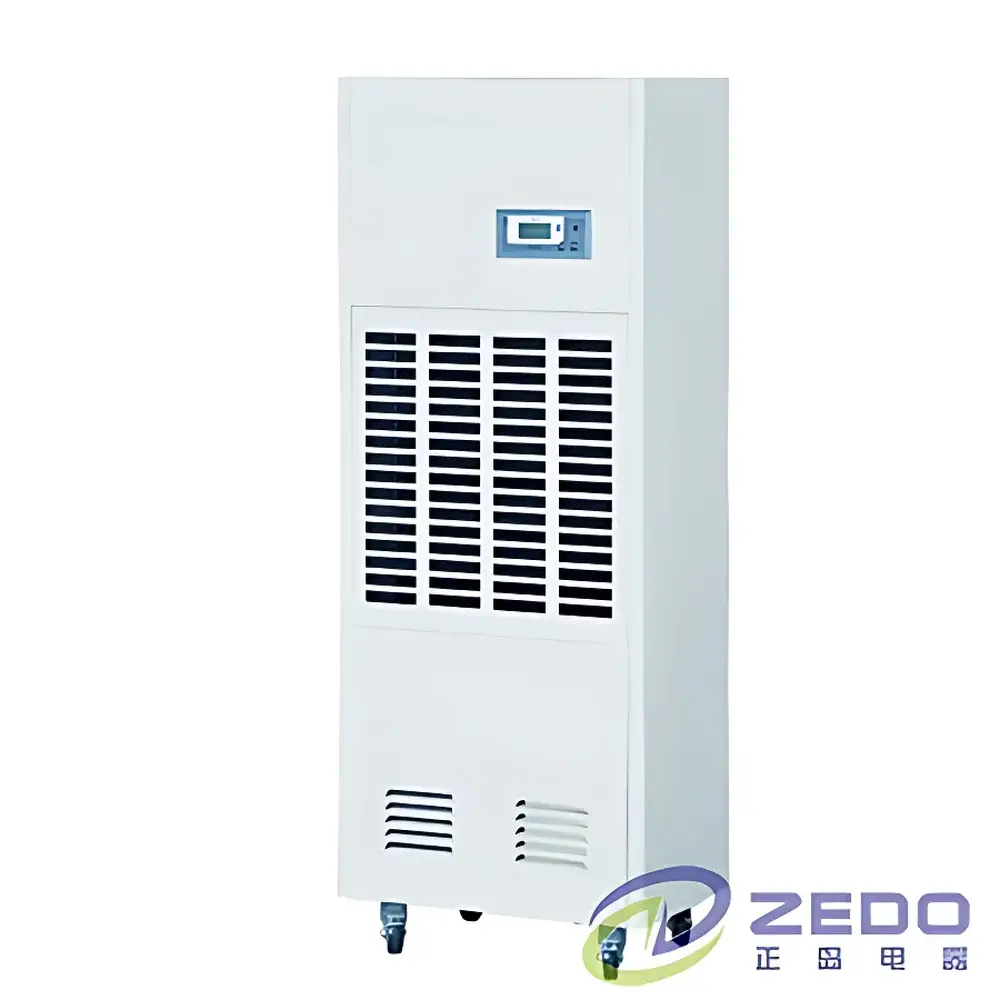

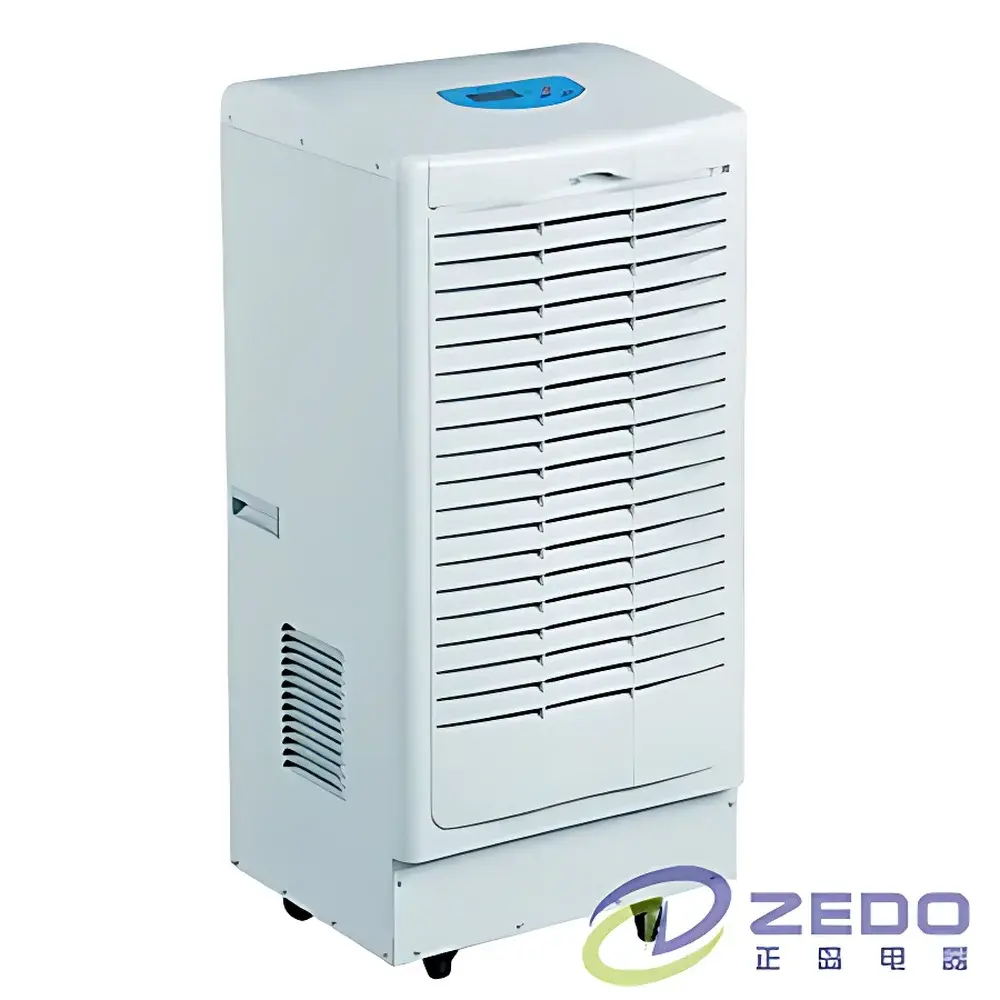

ZEDO ZD-8360C Commercial Food Storage Dehumidifier

Overview

The ZEDO ZD-8360C Commercial Food Storage Dehumidifier is an industrial-grade, compressor-driven dehumidification system engineered for precise, continuous humidity control in temperature-sensitive storage environments. It operates on the principle of refrigerant-based condensation: ambient air is drawn across a chilled evaporator coil (cooled below the dew point by a sealed R-410A refrigeration circuit), causing moisture to condense and drain continuously via gravity or pumped discharge. The resulting dry air—reduced in relative humidity to a user-defined setpoint—is reintroduced into the space. This thermodynamic process ensures stable RH maintenance within tightly constrained ranges (typically 40–50 %RH), critical for preventing microbial growth, lipid oxidation, caking, clumping, and enzymatic degradation in hygroscopic food commodities such as flour, dried fruits, nuts, spices, dairy powders, and confectionery ingredients.

Key Features

• High-capacity dehumidification at 360 liters per day under standard test conditions (30 °C, 80 %RH), validated per AHAM DH-1 protocol equivalents.
• Dual-centrifugal impeller air handling system with external rotor industrial blower delivers uniform airflow distribution across large-volume spaces up to 360 m², minimizing localized microclimates.
• Optimized heat exchanger assembly featuring internally grooved copper tubing and hydrophilic aluminum fins maximizes latent heat transfer efficiency while resisting corrosion and fouling in high-humidity operational cycles.
• Microprocessor-based controller with integrated Japanese-made Sento high-accuracy capacitive humidity sensor (±2 %RH typical accuracy, 0.1 %RH resolution) enables programmable setpoint control, real-time monitoring, and automatic modulation of fan speed and compressor staging.
• Comprehensive electrical protection suite includes high/low refrigerant pressure cutoffs, thermal overload relays, undervoltage sensing, reverse-phase detection, and 3-minute anti-short-cycling delay for compressor longevity.
• Structural design separates airflow and refrigeration subsystems—facilitating modular service access without refrigerant recovery—and incorporates vibration-dampened mounting to reduce mechanical transmission into sensitive storage racking systems.

Sample Compatibility & Compliance

The ZD-8360C is explicitly validated for use in GMP-aligned food storage facilities where environmental controls are mandated by regulatory frameworks including FDA 21 CFR Part 110 (Current Good Manufacturing Practice in Manufacturing, Packing, or Holding Human Food), ISO 22000:2018 (Food Safety Management Systems), and Codex Alimentarius General Principles of Food Hygiene. Its stable RH output supports compliance with shelf-life validation protocols requiring documented humidity history (e.g., accelerated stability testing per ICH Q1A). The unit meets IEC 60335-1 (General Requirements for Household and Similar Electrical Appliances) and IEC 60335-2-40 (Particular Requirements for Heat Pumps, Air-Conditioners and Dehumidifiers) for electrical safety. Optional data logging modules support 21 CFR Part 11-compliant audit trails when integrated with validated SCADA platforms.

Software & Data Management

While the base ZD-8360C operates via standalone microcontroller interface, optional RS-485 Modbus RTU or Ethernet/IP communication ports enable integration into centralized building management systems (BMS) or laboratory information management systems (LIMS). Firmware supports configurable alarm thresholds (e.g., RH deviation > ±3 %RH for >5 min), event-triggered email/SMS notifications (via gateway), and time-stamped operational logs exportable in CSV format. All firmware updates are performed via secure USB interface with cryptographic signature verification. Audit trail functionality—including operator login timestamps, parameter changes, and fault reset events—meets GLP documentation requirements when deployed in regulated QC/QA laboratories or pilot-scale food processing environments.

Applications

• Primary food storage warehouses housing bulk dry goods (cereals, legumes, coffee beans, cocoa powder) requiring long-term RH stabilization between 40–45 %RH.
• Intermediate holding areas adjacent to packaging lines where moisture ingress during material transfer must be mitigated to preserve seal integrity and prevent microbial bloom.
• Pharmaceutical-grade cold rooms and controlled-temperature logistics hubs where simultaneous temperature (2–8 °C) and humidity (≤45 %RH) control prevents condensation on vial surfaces and label delamination.
• Archival storage for food safety documentation, calibration records, and HACCP plans in paper-based or hybrid record-keeping facilities.
• Research & development laboratories conducting hygroscopicity testing, water activity (a_w) correlation studies, or accelerated aging trials under ISO 187:2017 (Paper, board and pulps — Standard atmosphere for conditioning and testing).

FAQ

What is the recommended relative humidity setpoint for long-term storage of dried pasta and rice?
For optimal shelf life and prevention of insect infestation, dried cereal products should be maintained at 50–55 %RH at 20–25 °C. The ZD-8360C’s microprocessor allows precise setpoint definition and hysteresis tuning to avoid over-drying.
Can this unit operate continuously in a 5 °C chilled warehouse environment?
Yes—the ZD-8360C is rated for operation down to 5 °C ambient, incorporating intelligent defrost logic that minimizes downtime while preserving coil integrity and avoiding ice bridging.
Is the activated carbon filter replaceable, and what is its service interval?
The standard carbon-impregnated particulate filter is field-replaceable and rated for 6 months under typical food storage dust loading; replacement kits include pre-calibrated differential pressure indicators.
Does the unit support remote monitoring via cloud platform?
Cloud connectivity requires optional IoT gateway hardware (sold separately); local BMS integration via Modbus is standard.
How is condensate drainage managed in high-ceiling warehouses?
The unit supports both gravity-fed hose routing (max 3 m vertical lift) and optional 12 V DC condensate pump upgrade (5 m max lift, 10 L/min flow) for flexible installation in multi-level storage configurations.
