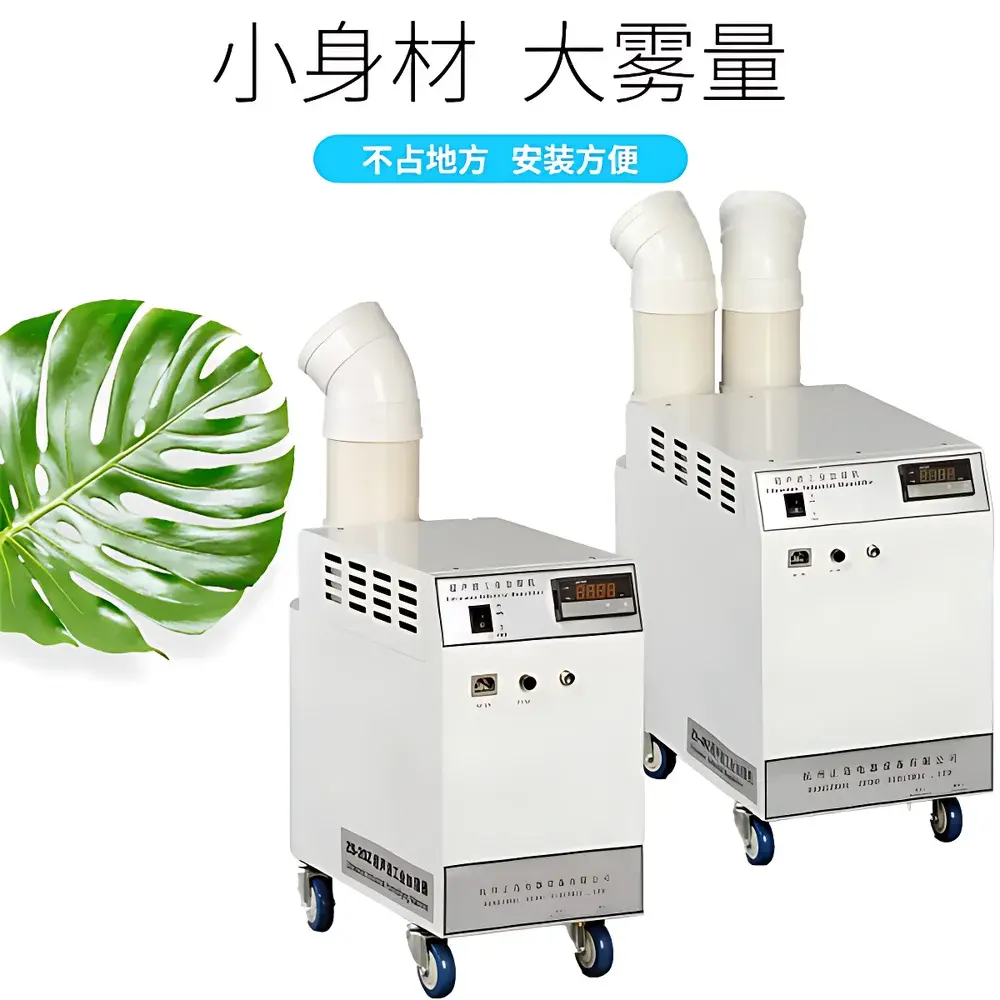

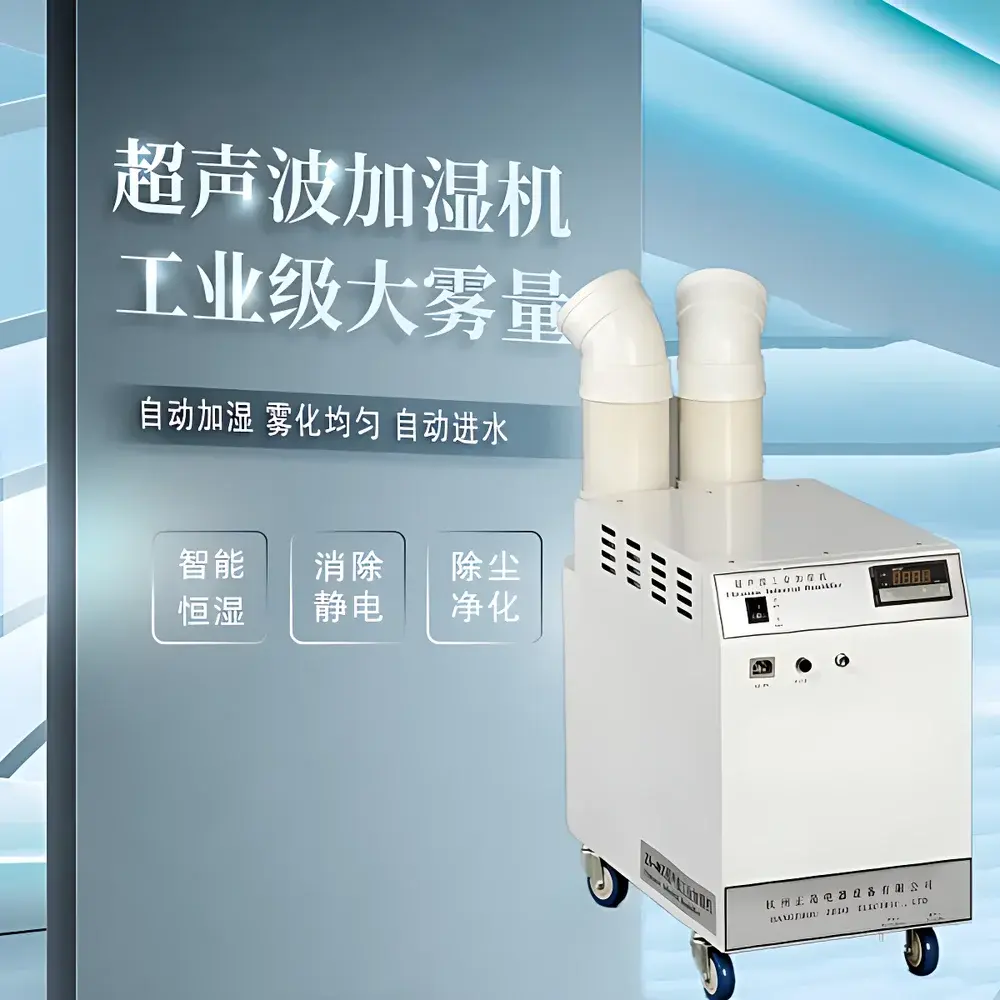

ZEDO ZS-40Z High-Humidity-Resistant Ultrasonic Humidifier

Overview

The ZEDO ZS-40Z High-Humidity-Resistant Ultrasonic Humidifier is an industrial-grade environmental control system engineered for continuous, stable humidification in demanding laboratory, cleanroom, and manufacturing environments where relative humidity must be maintained at elevated setpoints (up to 95% RH) without condensation risk or component degradation. Unlike standard ultrasonic humidifiers, the ZS-40Z employs a robust architecture specifically designed to operate reliably under sustained high-humidity conditions—common in pharmaceutical stability chambers, material testing labs, textile conditioning rooms, and electronics assembly areas. Its core mechanism leverages high-frequency piezoelectric transduction (1.7 MHz) to atomize deionized or softened water into sub-5 µm droplets, enabling rapid vapor-phase integration and minimizing localized wetting or surface deposition. This principle—governed by controlled cavitation in the liquid phase—ensures uniform moisture distribution across large-volume spaces while avoiding thermal load or mineral carryover associated with steam-based systems.

Key Features

• Full 304 stainless steel enclosure with electropolished interior surfaces for corrosion resistance and ease of cleaning—compliant with ISO 14644-1 Class 7 cleanroom maintenance protocols.
• Integrated ultrasonic atomizer module featuring alkaline- and acid-resistant ceramic transducers, rated for >15,000 hours of continuous operation under high-RH ambient exposure.
• IP68-rated waterproof power supply and sealed bearing fan assembly—certified for operation in ambient humidity up to 98% RH at 35°C without derating.

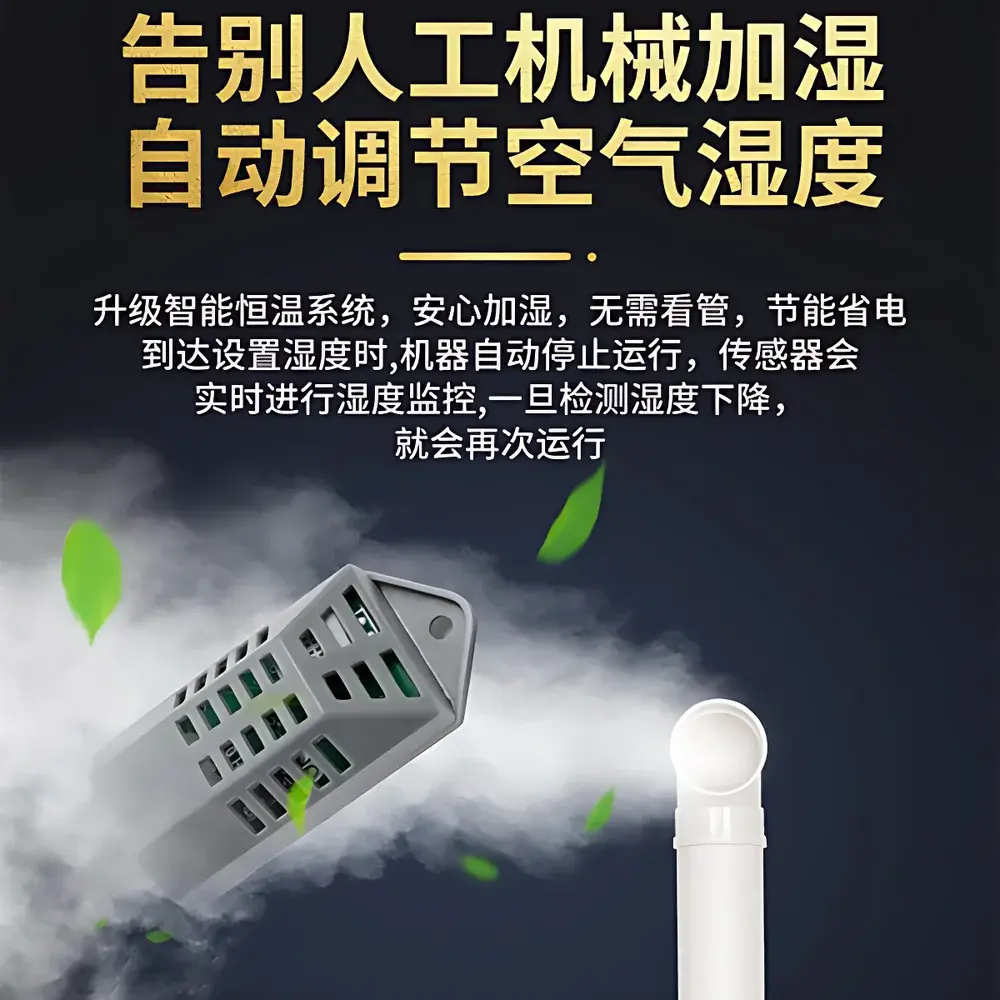

• Closed-loop humidity regulation via factory-calibrated capacitive RH sensor (accuracy ±3% RH, 10–95% RH range), supporting programmable setpoint control and hysteresis-based actuation.

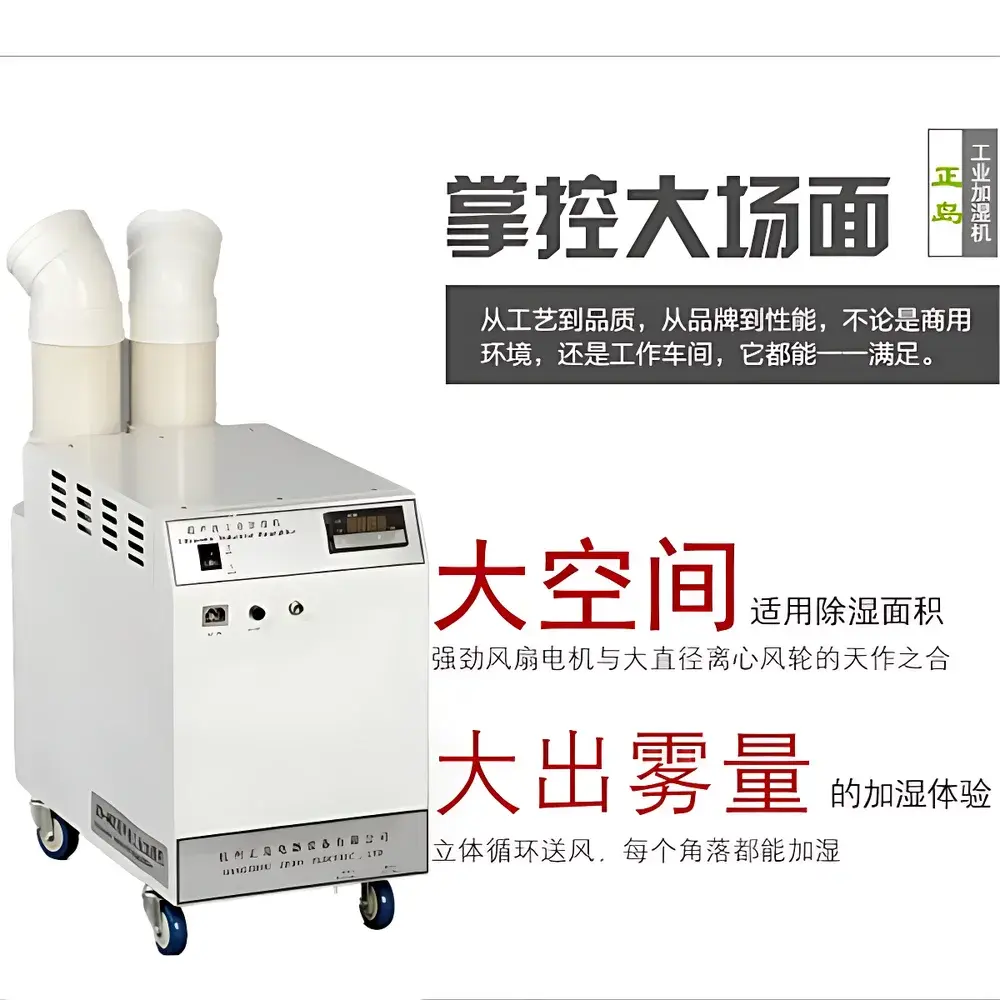

• Dual-nozzle mist delivery configuration optimized for laminar dispersion; enables both volumetric humidification (300–500 m²) and targeted local compensation (e.g., near analytical balances or optical benches).
• Multi-mode control interface: manual on/off, 24-hour programmable timer, and analog/digital (0–10 V / Modbus RTU) output for integration into BMS or PLC-controlled HVAC ecosystems.

Sample Compatibility & Compliance

The ZS-40Z is compatible with deionized water (conductivity <5 µS/cm), reverse osmosis water, and low-mineral municipal supplies when used with optional inline softening filters. It is not intended for use with untreated hard water or solutions containing additives, solvents, or surfactants. From a regulatory standpoint, its construction materials meet USP Class VI biocompatibility requirements for non-contact environmental equipment. While not a medical device, its design supports GLP-compliant environmental monitoring workflows per OECD 172 and ASTM E145-22 Annex A3 for humidity-controlled testing environments. The unit carries CE marking (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU) and conforms to RoHS 2011/65/EU restrictions on hazardous substances.

Software & Data Management

The ZS-40Z operates autonomously but supports external data logging via its 0–10 V analog output (corresponding to 0–100% RH) and RS-485 Modbus RTU port. When integrated with third-party SCADA or LabVantage LIMS platforms, it enables time-stamped humidity trend recording, alarm event logging (e.g., low-water, sensor drift, power fault), and audit-trail generation compliant with FDA 21 CFR Part 11 requirements for electronic records. Optional ZEDO CloudLink firmware upgrade provides encrypted remote monitoring, firmware OTA updates, and predictive maintenance alerts based on cumulative operating hours and transducer impedance drift analysis.

Applications

• Pharmaceutical stability testing chambers requiring ISO 14644-1 Class 5–8 compliant humidity control during accelerated aging studies (ICH Q1A–Q1E).
• Materials science laboratories conducting hygroscopic property characterization of polymers, composites, and battery electrode coatings.
• Electronics manufacturing cleanrooms where static charge mitigation (via RH >40%) is critical for ESD-sensitive SMT assembly lines.
• Textile and paper quality control labs performing standardized conditioning per ASTM D1776 and ISO 139.
• Biological incubation support systems maintaining consistent microclimate for fungal culture growth or seed germination assays.
• Calibration laboratories housing hygrometer reference standards requiring traceable, low-drift ambient RH environments.

FAQ

What water quality is required for optimal performance and transducer longevity?
Deionized water (conductivity <5 µS/cm) is strongly recommended. Use of untreated tap water will accelerate scale accumulation on ceramic transducers and compromise雾化 efficiency within 200–300 operating hours.
Can the ZS-40Z be installed in a ceiling-mounted ducted configuration?
Yes—its dual-nozzle manifold supports flexible mounting orientations, including horizontal duct insertion with optional flanged adapters (sold separately). Static pressure tolerance: ≤150 Pa.
Does the unit include built-in water level monitoring and dry-run protection?
Yes—capacitive water level sensing triggers automatic shutdown within 2 seconds of reservoir depletion, preventing transducer overheating.
Is calibration documentation provided with each unit?
Each ZS-40Z ships with a factory-issued Certificate of Conformance and NIST-traceable RH sensor calibration report (per ISO/IEC 17025 accredited lab).
What is the expected service interval for preventive maintenance?
Under continuous operation with DI water, routine inspection (transducer cleaning, seal integrity check, sensor verification) is recommended every 6 months; full transducer replacement interval is ≥15,000 hours.
