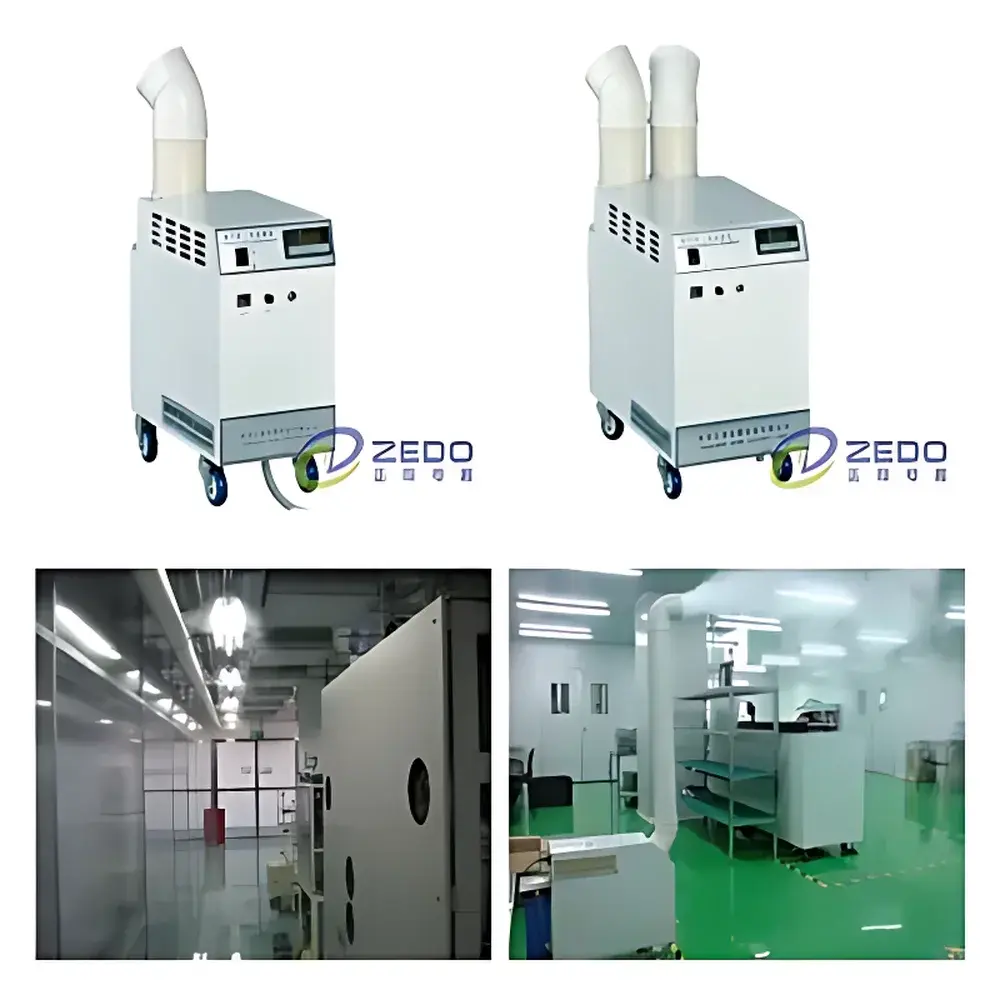

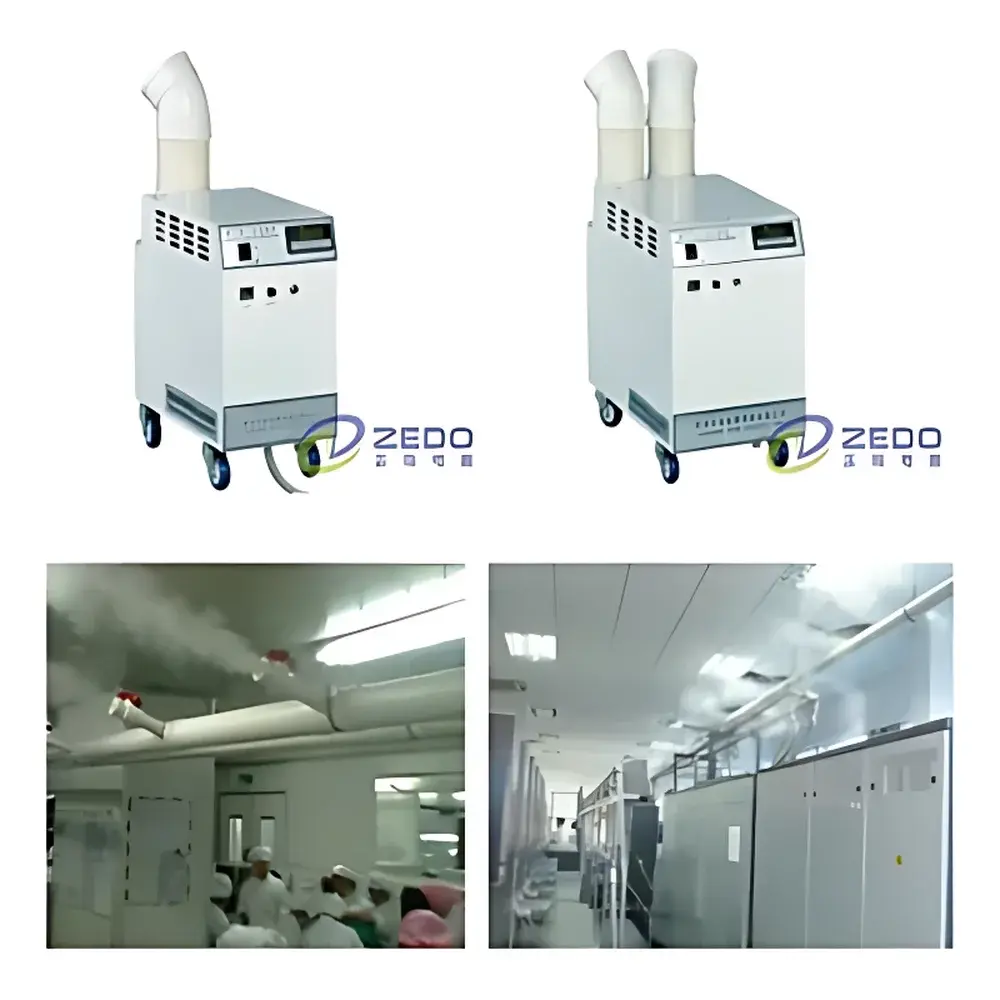

ZEDO ZS-40Z Industrial Ultrasonic Humidifier for ESD-Sensitive Electronics Manufacturing Environments

Overview

The ZEDO ZS-40Z is an industrial-grade ultrasonic humidifier engineered specifically for electrostatic discharge (ESD)-controlled environments in semiconductor fabrication, PCB assembly, SMT production lines, cleanrooms, and electronics warehousing. Unlike conventional evaporative or steam-based systems, the ZS-40Z employs high-frequency piezoelectric transduction (1.7 MHz) to atomize deionized or softened water into sub-5 µm droplets—small enough to remain airborne for extended dispersion while avoiding condensation on sensitive surfaces. This physical mechanism ensures rapid, uniform humidity stabilization within the critical 40–60% RH range recommended by ANSI/ESD S20.20 and IEC 61340-5-1 standards for static charge mitigation. The unit operates without heating elements or compressors, eliminating thermal drift, mineral scaling risks, and microbial growth pathways associated with warm-mist or high-pressure nozzle systems.

Key Features

• Full stainless steel (AISI 304) enclosure and internal tank with electrophoretic coating—resistant to corrosion, alkali, and acidic cleaning agents used in electronics manufacturing facilities.
• Integrated ultrasonic transducer module with proprietary alumina ceramic diaphragms rated for 3,000–5,000 operating hours; compatible with hard water up to 250 ppm TDS when pre-filtered.
• IP68-rated sealed variable-frequency power supply and brushless DC fan—submersible at 1 m depth, ensuring reliability in high-humidity or washdown-prone zones.
• Microprocessor-based controller with SUGINO (Japan) capacitive relative humidity sensor (±2% RH accuracy across 10–90% RH), supporting setpoint programming, hysteresis adjustment, and real-time RH logging.
• Automatic water level management via float switch and overflow protection circuitry; supports connection to centralized soft-water supply or integrated reverse osmosis feed lines.
• Four-caster mobility system with locking brakes—designed for repositioning across dynamic production floors without requiring permanent installation or ductwork.

Sample Compatibility & Compliance

The ZS-40Z is validated for use in Class 10,000 (ISO 7) and Class 100,000 (ISO 8) controlled environments where particulate generation must remain below ISO 14644-1 limits. Its dry fog output produces <0.01 mg/m³ airborne residue when fed with ≥1 MΩ·cm resistivity water—meeting IPC-A-610 and J-STD-001 requirements for cleanliness in solder paste handling and post-reflow inspection areas. The device complies with EN 60335-1 (Household and Similar Electrical Appliances Safety), EN 61000-6-3 (EMC Emission Limits), and RoHS Directive 2011/65/EU. Optional factory calibration certificates traceable to NIM (National Institute of Metrology, China) are available upon request. While not intrinsically safe for Zone 1 hazardous locations, it meets UL 508 industrial control panel compatibility when installed per NEC Article 430.

Software & Data Management

The ZS-40Z features a local HMI with backlit LCD display and tactile membrane keypad for manual RH setpoint entry (40–70% RH), timer scheduling (on/off cycles up to 24 h), and alarm status review (low water, sensor fault, transducer timeout). For integration into facility-wide environmental monitoring systems, the optional RS-485 Modbus RTU interface enables bidirectional communication with SCADA platforms (e.g., Ignition, Siemens Desigo, Honeywell Experion). Logged data—including ambient RH, target RH, runtime hours, and error codes—is stored onboard for 30 days and exportable via USB-C port in CSV format. Audit trail functionality satisfies basic GLP/GMP documentation needs, though full 21 CFR Part 11 compliance requires third-party validation of connected enterprise software.

Applications

• SMT stencil printing and pick-and-place stations—maintaining 45–55% RH to prevent solder paste viscosity drift and component misalignment due to static-induced attraction.
• ESD-safe storage cabinets and automated material handling corridors—suppressing triboelectric charging during transport of bare wafers, IC trays, and flex circuits.
• Post-reflow optical inspection booths—reducing airborne particulates and minimizing lens fogging on AOI and X-ray imaging systems.
• Class 10K cleanroom gowning rooms and pass-through airlocks—ensuring consistent RH prior to personnel entry to avoid latent static accumulation on garments.
• Automated test equipment (ATE) bays—stabilizing dielectric properties of high-frequency RF substrates and preventing false failure modes during burn-in.

FAQ

What is the minimum recommended water quality for optimal transducer life?

Deionized water with resistivity ≥1 MΩ·cm or softened water with total dissolved solids (TDS) ≤150 ppm is strongly advised. Hard water (>250 ppm TDS) accelerates ceramic transducer erosion and may require quarterly descaling with citric acid solution.

Can the ZS-40Z be integrated into a BMS or building automation system?

Yes—via optional RS-485 Modbus RTU interface (addressable node ID, 9600 baud, 8N1), enabling read/write access to RH setpoint, current humidity reading, operational status, and fault codes.

Does this unit generate measurable airborne particles or ions that could contaminate sensitive components?

No. Independent testing per ISO 21501-4 confirms particle emission <0.01 mg/m³ at 0.3 µm and above when supplied with ≥1 MΩ·cm water. No ionization or ozone generation occurs—unlike corona discharge or bipolar ionizer systems.

Is remote firmware update supported?

Firmware updates require physical USB-C connection and ZEDO-provided configuration utility; over-the-air (OTA) updates are not implemented for security and validation integrity reasons.

How does the ZS-40Z differ from HVAC-integrated humidification systems?

Unlike central steam or adiabatic humidifiers, the ZS-40Z provides localized, responsive RH correction within ±3% of setpoint in under 90 seconds—critical for zone-specific ESD control where HVAC lag time exceeds 15 minutes.
