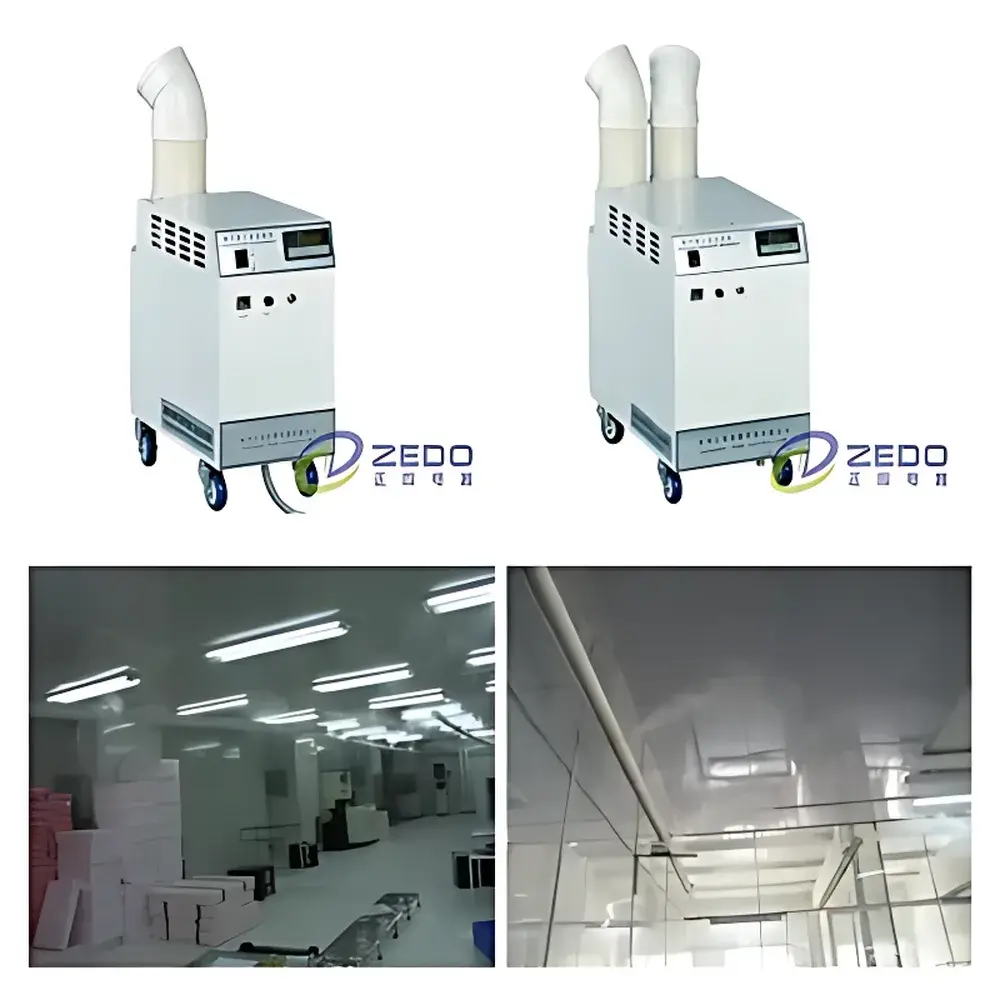

ZEDO ZS-40Z Industrial Ultrasonic Humidifier for Printing Facilities

Overview

The ZEDO ZS-40Z Industrial Ultrasonic Humidifier is an engineered solution specifically developed for humidity stabilization in printing production environments. It operates on the principle of high-frequency ultrasonic vibration (1.7 MHz), where piezoelectric ceramic transducers convert liquid water into sub-10 µm micron-sized droplets—capable of rapid evaporation and uniform dispersion throughout conditioned air streams. Unlike steam or evaporative systems, this method delivers instantaneous, energy-efficient humidification without thermal load or mineral carryover, making it ideal for precision-controlled offset, flexographic, and digital print facilities where static charge, dimensional instability, and dust suspension directly compromise registration accuracy, ink transfer consistency, and substrate handling reliability. The unit is designed to maintain a stable relative humidity (RH) range of 55–65% at 18–23°C—parameters empirically validated per ISO 12647-2 Annex B for optimal paper moisture equilibrium and electrostatic mitigation.

Key Features

• Full AISI 304 stainless steel enclosure and internal tank—resistant to corrosion, alkaline water exposure, and long-term operational wear.
• Integrated ultrasonic atomizer module with self-contained dry-run protection and ceramic transducers rated for 3,000–5,000 operating hours under hard-water conditions.
• IP68-rated sealed variable-frequency power supply—fully submersible (1 m depth), eliminating condensation-induced failure and enabling stable output across fluctuating input voltage.
• 36 V DC waterproof centrifugal fan with sealed ball bearings—delivering high airflow (>120 m³/h) with low vibration, zero oil leakage, and resistance to ambient dust ingress.
• Microprocessor-based controller featuring a calibrated Shinyo RH sensor (±2% RH accuracy, 0–99% RH range) and intuitive touch interface for setpoint adjustment, timer scheduling, and real-time feedback logging.
• Modular mist outlet configuration (single/dual/triple/four-tube options) allows flexible ducting integration or direct-room dispersion—supporting both whole-room saturation and localized zone compensation.

Sample Compatibility & Compliance

The ZS-40Z is compatible with standard municipal tap water (TDS ≤ 300 ppm recommended); optional inline reverse osmosis pre-filtration is advised for areas with >500 ppm hardness to extend transducer service life. It meets CE safety directives for industrial indoor equipment (2014/35/EU, 2014/30/EU) and supports compliance with GLP-aligned environmental monitoring protocols when deployed in certified print quality labs. While not a medical or pharmaceutical device, its stable RH delivery assists facilities in adhering to ISO 9001:2015 clause 7.1.4 (Process environment) and ISO 14001:2015 clause 8.1 (Operational planning and control), particularly where humidity-sensitive documentation or packaging substrates are processed. No refrigerants, VOCs, or consumables are required.

Software & Data Management

The ZS-40Z includes embedded firmware supporting manual setpoint control, timed on/off cycles (24-hour programmable), and closed-loop humidity regulation via continuous sensor feedback. Optional RS-485 Modbus RTU interface enables integration into facility-wide Building Management Systems (BMS) or SCADA platforms for centralized logging, alarm triggering (e.g., low-water, sensor drift, fan stall), and audit-trail generation. All operational parameters—including runtime hours, RH deviation history, and fault codes—are stored locally for minimum 30 days. Data export is supported via USB flash drive (FAT32 format), facilitating periodic review during internal quality audits or ISO certification maintenance.

Applications

This humidifier serves critical functions across commercial and industrial printing operations: preventing paper curl, cockle, and edge waviness during sheetfed and web-fed processes; eliminating static-induced misfeeds, double-sheet feeding, and ink misting in high-speed presses; reducing airborne fiber and dust contamination that causes plate clogging and spot defects; stabilizing toner adhesion in digital presses; and maintaining dimensional fidelity of coated, synthetic, and metallic substrates. It is routinely installed in pre-press proofing rooms, press halls, finishing departments, and archival storage zones—particularly where seasonal RH drops below 40% in autumn/winter months. Verified use cases include ISO-compliant packaging print lines, security document production, and high-gloss magazine manufacturing.

FAQ

What is the recommended RH setpoint for offset lithography?

For consistent ink drying, dot gain control, and substrate dimensional stability, ISO 12647-2 specifies 55–65% RH at 20 ± 3°C. The ZS-40Z maintains this range with ±3% RH repeatability under steady-state conditions.

Can the unit operate continuously without manual intervention?

Yes—equipped with auto-fill solenoid valve, overflow cutoff, and self-diagnostic firmware, it supports unattended 24/7 operation within specified ambient temperature (5–40°C) and water conductivity limits.

Is routine maintenance required beyond cleaning?

Monthly descaling (using food-grade citric acid solution) of the transducer surface and water tank is recommended. Ceramic transducers require no calibration; the Shinyo RH sensor is factory-trimmed and drift-compensated over time.

Does it generate white dust or mineral residue?

No—ultrasonic atomization produces true water vapor-phase nuclei. Any visible “white plume” is condensed fog, not particulate. With hard water, occasional fine carbonate film may form on nearby surfaces—mitigated by using softened or RO-pre-treated feed water.

How does it compare to steam or electrode humidifiers in print environments?

Unlike steam units, it introduces no thermal load or condensation risk near sensitive electronics or optical sensors. Unlike electrode types, it avoids scale buildup in the humidifying element and requires no consumable electrodes or frequent conductivity adjustments.
