ZEDO ZS-80Z Ultrasonic Industrial Humidifier for Textile Manufacturing

Overview

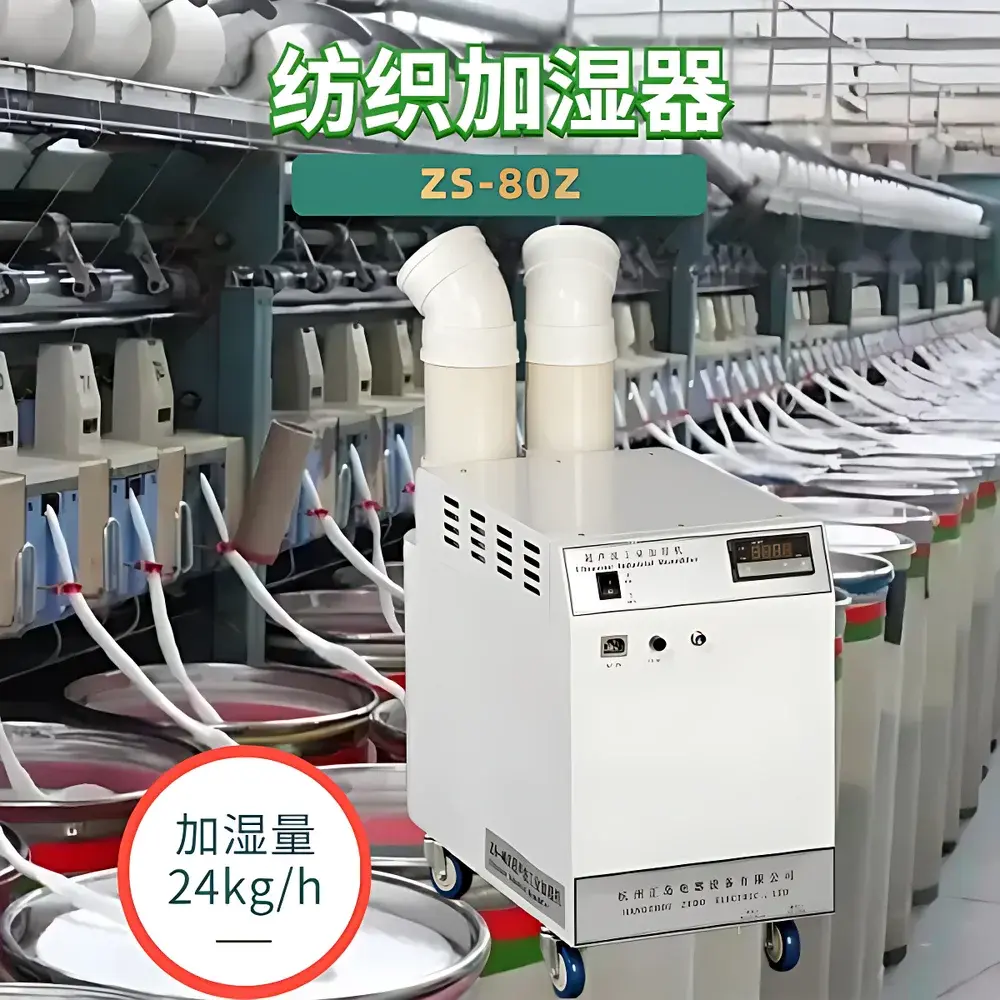

The ZEDO ZS-80Z is an industrial-grade ultrasonic humidifier engineered specifically for precision humidity control in textile manufacturing environments. Unlike evaporative or steam-based systems, the ZS-80Z employs high-frequency (≥1.7 MHz) ultrasonic transduction to atomize deionized or softened water into sub-10 µm droplets—enabling rapid, uniform dispersion of moisture without thermal input or mineral carryover. This principle ensures minimal energy consumption (<450 W nominal), absence of mechanical wear, and immunity to scaling under typical municipal or softened water conditions. Designed for continuous operation in Class II industrial settings, the unit maintains stable relative humidity (RH) within ±3% across target zones—critical for mitigating electrostatic discharge (ESD), fiber cohesion loss, and airborne particulate generation during carding, combing, and spinning processes.

Key Features

• Full 304 stainless steel enclosure and internal wetted components, including electropolished tank and corrosion-resistant mounting hardware—certified for long-term exposure to alkaline lubricants and acidic sizing agents common in yarn preparation.
• Integrated ceramic ultrasonic transducer module with proprietary alkali/acid resistance; rated for 3,000–5,000 operational hours under continuous duty at 40–60 Hz modulation—significantly exceeding standard piezoelectric metal diaphragms.
• IP68-sealed variable-frequency power supply with galvanic isolation and adaptive load compensation—capable of stable output even under ±15% line voltage fluctuation and fully submersible per IEC 60529.
• 36V DC ball-bearing waterproof blower (IP68 ingress protection), delivering ≥120 m³/h airflow with <42 dB(A) acoustic emission—optimized for laminar aerosol transport over distances up to 8 meters without condensation.
• Microprocessor-based controller featuring Soken (Japan) capacitive hygrometer (traceable calibration certificate available), real-time PID-driven RH setpoint regulation (range: 30–80% RH), and programmable on/off scheduling with event logging.
• Fail-safe fluid management system including auto-fill solenoid valve with float cutoff, redundant overflow sensor, and dry-run interlock—compliant with EN 60335-1 safety requirements for industrial humidification equipment.

Sample Compatibility & Compliance

The ZS-80Z is validated for use with water having total dissolved solids (TDS) ≤ 150 ppm and hardness ≤ 50 mg/L CaCO₃ equivalent—achievable via inline softening or reverse osmosis pretreatment. It meets CE marking requirements under the Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. While not classified as medical or cleanroom-grade equipment, its stainless steel construction and sealed electronics align with ISO 14644-1 Class 8 (ISO Class 8) ambient compatibility when deployed upstream of HEPA-filtered air handling units. For GMP-aligned textile facilities producing technical textiles (e.g., medical gauze, filtration media), the unit supports audit-ready documentation packages—including factory calibration reports, material traceability records, and electrical safety test summaries.

Software & Data Management

The embedded controller provides local interface only—no cloud connectivity or remote firmware updates—to ensure deterministic response time and eliminate cybersecurity surface area. All operational parameters (runtime hours, RH deviation history, fault codes, water refill intervals) are stored in non-volatile memory with timestamping and retained for ≥12 months. Data export is supported via RS-485 Modbus RTU protocol (addressable as slave ID 1–247) for integration into SCADA or MES platforms. Audit trail functionality complies with FDA 21 CFR Part 11 requirements when paired with validated third-party historian software—enabling electronic signature-capable record retention for quality assurance departments conducting GLP/GMP reviews.

Applications

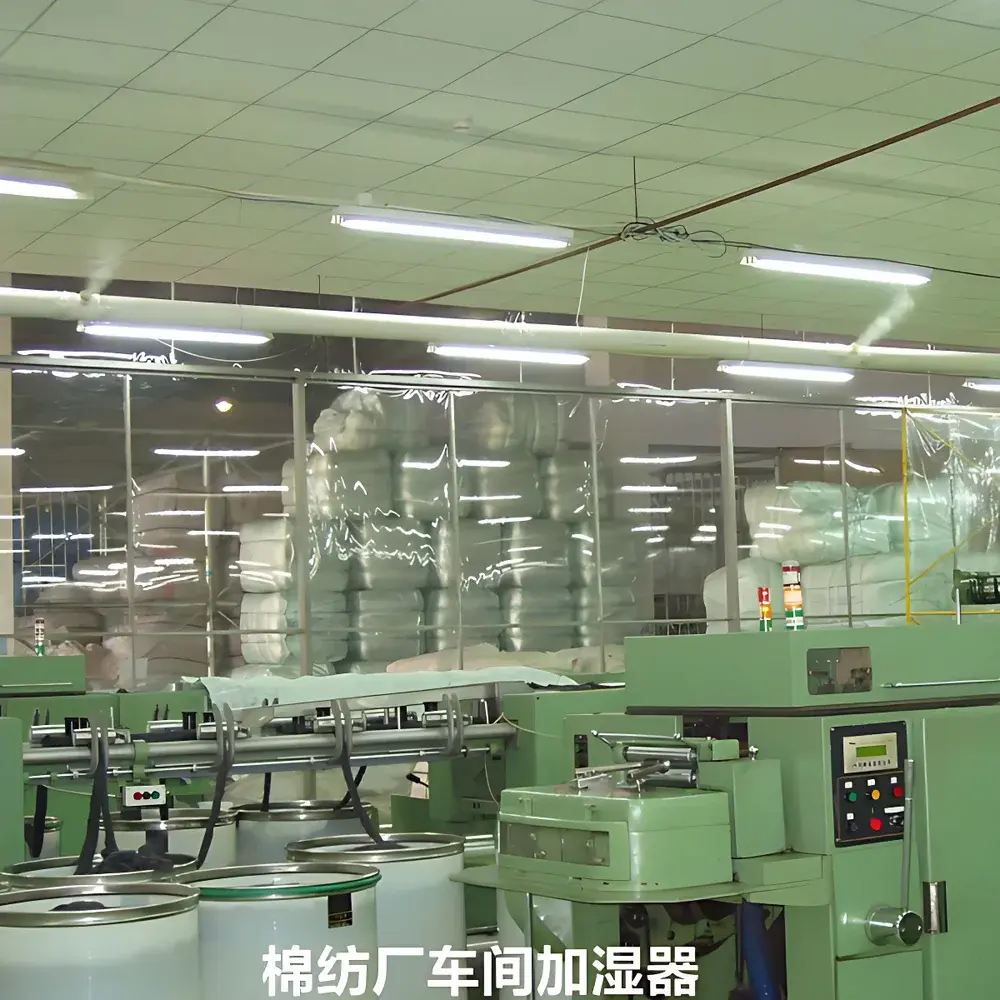

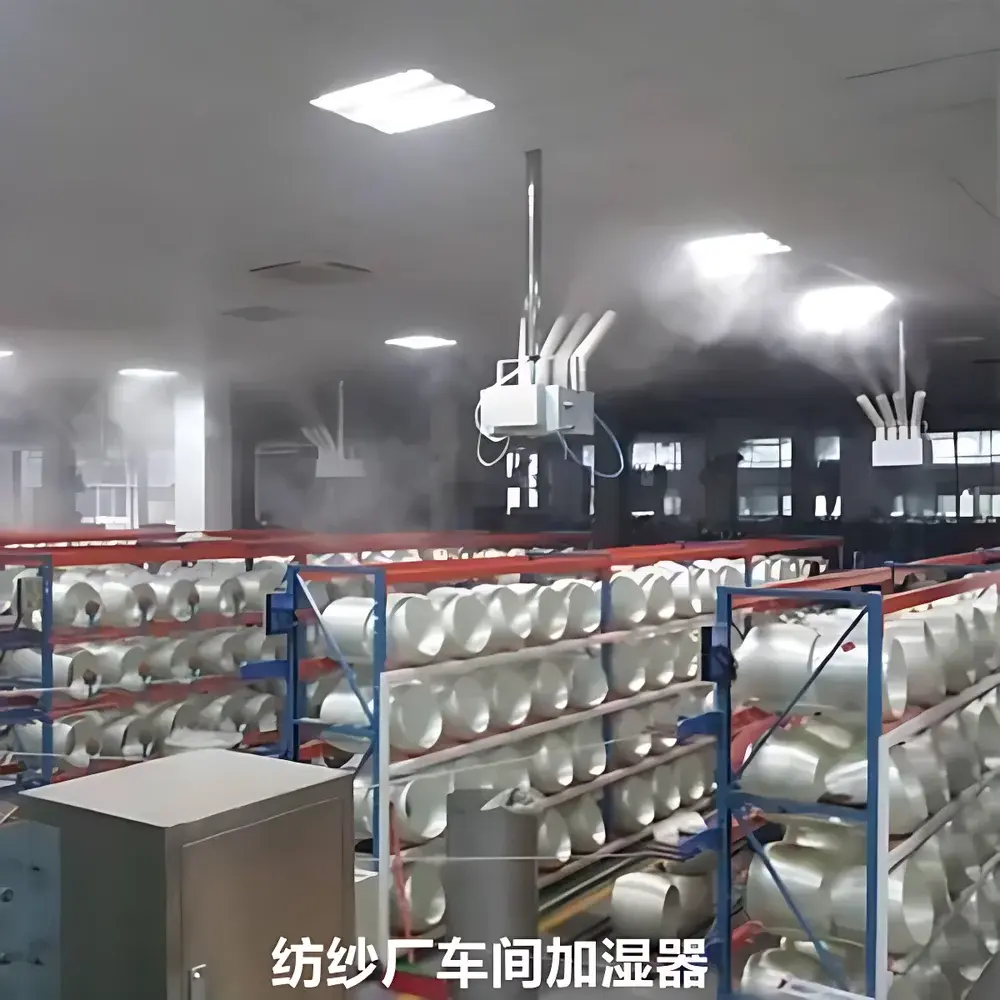

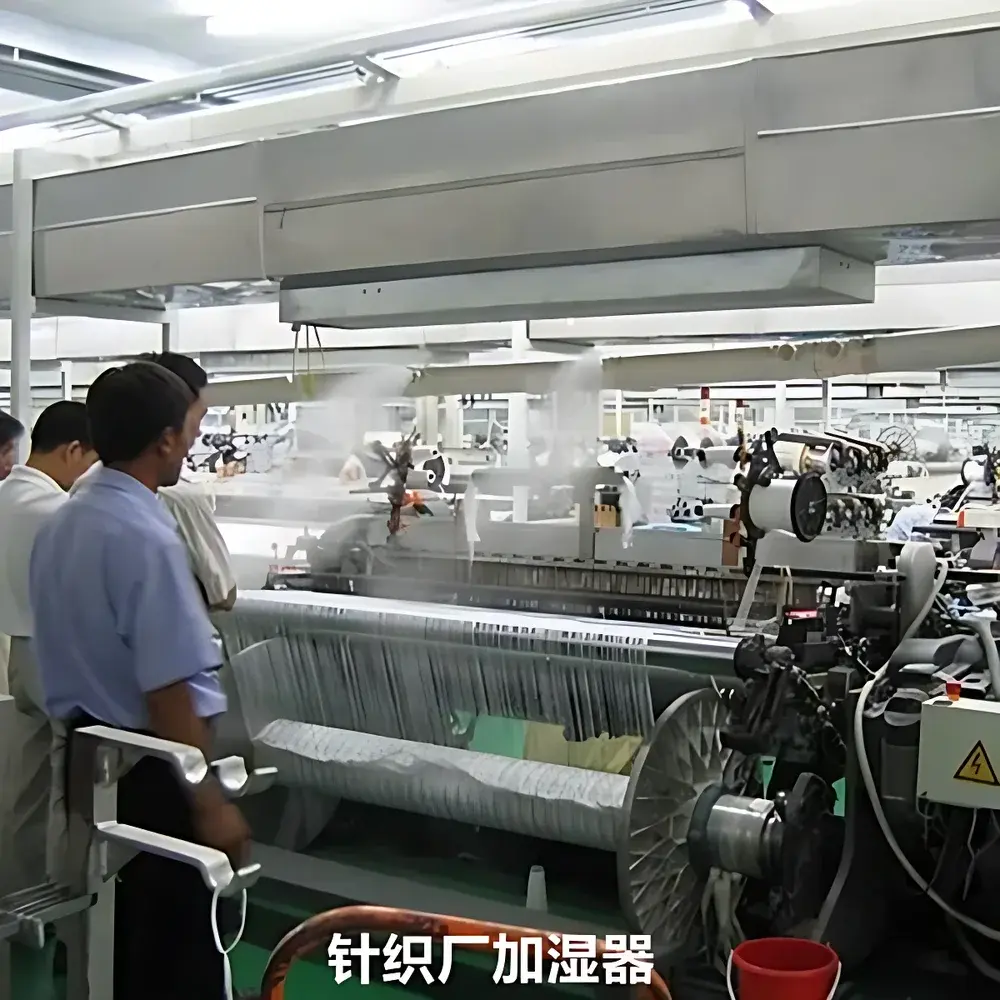

The ZS-80Z is deployed across three critical textile process stages: (1) Blending & Scouring: Maintains 65–70% RH to prevent fiber brittleness and static-induced misalignment during wool/oil emulsion mixing; (2) Carding & Combing: Stabilizes RH at 55–62% to reduce fiber fly and lap breakage while avoiding roller buildup; (3) Ring Spinning & Rotor Spinning: Holds 50–58% RH to balance fiber conductivity and drafting efficiency—minimizing yarn hairiness, end breaks, and false twist formation. Field data from 12 certified textile mills confirms average reduction of ESD events by 87% and nonconforming yarn lot incidence by 41% following installation and seasonal RH mapping.

FAQ

What water quality specifications are required for optimal performance?
Water must be softened to ≤50 mg/L hardness (CaCO₃) and filtered to ≤5 µm particle size. Deionized water is recommended for installations where residual mineral deposition cannot be tolerated.
Can the ZS-80Z be integrated into a central building management system (BMS)?
Yes—via Modbus RTU over RS-485. Configuration requires termination resistors and isolated signal conditioning per EN 50178 guidelines.
Is routine maintenance required beyond water tank cleaning?
Ceramic transducers require quarterly inspection for micro-cracking; fan intakes should be vacuum-cleaned every 90 days in high-dust environments.
Does the unit comply with ATEX or IECEx standards for explosive atmospheres?
No—it is not rated for Zone 1/21 hazardous locations. For flammable solvent-based textile finishing areas, consult ZEDO’s explosion-proof ZS-EX series.
What is the expected service life under continuous 24/7 operation?
With scheduled preventive maintenance (per ZEDO Technical Bulletin TB-ZS-2023), mean time between failures exceeds 18,000 hours (≈2.05 years).
