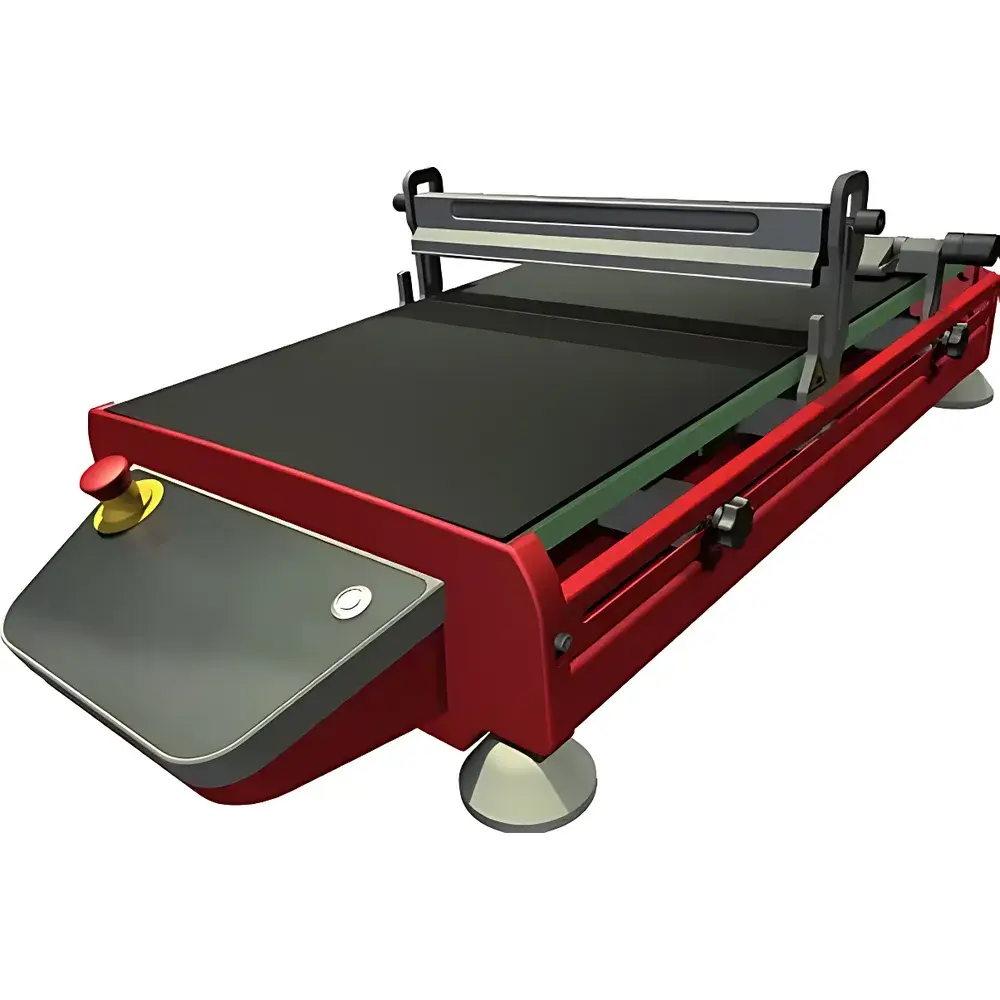

Zehntner ZAA2600 Automatic Precision Coater for Textile and Coating R&D
| Brand | Zehntner |
|---|---|
| Origin | Switzerland |
| Model | ZAA2600 |
| Coating Speed | 1–500 mm/s |
| Coating Length | 1–393 mm |
| Coating Width | 1–300 mm |
| Base Plate Options | Dual-surface (Rubber + Tempered Glass, 553 × 300 × 15 mm) |
| Controller | 5.7-inch Capacitive Touchscreen |
| Construction Material | Anodized Red Aluminum Alloy |
| Weight | 20 kg |
| Compliance | ASTM D823 |
| Warranty | 12 months |
Overview
The Zehntner ZAA2600 Automatic Precision Coater is an engineered laboratory-scale coating system designed for reproducible, parameter-controlled application of liquid and paste-like formulations onto flat substrates. Operating on a motorized linear translation principle with digitally regulated speed and positional accuracy, the ZAA2600 enables consistent film deposition under defined shear, dwell time, and pressure conditions—critical for evaluating coating rheology, leveling behavior, drying kinetics, and interfacial adhesion. Unlike manual draw-down bars or rod applicators, this instrument eliminates operator-dependent variability by automating stroke initiation/termination, carriage velocity, and substrate engagement force. Its primary domain spans textile finishing R&D, paint and ink formulation labs, adhesive development, and functional coating validation—where regulatory traceability, method standardization, and inter-laboratory comparability are mandatory.
Key Features
- Programmable coating parameters via integrated 5.7-inch capacitive touchscreen interface, supporting user-defined protocols for speed (1–500 mm/s), length (1–393 mm), and width (1–300 mm)
- Dual-surface base plate (tempered glass and elastomeric rubber) accommodates rigid, flexible, porous, and low-tensile-strength substrates—including woven/nonwoven textiles, paper, polymer films, and metallized foils
- Patented dual-point pressure stabilization system for coating rods and blades, ensuring uniform normal force distribution across the entire active width—minimizing edge thinning and streaking
- Modular accessory architecture: optional vacuum suction platen (for lightweight or curl-prone specimens) and Peltier-based heating module (ambient to 150 °C) enable thermal curing simulation and viscosity-controlled deposition
- Structural frame fabricated from anodized red aluminum alloy—providing dimensional stability, corrosion resistance, and ESD-safe operation in cleanroom or QC environments
- Compliance-ready design: fully documented calibration procedures, audit-trail-capable parameter logging, and firmware architecture aligned with GLP/GMP documentation requirements
Sample Compatibility & Compliance
The ZAA2600 accepts substrates up to 553 mm × 300 mm and supports coatings ranging from low-viscosity aqueous dispersions (50,000 mPa·s). Its mechanical adaptability extends to ISO 1514, ISO 2808, ASTM D823, ASTM D1210, and BS EN ISO 2808-1 test methods. The dual-material base plate ensures optimal wetting and release characteristics for hydrophilic (e.g., cotton, viscose) and hydrophobic (e.g., polyester, polypropylene) textile substrates. All firmware and operational logs retain timestamps, user IDs, and parameter sets—meeting data integrity prerequisites for FDA 21 CFR Part 11 and EU Annex 11 compliance when deployed in regulated quality control laboratories.
Software & Data Management
The embedded controller stores up to 200 protocol templates with versioned naming and date/time stamping. Each run generates a timestamped CSV log file containing real-time position, speed, actuation status, and environmental metadata (if external sensors are connected). Export is supported via USB 2.0 port; no proprietary software installation is required for data retrieval. For enterprise integration, optional Ethernet-enabled firmware modules support Modbus TCP communication and SCADA-level data forwarding—enabling synchronization with LIMS or MES platforms in centralized manufacturing analytics infrastructures.
Applications
- Textile coating development: flame retardant, water-repellent, antimicrobial, and softener formulations on woven/knitted fabrics
- Pigment dispersion stability assessment via controlled draw-down followed by visual or spectrophotometric evaluation of mottling, orange peel, and gloss uniformity
- Adhesive transfer characterization for laminating processes—quantifying coat weight variation across width and length
- UV-curable inkjet pre-coating optimization prior to jetting trials, correlating wet film thickness with final crosslink density
- Accelerated wash-fastness screening: applying standardized coating layers prior to ISO 105-C06 or AATCC 61 testing sequences
FAQ
Does the ZAA2600 support automatic coating weight calculation?
No—the instrument delivers precise geometric deposition control but requires post-application gravimetric or spectroscopic measurement for quantitative coat weight analysis.
Can third-party coating rods be mounted on the ZAA2600?
Yes—its universal rod holder accepts industry-standard wire-wound rods (e.g., Mayer rods, RDS rods) and precision doctor blades with M4 threading and ≤300 mm active width.
Is ASTM D823 implementation validated on this system?
Yes—Zehntner provides a certified test report demonstrating conformance to ASTM D823 Section 6.2 (draw-down procedure) using reference standards traceable to NIST SRM 2241.
What maintenance intervals are recommended for long-term repeatability?
Linear guide rails require dry lubrication every 500 operating hours; touchscreen calibration is advised quarterly; annual verification of speed and positional encoder accuracy is recommended using laser interferometry.
Is remote diagnostics supported?
Firmware v3.2+ includes secure SSH access for authorized service engineers; remote firmware updates require physical USB key authentication per ISO/IEC 27001 controls.
