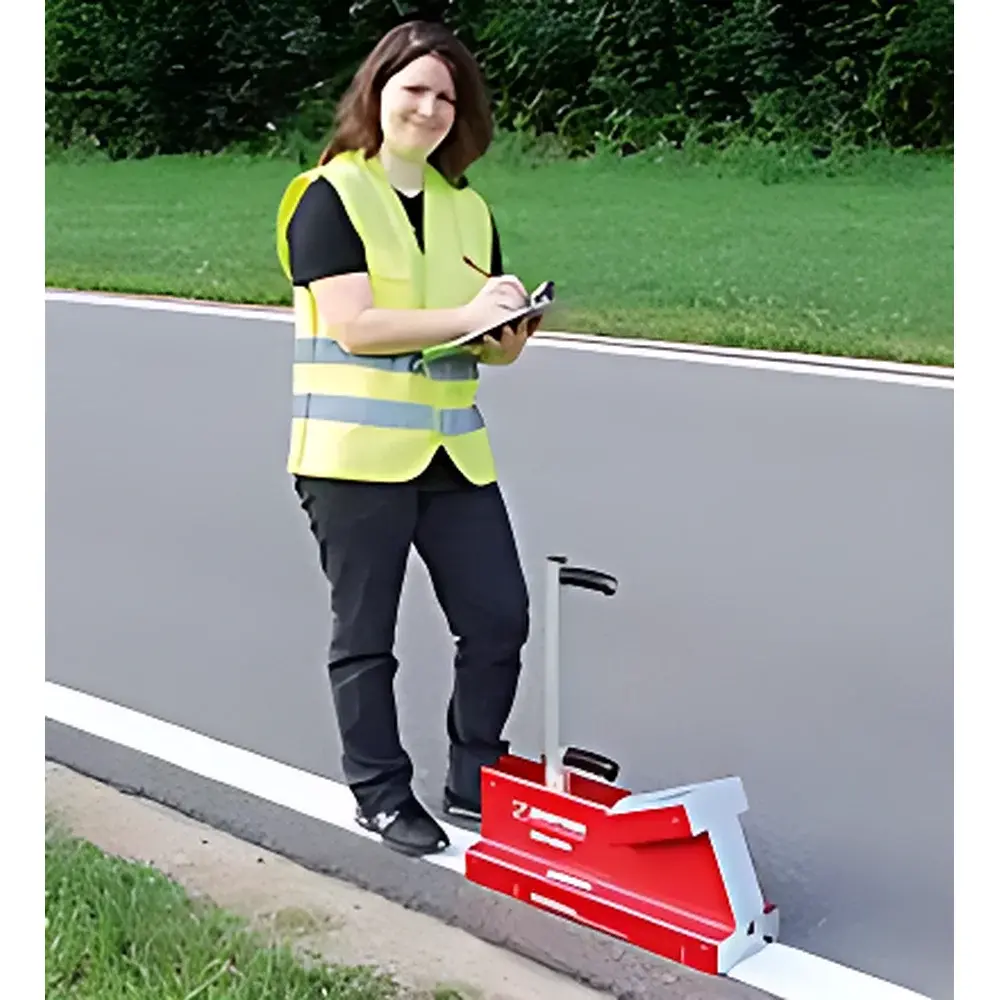

Zehntner ZRM6006 Retroreflectometer for Road Marking Materials

Overview

The Zehntner ZRM6006 Retroreflectometer is a portable, field-deployable optical instrument engineered for the quantitative assessment of retroreflective performance of road marking materials under real-world illumination and viewing geometries. It operates on the principle of calibrated photometric measurement—capturing light returned from a marked surface along the incident axis (retroreflection) or over a diffuse angular distribution (QD mode)—using a V(λ)-matched detector that replicates the spectral sensitivity of the human photopic eye. Designed specifically for compliance with international standards governing road safety infrastructure, the ZRM6006 delivers traceable, repeatable measurements essential for quality assurance in road marking production, installation, and long-term performance monitoring. Its dual-mode architecture enables independent evaluation of both directional retroreflectance (RL) and quasi-diffuse reflectance (QD), supporting comprehensive assessment across varying ambient conditions—including dry, wet, and low-illumination scenarios.

Key Features

• Dual-mode operation: Simultaneous RL and QD measurement in under 2 seconds per reading, minimizing operator variability and field time.
• V(λ)-matched photodiode detector ensures photometric accuracy aligned with CIE standard observer functions, critical for regulatory conformance.
• Fixed 30-meter simulated observation distance and standardized 50 × 218 mm aperture geometry comply precisely with EN 1436 and ASTM E1710/E2302 test configurations.
• Integrated high-capacity 14.8 V / 6.3 Ah lithium-ion battery supports >8 hours of continuous operation without external power—ideal for extended roadside surveys.
• Backlit grayscale LCD display provides clear visibility under direct sunlight or nighttime conditions, with intuitive menu navigation via tactile membrane keys.
• Rugged, weather-resistant housing rated for outdoor use in temperatures ranging from –10 °C to +50 °C, suitable for year-round deployment in diverse climatic zones.

Sample Compatibility & Compliance

The ZRM6006 is validated for use on all common road marking materials—including thermoplastic, cold plastic, paint, preformed tapes, and glass bead-enhanced surfaces—regardless of color, texture, or substrate type (asphalt, concrete, steel bridge decks). Its optical design accommodates curved, inclined, or irregularly shaped markings without requiring repositioning or interpolation. The instrument meets full metrological requirements of EN 1436:2021 (Road marking materials — Retroreflective performance), ASTM E1710–22 (Standard Test Method for Measuring Retroreflectivity of Pavement Markings Using a Portable Retroreflectometer), ASTM E2302–21 (Standard Test Method for Measuring Qd-Value of Pavement Markings), and ASTM E2177–22 (Standard Test Method for Measuring Wet Retroreflectivity of Pavement Markings). Calibration is traceable to METAS (Swiss Federal Institute of Metrology) and independently verified by StrAus-Zert (German road authority certification body), ensuring audit readiness for ISO/IEC 17025-accredited laboratories and public procurement contracts.

Software & Data Management

Data acquisition is performed autonomously onboard; no external PC or proprietary software is required for basic operation. Each measurement is timestamped and geotagged (when paired with optional Bluetooth GPS module), stored in non-volatile memory with user-definable project IDs and location tags. Export is supported via USB-C interface in CSV format for integration into LIMS, QA dashboards, or GIS-based asset management platforms. Firmware updates are delivered through Zehntner’s secure web portal, maintaining alignment with evolving regulatory revisions. For regulated environments, optional audit-trail logging and password-protected user roles support compliance with GLP and ISO 9001 documentation requirements.

Applications

• Pre- and post-application verification of retroreflective performance during road marking construction and maintenance projects.
• Longitudinal durability studies tracking RL/QD decay rates over time to inform resurfacing schedules and lifecycle cost modeling.
• Factory acceptance testing (FAT) of thermoplastic or paint batches prior to shipment to contractors.
• Third-party inspection and certification for national transport agencies, highway authorities, and municipal road departments.
• Research and development of novel retroreflective additives, bead embedment techniques, and moisture-resistant formulations.
• Wet-night performance validation per ASTM E2177, supporting safety assessments in high-rainfall regions.

FAQ

What does RL stand for, and how is it different from QD?
RL (Retroreflection Coefficient) quantifies light returned directly back toward the source—simulating headlight illumination at night. QD (Qd-Value) measures light scattered over a broader angular range—representing ambient illumination from streetlights or daylight diffusion.
Is the ZRM6006 suitable for wet-condition testing?
Yes. When used with the optional Zehntner wetting kit and following ASTM E2177 protocol, the instrument delivers valid RL measurements on water-covered markings.
How often does the instrument require recalibration?
Annual recalibration is recommended; however, daily verification using the supplied reference standard is mandatory before field use per EN 1436 Clause 7.3.
Can measurement data be exported for regulatory reporting?
Yes. All readings are exportable as CSV files containing raw values, timestamps, operator ID, and environmental metadata—fully compatible with DOT, DfT, or EU Commission reporting templates.
Does the ZRM6006 meet FDA or ISO 13485 requirements?
No. It is not a medical device. It complies exclusively with road safety infrastructure standards (EN, ASTM, ISO 20653 for ingress protection), not healthcare regulatory frameworks.
