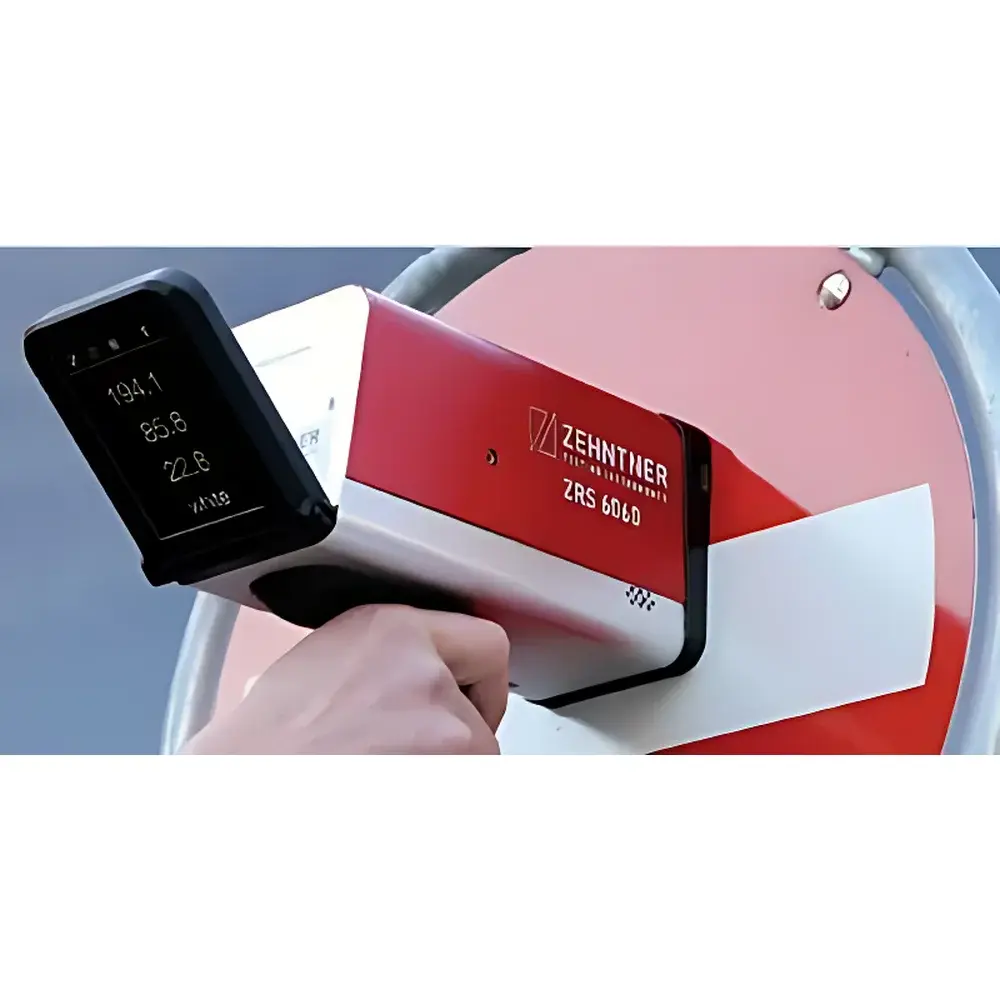

Zehntner ZRS6060 Retroreflectometer for Traffic Sign Compliance Testing

Overview

The Zehntner ZRS6060 Retroreflectometer is a precision optical instrument engineered for the quantitative assessment of retroreflective performance in road traffic signage, delineators, pavement markings, and high-visibility workwear. It operates on the principle of standardized geometry defined in EN 13489, ASTM E808, ASTM E809, and ISO 20671–1, measuring luminous intensity coefficient (R′) in units of cd·lx⁻¹·m⁻² under controlled observation (0.2°) and illumination (−4°) angles—replicating real-world vehicle headlight-to-driver line-of-sight conditions. Designed and manufactured in Switzerland, the ZRS6060 meets the stringent metrological requirements of accredited testing laboratories and public infrastructure agencies, including compliance with German Federal Highway Research Institute (BASt) verification protocols. Its optical architecture integrates a stabilized tungsten-halogen light source, precision aperture collimation, and a silicon photodiode detector calibrated traceably to national standards (e.g., PTB, NIST), ensuring long-term stability and inter-laboratory comparability.

Key Features

• High-contrast 3.5-inch capacitive touchscreen display with anti-glare coating and sunlight-readable brightness—enabling reliable operation under outdoor ambient lighting up to 10,000 lux.
• Integrated ergonomic housing with balanced weight distribution and non-slip rubberized grip, optimized for single-handed use during field surveys on highways, tunnels, or roadside installations.
• Onboard 1 GB flash memory supporting storage of ≥1,000,000 individual R′ measurements, each timestamped and geotagged when GPS module is active.
• Automatic pass/fail evaluation against user-defined regulatory thresholds (e.g., EN 12899 Class I–III, MUTCD minimums), with visual and audible alerts directly on the device interface.
• Factory-calibrated using certified reference plaques traceable to BASt and PTB; includes full calibration certificate and documented uncertainty budget per ISO/IEC 17025.
• Robust IP54-rated enclosure resistant to dust ingress and water splashing—validated for continuous operation in temperatures from −10 °C to +50 °C and relative humidity up to 90% non-condensing.

Sample Compatibility & Compliance

The ZRS6060 accommodates flat and moderately curved retroreflective surfaces—including prismatic sheeting (e.g., 3M Diamond Grade™), glass-bead-based materials (e.g., Engineer Grade, High-Intensity Prismatic), and thermoplastic or paint-based pavement markings. It supports measurement of chromatic retroreflection across all standard traffic colors (white, yellow, red, blue, green) without spectral correction artifacts, thanks to its CIE 1931 photopic V(λ) response-matched detector. The instrument conforms to type-approval requirements under Directive 2014/90/EU (Marine Equipment), EN 12899–1:2020 (Permanent Traffic Signs), and DIN 67520 (Retroreflector Testing). It is routinely deployed by national road authorities (e.g., TÜV, DEKRA, UK Highways England) for routine maintenance audits and post-installation acceptance testing in accordance with ISO/IEC 17025-accredited quality management systems.

Software & Data Management

WinRetro PC software (included) provides comprehensive post-processing capabilities: batch analysis, statistical reporting (mean, SD, CV%), spatial mapping via imported KML/SHP layers, and automated generation of compliance certificates compliant with ISO 17025 documentation requirements. All raw data files (.zrf) contain embedded metadata—operator ID, GPS coordinates (if enabled), environmental temperature, battery status, and calibration validity date—ensuring full audit trail integrity. Software supports FDA 21 CFR Part 11-compliant user access control, electronic signatures, and change history logging for regulated environments. Export formats include CSV, PDF, XML, and direct integration with LIMS platforms via ODBC drivers.

Applications

• Periodic inspection of roadside signage for conformance with national retroreflectivity maintenance schedules (e.g., FHWA Manual on Uniform Traffic Control Devices Chapter 3A).
• Quality assurance testing of newly manufactured sign sheeting prior to shipment or installation.
• Forensic evaluation of degraded retroreflective performance following weathering, abrasion, or chemical exposure.
• Validation of cleaning or restoration interventions on aged traffic signs.
• Research-grade characterization of novel retroreflective materials under controlled laboratory or accelerated aging conditions.
• Contractor performance monitoring and payment certification in public infrastructure projects governed by FIDIC or NEC contracts.

FAQ

What standards does the ZRS6060 comply with for official road safety audits?

It meets EN 13489, ASTM E808/E809, ISO 20671–1, and BASt verification requirements—accepted by EU Member State road authorities and U.S. DOT-certified testing labs.
Is factory recalibration required annually?

Yes; Zehntner recommends annual traceable recalibration at an ISO/IEC 17025-accredited facility, with optional on-site verification services available through authorized service partners.
Can the instrument measure wet retroreflectivity?

No—the ZRS6060 is configured for dry-condition measurement only. Wet retroreflectivity requires dedicated instrumentation (e.g., Zehntner ZRM series) complying with EN 1436 Annex B.
Does the GPS option support GLONASS or Galileo satellite constellations?

Yes; the integrated GNSS receiver supports GPS, GLONASS, and Galileo for sub-3-meter positional accuracy under open-sky conditions.
How is measurement repeatability verified in the field?

Each unit ships with a certified reference plaque (R′ ±2.5% uncertainty) and step-by-step SOPs for daily verification checks, documented in the operator manual per ISO 9001 clause 7.1.5.
