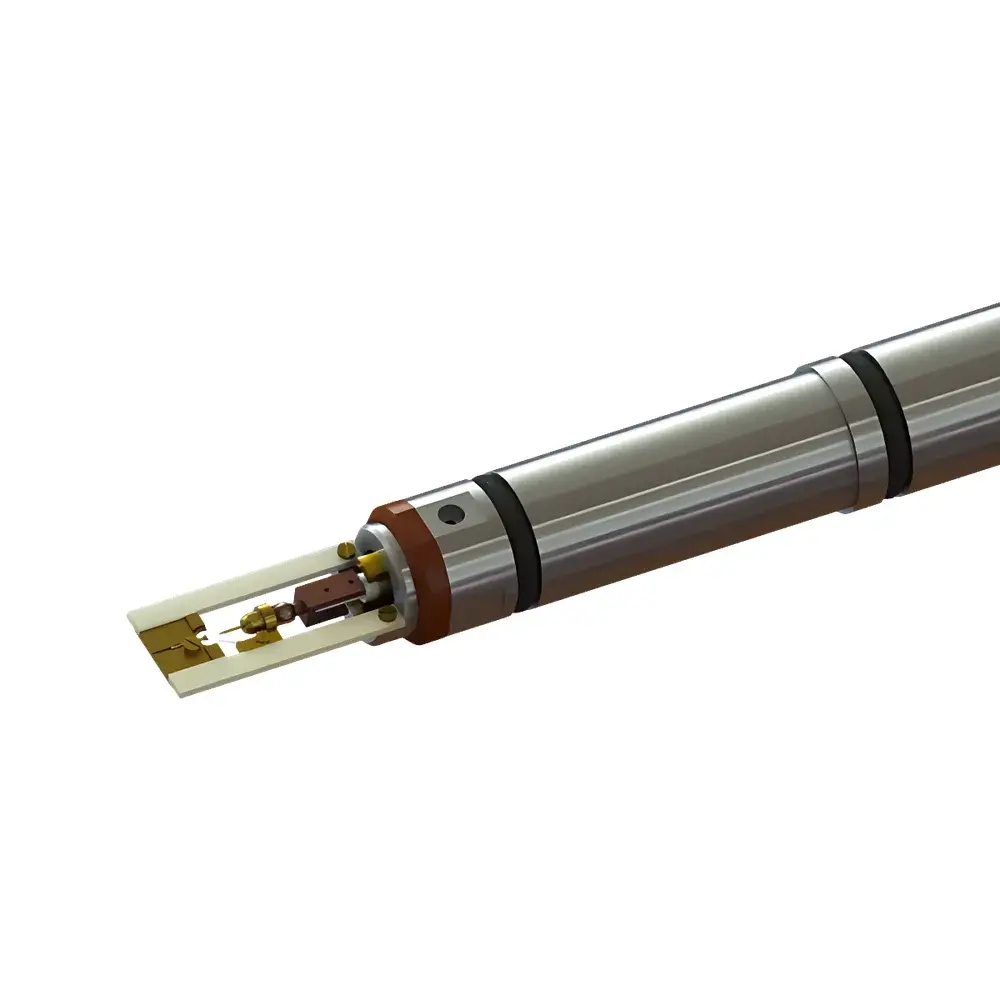

ZEPTOOLS PicoFemto In Situ TEM Sample Holder Series

Overview

The ZEPTOOLS PicoFemto In Situ TEM Sample Holder Series is a high-precision, modular platform engineered for real-time structural, chemical, and electronic characterization of nanomaterials inside transmission electron microscopes (TEM). Built upon the principle of integrated scanning probe microscopy (SPM) within a standard 3.5 mm outer diameter TEM sample holder form factor, the system enables synchronized in situ manipulation, electrical transport measurement, and atomic-resolution imaging. Unlike conventional ex situ analysis, the PicoFemto architecture embeds a fully functional scanning tunneling microscopy (STM) or conductive atomic force microscopy (c-AFM) control unit directly into the holder body—eliminating signal degradation from external cabling and preserving vacuum integrity. This design supports true correlative operando analysis: while high-angle annular dark-field (HAADF) STEM imaging captures lattice dynamics, energy-dispersive X-ray spectroscopy (EDS) maps elemental redistribution, and electron energy-loss spectroscopy (EELS) tracks valence state evolution, the integrated probe simultaneously acquires current–voltage (I–V), current–time (I–t), and force–displacement curves—all time-synchronized to the TEM acquisition trigger.

Key Features

• Embedded dual-mode electrical measurement unit supporting both low-current (<1 nA) and high-current (up to 30 mA) regimes, with programmable auto-ranging and resolution better than 100 fA.
• Two-stage positioning architecture: motorized coarse stage (XY: ±1.25 mm; Z: ±0.75 mm) for rapid sample approach, coupled with piezoelectric fine stage (XY: ±7.5 µm; Z: ±0.75 µm) delivering sub-nanometer resolution (0.4 nm XY, 0.04 nm Z).
• Fully software-controlled actuation via ZEPTOOLS’ proprietary TEM-SPM interface, compatible with common TEM control platforms including JEOL, Thermo Fisher Scientific, and Hitachi systems through TTL/RS-232 or Ethernet protocols.
• Modular expansion capability: standardized mechanical and electrical interfaces allow seamless integration of auxiliary modules—including cryogenic cooling stages (LN₂-based, 80–300 K), resistive heating chips (up to 1000 °C), optical fiber channels (dual-path, UV–NIR transmission), nanonewton-force sensors, and biaxial tilt mechanisms.
• Vacuum-compatible construction using ultra-low-outgassing ceramics and Kovar alloys; validated for use in high-vacuum (≤1×10⁻⁷ Pa) and ultra-high-vacuum (≤1×10⁻⁹ Pa) TEM columns without compromising column stability or detector performance.

Sample Compatibility & Compliance

The PicoFemto series accommodates standard TEM grid geometries (3 mm diameter, 25 µm thick Cu/Ni/Mo grids) and supports freestanding membranes, focused ion beam (FIB)-lifted lamellae, and epitaxial thin films on electron-transparent substrates. All electrical feedthroughs comply with IEC 61000-4-2 (ESD immunity) and IEC 61000-4-4 (electrical fast transient robustness). Mechanical tolerances adhere to ASTM E1192 for TEM holder dimensional consistency. The system meets GLP documentation requirements for traceable calibration records and supports audit-ready experimental metadata logging per FDA 21 CFR Part 11 when used with ZEPTOOLS’ certified data acquisition software.

Software & Data Management

ZEPTOOLS TEM-SPM Suite provides synchronized acquisition across up to six hardware channels: two analog inputs (current/voltage), two analog outputs (bias/feedback), one digital input (TEM frame trigger), and one digital output (probe status flag). Raw data is saved in HDF5 format with embedded metadata (timestamp, holder temperature, bias history, microscope parameters). Batch processing tools enable automated I–V curve fitting (linear, exponential, Simmons tunneling models), differential conductance (dI/dV) mapping, and alignment of SPM traces with corresponding STEM frames using cross-correlation algorithms. Export options include MSA, DM3, and CSV for third-party analysis in Igor Pro, Python (SciPy/NumPy), or MATLAB environments.

Applications

• Dynamic domain switching in ferroelectric heterostructures (e.g., PbTiO₃/SrRuO₃ interfacial polarization reversal under applied bias).
• In situ electromigration studies of metallic nanowires and 2D material contacts under controlled thermal–electrical stress.
• Cryogenic transport characterization of topological insulators and correlated oxides at 80 K with simultaneous EELS bandgap tracking.
• Thermo-mechano-electric coupling analysis in shape-memory alloys using integrated resistive heating and nanonewton force feedback.
• Photoexcited carrier dynamics in perovskite solar cell absorbers via synchronized pulsed laser illumination (355–800 nm) and transient current capture.

FAQ

Is the PicoFemto holder compatible with aberration-corrected TEMs?
Yes—mechanical runout is specified ≤50 nm over full Z-range; electromagnetic interference shielding meets TEM column noise floor requirements (<1 µV RMS broadband).

Can third-party source-measure units (SMUs) be integrated?
Yes—the holder includes isolated BNC breakout ports for external SMU synchronization and voltage/current sourcing, with TTL-level handshake signals for coordinated triggering.

What vacuum compatibility certifications are provided?
Each unit undergoes helium leak testing (≤1×10⁻¹⁰ mbar·L/s) and outgassing rate validation per ASTM E595; full certification package supplied with shipment.

Does the system support automated scripting for repetitive experiments?
Yes—Python API and LabVIEW drivers are included, enabling custom sequences such as “approach–contact–sweep–retract–image” loops with conditional logic based on real-time current thresholds.

Are replacement tips and calibration standards available?
ZEPTOOLS supplies W(110) single-crystal tip arrays, Pt/Ir conductive AFM probes, and NIST-traceable resistance standards (1 kΩ–100 MΩ) with documented uncertainty budgets.
