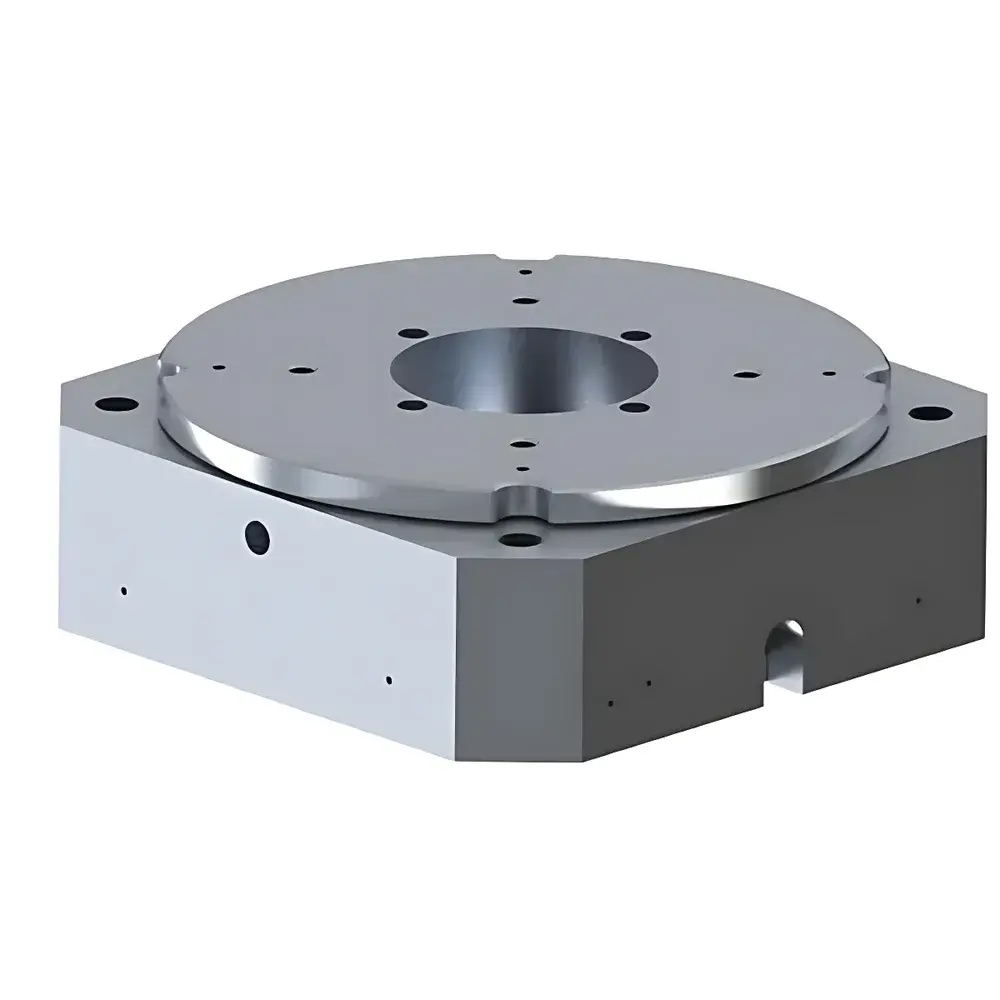

ZEPTOOLS RF-8382A Piezo-Driven Nanopositioning Rotary Stage

Overview

The ZEPTOOLS RF-8382A is a high-precision piezo-driven rotary nanopositioning stage engineered for sub-microradian angular control in demanding optical, vacuum, and in situ microscopy applications. Unlike stepper- or servo-based rotational stages, the RF-8382A employs direct piezoelectric actuation with inertial drive principles—enabling frictionless, non-magnetic, and zero-backlash rotation. Its core mechanism leverages multilayer piezoceramic stacks coupled to a flexure-guided rotational platform, ensuring nanoradian-scale resolution without gear trains or lubricants. The stage integrates a passive mechanical lock that engages automatically at rest, eliminating drift during power-off or system idle states—a critical requirement for long-duration electron microscopy experiments and ultra-stable interferometric setups. Designed for compatibility with both atmospheric and high-vacuum environments (down to 10⁻⁷ mbar), the RF-8382A uses ultra-low-outgassing materials including vacuum-rated 316L stainless steel housing, alumina ceramic insulators, and gold-plated feedthroughs, conforming to ISO 10100 clean vacuum standards.

Key Features

• Piezo-inertial drive architecture delivering continuous 360° rotation with no mechanical limits or cable wrap constraints
• Integrated mechanical locking mechanism ensuring position retention without power consumption or thermal load
• Vacuum-compatible construction certified for UHV environments (tested per ASTM E595 outgassing specifications)
• Modular feedback interface supporting capacitive sensors (sub-10 nrad resolution) or strain-gauge position detectors for closed-loop operation
• Low thermal drift design: <200 nrad over 24 hours under controlled lab conditions (23°C ±0.5°C)
• Centered axial load capacity of 1.2 kg with maintained angular repeatability (≤±50 nrad unidirectional)
• Electrical interface compliant with standard analog ±10 V input and digital RS-422/USB 2.0 protocols for integration into OEM motion control ecosystems

Sample Compatibility & Compliance

The RF-8382A is routinely deployed in instrument platforms requiring electromagnetic silence, vacuum integrity, and positional stability over extended durations. It meets material and performance criteria aligned with ISO 14644-1 Class 5 cleanroom handling, and its surface finish (Ra ≤0.4 µm) supports particle-free operation in semiconductor metrology tools. All electrical feedthroughs are rated for 5 kV DC insulation and pass MIL-STD-202G vibration testing (5–500 Hz, 10 g RMS). The stage complies with CE marking requirements for EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. For regulated environments—including GLP-compliant metrology labs and FDA-audited wafer inspection systems—the optional closed-loop configuration supports audit-trail-capable controller firmware compliant with 21 CFR Part 11 data integrity requirements.

Software & Data Management

ZEPTOOLS provides the ZP-Ctrl SDK (C/C++, Python, LabVIEW APIs) and ZP-Studio GUI for real-time trajectory planning, waveform generation (sine, sawtooth, custom Lissajous), and synchronized multi-axis coordination. Closed-loop variants log position telemetry at up to 10 kHz sampling rate, with timestamped binary data export compatible with HDF5 and MATLAB .mat formats. Firmware supports configurable watchdog timers, position error thresholds, and hardware-triggered event capture—enabling tight synchronization with TEM/SEM frame acquisition, laser pulse triggers, or AFM scan clocks. All calibration coefficients (nonlinearity, hysteresis compensation maps) are stored in onboard EEPROM and persist across power cycles.

Applications

• In situ TEM/SEM nanoprobing: Precise angular alignment of micro-manipulator probes during live electrical characterization
• Semiconductor wafer inspection: Sub-arcsecond repositioning of reticles and photomasks in automated defect review stations
• Lithography tool stages: Dynamic correction of mask-to-wafer overlay errors via real-time rotational feedback
• Fiber optic assembly: Active core-alignment during fusion splicing with <0.05 dB insertion loss tolerance
• Confocal and STED microscopy: Laser beam steering and objective tilt compensation for aberration correction
• Quantum optics setups: Polarization state control via waveplate rotation with <10⁻⁴ wave retardance stability
• Mechanical property mapping: Controlled torsional loading of nanowires or 2D materials in MEMS-based testers

FAQ

Is the RF-8382A compatible with ultra-high vacuum (UHV) systems?

Yes—validated for continuous operation at pressures down to 1×10⁻⁷ mbar using all-metal seals and low-outgassing materials.
What feedback options are available for closed-loop operation?

Capacitive displacement sensors (standard) or strain-gauge-based angular encoders (optional), both offering traceable NIST-calibrated linearity correction.
Can multiple RF-8382A stages be synchronized?

Yes—via ZP-Ctrl’s deterministic EtherCAT master interface or TTL-sync trigger inputs with jitter <100 ns.
Does the mechanical lock affect rotational resolution or hysteresis?

No—the lock engages only at rest; actuation occurs entirely through the piezo element during motion, preserving open-loop linearity and repeatability.
Is firmware update support provided for regulatory compliance maintenance?

Yes—ZEPTOOLS offers version-controlled firmware releases with documented change logs, validation reports, and 21 CFR Part 11-compliant audit trail modules upon request.
