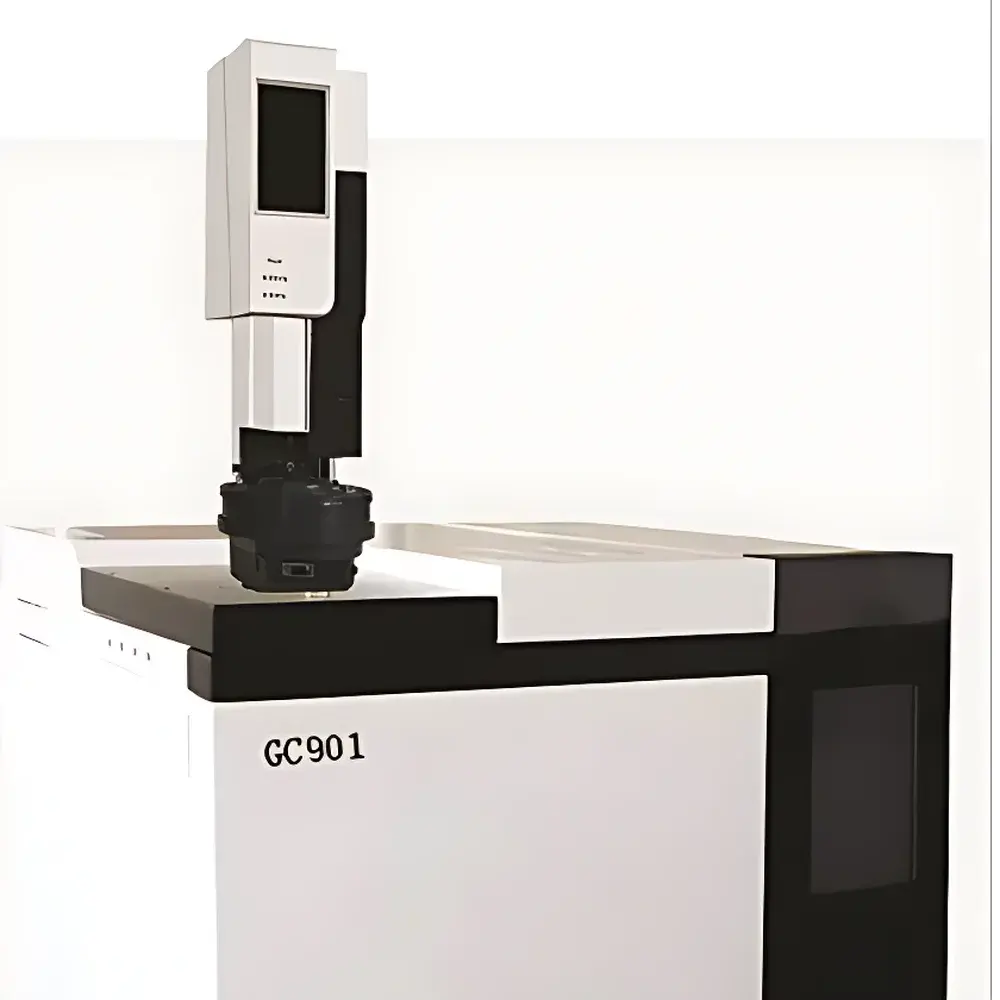

Zhichen Tech GC-901 Gas Chromatograph with Integrated Gas-Phase Molecular Absorption Spectrometry Module

Overview

The Zhichen Tech GC-901 is a dual-function analytical platform integrating high-resolution gas chromatography (GC) with gas-phase molecular absorption spectrometry (GPMAS) in a single instrument architecture. Unlike conventional standalone systems, the GC-901 enables sequential or hyphenated analysis: volatile and semi-volatile organic compounds are first separated via capillary or packed column chromatography under precisely controlled temperature and carrier gas dynamics; eluted analytes are then directed—via thermally insulated transfer lines—into a dedicated GPMAS detection cell where quantitative absorption measurements occur at characteristic UV-Vis wavelengths (190–800 nm). This hybrid design leverages the separation power of GC and the element-specific, interference-resistant detection capability of molecular absorption in the gas phase—particularly advantageous for nitrogen-, sulfur-, and halogen-containing species (e.g., NO, NO₂, SO₂, NH₃, Cl₂) without requiring derivatization or wet chemistry. The system operates on fundamental Beer-Lambert principles applied to gaseous analytes under controlled pressure and pathlength conditions, delivering direct, calibration-based quantification traceable to NIST-traceable reference gases.

Key Features

• FID detector with logarithmic amplification circuitry ensures linear dynamic range spanning 10⁷ and eliminates peak flattening—even for high-concentration analytes—preserving true peak shape and integration accuracy.
• Full-path Electronic Pressure Control (EPC) across carrier, makeup, and fuel gases delivers sub-millibar pressure stability and reproducible retention time precision (<0.02 min RSD over 24 h).
• 7-inch high-brightness color TFT-LCD touchscreen with capacitive multi-touch support; functions as both integrated console and removable handheld controller with hot-swap capability via industrial-grade M12 connectors.
• Microprocessor-based temperature control system with eight independent PID-controlled zones—including oven, injector(s), detector(s), and auxiliary modules—enabling up to 16-ramp programmable temperature gradients.
• Column oven features automatic rear-door opening mechanism and advanced thermal insulation, achieving stable isothermal operation within 0.1 °C of ambient (down to 5 °C above room temperature) and heating/cooling rates up to 60 °C/min.
• Modular detector bay supports simultaneous installation of FID, TCD, ECD, and optional GPMAS optical module—configured via software-defined hardware mapping.

Sample Compatibility & Compliance

The GC-901 accommodates liquid, gas, and solid-phase samples (via headspace or thermal desorption units) across environmental, petrochemical, pharmaceutical, and food safety applications. It complies with ISO/IEC 17025:2017 requirements for testing laboratory competence and supports method validation per ASTM D3612 (hydrocarbon analysis), EPA Method 8015M (volatile organics), and ISO 15686-5 (indoor air VOCs). When operated with GPMAS configuration, it aligns with EN 14791 (ambient air NO_x measurement) and JIS K 0127 (gas-phase nitrogen compound determination). All firmware and data handling modules are designed to meet audit trail and electronic signature requirements under FDA 21 CFR Part 11 when deployed in regulated GLP/GMP environments.

Software & Data Management

The GC-901 is controlled by Zhichen ChromoSuite™ v4.2 workstation software, compatible with Windows XP through Windows 10 (64-bit). The software provides full instrument reverse control, real-time chromatogram visualization, automated baseline correction, spectral library matching (for GPMAS absorbance bands), and customizable report templates compliant with ISO/IEC 17025 documentation standards. Raw data files (.ZCS) include embedded metadata (instrument ID, operator, method parameters, calibration history) and support secure export to CSV, PDF/A-2, and CDF formats. Audit trail logging records all user actions—including method edits, integration parameter changes, and result approvals—with timestamped, immutable entries meeting ALCOA+ principles.

Applications

• Environmental monitoring: Quantification of BTEX, chlorinated solvents, and greenhouse gases (CH₄, N₂O) in ambient air and stack emissions.
• Water quality analysis: Detection of volatile nitrogen species (NH₃, NO, NO₂) and sulfides following purge-and-trap preconcentration.
• Petrochemical QA/QC: Hydrocarbon group-type analysis (PIONA), oxygenate screening (MTBE, ETBE), and sulfur speciation (H₂S, COS, mercaptans).
• Pharmaceutical residual solvent testing: Compliant with ICH Q3C guidelines for Class 1–3 solvents in drug substances and products.
• Food flavor and aroma profiling: Identification and quantification of esters, aldehydes, and terpenes in essential oils and fermented products.

FAQ

Does the GC-901 support method transfer from legacy Agilent or Shimadzu GC platforms?

Yes—ChromoSuite™ includes built-in method import wizards for common vendor formats (.MSD, .CDF, .GCW) with automatic parameter remapping and retention time alignment verification.
Is the GPMAS module factory-calibrated, and what is its typical detection limit for NO?

Each GPMAS cell is calibrated using NIST-traceable NO standard gas mixtures; typical LOD for NO is 0.5 ppb (1σ, 100 s integration) under optimized flow and pathlength conditions.
Can the system operate unattended for extended periods, such as overnight sequence runs?

Yes—the instrument supports scheduled shutdown, auto-diagnostic routines, and email/SNMP alerts for pressure faults, temperature deviations, or detector saturation events.
What service and support options are available outside mainland China?

Zhichen Tech partners with ISO 9001-certified regional service centers in Germany, Singapore, and the USA offering remote diagnostics, on-site PM, and certified spare parts logistics with <48 h turnaround for critical components.
