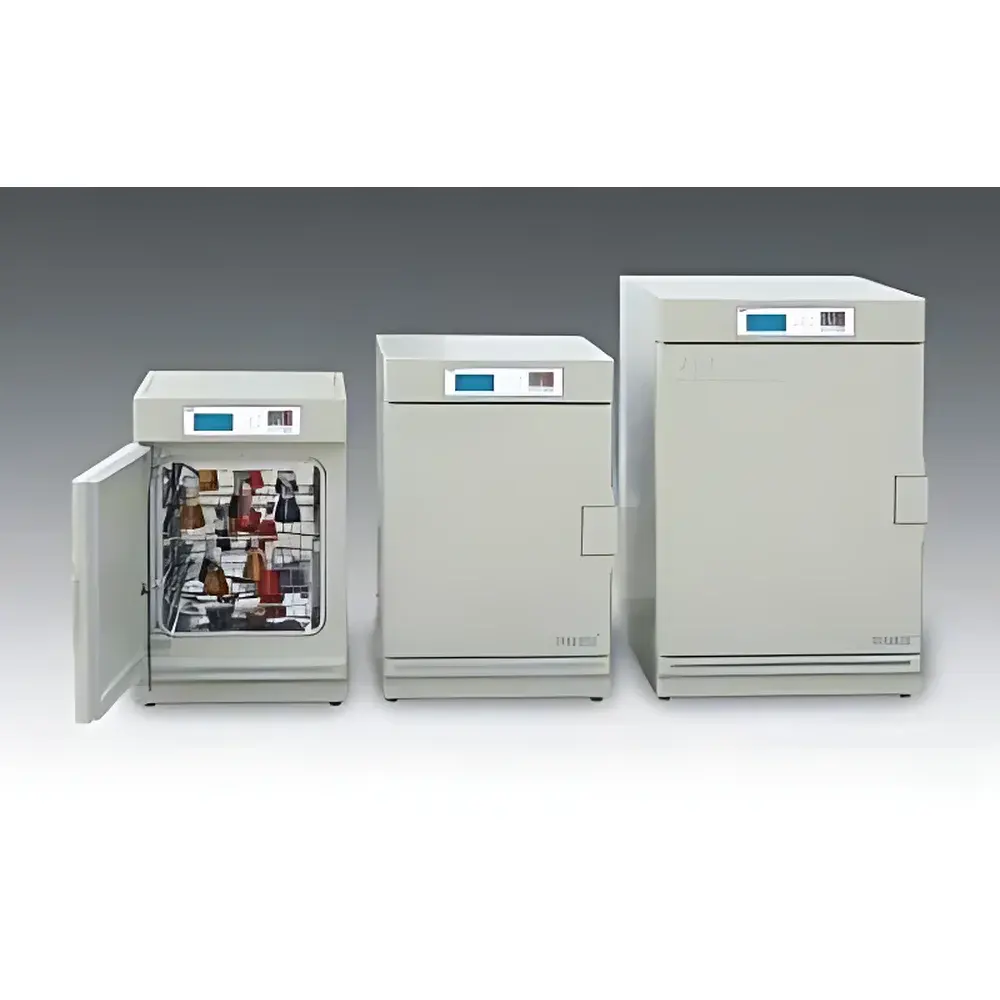

Zhicheng ZXDP-A2080 Ten-Stage Programmable Electric Constant Temperature Incubator

Overview

The Zhicheng ZXDP-A2080 Ten-Stage Programmable Electric Constant Temperature Incubator is an engineered platform for precise, repeatable thermal control in life science laboratories. Designed around a fuzzy logic control architecture, the system dynamically adjusts heating output based on real-time feedback from high-response platinum resistance temperature sensors (PT100-class equivalent), minimizing overshoot and stabilizing chamber conditions with high reproducibility. Unlike basic on/off thermostats, this incubator employs continuous proportional-integral (PI) modulation—enhanced by environmental scanning microprocessor firmware—to maintain uniform thermal distribution across the full 80 L working volume. The air-jacketed design ensures rapid temperature recovery after door openings and eliminates water-level dependency associated with water-jacketed units. Its operational envelope spans ambient +5 °C to 60 °C, optimized for mammalian cell culture, enzyme assays, microbial growth kinetics, and stability testing of biologics under controlled thermal stress.

Key Features

• Ten-segment programmable logic supporting up to 18 discrete steps—enabling complex thermal profiles such as ramp-hold-cool cycles, diurnal simulation, or multi-stage differentiation protocols.
• Dual-door configuration with inner tempered glass door minimizes radiant heat loss while permitting non-intrusive visual monitoring without disturbing internal airflow or humidity gradients.
• Three-layer safety redundancy: independent adjustable over-temperature cutoff (30–80 °C range), dedicated overheat prevention circuit, and certified leakage/overcurrent protection meeting IEC 61010-1 Class II requirements.
• Mirror-finish 304 stainless steel interior and electro-polished shelving resist corrosion, facilitate cleaning validation, and comply with ISO 14644-1 Class 7 cleanroom-compatible surface standards.
• Top-mounted micro-airflow system with asymmetric duct geometry ensures laminar, low-velocity convection—reducing shear stress on sensitive cultures and preventing localized condensation on vessel surfaces.
• Comprehensive self-diagnostic suite: power failure logging, sensor continuity verification, upper/lower limit deviation alerts, and automatic parameter retention during brownout events.
• RS-232 serial interface supports integration into centralized lab management systems; optional embedded micro-printer provides auditable hard-copy output of setpoints, actual temperatures, and alarm timestamps.

Sample Compatibility & Compliance

The ZXDP-A2080 accommodates standard tissue culture flasks (T25–T225), Petri dishes (up to 150 mm), multiwell plates (6–96-well), and serum vials without airflow obstruction. Its 400 × 400 × 500 mm chamber permits vertical stacking of up to four electro-polished shelves (two supplied), each load-rated to 15 kg. The unit conforms to GB/T 23795–2009 (Chinese national standard for electric incubators) and incorporates design elements aligned with ISO 13485:2016 clause 7.5.10 (control of monitoring and measuring equipment). While not FDA 21 CFR Part 11–validated out-of-the-box, its parameter password lock, audit-ready event logs, and RS-232 traceability support qualification under GLP and GMP frameworks when deployed with documented IQ/OQ/PQ protocols.

Software & Data Management

No proprietary software installation is required—the incubator operates autonomously via its integrated LCD interface with intuitive menu navigation. All program sequences, calibration offsets, and alarm thresholds are stored in non-volatile memory and persist through power cycles. The RS-232 port enables bidirectional communication using ASCII-based command sets compatible with LabVIEW™, Python (pySerial), or custom SCADA platforms. Timestamped temperature records—including deviations exceeding ±0.3 °C—can be exported for CSV analysis. When paired with the optional micro-printer, the system generates time-stamped thermal event reports compliant with ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate).

Applications

• Mammalian and insect cell line maintenance at 37 °C ±0.5 °C with <±1.0 °C spatial uniformity—critical for reproducible transfection efficiency and passage viability.
• Microbial growth curve analysis (e.g., E. coli, S. cerevisiae) under stepwise thermal induction for promoter characterization or stress response profiling.
• Enzyme activity assays requiring precise ramp-and-hold thermal transitions to map denaturation kinetics or cofactor binding thermodynamics.
• Stability studies of monoclonal antibodies, vaccines, and excipient formulations per ICH Q5C guidelines, where thermal cycling between 25 °C and 40 °C simulates transport stress.
• Seed germination trials and plant tissue culture under programmable diurnal temperature regimes mimicking natural field conditions.
• Long-term storage of serum, antibiotics, and diagnostic reagents at validated holding temperatures (e.g., 2–8 °C equivalent achieved via ambient +5 °C minimum setting).

FAQ

Does the ZXDP-A2080 support remote monitoring via Ethernet or Wi-Fi?
No—it features RS-232 only. For network integration, a serial-to-Ethernet converter (e.g., Moxa NPort) is required and must be validated separately.
Is the temperature uniformity specification validated per ISO 15333-1?
The stated ≤±1.0 °C uniformity at 37 °C reflects internal factory mapping using 9-point probe arrays per GB/T 23795–2009 Annex B; third-party ISO 15333-1 verification is customer-responsible.
Can the incubator operate continuously at 60 °C for extended periods?
Yes—thermal insulation and fan duty cycle are rated for uninterrupted operation at maximum setpoint; however, long-term exposure above 50 °C may accelerate gasket aging and requires periodic seal inspection.
What calibration documentation is provided with shipment?
A factory calibration certificate (traceable to CNAS-accredited reference standards) is included, listing as-found/as-left values for three points (25 °C, 37 °C, 55 °C) and uncertainty budgets per ISO/IEC 17025.
Are replacement shelves and door gaskets available as spare parts?
Yes—Zhicheng supplies OEM-certified electro-polished shelves (P/N ZS-80-SH-EP), silicone door gaskets (P/N ZG-80-DOOR-GSK), and RS-232 cables (P/N ZC-COM-RS232-1.5M) with 24-month shelf-life assurance.
