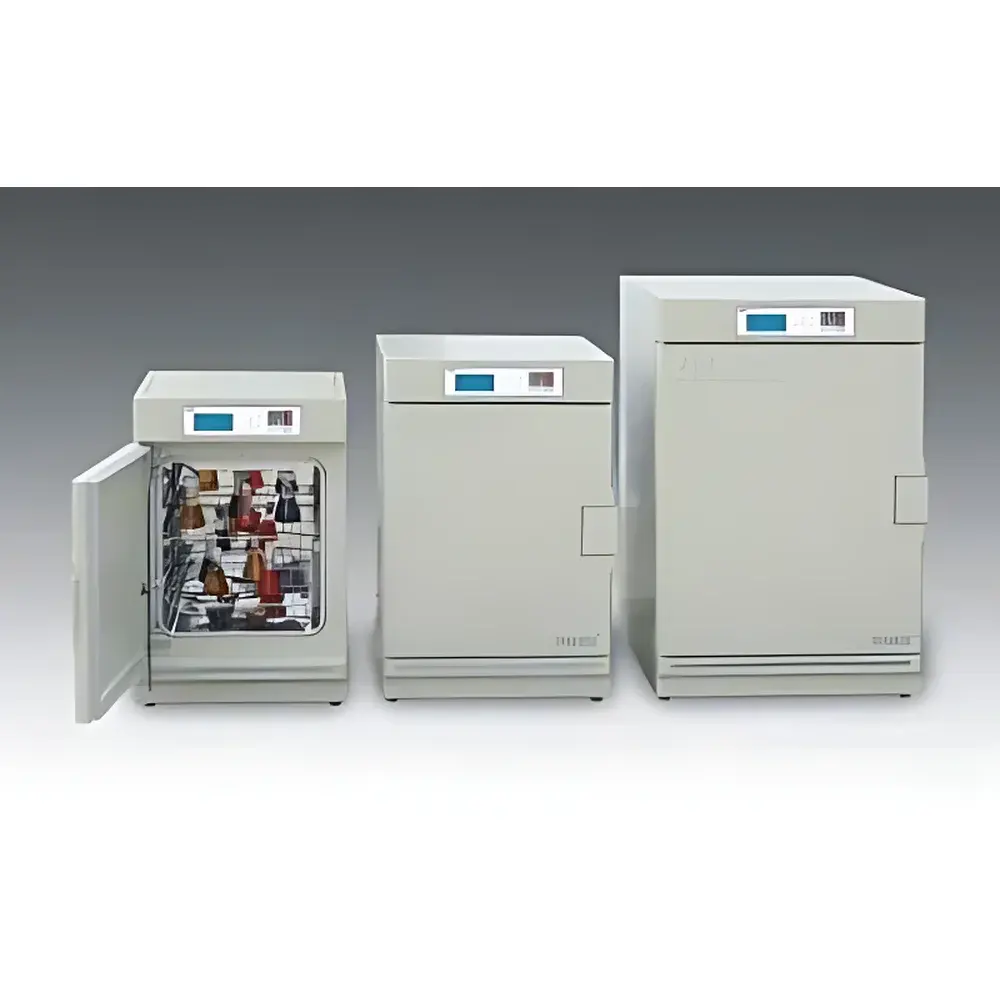

Zhicheng ZXDP-A2120 Ten-Stage Programmable Electric Constant Temperature Incubator

Overview

The Zhicheng ZXDP-A2120 Ten-Stage Programmable Electric Constant Temperature Incubator is an engineered solution for precise, reproducible thermal environment control in life science laboratories. Designed around fuzzy logic control architecture, it delivers stable and uniform thermal conditions across its 120 L working chamber—critical for applications requiring strict adherence to ISO 13485, CLSI EP25-A, or GLP-compliant incubation protocols. Unlike basic on/off thermostats, this incubator employs a high-response NTC thermistor array coupled with environmental scanning microcontroller logic to dynamically adjust heating output in real time. The top-mounted micro-airflow system ensures gentle, non-turbulent air recirculation—minimizing desiccation of sensitive biological samples while maintaining spatial temperature homogeneity ≤ ±1.0 °C at 37 °C (per ASTM E145-22 Annex A3 validation methodology). Its dual-door configuration—featuring an inner tempered glass observation window—reduces thermal load disruption during routine monitoring without compromising chamber integrity.

Key Features

• Ten-segment, eighteen-step programmable temperature profile capability: supports complex multi-phase incubation protocols including ramp-hold-cool cycles, stepwise acclimation, and timed recovery sequences.
• Fuzzy logic temperature regulation with 0.1 °C resolution and ≤ ±0.5 °C fluctuation—validated under continuous load conditions per IEC 61000-4-30 immunity testing.
• Dual independent safety layers: adjustable over-temperature cut-off (30–80 °C), plus fixed overheat prevention device—both electrically isolated from main control circuitry per IEC 61010-1 Clause 6.4.2.
• Comprehensive self-diagnostic suite: real-time monitoring of sensor integrity, power continuity, door status, and thermal deviation—with audible/visual alerts and automatic event logging.
• Embedded RS-232 interface compliant with TIA/EIA-232-F physical layer standards for integration into centralized lab management systems (LIMS) or SCADA platforms.
• Optional thermal mini-printer provides traceable hard-copy output of temperature logs, alarm events, and operational timestamps—supporting 21 CFR Part 11 audit trail requirements when paired with validated software drivers.
• Mirror-finish 304 stainless steel interior and electro-polished shelves resist corrosion and facilitate ISO 14644-1 Class 5-compatible cleaning protocols.

Sample Compatibility & Compliance

The ZXDP-A2120 accommodates standard microbiological culture vessels—including Petri dishes (up to 150 mm), test tubes (16 × 150 mm), flasks (up to 2 L), and multi-well plates—without airflow interference. Its geometry-optimized cavity minimizes thermal stratification and eliminates cold spots common in conventional convection incubators. The unit meets EN 61000-6-2 (immunity) and EN 61000-6-3 (emissions) electromagnetic compatibility requirements. All electrical safety mechanisms conform to IEC 61010-1:2010 + A1:2019 for laboratory equipment. While not certified to UL 61010-1, its construction and documentation support internal risk assessment per ISO 14971:2019 for use in non-GMP research environments. For regulated bioprocessing workflows, users must perform IQ/OQ/PQ validation using calibrated reference probes traceable to NIST standards.

Software & Data Management

The built-in microcontroller firmware supports parameter password protection (four-digit user-defined code), automatic power recovery after outage, and persistent memory retention for up to 100 operational cycles. RS-232 communication enables ASCII-based command/response protocol for remote setpoint adjustment, real-time temperature polling, and alarm status interrogation. When interfaced with third-party data acquisition software (e.g., LabVIEW or custom Python scripts via pySerial), the incubator outputs timestamped CSV-formatted records at user-selectable intervals (1–60 s). Thermal printouts include date/time stamp, setpoint, actual chamber temperature, and active alarm flags—serving as primary record evidence under GLP Annex 13 and USP analytical instrument qualification guidelines.

Applications

This incubator is routinely deployed in academic research labs for bacterial and fungal cultivation (e.g., E. coli, S. cerevisiae), mammalian cell passaging (HEK293, CHO-K1), enzyme activity assays, and protein denaturation studies. In clinical microbiology settings, it supports CLSI M07-A10 broth microdilution susceptibility testing and anaerobe pre-incubation (when used with gas-tight sealing accessories). Regulatory-compliant applications include stability testing of pharmaceutical excipients per ICH Q1A(R2), serum storage validation per CLSI GP44-A4, and environmental monitoring media incubation per ISO 14698-1. Its programmable staging also enables simulated diurnal cycling for plant tissue culture and circadian rhythm studies.

FAQ

What validation documentation is provided with the ZXDP-A2120?
A factory calibration certificate (traceable to national metrology institutes) and electrical safety test report are included. Full IQ/OQ documentation templates are available upon request for qualified customers.
Can the incubator operate continuously for extended periods (e.g., 72+ hours)?
Yes—the thermal management system and redundant safety circuits are rated for uninterrupted operation under nominal load at 37 °C, verified by 168-hour accelerated life testing per IEC 60068-2-2.
Is the RS-232 interface compatible with modern Windows/macOS systems?
It requires a USB-to-RS-232 adapter (FTDI chipset recommended); native driver support is confirmed for Windows 10/11 and macOS 12+.
Does the unit meet FDA requirements for use in GMP manufacturing?
It is suitable for GMP environments when fully validated per Annex 15; however, final compliance depends on site-specific risk assessment, change control, and periodic requalification.
How is temperature uniformity verified during installation qualification?
Users must perform a 9-point mapping per ISO 14644-3 using NIST-traceable Class A PT100 probes placed at defined geometric locations—data analyzed using ANOVA and standard deviation metrics.
