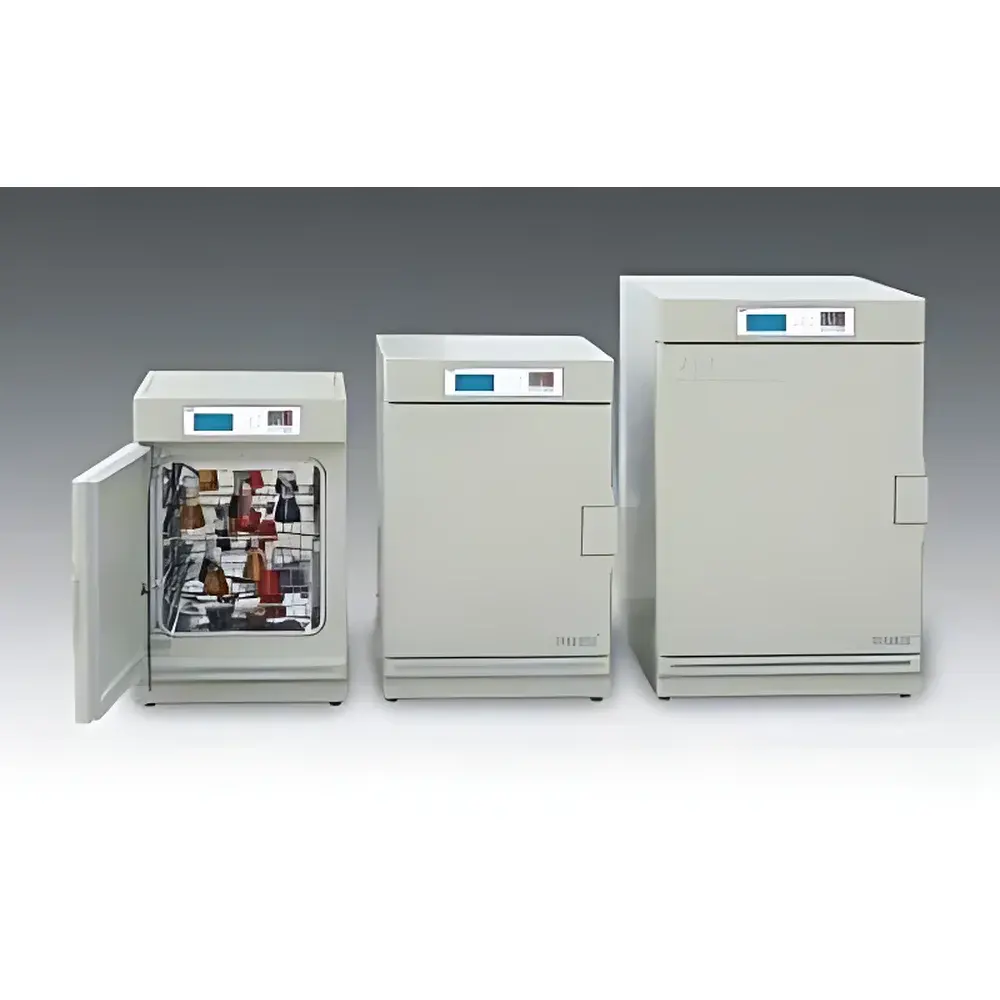

Zhicheng ZXDP-A2270 Ten-Stage Programmable Electric Constant Temperature Incubator

Overview

The Zhicheng ZXDP-A2270 Ten-Stage Programmable Electric Constant Temperature Incubator is an engineered platform for precise, repeatable thermal control in life science laboratories. Designed around fuzzy logic control architecture and integrated environmental scanning microprocessor technology, it delivers stable, uniform temperature environments essential for cell culture, microbial growth, enzyme activity assays, serum storage, and stability testing of biologics and pharmaceutical intermediates. Unlike basic on/off thermostats, this incubator implements adaptive thermal regulation—continuously adjusting heater output based on real-time feedback from high-response platinum resistance sensors and ambient condition monitoring. Its electric heating system, combined with a top-mounted micro-airflow circulation design and optimized internal cavity geometry, ensures minimal thermal stratification and rapid recovery after door openings. The unit operates within a defined ambient envelope (5–35 °C) and maintains temperature control from ambient +5 °C up to 60 °C, with resolution of 0.1 °C and uniformity ≤ ±1.0 °C at the critical 37 °C setpoint—meeting baseline performance expectations for ISO 13485-aligned QC labs and GLP-compliant research workflows.

Key Features

• Ten-segment, eighteen-step programmable control logic—supporting complex thermal profiles including ramp-hold-cool sequences, timed step transitions, and scheduled start/stop cycles
• Dual-door configuration with inner tempered glass observation window minimizes heat loss while enabling non-invasive sample monitoring
• Mirror-finish stainless steel interior and electropolished shelving resist corrosion and support routine sterilization via alcohol wipe-down or hydrogen peroxide vapor (HPV) decontamination
• Independent safety layers: adjustable over-temperature prevention (30–80 °C), dedicated overheat cut-off, leakage current detection, and dual-pole circuit protection
• Self-diagnostic firmware continuously monitors sensor integrity, power continuity, and thermal deviation—triggering audible/visual alerts for sensor failure, power interruption, or upper/lower limit breaches
• LCD interface with intuitive human-machine dialogue navigation, password-protected parameter editing, and display calibration function for long-term measurement traceability
• Embedded thermal printer and RS-232 serial interface enable direct data logging and integration into centralized lab information management systems (LIMS)

Sample Compatibility & Compliance

The ZXDP-A2270 accommodates standard tissue culture flasks (T25–T225), Petri dishes, multi-well plates, serum bottles, and reagent vials across its 270 L chamber volume. Its cleanable cavity geometry and laminar airflow path reduce turbulence-induced desiccation and cross-contamination risk—critical for primary cell line maintenance and low-biomass microbial cultures. While not certified to IEC 61010-1 or UL 61010B as a standalone medical device, the incubator conforms to general laboratory equipment safety requirements under GB/T 14710 (Chinese national standard for environmental adaptability) and incorporates functional safeguards aligned with ISO/IEC 17025 clause 6.4.3 (equipment suitability). Its temperature stability profile supports method validation per USP environmental monitoring benchmarks and ASTM E2874-13 (standard practice for incubator qualification).

Software & Data Management

No proprietary software suite is bundled; however, the built-in RS-232 interface permits bidirectional communication using standard terminal emulation protocols (e.g., PuTTY, Tera Term) for remote parameter readout, real-time temperature logging, and alarm event capture. The embedded thermal printer outputs timestamped temperature traces, operational status flags, and error codes—serving as auditable hardcopy records compliant with FDA 21 CFR Part 11 Annex 11 principles when paired with controlled access and procedural documentation. All user-modifiable parameters—including segment targets, dwell times, and alarm thresholds—are retained in non-volatile memory and restored automatically after power cycling (“power recovery mode”). Temperature display calibration allows field adjustment against NIST-traceable reference thermometers, supporting internal metrology verification without disassembly.

Applications

• Bacterial and fungal culture incubation (e.g., E. coli, S. aureus, C. albicans) under standardized CLSI M07-A10 conditions
• Cell proliferation studies requiring precise 37 °C ±0.5 °C environments with minimal CO₂-independent thermal drift
• Accelerated stability testing of vaccines, monoclonal antibodies, and excipient formulations per ICH Q1A(R2)
• Enzyme kinetics assays where thermal consistency directly impacts k_cat and K_m reproducibility
• Storage of heat-labile reagents, sera, and diagnostic kits at controlled sub-ambient or elevated temperatures
• Environmental simulation for agricultural seed germination trials and plant tissue culture protocols

FAQ

Does the ZXDP-A2270 support validation documentation packages (IQ/OQ/PQ)?
No factory-issued validation protocols are included; however, the unit’s programmable logic, temperature uniformity data, and alarm logging functionality provide foundational evidence for customer-led qualification under GxP frameworks.
Can the incubator operate continuously for extended periods (e.g., 72+ hours)?
Yes—designed for unattended operation with redundant thermal safeguards, automatic restart after power restoration, and continuous self-monitoring of sensor health and thermal deviation.
Is the RS-232 interface compatible with LabVIEW or Python-based data acquisition?
Yes—standard ASCII command-response protocol enables integration with third-party scripting environments using pySerial or NI-VISA drivers.
What is the maximum shelf load capacity per tray?
Each electropolished stainless steel shelf supports up to 15 kg uniformly distributed load; total chamber loading must maintain ≥30 mm clearance from walls and ceiling for optimal airflow distribution.
How frequently should temperature uniformity be verified?
Per ISO/IEC 17025 and internal SOPs, quarterly mapping using nine-point probe arrays (per ASTM E2874) is recommended for regulated applications; daily verification with calibrated reference thermometer at center point suffices for routine use.
