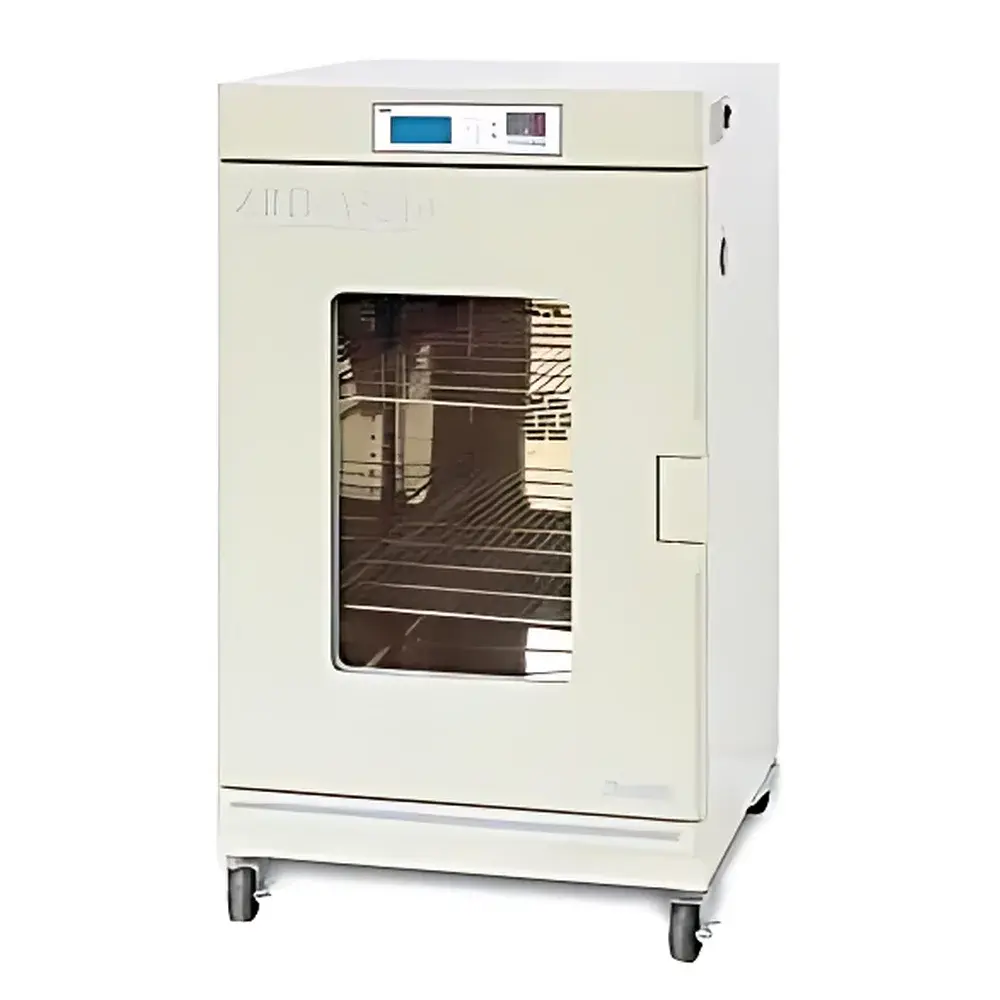

Zhicheng ZXRD-A5055 Ten-Stage Programmable Forced-Convection Hot Air Oven with Rear-Mounted Heating

Overview

The Zhicheng ZXRD-A5055 is a precision-engineered, ten-stage programmable forced-convection hot air oven designed for laboratory-grade drying, sterilization, thermal hardening, and moisture removal applications in life science, pharmaceutical, clinical, and materials research environments. Unlike conventional static ovens, the ZXRD-A5055 employs rear-mounted horizontal airflow architecture—optimized via computational fluid dynamics—to deliver uniform thermal distribution across its 55 L working chamber. Its core operational principle relies on dry-heat convection, where elevated ambient air (up to 200 °C) induces microbial lethality through protein denaturation, oxidative stress, and intracellular electrolyte imbalance—mechanisms validated under ISO 14644-1 cleanroom-compatible thermal decontamination protocols and referenced in USP Annex for dry-heat depyrogenation of glassware.

Key Features

• Fuzzy logic temperature control algorithm ensures stable setpoint maintenance with ≤ ±1 °C fluctuation and ≤ ±2.5% uniformity at maximum operating temperature—critical for GLP-compliant thermal validation studies.
• 10-segment, 18-step programmable sequence capability supports complex thermal profiles: e.g., ramp-hold-cool cycles for polymer curing, stepwise dehydration of biological specimens, or staged depyrogenation of labware prior to aseptic processing.
• Rear-mounted heating system combined with optimized laminar air ducting minimizes thermal stratification and eliminates cold spots—verified per ASTM E2297-03 (Standard Practice for Thermal Validation of Forced-Air Ovens).
• Dual-safety architecture includes independently wired overtemperature protection (adjustable 30–80 °C), dedicated overheat prevention circuitry, and residual-current device (RCD) integration—meeting IEC 61010-1 safety requirements for Class II laboratory equipment.
• Mirror-finish 304 stainless steel interior and electropolished shelving resist corrosion from repeated exposure to saline solutions, ethanol vapors, or acidic reagents—ensuring long-term integrity in QC/QA labs.
• Embedded diagnostics include sensor fault detection, power-loss event logging, and real-time upper/lower limit deviation alerts—supporting audit-ready traceability in FDA 21 CFR Part 11–governed environments when paired with compliant data acquisition software.

Sample Compatibility & Compliance

The ZXRD-A5055 accommodates diverse sample formats including borosilicate glassware (vials, Petri dishes, pipettes), metal instruments, ceramic substrates, and polymeric test coupons. Its chamber geometry and airflow design prevent turbulence-induced particle resuspension—making it suitable for pre-sterilization conditioning in ISO 13485-certified medical device manufacturing. The unit complies with EN 61000-3-2 for electromagnetic compatibility and carries CE marking per Machinery Directive 2006/42/EC. All electrical components conform to RoHS 2011/65/EU restrictions. While not inherently classified as a Class II medical device, its performance parameters align with ISO 17665-1 for moist-heat equivalence validation and support dry-heat cycle qualification per EU GMP Annex 15.

Software & Data Management

Equipped with an RS-232 serial interface and optional embedded thermal printer, the ZXRD-A5055 enables direct data export of time-stamped temperature logs, program execution status, and alarm events. When integrated with third-party SCADA or LIMS platforms (e.g., LabVantage, Thermo Fisher SampleManager), the device supports automated report generation, electronic signature workflows, and secure audit trails. Parameter memory retains up to 10 user-defined programs with password-protected access—facilitating SOP-driven operation in regulated laboratories. Temperature display calibration functionality allows field verification against NIST-traceable reference thermometers, satisfying ISO/IEC 17025 clause 6.5.2 requirements for measurement uncertainty management.

Applications

• Dry-heat sterilization of surgical instruments and glass containers per USP and EP 5.1.2 guidelines.
• Thermal denaturation studies of recombinant proteins and nucleic acid samples prior to electrophoresis or mass spectrometry analysis.
• Moisture content determination in pharmaceutical excipients (e.g., lactose monohydrate, microcrystalline cellulose) following AOAC 950.46 methodology.
• Curing of epoxy-coated sensors, PCB assemblies, and composite material test coupons under controlled ramp-and-soak conditions.
• Pre-conditioning of environmental monitoring filters and particulate collection media prior to gravimetric analysis (EPA Method 201A).
• Accelerated aging of packaging materials per ASTM D3045-17 to assess shelf-life stability under thermal stress.

FAQ

What is the maximum validated temperature uniformity across the chamber at 180 °C?
At 180 °C, temperature uniformity is ≤ ±2.5% as measured per ISO 14644-3 Annex B using nine-point thermocouple mapping—certified in factory validation reports.
Can the ZXRD-A5055 be integrated into a networked lab infrastructure?
Yes—via RS-232, it supports Modbus RTU protocol for integration with building management systems (BMS) or centralized monitoring platforms; Ethernet or Wi-Fi modules are available as OEM add-ons.
Is the unit suitable for pyrogen testing applications?
While not a depyrogenation tunnel, the ZXRD-A5055 achieves ≥ 3-log reduction of endotoxin activity at 250 °C for 45 minutes per USP ; users must validate cycle efficacy per their specific load configuration.
Does the device meet GLP documentation requirements?
With optional printer and external data logger, it supports full ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) when operated under documented SOPs.
What maintenance intervals are recommended for optimal thermal performance?
Quarterly inspection of door gasket integrity, biannual calibration of the primary Pt100 sensor against traceable standards, and annual verification of airflow velocity profile using calibrated anemometry per ASTM E2297.
