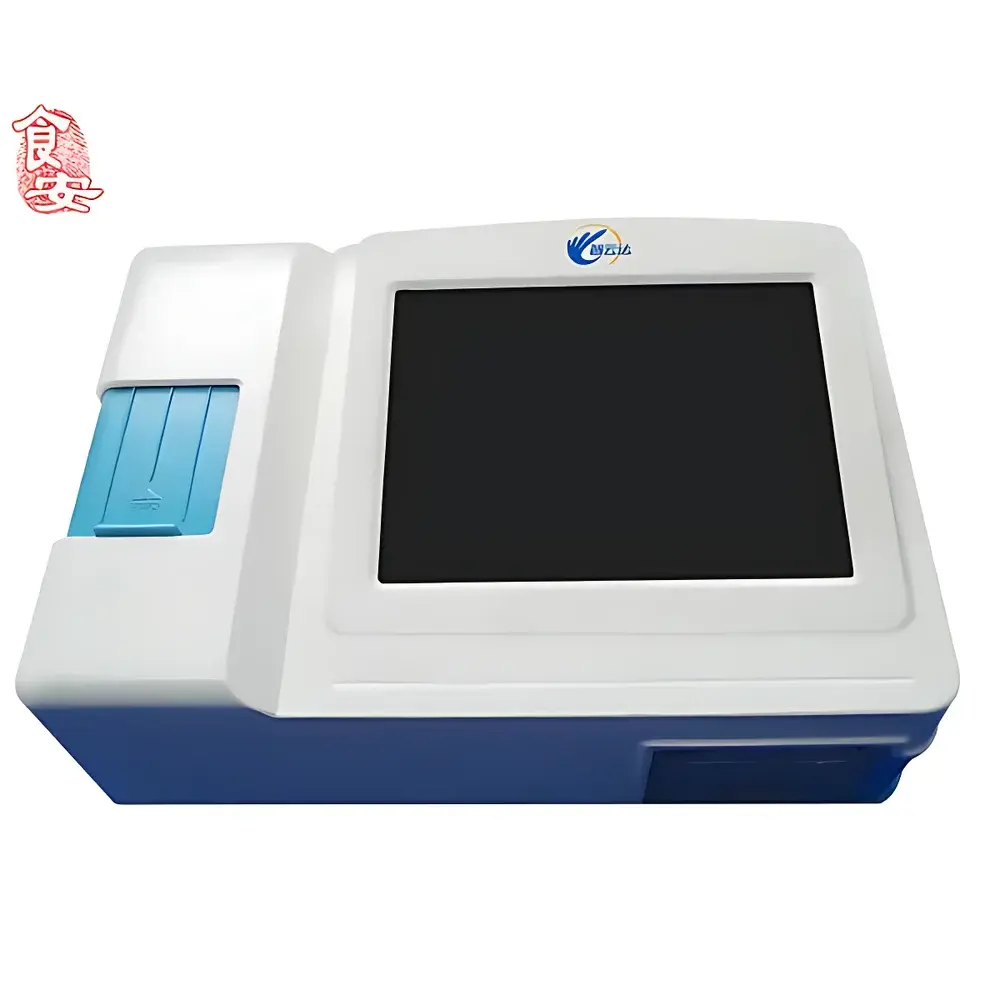

Zhiyunda SMART-01F Multi-Parameter Food Safety Analyzer

Overview

The Zhiyunda SMART-01F Multi-Parameter Food Safety Analyzer is a benchtop-to-field portable spectrophotometric analyzer engineered for rapid, reliable quantification of chemical contaminants and quality indicators in food matrices. It employs a solid-state optical architecture comprising a concave flat-field holographic grating, a high-sensitivity CCD linear array detector, and a stabilized tungsten-halogen broadband light source—enabling full-spectrum acquisition across the visible range (380–780 nm) with high photometric reproducibility. Based on Beer-Lambert law-compliant absorption spectroscopy, the instrument determines analyte concentration by measuring characteristic spectral absorbance peaks at pre-validated wavelengths. Its design bridges laboratory-grade accuracy and field-deployable robustness, supporting regulatory screening workflows under ISO/IEC 17025-aligned environments and routine compliance checks per national food safety standards (e.g., GB 5009 series, NY/T 761, SN/T series). The system operates without moving optical components, minimizing drift and mechanical failure risk during extended use.

Key Features

• Solid-state optical path: Concave flat-field holographic grating + CCD detector ensures long-term wavelength stability and minimal photometric noise.
• Multi-mode analytical capability: Supports quantitative analysis (single- or multi-point calibration), full-spectrum scanning (380–780 nm, 1 nm resolution), and kinetic time-scan mode for reaction monitoring.
• Preloaded assay library: Factory-calibrated calibration curves for ≥16 regulated analytes—including organophosphate pesticides (e.g., omethoate, dichlorvos), formaldehyde, sodium formaldehyde sulfoxylate (“diao bai kuang”), nitrite, sulfur dioxide, hydrogen peroxide, residual chlorine, protein content (via biuret/Kjeldahl proxy), peroxidase activity, acid value, volatile basic nitrogen (VBN), iodine content, total acidity, monosodium glutamate (MSG), and adulterants such as recycled cooking oil (“gou yu you”).
• Expandable assay platform: Firmware-upgradable method library via secure USB or network interface; supports user-defined curve import and validation protocols.
• Integrated human-centered interface: 7-inch capacitive color touchscreen with icon-driven workflow navigation; contextual on-screen guidance (text + embedded video clips) enables operator training without external manuals.
• Field-ready hardware: Compact footprint (280 × 220 × 120 mm), lightweight chassis (<2.5 kg), and rechargeable Li-ion battery (≥6 h continuous operation) support unpowered site inspections.
• Dual connectivity architecture: Gigabit Ethernet port + IEEE 802.11n Wi-Fi module enable encrypted data transmission to centralized LIMS or regulatory dashboards (e.g., China NMPA’s Food Safety Traceability System).

Sample Compatibility & Compliance

The SMART-01F accepts liquid extracts, clarified homogenates, and filtered supernatants prepared using standardized sample pretreatment kits (included). Compatible with common food matrices including fruits, vegetables, meat products, dairy, grains, edible oils, condiments, and aquatic products. All preloaded methods are validated against GB/T 5009.x, GB 23200.x, and SN/T analytical standards. Instrument firmware complies with GLP data integrity requirements: audit trail logging (user ID, timestamp, parameter changes), electronic signature support, and read-only result archives. Data export formats include CSV, PDF reports, and XML-compatible structured outputs suitable for FDA 21 CFR Part 11–compliant systems when deployed with validated IT infrastructure.

Software & Data Management

Embedded Zhiyunda Analytical Suite v3.2 provides intuitive method selection, real-time spectral visualization, automatic pass/fail flagging per regulatory thresholds, and batch report generation. Data storage includes internal 16 GB eMMC (retaining ≥100,000 test records) plus USB 2.0 host support for printers, keyboards, or external SSDs. Network synchronization supports TLS 1.2–secured uploads to cloud-based monitoring platforms. Audit logs record all critical events—including calibration history, user logins, curve modifications, and result exports—with immutable timestamps. Software updates are digitally signed and delivered via authenticated channels to prevent unauthorized firmware modification.

Applications

• Routine surveillance testing in municipal food & drug administration laboratories.
• On-site screening at agricultural cooperatives, slaughterhouses, and cold-chain distribution hubs.
• Quality control checkpoints in food manufacturing facilities (e.g., vegetable processing lines, soy sauce fermentation tanks, edible oil refineries).
• Import/export inspection at CIQ (Customs Inspection and Quarantine) ports per AQSIQ technical guidelines.
• Research method development for novel contaminant detection using spectral deconvolution and multivariate calibration techniques.

FAQ

Does the SMART-01F require annual optical recalibration?
No—its fixed-grating, solid-state optical design eliminates mechanical wavelength drift; only periodic photometric verification using NIST-traceable neutral density filters is recommended per ISO/IEC 17025 Clause 6.5.2.
Can third-party reagents be used with preloaded methods?
Yes, provided reagent performance is verified against reference standards per GB/T 27404; method-specific LOD/LOQ validation is required before routine adoption.
Is raw spectral data accessible for advanced analysis?
Yes—full absorbance spectra (wavelength vs. intensity) can be exported in ASCII format for PCA, PLS regression, or chemometric modeling in external software (e.g., MATLAB, Unscrambler).
What cybersecurity protocols are implemented for network data transfer?
All network communications use AES-256 encryption and certificate-based authentication; Wi-Fi connections enforce WPA2-Enterprise with RADIUS server integration.
How is traceability maintained across instrument deployments?
Each unit carries a unique MAC address and serial-number-bound digital certificate; all exported reports embed cryptographic hash signatures verifiable against Zhiyunda’s public key infrastructure.
