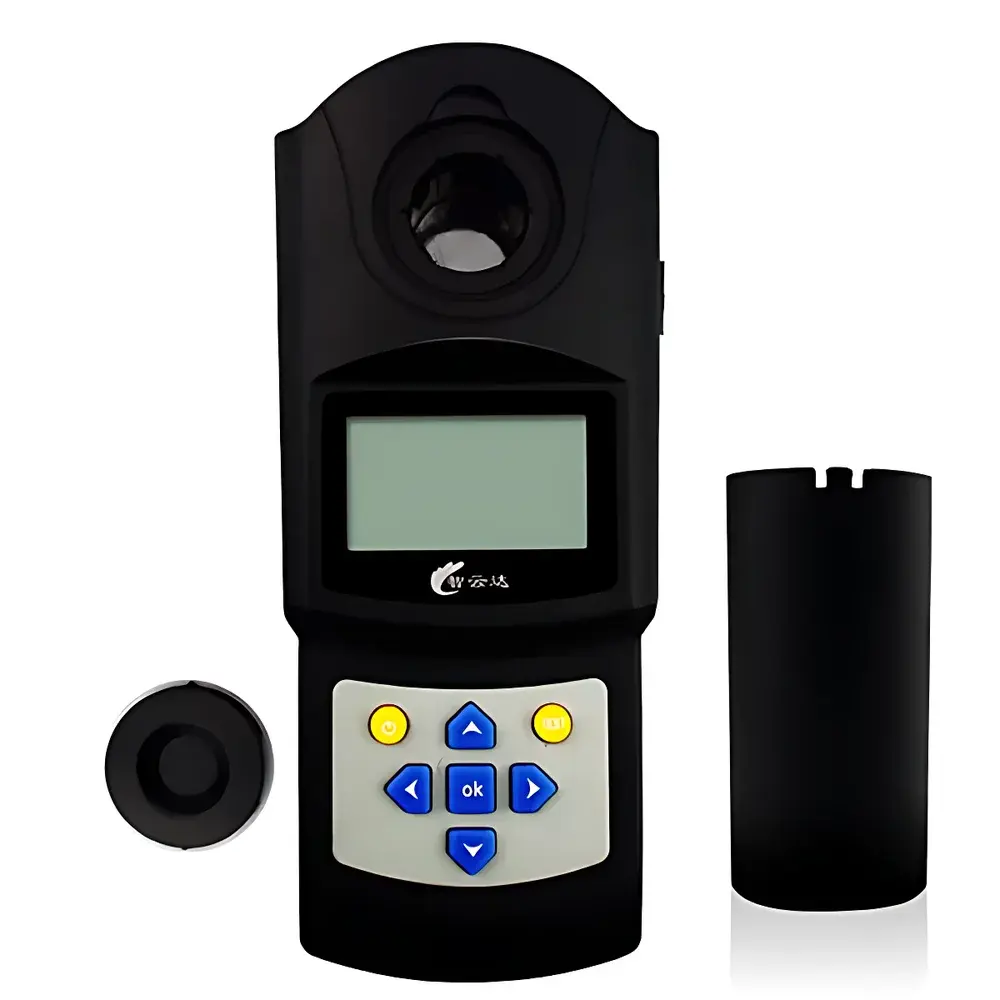

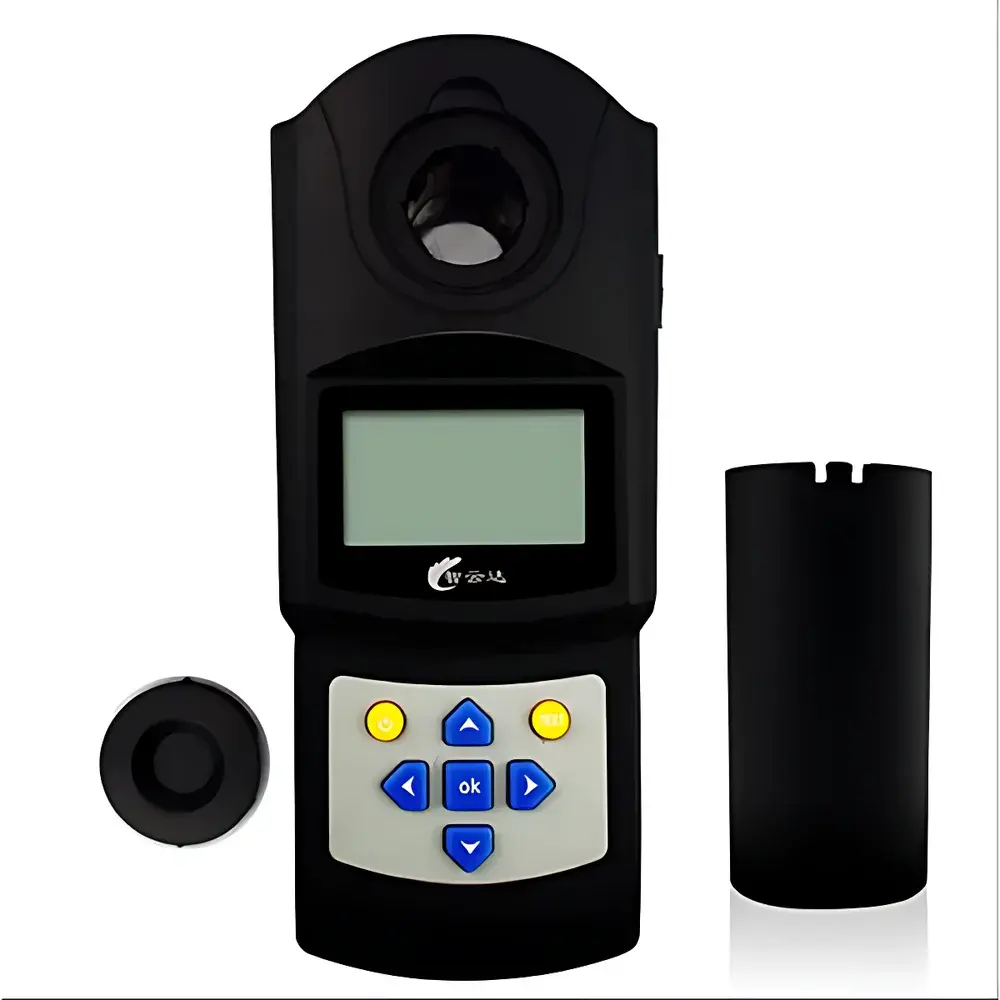

Zhiyunda ZYD-HF Portable Heavy Metals Detector for Water Quality

Overview

The Zhiyunda ZYD-HF Portable Heavy Metals Detector for Water Quality is a field-deployable photometric analyzer engineered for rapid, on-site quantification of priority heavy metals and common water quality parameters in diverse aqueous matrices. It operates on the principle of colorimetric absorption photometry: after reaction with proprietary, pre-formulated reagents, target analytes—including arsenic (As), cadmium (Cd), lead (Pb), hexavalent chromium (Cr(VI)), iron (Fe), manganese (Mn), and others—form stable colored complexes whose absorbance at defined wavelengths is linearly proportional to concentration. The instrument integrates a temperature-stabilized LED light source, precision optical filters, and a calibrated photodiode detector to ensure consistent spectral response across environmental conditions. Designed for operational resilience, the ZYD-HF meets IP65-rated ingress protection standards, enabling reliable performance in humid, dusty, or intermittently wet outdoor environments typical of municipal wastewater outfalls, surface water monitoring stations, industrial effluent discharge points, and rural drinking water distribution networks.

Key Features

• Integrated multi-parameter photometric platform supporting simultaneous method selection for up to 20+ regulated water quality indicators without manual calibration curve preparation.
• Self-calibrating LED optical system with automatic zero-point correction and wavelength verification prior to each measurement cycle, minimizing drift and enhancing long-term repeatability.
• Rugged handheld enclosure with IP65-rated dust and water resistance, reinforced polymer housing, and ergonomic grip optimized for extended field use under variable ambient lighting.
• High-contrast monochrome LCD display with intuitive Chinese-language menu navigation, real-time result visualization, and pass/fail status flagging against user-defined regulatory thresholds (e.g., WHO, GB/T 5750, EPA Method 200.7 equivalents).
• USB 2.0 interface compliant with CDC/NIOSH data logging protocols, enabling direct transfer of timestamped measurement records—including raw absorbance values, reagent lot IDs, operator codes, and environmental metadata—to laboratory information management systems (LIMS).
• Low-power architecture powered by standard AAA alkaline batteries (4×), delivering ≥8 hours of continuous operation per set; battery voltage monitoring prevents erroneous readings due to low-voltage signal attenuation.

Sample Compatibility & Compliance

The ZYD-HF is validated for direct analysis of clarified, filtered, or centrifuged samples from raw surface water, treated drinking water, wastewater effluents, cooling tower water, boiler feedwater, agricultural runoff, and aquaculture systems. Sample volume requirements range from 5–10 mL depending on assay chemistry. All included reagent kits are manufactured under ISO 9001-certified processes and traceably referenced to NIST-traceable CRM solutions. The instrument’s measurement uncertainty profile aligns with ISO/IEC 17025:2017 clause 7.2.2 for field portable analyzers, and its documented performance metrics satisfy QA/QC criteria outlined in China’s HJ/T 399–2007 (for COD), HJ 535–2009 (for ammonia nitrogen), and GB/T 5750.6–2023 (for heavy metals). While not FDA 21 CFR Part 11-compliant as a standalone device, audit trails generated via USB export support GLP-aligned record retention when integrated into validated laboratory workflows.

Software & Data Management

No proprietary software installation is required for basic operation. Measurement data exported via USB appear as CSV files containing columns for date/time stamp, parameter ID, measured concentration (mg/L), detection limit flag, operator ID, and instrument serial number. Optional companion software (available upon request) enables batch report generation compliant with ISO 14001 environmental auditing templates, trend charting across sampling events, and automated comparison against regional regulatory limits (e.g., EU Drinking Water Directive Annex I, US EPA Maximum Contaminant Levels). All data files include embedded checksums to verify integrity during transfer and archival.

Applications

• Regulatory compliance screening at municipal water treatment plants and distributed groundwater wells.
• Rapid incident response for suspected heavy metal contamination following industrial spills or mining runoff events.
• Process control monitoring in electroplating, metal finishing, and semiconductor manufacturing wastewater streams.
• Educational laboratories requiring robust, low-maintenance instrumentation for undergraduate environmental chemistry curricula.
• Field-based research in watershed ecology, where spatially dense, time-resolved metal speciation data inform bioavailability modeling.
• Third-party certification services conducting on-site verification for ISO 22000 or BRCGS water safety plans.

FAQ

What reagents are required for Cr(VI) detection, and how are they stored?
Pre-packaged, lyophilized Cr(VI) reagent vials (diphenylcarbazide-based) are supplied in desiccated aluminum pouches with 18-month shelf life at room temperature. No refrigeration is required.
Can the ZYD-HF measure total vs. dissolved metals without digestion?
No — the instrument quantifies only filterable (dissolved-phase) species as defined by 0.45 µm membrane filtration per ISO 5667-3. Total metal determination requires separate acid digestion per EPA Method 200.2 or GB/T 5750.6–2023 prior to analysis.
Is firmware upgrade supported in the field?
Yes — firmware updates are delivered via USB-loaded .bin files and applied through the device’s maintenance menu, preserving all user-configured method settings and calibration history.
How often must the optical path be cleaned?
Under normal field use, cleaning of the cuvette chamber and lens surface is recommended after every 50 measurements or when visible residue accumulates; isopropyl alcohol and lint-free wipes are sufficient.
Does the instrument support external GPS tagging of sample locations?
No — geolocation metadata must be manually entered or synchronized externally via spreadsheet linkage; no built-in GNSS module is integrated.
