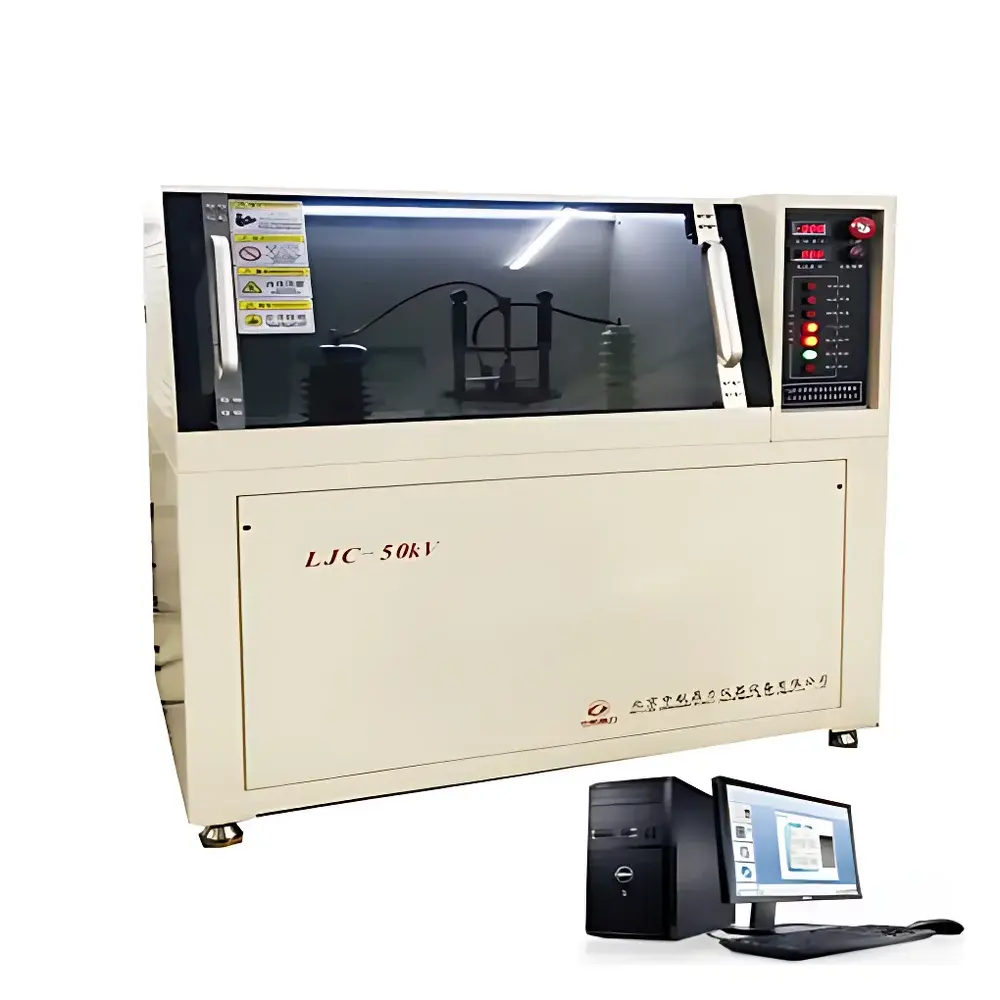

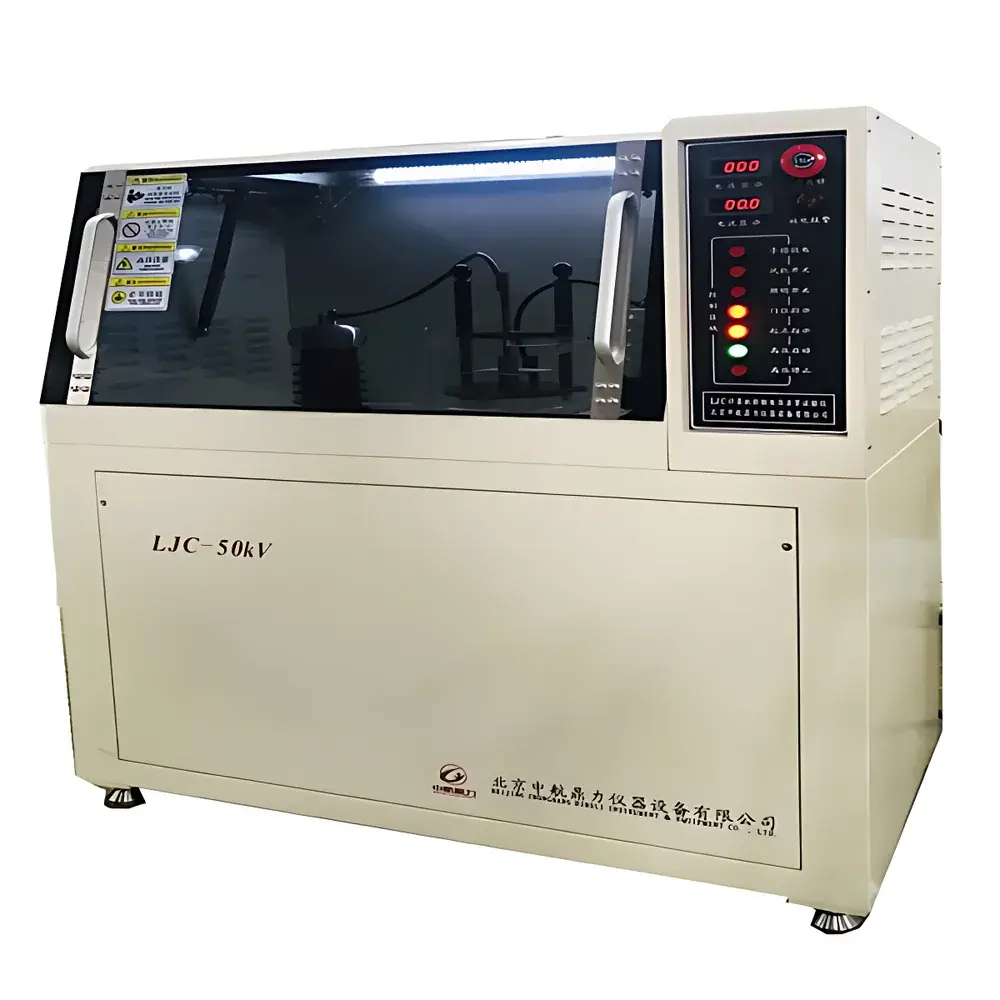

Zhonghang Dingli LJC-50KV Insulating Tape Voltage Breakdown Tester

Overview

The Zhonghang Dingli LJC-50KV Insulating Tape Voltage Breakdown Tester is a precision high-voltage testing system engineered for the quantitative evaluation of dielectric strength and voltage endurance in solid insulating materials under standardized AC or DC stress conditions. Operating on the principle of controlled voltage ramping until electrical breakdown occurs—defined as the irreversible loss of insulating integrity—the instrument delivers reproducible measurements of dielectric breakdown voltage (kV) and time-to-failure (s) per IEC 60243-1 and ASTM D149 methodologies. Designed specifically for quality assurance and R&D laboratories in electrical insulation manufacturing, cable assembly, transformer component production, and polymer formulation, the LJC-50KV supports both short-term dielectric strength assessment and extended withstand testing protocols. Its dual-mode architecture enables seamless switching between AC (50 Hz) and DC output, with programmable ramp profiles to emulate real-world service stresses—including transient overvoltages, sustained operating potentials, and stepwise voltage escalation.

Key Features

• Full-range adjustable output: AC/DC 0–50 kV, continuously variable with six discrete voltage ranges (0–5 kV, 0–10 kV, 0–20 kV, 0–50 kV) for optimized resolution and safety margin control.
• Programmable voltage ramp rate: 10–5000 V/s, user-defined in 1 V/s increments to comply with material-specific test standards (e.g., 500 V/s for thin films per ASTM D149, 100 V/s for bulk elastomers per GB/T 1408.1).
• Triple-test methodology support: Uniform ramp, stepwise gradient, and fixed-voltage hold (with timer up to 9999 s) for comprehensive characterization of time-lag breakdown behavior.
• Integrated safety architecture: Dual redundant grounding path, automatic DC discharge interlock with audible/visual alarm upon chamber opening, and manual discharge wand mounted on main frame for emergency power-loss scenarios.
• Multi-layer protection circuitry: Real-time monitoring and cutoff for overcurrent, undervoltage, earth leakage (>30 mA), internal short-circuit, and residual DC charge accumulation.

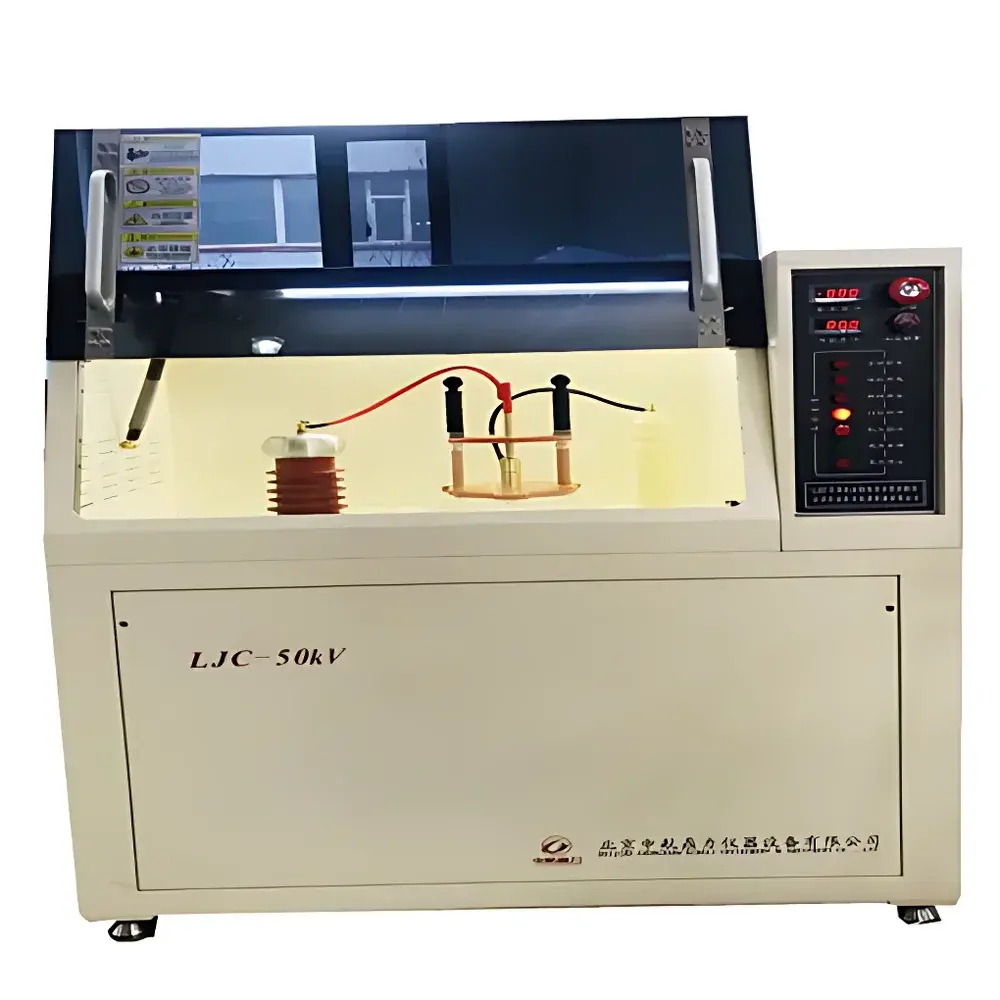

• Transparent acrylic safety enclosure (white optical-grade PMMA) with interlocked door switch, meeting Class II enclosure requirements per IEC 61010-1 for laboratory high-voltage equipment.

Sample Compatibility & Compliance

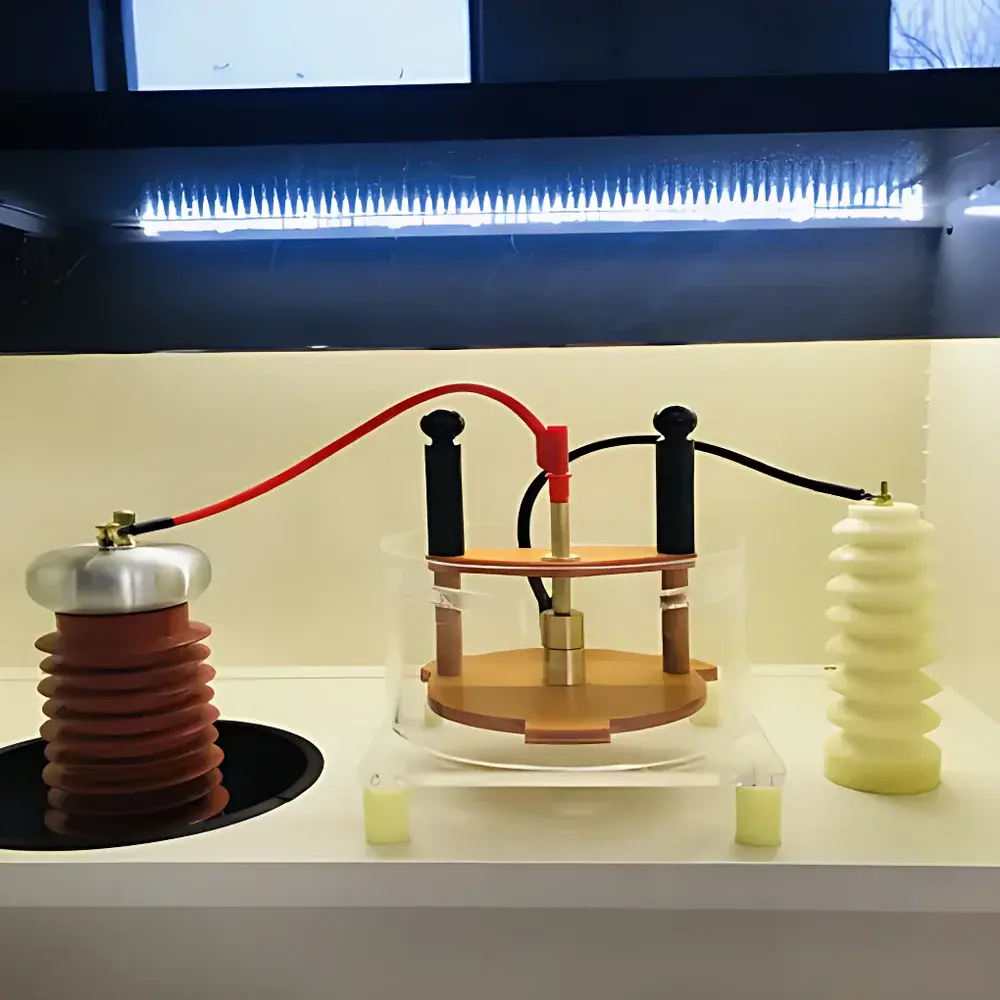

The LJC-50KV accommodates a broad spectrum of planar and sheet-type insulating specimens—including pressure-sensitive adhesive tapes (PVC, rubber, silicone-based), polymeric films (PET, PI, PP), laminated composites, varnish-coated substrates, mica paper, ceramic tiles, and glass-reinforced epoxy boards. Standard electrode configurations include two 25 mm diameter brass disc electrodes for ASTM D149-compliant parallel-plate geometry, and one 75 mm diameter electrode for larger-area evaluation per GB/T 1408.1 Annex A. Optional custom electrodes (e.g., spherical, needle-plane, rod-plane) are available upon request to support partial discharge onset studies or non-uniform field investigations. The system fully conforms to national and international regulatory frameworks governing electrical safety testing: GB/T 1408.1–2006 (equivalent to IEC 60243-1), GB/T 1695–2005 (rubber dielectric strength), GB/T 3333–1999 (cable paper), HG/T 3330–2003 (insulating varnish films), GB 12656–1990 (capacitor paper), and ASTM D149–2022 (dielectric breakdown voltage of solid electrical insulating materials at commercial power frequencies). All test procedures support audit-ready documentation aligned with GLP and ISO/IEC 17025 laboratory accreditation requirements.

Software & Data Management

Control and data acquisition are managed via a dedicated Windows-based application running on an embedded industrial PC (included). The software provides real-time dynamic plotting of voltage vs. time and current vs. time waveforms during test execution, with multi-curve overlay capability for comparative analysis across batches or formulations. Test parameters—including voltage range, ramp rate, test mode, dwell time, and pass/fail thresholds—are stored in editable XML templates. All raw acquisition data (voltage, current, time stamps, ambient temperature/humidity if interfaced) are logged at ≥1 kHz sampling rate and saved in binary + CSV format. Built-in report generation supports customizable templates compliant with internal QA formats or external regulatory submissions (e.g., FDA 21 CFR Part 11–compliant electronic signatures and audit trails available via optional validation package). Export functions include direct Excel (.xlsx) output, PDF report generation with embedded graphs and metadata, and batch export of historical datasets for statistical process control (SPC) integration.

Applications

• Quality control of pressure-sensitive insulating tapes used in wire harnessing, motor winding, and transformer coil wrapping.
• Evaluation of dielectric reliability in flexible printed circuit (FPC) coverlays and solder mask materials.
• Comparative screening of new polymer blends, nanocomposite fillers, or crosslinking agents for enhanced breakdown resistance.
• Validation of curing processes in enamel-coated magnet wires and stator bar insulation systems.
• Accelerated aging studies combining thermal stress (via optional external environmental chamber integration) and electrical stress per IEC 60216 procedures.
• Support for failure analysis workflows in root cause investigation of insulation-related field failures.

FAQ

What safety certifications does the LJC-50KV carry?
The instrument complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and incorporates design elements aligned with UL 61010-1 and GB 4793.1–2007. It is not CE-marked for EU market placement without local Notified Body assessment and risk file supplementation.

Can the system be integrated with a temperature-controlled chamber?
Yes—the LJC-50KV features a dedicated 220 VAC/10 A output socket on the rear panel to power externally connected environmental chambers (e.g., -40 °C to +200 °C models). Temperature feedback signals may be logged alongside electrical data via optional analog input module.

Is ASTM D149 compliance verified through third-party calibration?
Calibration certificates traceable to NIM (National Institute of Metrology, China) are provided with each unit. Full metrological verification against ASTM D149 reference procedures is performed during factory acceptance testing (FAT), with documented uncertainty budgets available upon request.

How is data integrity ensured during long-duration withstand tests?
The system employs non-volatile memory buffering and periodic auto-save intervals (<1 s) to prevent data loss during unexpected power interruption. All test sessions generate immutable hash-verified log files supporting forensic reconstruction.

What maintenance is required for long-term operational reliability?
Annual verification of high-voltage transformer insulation resistance (>1000 MΩ @ 5 kV DC), electrode surface finish inspection, and oil bath dielectric fluid replacement (if used) per manufacturer’s schedule. No routine recalibration is needed unless physical damage or performance deviation is observed.
