Ziath DP5 Cube Rack Reader

Overview

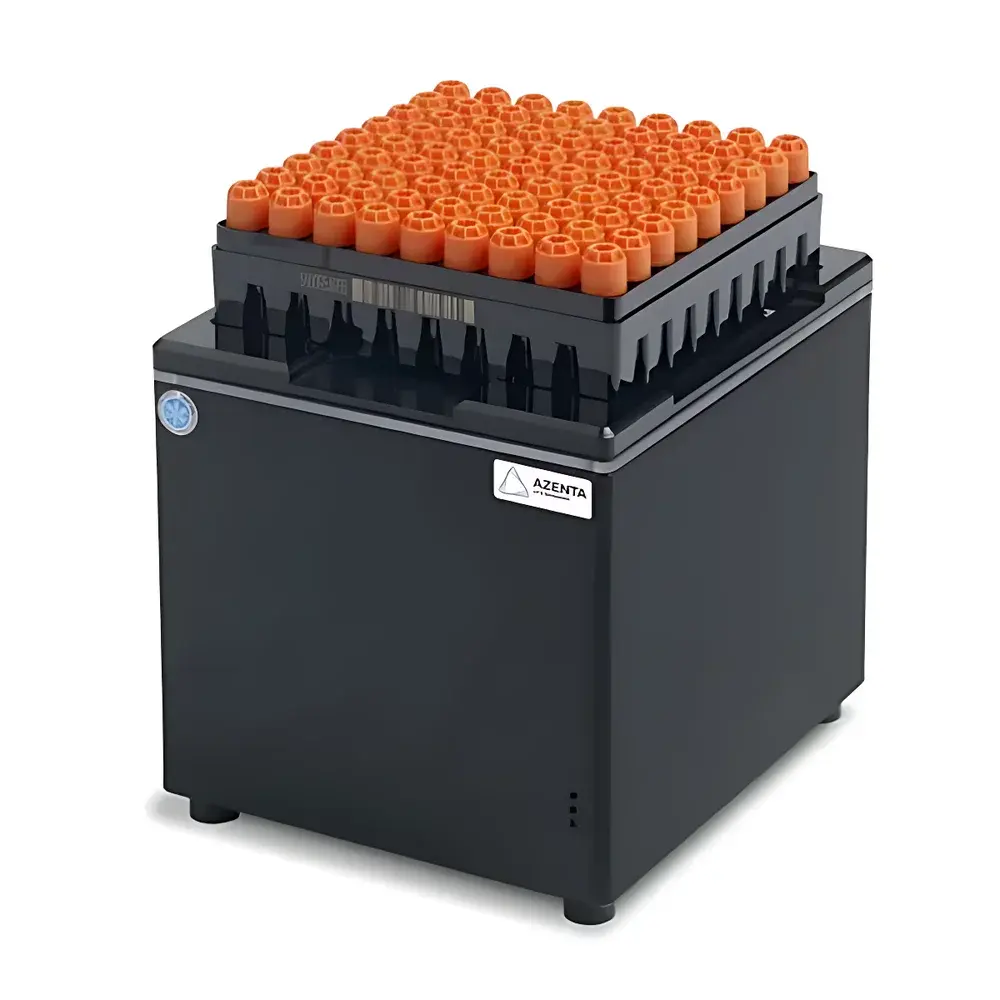

The Ziath DP5 Cube Rack Reader is a compact, high-reliability 2D data matrix scanning system engineered specifically for life science laboratories requiring rapid, accurate identification of sample tubes housed in standardized SBS-format racks. Unlike general-purpose barcode scanners, the DP5 employs a purpose-built optical architecture and proprietary decoding algorithms optimized for the geometric constraints and surface variability of cylindrical cryotubes—particularly those bearing etched or printed 2D Data Matrix codes on curved or frosted surfaces. Its core measurement principle relies on high-resolution monochrome imaging combined with adaptive contrast enhancement and tube-localized pattern recognition, enabling robust decoding even under suboptimal lighting, low-contrast labeling, or partial occlusion. The device operates as a standalone desktop unit or integrates seamlessly into automated liquid handling workflows via TTL/RS-232 or Ethernet interfaces. With a footprint under 150 mm × 150 mm, it is certified for deployment inside cold rooms (−20 °C to +25 °C ambient), biosafety cabinets, and robotic deck spaces without thermal interference.

Key Features

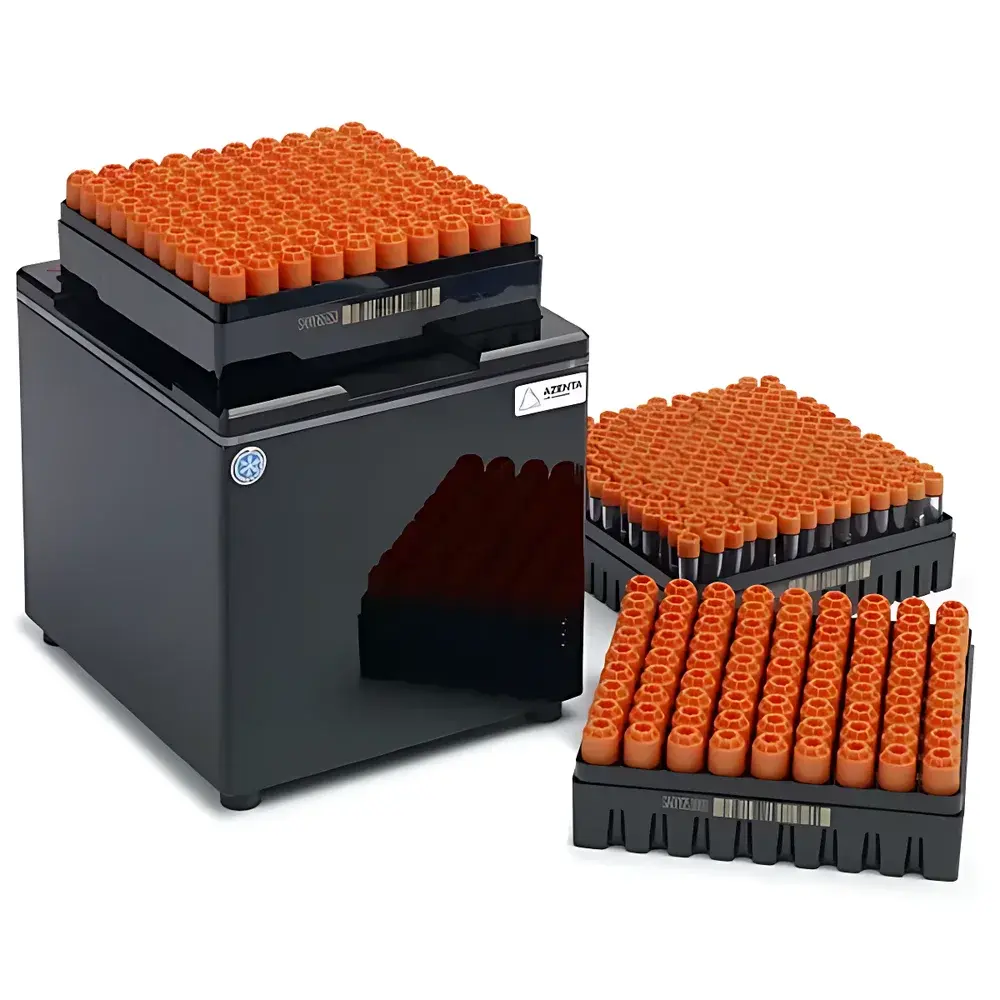

• Sub-2-second full-rack decoding for all SBS-compliant formats—including 96-well, 384-well, and acoustic tube racks (e.g., AcoustiX)

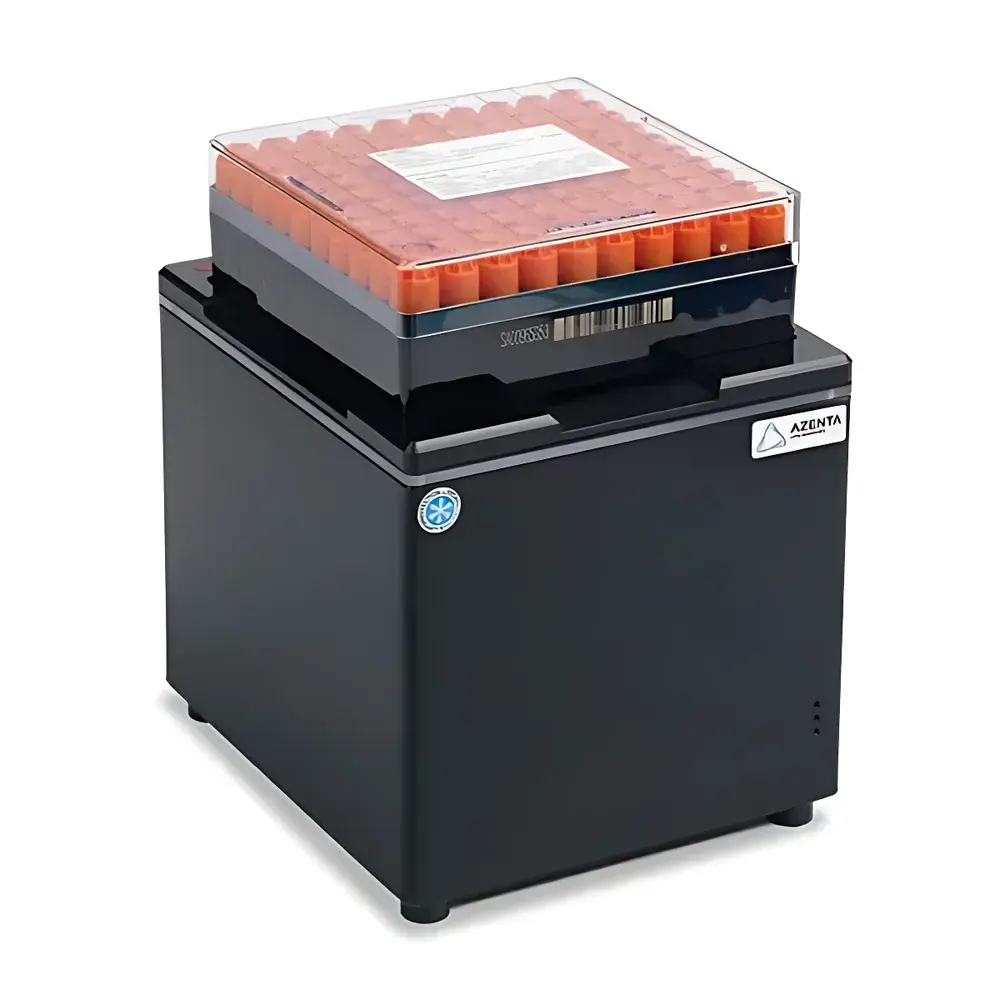

• Patented passive Cryoprotection™ coating on the optical window eliminates condensation when scanning racks directly retrieved from −80 °C freezers or liquid nitrogen dewars—no heaters, blowers, or thermal cycling required
• DP5 Reader Software provides real-time visual feedback: green highlights for successfully decoded tubes, red for damaged/unreadable codes, and gray for missing tubes
• Click-to-inspect functionality allows operators to select any tube position and view its raw scan image, decoded content, spatial coordinates, and confidence score
• Minimal cabling architecture: single USB-C or Ethernet connection for power, data, and control—no external power supply or auxiliary modules needed
• Rugged aluminum chassis rated IP20; designed for continuous operation in ISO Class 5–8 cleanroom-adjacent environments

Sample Compatibility & Compliance

The DP5 reader supports all commercially available SBS-standard storage racks conforming to ANSI/SLAS standards (ANSI/SLAS 4-2004, ANSI/SLAS 1-2004). It reliably decodes Data Matrix symbols printed via laser etching, thermal transfer, or inkjet on polypropylene, polyethylene, and glass cryotubes—even after repeated freeze-thaw cycles or ethanol wipe disinfection. Validation documentation includes traceable performance testing across temperature gradients (−80 °C to +37 °C rack surface), humidity levels (10–80% RH), and label aging (up to 24 months). The system meets essential requirements for GLP and GMP-aligned biobanking and clinical trial sample management, including deterministic timestamping of every scan event and immutable log export in CSV/JSON format. While not FDA 21 CFR Part 11–certified out-of-the-box, the DP5 Reader Software supports configurable user authentication, electronic signatures, and audit trail generation compatible with validated LIMS integrations.

Software & Data Management

The DP5 Reader Software is developed in-house by Ziath and distributed exclusively with the hardware. It features a lightweight Windows-native interface with no runtime dependencies or cloud telemetry. All decoding occurs locally—no data leaves the instrument or host PC. The software implements a tube-centric decoding engine trained on >10⁶ real-world cryotube images, distinguishing it from generic OCR libraries optimized for flat retail barcodes. Scan logs include rack ID, timestamp (ISO 8601), tube position (row/column), decoded payload (e.g., UUID, LIMS ID), decoding confidence index (0–100%), and environmental metadata (if connected to optional temperature/humidity sensor). Export options support direct integration with major LIMS platforms (e.g., LabVantage, STARLIMS, Thermo Biobank) via configurable RESTful API endpoints or scheduled file drops.

Applications

• High-throughput biobank inventory reconciliation during receipt, aliquoting, and distribution
• Automated QC checkpoint in cell therapy manufacturing workflows (e.g., pre-fill, post-thaw, release testing)
• Integration with Hamilton, Tecan, and Beckman Coulter liquid handlers for closed-loop tube tracking
• Supporting ISO 20387-accredited biobanking operations through demonstrable chain-of-custody logging
• Accelerating NGS library preparation by validating tube identity prior to pooling or indexing steps
• Enabling error-proof sample handover between core facilities and satellite labs via portable rack-level verification

FAQ

Does the DP5 require calibration or routine maintenance?
No. The optical path is factory-aligned and sealed; no user-serviceable optics or recalibration procedures are specified. Routine cleaning of the coated window with isopropyl alcohol and lint-free wipes is recommended every 2–4 weeks in high-use environments.
Can the DP5 read 1D barcodes or QR codes?
No. It is exclusively optimized for ISO/IEC 16022-compliant 2D Data Matrix symbols applied to cylindrical tube surfaces. 1D symbologies (e.g., Code 128, Code 39) and QR codes are not supported.
Is the Cryoprotection™ coating consumable or replaceable?
No. The coating is permanently bonded to the optical substrate during manufacturing and does not degrade under normal use. Accelerated lifetime testing confirms >5 years of functional integrity under continuous cryo-cycle exposure.
What network protocols does the DP5 support for system integration?
Native support for TCP/IP (Ethernet), USB CDC ACM (virtual COM port), and TTL-level GPIO triggers. Modbus TCP and OPC UA adapters are available as optional firmware modules for industrial automation integration.
How is scan data secured during transmission to a LIMS?
All communication channels support TLS 1.2 encryption when configured with certificate-based authentication. Local logs are stored in write-once mode with SHA-256 hash integrity verification per record batch.
