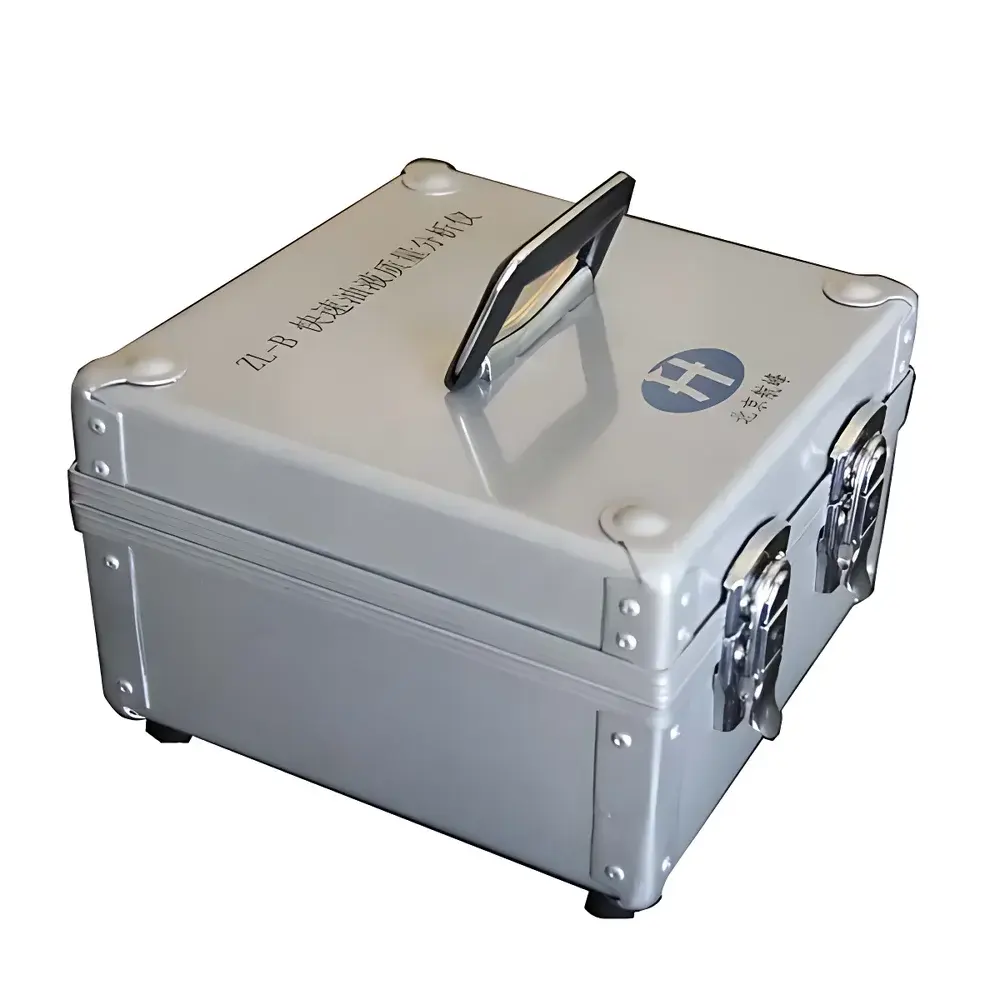

ZL-B Oil Quality Rapid Analyzer by Beijing Hangfeng

Overview

The ZL-B Oil Quality Rapid Analyzer is a field-deployable, dielectric property–based instrument engineered for real-time assessment of in-service lubricating oil condition. It operates on the principle that degradation products—including oxidation byproducts, soot, sludge, free water, and metallic wear debris—alter the bulk dielectric constant of the oil matrix. By measuring this composite permittivity shift relative to a reference baseline, the analyzer delivers a quantitative, multi-parameter health index without requiring solvent extraction, chromatography, or laboratory-grade sample preparation. Designed specifically for preventive maintenance programs in industrial and mobile equipment environments, the ZL-B supports rapid triage decisions at the point of use—enabling technicians to distinguish between oils requiring immediate replacement, those suitable for extended service, and those still within acceptable operational limits.

Key Features

• Multi-parameter dielectric sensing architecture calibrated to detect cumulative contamination effects—including polar oxidation compounds, emulsified and free water, ferrous/non-ferrous metallic particles exceeding 65 µm, and hydrocarbon dilution from fuel ingress.
• Automated three-tier classification output (“Poor”, “Usable”, “Good”) derived from algorithmic fusion of raw sensor signals and empirically validated thresholds aligned with OEM lubricant life guidelines.
• Onboard self-diagnostic routines continuously verify sensor integrity, electrode contact stability, and internal voltage regulation—flagging anomalies prior to measurement execution.
• Real-time zero-point correction compensates for temperature-induced drift and electrode polarization hysteresis, ensuring consistent baseline stability across ambient conditions ranging from 5 °C to 45 °C.
• Field-ready form factor: lightweight (≤5 kg), compact footprint (225 × 225 × 140 mm), and dual-power operation supporting both mains AC (220 V / 50 Hz) and portable DC (9 V high-energy battery) modes with ≥6 hours runtime.
• Repeatability error maintained at ≤3% under controlled calibration verification per ISO 4406:2017 Annex B methodology, confirming suitability for trend-based condition monitoring rather than absolute quantification.

Sample Compatibility & Compliance

The ZL-B is optimized for mineral-, synthetic-, and semi-synthetic-based lubricants used in diesel/gasoline engines, hydraulic systems, gearboxes, and turbine applications. It accepts undiluted, unfiltered oil samples (minimum volume: 15 mL) directly from sumps, sight glasses, or drain ports. While not intended for certified elemental analysis or viscosity grading, its dielectric response correlates strongly with ASTM D4378 (Standard Practice for In-Service Monitoring of Mineral Turbine Oils), ISO 17359 (Condition monitoring — General guidelines), and SAE J183 (Engine Oil Evaluation Criteria). The device meets CE electromagnetic compatibility (EMC) requirements and conforms to IEC 61000-6-2/6-3 for industrial environment immunity and emissions. Its operational logic supports GLP-aligned recordkeeping when paired with external logging protocols.

Software & Data Management

The analyzer operates autonomously without embedded firmware updates or cloud connectivity. All measurement logic resides in hardened microcontroller firmware; results are displayed locally on a high-contrast LCD interface with timestamped classification output. For enterprise integration, optional RS-232 serial output enables transfer of classification codes, raw dielectric readings, and diagnostic flags to CMMS platforms or custom SCADA interfaces. No proprietary software installation is required. Data export complies with basic audit-trail principles—each test entry includes operator ID (manually entered), sample ID, date/time stamp, and pass/fail status per internal validation check. While not FDA 21 CFR Part 11 compliant out-of-the-box, the system supports manual logbook correlation for GMP-aligned maintenance records.

Applications

• Routine oil screening during scheduled maintenance intervals across heavy-duty truck fleets, mining equipment, and marine propulsion systems.
• Early detection of coolant leakage into engine crankcase oil via anomalous water-content signature elevation.
• Trend analysis of hydraulic fluid aging in wind turbine pitch/yaw systems where particle accumulation and oxidation precede catastrophic valve failure.
• Verification of oil change efficacy after filter replacement or system flushing operations.
• Supporting ISO 4406 particle count tiering by identifying gross contamination events (>65 µm metallic debris) warranting immediate magnetic drain plug inspection.
• Training tool for lubrication technicians to correlate field measurements with laboratory FTIR, RULER, or PQ index reports.

FAQ

Does the ZL-B require calibration with reference oils?
Yes—initial calibration must be performed using two certified reference oils (one fresh, one severely degraded) per the manufacturer’s procedure. Field recalibration is recommended every 100 tests or quarterly, whichever occurs first.
Can it differentiate between water types (free, emulsified, dissolved)?
No—it reports total water-related dielectric contribution as a single parameter. Confirmation of water phase state requires complementary Karl Fischer titration or centrifugation.
Is the device suitable for aviation turbine oils?
It may be used for preliminary screening but is not approved for airworthiness-critical decisions per SAE AS5780 or MIL-PRF-23699 requirements.
What maintenance does the sensor electrode require?
Electrodes should be wiped with lint-free cloth and isopropyl alcohol after each use; no abrasive cleaning or immersion is permitted.
Does it store historical test data internally?
No—the unit retains only the most recent test result and diagnostic status. Long-term trending requires external logging.
