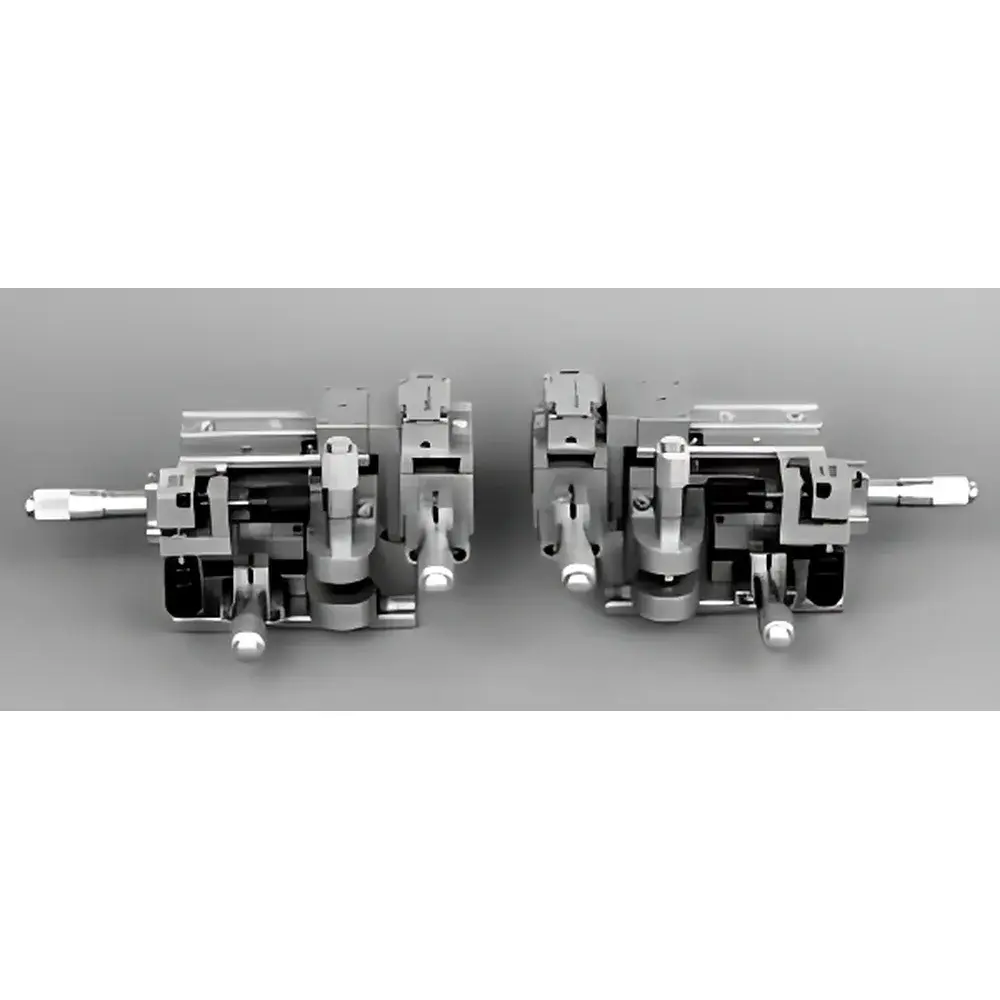

ZOLIX APFP-XYZTθ Six-Axis Precision Fiber Alignment Mount

Overview

The ZOLIX APFP-XYZTθ Six-Axis Precision Fiber Alignment Mount is an engineered solution for high-fidelity spatial and angular positioning of optical fibers in demanding photonic assembly, free-space coupling, and integrated optics alignment workflows. Designed around a monolithic stainless steel architecture—selected for its low coefficient of thermal expansion (CTE ≈ 17.3 × 10⁻⁶ /K) and long-term dimensional stability—the mount eliminates thermally induced positional drift commonly observed in aluminum or polymer-based alternatives. Its six degrees of freedom (3 translational: Tx, Ty, Tz; 3 rotational: θx, θy, θz) are realized through a hybrid kinematic structure combining crossed-roller linear bearings for sub-micron straightness (<0.5 µm/m) and precision-ground differential micrometers with 10 µm resolution per revolution. The mechanical design adheres to the principles of over-constraint-free motion: each axis operates independently without crosstalk, enabling decoupled optimization of beam pointing, lateral offset, and axial gap during single-mode fiber coupling or waveguide-to-fiber pigtailing.

Key Features

• Monolithic stainless steel construction ensures minimal thermal drift (<100 µrad angular deviation over 24 h at ambient fluctuation ±2°C), critical for overnight alignment stability in metrology-grade labs.
• Crossed-roller linear guide pairs on X/Y/Z axes deliver repeatable linear travel (Tx/Ty: 12 mm, Tz: 6 mm) with straightness better than 0.8 µm over full stroke—verified via laser interferometry per ISO 230-2.
• Orthogonal angular adjustment stages utilize preloaded ball-screw actuators with backlash compensation, achieving angular resolution of 0.002° (±7° pitch, ±5° yaw/roll) and repeatability within ±0.005°.
• Ergonomic right-hand configuration features knurled control knobs with tactile indexing and engraved scale rings (0.01° and 0.01 mm graduations), optimized for glove-compatible operation in cleanroom environments (ISO Class 5 compliant).
• Integrated SM1 (1.035″-40) and M6 threading enables direct mounting to standard optical tables, breadboards, and translation stages without adapter plates.
• Compatible with the APFP-FH bare-fiber clamp—a low-stress, kinematic v-groove holder rated for 80–250 µm cladding diameters and validated for <0.1 dB insertion loss variation during repeated loading cycles (per Telcordia GR-1209-CORE).

Sample Compatibility & Compliance

The APFP-XYZTθ is designed for use with single-mode (SMF-28, HI1060), polarization-maintaining (PANDA, Bowtie), and multimode fibers (50/125 µm, 62.5/125 µm). Its low-clamping-force APFP-FH interface meets IEC 61300-2-4 requirements for fiber endface preservation during alignment. The mount complies with mechanical safety limits defined in ISO 10110-7 for optical component handling and satisfies static load rating requirements (≥10 N axial, ≥5 N lateral) per ANSI/OPI 1.0-2019. No electrical components or software dependencies render it inherently compatible with electromagnetic-sensitive environments (e.g., MRI-adjacent photonics labs) and vacuum-compatible up to 10⁻⁵ mbar when properly passivated.

Software & Data Management

As a purely manual, non-motorized alignment platform, the APFP-XYZTθ requires no firmware, drivers, or proprietary software. All positional settings are recorded via engraved mechanical scales and may be logged manually or integrated into lab notebooks compliant with GLP (Good Laboratory Practice) and 21 CFR Part 11 audit-trail frameworks when paired with digital documentation systems (e.g., LabArchives, Benchling). Calibration certificates—including traceable verification of angular linearity and translational orthogonality—are available upon request and conform to ISO/IEC 17025:2017 requirements through ZOLIX’s accredited calibration laboratory.

Applications

• Free-space coupling between laser diodes and single-mode fibers in telecom transceiver module assembly.
• Precision alignment of fiber arrays to silicon photonics chips (e.g., grating couplers, edge couplers) under microscope-assisted visual feedback.
• Stabilized optical path length tuning in Michelson or Mach–Zehnder interferometers requiring sub-wavelength phase control.
• Active alignment of fiber collimators and lensed fibers where simultaneous control of beam waist position and divergence angle is required.
• Research-grade quantum optics setups involving polarization-maintaining fiber splicing and Faraday isolator integration.

FAQ

Is the APFP-XYZTθ vacuum-compatible?
Yes—when manufactured with electropolished stainless steel surfaces and assembled using vacuum-rated lubricants (e.g., Braycote 601 EF), the mount achieves outgassing rates below 1.0 × 10⁻¹⁰ Torr·L/s·cm² per ASTM E595, suitable for UHV optical benches.
Can I retrofit motorized actuators to this mount?
No—the mechanical design does not accommodate OEM motorization; ZOLIX offers the APFP-M series for automated six-axis applications.
What is the maximum fiber diameter supported by the APFP-FH clamp?
The APFP-FH accommodates bare fibers with outer diameters from 80 µm to 250 µm, including acrylate-, polyimide-, and metal-coated variants.
Does ZOLIX provide calibration services for this mount?
Yes—NIST-traceable calibration reports (angular linearity, translational orthogonality, thermal drift) are available as optional add-ons with lead time of 10 business days.
Is there a version with metric fine-thread micrometers?
All standard APFP-XYZTθ units ship with M6 × 0.5 mm fine-pitch micrometers; imperial-thread variants (e.g., 80 TPI) are available under custom order codes.
