ZOLIX Custom-Built Modular Vibration Isolation Optical Table
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (PRC) |
| Model | Custom-Built Modular |
| Price Range | USD $1,400 – $4,300 |
Overview

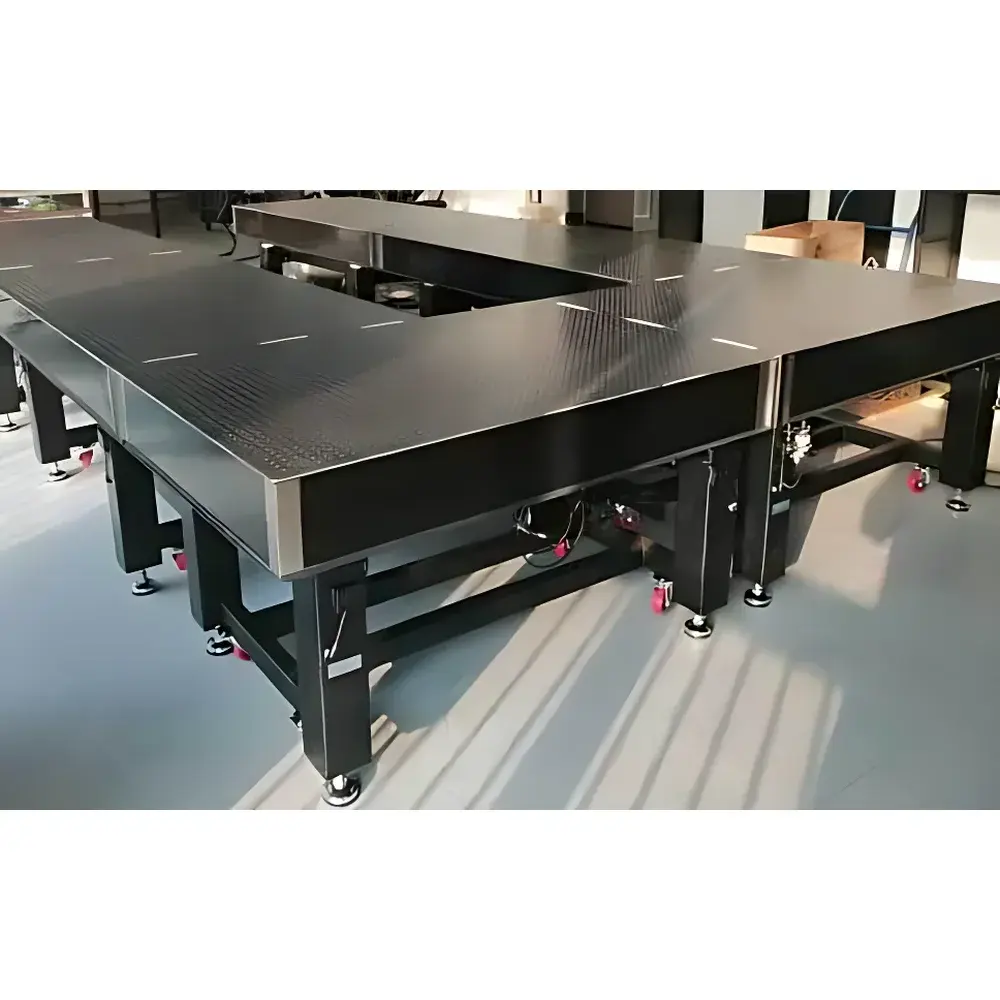

The ZOLIX Custom-Built Modular Vibration Isolation Optical Table is an engineered solution for laboratories and research facilities requiring large-format, non-standard optical work surfaces with sub-millimeter planarity and high dynamic stiffness. Unlike monolithic optical tables—whose dimensions are constrained by manufacturing, logistics, and facility access—this modular system leverages precision mechanical interfacing to assemble multiple standard optical table modules into unified, functionally continuous platforms. The underlying vibration isolation principle relies on a rigid, damped steel honeycomb core sandwiched between thick top and bottom plates, combined with pneumatic or passive isolators (user-selectable), to attenuate broadband ground-borne vibrations—particularly critical in interferometry, ultrafast laser alignment, quantum optics, and nanoscale metrology applications where sub-wavelength stability is mandatory.
Key Features
- Modular architecture enabling seamless integration of 2–8 standard optical table segments into linear (“I”-shaped), angular (“L”-shaped), or perimeter (“U”-shaped) configurations—each up to 6 m in total length or 4 m in width.
- Dual-interface mechanical coupling: Two 25 mm-thick structural steel flanges—welded to the top and bottom plates of adjacent modules—engage via matched M12 threaded holes and precision-ground dowel pins (±1 µm positional tolerance) to ensure repeatable, kinematic alignment during assembly and disassembly.
- Post-assembly surface continuity: Joint flatness maintained at ≤0.5 mm over the entire seam length, verified per ISO 10360-2 using calibrated granite reference blocks and optical knife-edge gauges—meeting specification requirements for Class I optical benches per ANSI/OPI-1.0.
- Structural integrity: Bolt-tightened joints transfer shear and bending loads across modules without measurable deflection under static loading up to 150 kg/m², preserving modal rigidity comparable to monolithic tables of equivalent footprint.
- Material consistency: All modules fabricated from identical low-thermal-expansion steel alloy (CTE ≈ 11.5 × 10⁻⁶ /°C) with electrophoretic epoxy coating for corrosion resistance and ESD-safe grounding (≤10⁶ Ω surface resistivity).
Sample Compatibility & Compliance
The platform accommodates standard M6 and M8 tapped hole patterns (25 mm grid), compatible with industry-standard optical mounts, translation stages, and breadboard accessories from Thorlabs, Newport, and Standa. It supports vacuum-compatible configurations (upon request) and integrates with active or passive isolation systems meeting ISO 2631-2 human exposure thresholds and IEEE 1100-2005 power quality guidelines for sensitive instrumentation. Design documentation includes full traceability of material certifications (ASTM A576, EN 10131), weld procedure specifications (AWS D1.1), and dimensional inspection reports compliant with ASME Y14.5 geometric tolerancing standards.
Software & Data Management
While inherently hardware-based, the modular design enables digital twin modeling through provided STEP/IGES CAD files (delivered upon order confirmation) for integration into LabVIEW, MATLAB Simulink, or SolidWorks Motion environments. Platform serial numbers are logged in ZOLIX’s ERP system with full revision-controlled assembly records—including torque logs, pin alignment verification data, and flatness certification reports—supporting GLP/GMP audit trails and FDA 21 CFR Part 11-compliant electronic record retention when hosted on validated internal networks.
Applications
- Large-aperture collimator testing rigs requiring >3 m uninterrupted optical paths
- Ground-based optical simulation of deep-space communication terminals (e.g., lunar relay receiver arrays)
- Multi-axis adaptive optics testbeds integrating wavefront sensors, deformable mirrors, and beam steering subsystems
- Industrial metrology stations for aerospace component inspection using multi-sensor coordinate measuring machines (CMMs)
- Quantum computing lab infrastructure supporting cryogenic dilution refrigerator integration with optical fiber feedthroughs
FAQ
Can the modular joints be disassembled and reassembled multiple times without degradation in flatness or stiffness?
Yes—dowel pin geometry and hardened bolt interfaces are rated for ≥50 assembly/disassembly cycles with no measurable increase in joint play or planarity deviation beyond 0.5 mm.
Is thermal drift across the seam compensated in the design?
The uniform CTE of all structural components and symmetric thermal mass distribution minimize differential expansion; empirical testing shows <0.15 mm relative displacement across a 3 m seam over a 10 °C ambient fluctuation.
Do you provide installation support and on-site flatness validation?
ZOLIX offers optional commissioning services including laser tracker-assisted leveling, interferometric flatness mapping (per ISO 10360-8), and vibration transmissibility verification using triaxial accelerometers and FFT analyzers.
Are custom hole patterns or cutouts available within the modular segments?
Yes—non-standard mounting grids, cable management channels, and instrument-specific apertures can be incorporated during fabrication, subject to structural integrity review and FEA validation.
