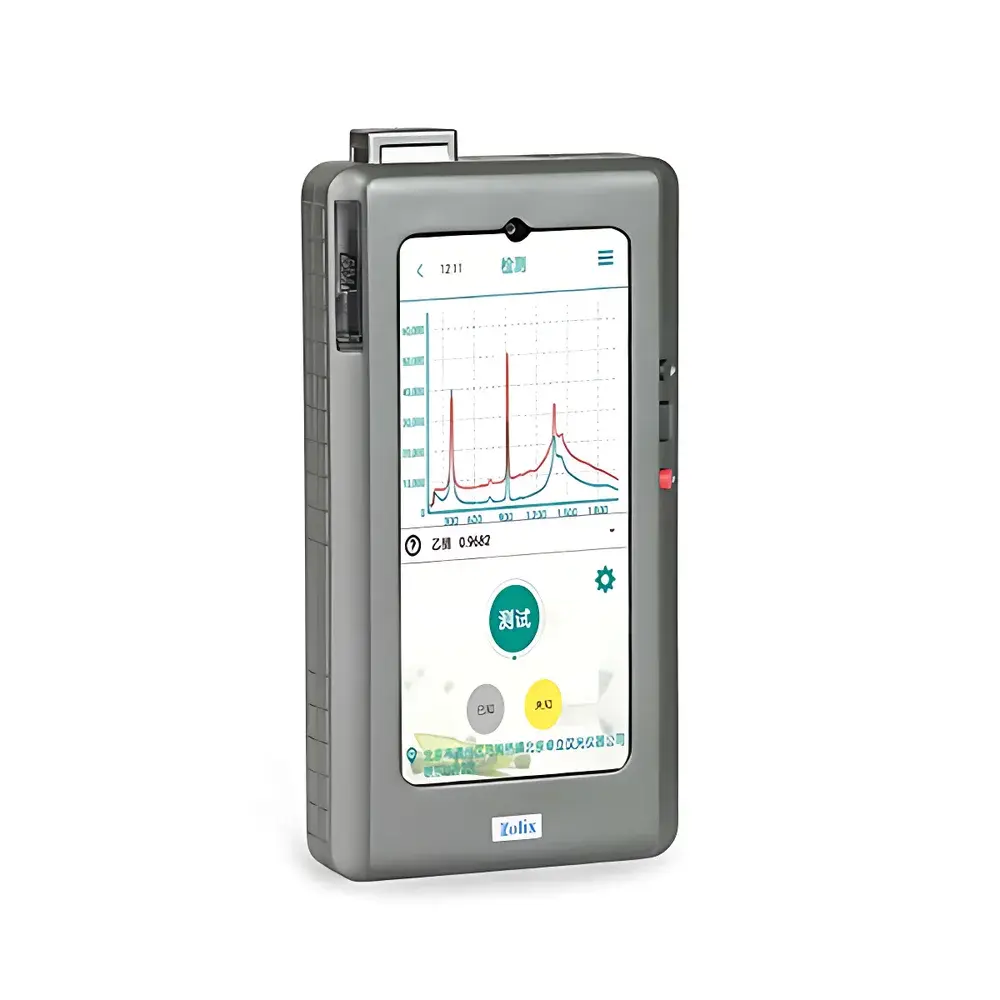

ZOLIX Finder Edge Handheld Raman Spectrometer
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Instrument Type | Portable/Handheld Raman Spectrometer |
| Spectral Range | Configurable per application (e.g., 200–3200 cm⁻¹ typical) |
| Spectral Resolution | <10 cm⁻¹ (FWHM, dependent on grating and detector configuration) |
| Spatial Resolution | Diffraction-limited at excitation wavelength (e.g., ~1–5 µm at 785 nm) |
| Minimum Wavenumber | ≥200 cm⁻¹ (laser rejection optimized) |
| Spectral Reproducibility | <±0.5 cm⁻¹ over 8-hour operation |
| Battery Life | 4–6 hours continuous operation |
| Compliance | Designed for ASTM E1840, ISO/IEC 17025-aligned workflows, FDA 21 CFR Part 11-ready software architecture |
Overview
The ZOLIX Finder Edge Handheld Raman Spectrometer is an engineered field-deployable analytical instrument built upon confocal spatial-coupled optical architecture and optimized 785 nm diode laser excitation. It operates on the principle of inelastic light scattering—Raman spectroscopy—to generate molecular vibrational fingerprints with high specificity and minimal sample preparation. Unlike destructive or time-intensive techniques such as HPLC or GC-MS, the Finder Edge enables non-contact, non-invasive identification of chemical compounds through transparent and semi-transparent barriers—including glass vials, plastic packaging, laminated pouches, and sealed containers—without physical sampling. Its compact form factor (≤1.8 kg), integrated touchscreen interface, and embedded chemometric engine make it suitable for real-time decision support in environments where laboratory access is impractical: customs checkpoints, pharmaceutical manufacturing floors, food processing lines, forensic mobile units, and environmental monitoring sites.
Key Features
- Optimized spatial-coupled optical path delivering high signal-to-noise ratio (SNR) at low laser power (≤500 mW), minimizing thermal degradation risk to sensitive samples including polymers, biological tissues, and pharmaceutical APIs.
- Integrated 785 nm laser source with thermoelectric cooling and automatic power stabilization for spectral consistency across ambient temperature fluctuations (10–40 °C operating range).
- Back-illuminated CCD detector with deep-depletion architecture enabling extended near-infrared response and reduced silicon fluorescence background.
- One-touch acquisition workflow with automated baseline correction, cosmic ray removal, and peak alignment—requiring no prior spectroscopic training.
- Modular firmware architecture supporting over-the-air (OTA) updates for algorithm enhancements, library expansions, and regulatory compliance patches.
- Ruggedized magnesium alloy housing rated IP54 for dust and splash resistance; MIL-STD-810G compliant for shock and vibration durability during transport and field use.
Sample Compatibility & Compliance
The Finder Edge accommodates solid, liquid, gel, and powder samples in native or packaged states. It has demonstrated reliable performance across diverse matrices: pharmaceutical tablets and excipients, agricultural produce surfaces, edible oils, aqueous pesticide solutions, illicit drug mixtures, and explosive precursors. Method validation supports adherence to pharmacopeial standards—including USP , EP 2.2.48, and ChP 0401—for raw material identification in GMP-regulated environments. Software design incorporates audit trail logging, electronic signatures, and role-based user access control—fully aligned with FDA 21 CFR Part 11 requirements for regulated industries. Optional IQ/OQ documentation packages are available for qualification under ISO/IEC 17025 or GLP frameworks.
Software & Data Management
The embedded SpectraView™ OS provides intuitive touchscreen navigation with multilingual UI support (English, Spanish, Mandarin, Arabic). Core functionalities include real-time spectral matching against customizable libraries (user-defined or preloaded with >10,000 reference spectra), batch reporting with PDF export, and CSV-compatible data output for LIMS integration. Advanced options enable principal component analysis (PCA), hierarchical cluster analysis (HCA), and partial least squares discriminant analysis (PLS-DA) for multi-component quantification. Cloud synchronization via secure TLS 1.3 enables centralized database management across distributed instruments—supporting national-scale “Smart Regulatory Platform” deployments for food safety surveillance, narcotics intelligence fusion, and supply chain traceability. All data transactions comply with GDPR and HIPAA-compliant encryption protocols.
Applications
- Pharmaceutical QC: Identity testing of active pharmaceutical ingredients (APIs), excipients, and primary packaging materials per ICH Q5C and EU Annex 8 guidelines; counterfeit detection via spectral deviation scoring.
- Food & Agriculture: Rapid screening for melamine, Sudan dyes, chloramphenicol, clenbuterol, and glyphosate residues in milk, meat, vegetables, and aquaculture products—aligned with Codex Alimentarius and China’s GB standards.
- Law Enforcement & Border Security: On-site identification of controlled substances (e.g., fentanyl analogues, synthetic cannabinoids), explosives (TNT, PETN, RDX), and chemical warfare agent simulants (e.g., DMMP, sarin surrogates).
- Materials Science: Polymorph screening of crystalline APIs, carbon nanotube characterization, graphene layer counting, and battery cathode composition verification.
- Environmental Monitoring: In-field detection of hydrocarbon contaminants in soil/water, microplastic identification in wastewater effluents, and heavy metal chelate profiling using SERS substrates.
FAQ
Does the Finder Edge support Surface-Enhanced Raman Spectroscopy (SERS)?
Yes—via optional SERS probe modules and certified colloidal or solid-phase enhancement substrates compatible with quantitative detection limits down to sub-ppb levels for targeted analytes.
Can the instrument be calibrated in accordance with ISO/IEC 17025?
Yes—ZOLIX provides traceable calibration certificates (NIST-traceable polystyrene and cyclohexane standards) and full metrological documentation for accredited laboratory implementation.
Is remote software update capability available?
Yes—the device supports secure OTA firmware and library updates via Wi-Fi or Ethernet, with version rollback and integrity checksum verification.
What regulatory documentation is provided for GMP environments?
A complete 21 CFR Part 11 compliance package—including system validation templates, URS/SRS documentation, and electronic audit trail reports—is available upon request.
How is spectral library management handled across multiple instruments?
Centralized cloud-based library administration allows synchronized deployment, version control, and permissioned access across fleets of instruments—enabling harmonized enforcement or quality control protocols nationwide.
