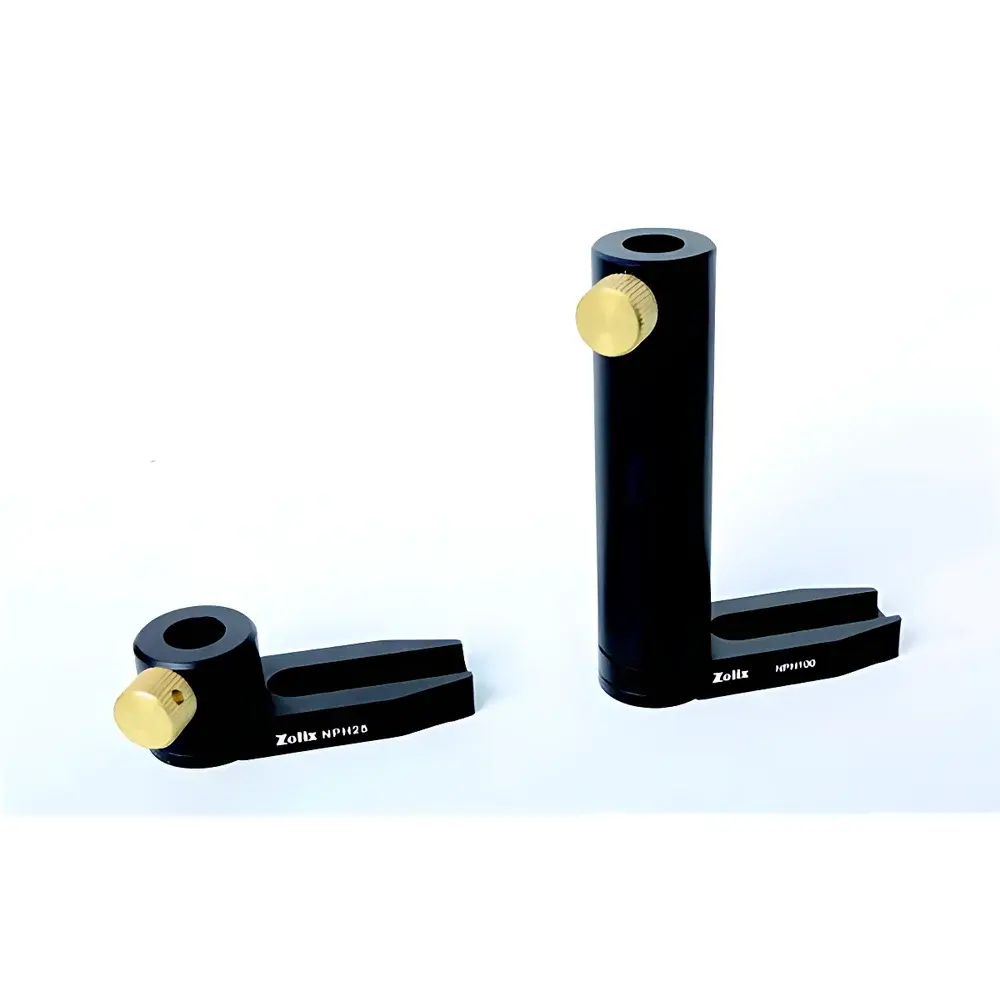

ZOLIX NIPH Series Integrated Inch Post Holder Base

Overview

The ZOLIX NIPH Series Integrated Inch Post Holder Base is a precision-engineered optical mounting solution designed for stability, modularity, and rapid reconfiguration in demanding laboratory and industrial optical alignment environments. Built upon the standardized 12.7 mm (0.5 inch) post diameter convention widely adopted across North American and international optical benches, the NIPH base integrates the vertical support post and base plate into a single monolithic aluminum structure—eliminating interface tolerances, reducing mechanical play, and enhancing long-term alignment retention. Unlike traditional two-piece post-and-base assemblies, this integrated architecture minimizes cumulative angular error and improves torsional rigidity during fine adjustments. The base operates on the fundamental principle of mechanical constraint via axial clamping and rotational indexing, enabling repeatable positioning under static and low-vibration conditions typical of laser cavity alignment, interferometry setups, spectroscopic beam paths, and OEM optomechanical subsystems.

Key Features

• Monolithic Construction: Seamless integration of post and base eliminates stacking interfaces, reducing thermal drift and mechanical hysteresis during repeated adjustments.
• 360° Continuous Rotational Base: Precision-machined aluminum base allows unrestricted azimuthal orientation; calibrated degree markings (optional upon request) support angular reproducibility within ±0.5°.
• Integrated Neodymium Micro-Magnet: Strategically embedded rare-earth magnet provides temporary fixation on steel optical tables or breadboards without adhesive or vacuum—ideal for prototyping and iterative alignment workflows.
• M5 Brass Locking Screw System: Knurled brass screw with hex socket ensures consistent torque application using standard 2 mm L-wrench; optimized thread pitch and material hardness prevent galling and maintain clamping force over >10,000 cycles.
• Standardized 12.7 mm Post Compatibility: Accepts all industry-standard SM1-threaded (1.035″-40) or unthreaded 0.5″ diameter posts, lenses mounts, kinematic platforms, and translation stages.
• Multiple Height Options: Six fixed-height variants (25 mm to 150 mm) enable precise vertical stratification in multi-level optical trains while maintaining centerline co-axiality across stacked components.

Sample Compatibility & Compliance

The NIPH base is compatible with standard optical components conforming to ANSI/OEOSC OP1.002 (Optomechanical Interface Standards) and ISO 10110-7 (optical element mounting). It supports passive and active optical elements including mirrors, beamsplitters, waveplates, fiber collimators, and detector mounts. All aluminum components undergo Type II anodization (hard coat, 15–25 µm thickness) per MIL-A-8625F, ensuring corrosion resistance and non-outgassing performance suitable for cleanroom Class 1000 environments. No RoHS exemptions apply; lead-free brass and REACH-compliant lubricants are used throughout. While not certified for aerospace or medical device use out-of-box, the design adheres to mechanical robustness benchmarks referenced in ASTM F2239 (optomechanical system vibration testing) and supports GLP-aligned documentation packages upon customer request.

Software & Data Management

As a purely mechanical mounting component, the NIPH Series requires no firmware, drivers, or software integration. However, its dimensional consistency and repeatability make it fully compatible with optical design and alignment simulation platforms—including Zemax OpticStudio, CODE V, and FRED—where accurate CAD models (STEP/IGES format available upon request) enable virtual prototyping of full optical trains. For traceability in regulated environments, ZOLIX provides optional calibration certificates (per ISO/IEC 17025) documenting height tolerance (±0.02 mm), base flatness (≤3 µm over 50 mm), and rotational runout (<5 µm TIR), supporting audit readiness under FDA 21 CFR Part 11 when paired with electronic lab notebook (ELN) systems.

Applications

• Laser resonator alignment and cavity stabilization in DPSS and ultrafast oscillator systems
• Beam height adjustment in Fourier-transform infrared (FTIR) spectrometers and Raman probe arms
• Modular optical rail integration for OEM machine vision illumination subsystems
• Education-grade optics labs requiring durable, intuitive, and standards-compliant hardware
• Vibration-sensitive applications such as heterodyne interferometry and atomic physics trap setups where minimal interface compliance is critical

FAQ

Is the NIPH base compatible with metric optical rails?
Yes—while designed for 12.7 mm (0.5″) posts, it mounts directly to standard M6 or M4 tapped holes found on most metric optical tables via optional adapter plates (sold separately).
Can the magnetic base interfere with sensitive instrumentation?
The neodymium magnet’s field strength is localized (50 mm from magnetic storage media or electron beam paths.
What torque value is recommended for the M5 locking screw?
Maximum recommended torque is 0.8 N·m; exceeding this may deform the brass thread or compromise clamping repeatability. A calibrated torque screwdriver is advised for GMP/GLP workflows.
Are CAD models available for integration into system-level simulations?
Yes—native SolidWorks, STEP, and IGES files are provided free of charge upon quotation request, including GD&T annotations per ASME Y14.5-2018.
Does ZOLIX offer custom heights or non-standard diameters?
Custom configurations (e.g., 30 mm, 60 mm, or 25.4 mm post diameter) are available under OEM agreements with minimum order quantities ≥50 units and lead time extension of 6–8 weeks.
