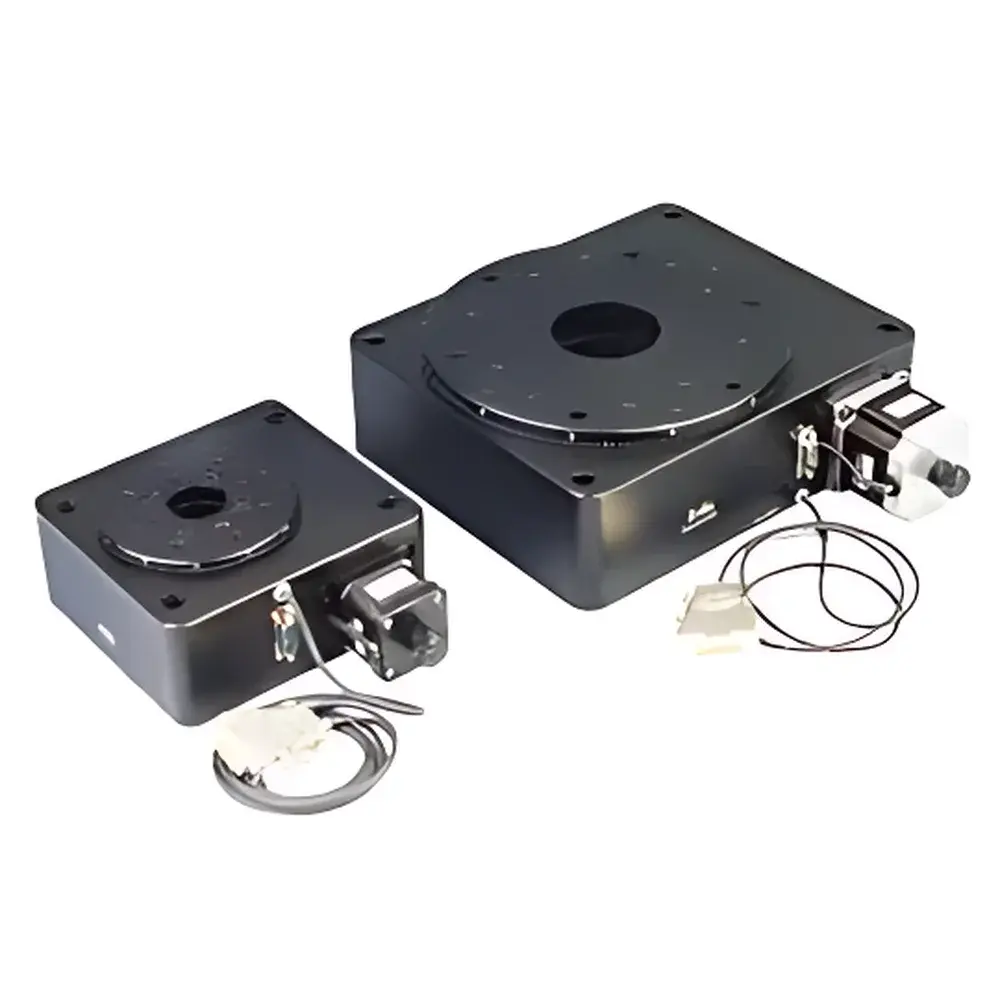

ZOLIX RAuK Series Ultra-High-Precision Motorized Rotary Stage

Overview

The ZOLIX RAuK Series Ultra-High-Precision Motorized Rotary Stage is an engineered solution for applications demanding sub-arcsecond angular positioning accuracy and long-term mechanical stability in optical and metrological environments. Based on the proven RAK platform, the RAuK series integrates a high-stability, imported circular optical encoder directly into the rotation axis—enabling true 360° full-circle closed-loop control without homing or reference marks. This architecture eliminates cumulative error from open-loop stepping and ensures traceable angular positioning across the entire rotation range. The stage employs a precision-ground worm gear train with a 180:1 reduction ratio, minimizing backlash and torque ripple while maximizing positional fidelity. Its structural design centers on an ultra-rigid aluminum alloy base and a monolithic rotation plate, thermally stabilized to mitigate drift during extended operation. The RAuK is not a general-purpose motion stage—it is purpose-built for systems where angular repeatability, minimal runout, and deterministic motion behavior are non-negotiable: satellite tracking mounts, interferometric beam steering assemblies, multi-axis coordinate measuring machines (CMMs), and ultrafast laser pulse shaping platforms requiring precise azimuthal alignment.

Key Features

• True 360° closed-loop feedback via integrated high-resolution circular optical encoder—no index mark dependency, no periodic calibration required
• Closed-loop angular resolution of 1.8 arcseconds (RAuK100) and 1.2 arcseconds (RAuK200), corresponding to ≤0.0005° and ≤0.00033° respectively
• Precision ground worm gear transmission with 10⁶ cycle lifetime
• Imported ultra-high-grade crossed-roller bearing ring ensuring axial and radial runout <15 µm (RAuK100) and <10 µm (RAuK200)
• Bipolar stepper motor drive with microstepping compatibility—supports standard 1.8° step motors (NEMA 17 and NEMA 23 frames)
• Thermally compensated mechanical structure with CTE-matched components to limit thermal drift to <0.5 arcsec/°C over operational range (15–30°C)
• Integrated encoder interface compliant with industry-standard RS-422 differential signaling for noise-immune data transmission

Sample Compatibility & Compliance

The RAuK series is designed for integration into ISO Class 5–7 cleanroom-compatible optical benches and vacuum-ready configurations (optional sealing kit available). Its mechanical interface conforms to standard M6 and M4 tapped mounting patterns per DIN 316, enabling direct attachment to optical posts, kinematic mounts, and multi-axis goniometers. All materials—including housing, bearing races, and encoder scale substrate—are RoHS-compliant and non-outgassing per ASTM E595. The stage meets electromagnetic compatibility requirements per EN 61326-1:2013 for laboratory instrumentation. While not certified for medical or aerospace flight use, its performance envelope aligns with metrology-grade requirements defined in ISO 10360-2 (coordinate measuring machines) and ISO 230-2 (test code for positioning accuracy of NC machine tools). It supports GLP/GMP-aligned audit trails when operated under ZOLIX MC6003P controller firmware v3.2+, which logs encoder position timestamps, motor current profiles, and thermal sensor readings at user-defined intervals.

Software & Data Management

The RAuK stage is fully supported by ZOLIX’s TMC Motion Control Suite—a cross-platform (Windows/Linux/macOS) application programming environment offering native Python, MATLAB, and LabVIEW drivers. Real-time position data is streamed at up to 1 kHz via USB 2.0 or Ethernet (TCP/IP), with timestamped encoder values stored in HDF5 format for post-acquisition trajectory analysis. The MC6003P controller implements dual-loop control: outer position loop (PID-regulated on encoder counts) and inner current loop (adaptive torque compensation). Firmware includes configurable soft limits, programmable homing routines (absolute or relative), and built-in self-diagnostic routines that verify encoder linearity, motor phase continuity, and bearing preload integrity. Data export supports CSV, JSON, and XML schemas compatible with third-party metrology software such as PolyWorks, Q-DAS, and MATLAB Curve Fitting Toolbox.

Applications

• Satellite and deep-space optical tracking systems requiring real-time azimuth-elevation synchronization with <0.001° pointing stability
• Multi-dimensional scanning interferometers used in surface topography mapping and thin-film thickness profiling
• Ultrafast laser processing setups where beam incidence angle must be controlled within ±0.5 arcsec for diffraction-limited ablation
• Calibration of high-accuracy angle encoders and autocollimators per ISO 230-7 Annex B procedures
• Alignment of cryogenic optical components in quantum computing testbeds, where thermal contraction effects must be decoupled from mechanical drift
• Automated polarization state generation in Mueller matrix ellipsometry systems

FAQ

What encoder resolution is physically achievable with the RAuK series, and how is it verified?
The RAuK100 delivers 1.8 arcsecond closed-loop resolution (equivalent to 1/2000th of a degree), validated using a calibrated autocollimator traceable to NIST SRM 2086. RAuK200 achieves 1.2 arcseconds via higher-density encoder scale and optimized interpolation firmware.
Can the RAuK operate under vacuum or in inert gas environments?
Yes—standard units operate at ambient pressure, but vacuum-compatible versions (with stainless-steel hardware, dry-lubricated bearings, and hermetically sealed encoder connectors) are available upon request (specify chamber pressure and outgassing limits).
Is absolute position retained after power cycling?
No—the RAuK does not include battery-backed memory. Absolute referencing requires either a homing routine using the encoder’s index channel or external fiducial detection. However, position loss between cycles is bounded by <1 arcsecond due to mechanical detent stability.
How does thermal drift affect long-duration positioning tasks?
Within 15–30°C ambient range, angular drift remains below 0.5 arcsec/°C. For sub-arcsecond stability over >8-hour runs, active temperature stabilization of the baseplate is recommended.
Does the MC6003P controller support FDA 21 CFR Part 11 compliance?
Yes—when configured with audit trail logging, electronic signatures, and role-based access control, the MC6003P firmware meets core technical requirements for electronic records and signatures in regulated environments.
