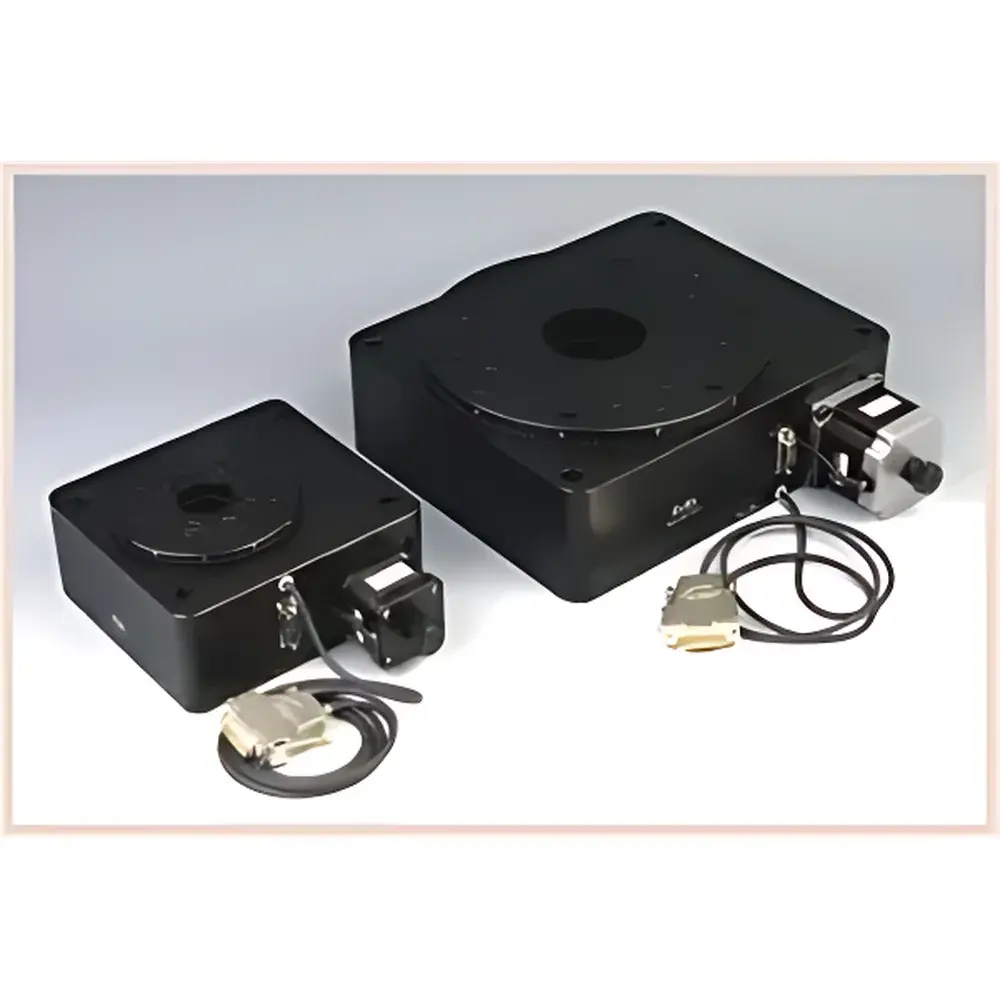

ZOLIX RAuK Series Ultra-Precision Motorized Rotary Stage

Overview

The ZOLIX RAuK Series Ultra-Precision Motorized Rotary Stage is an engineered solution for applications demanding sub-arcsecond angular positioning stability, repeatability, and long-term accuracy retention. Based on the proven RAK platform, the RAuK series integrates a high-stability imported round optical encoder directly into the rotation axis—enabling true 360° full-closed-loop feedback control. Unlike open-loop or hybrid systems relying solely on motor step counting, this architecture eliminates cumulative error from slippage, backlash, or thermal drift in the drive train. The stage operates on a precision ground worm gear mechanism with hardened, wear-resistant alloy surfaces and proprietary surface treatment, ensuring consistent torque transmission and minimal hysteresis over extended operational cycles. Its structural foundation employs imported ultra-high-grade crossed-roller bearing rings, manufactured to P4 geometric tolerance class, which deliver exceptional rigidity and suppress both axial and radial runout under static and dynamic loading conditions—including vertical and inverted mounting configurations.

Key Features

• True full-closed-loop angular control via integrated high-resolution optical encoder (1.8″ for RAuK100; 1.2″ for RAuK200), traceable to NIST-calibrated reference standards
• Optimized worm gear train with hardened, low-friction materials and micro-finished tooth profiles, delivering 10⁶ cycles
• Crossed-roller bearing assembly meeting ISO 10360-2 geometric specification requirements, supporting center loads up to 50 kg without degradation in runout performance
• Dual independent interface design: separate connectors for stepper motor drive signals and encoder quadrature output, enabling flexible integration with third-party controllers (e.g., Newport ESP302, Thorlabs KDC101)
• Integrated mechanical home switch providing deterministic absolute zero-reference position, essential for multi-axis coordinated motion and GLP-compliant calibration workflows
• Rigorous final inspection protocol exceeding GB/T 17421.2–2016 (equivalent to ISO 230-2) for rotary stage testing, including bidirectional repeatability, positioning deviation, and reversal error mapping

Sample Compatibility & Compliance

The RAuK stage is designed for integration into vacuum-compatible, cleanroom-rated, and ESD-safe optical benches and metrology platforms. Its non-outgassing housing materials and sealed bearing configuration support operation in Class 1000 clean environments. Mechanical interfaces conform to standard M6 and M4 tapped patterns per ISO 2768-mK general tolerances, facilitating direct mounting to optical tables, kinematic bases, and multi-axis goniometers. The stage meets electromagnetic compatibility requirements per EN 61326-1:2013 for laboratory equipment and is suitable for use in environments governed by ISO/IEC 17025 accreditation criteria. While not certified to FDA 21 CFR Part 11, its deterministic homing and closed-loop traceability support audit-ready documentation when paired with compliant data acquisition software.

Software & Data Management

The RAuK series is natively supported by the ZOLIX MC600 motion controller firmware, offering real-time position monitoring, programmable acceleration profiles, and S-curve velocity shaping. ASCII-based command sets (e.g., “POS?”, “MOVE 120.345”) enable seamless integration with LabVIEW, MATLAB, Python (via PySerial), and C++ applications. Encoder data streams at 1 MHz update rate, permitting high-frequency jitter analysis and servo loop tuning. All position logs include timestamped UTC metadata and optional checksum validation, satisfying basic ALCOA+ data integrity principles for QC/QA documentation. Optional firmware upgrades support trajectory interpolation for synchronized multi-axis scanning routines used in hyperspectral imaging and beam steering calibration.

Applications

• Satellite tracking and ground-based optical communication terminals requiring arcsecond-level pointing stability over diurnal thermal cycles
• Ultra-precision laser scribing and ablation systems where rotational error directly translates to feature placement uncertainty in semiconductor mask alignment
• Multi-axis coordinate measuring machines (CMMs) performing ISO 10360-8 compliant angular artifact verification
• Interferometric alignment of segmented mirror arrays in astronomical instrumentation, including tip/tilt/piston correction loops
• Automated polarization characterization setups using rotating waveplates or quarter-wave retarders with <0.01° angular resolution requirements
• Calibration of inertial measurement units (IMUs) and fiber-optic gyroscopes against primary angle standards

FAQ

What encoder resolution is achieved in closed-loop mode?
RAuK100 delivers 1.8 arcseconds; RAuK200 achieves 1.2 arcseconds—both verified per ISO 230-2 Annex D using laser interferometric angular measurement.
Can the stage operate in vacuum or high-humidity environments?
Standard units are rated for ambient lab use (20–80% RH, non-condensing); vacuum-compatible variants with stainless steel hardware and dry-lubricated bearings are available upon request.
Is third-party controller compatibility documented?
Yes—pinout schematics, timing diagrams, and Modbus RTU register maps are provided in the RAuK Integration Manual (Rev. 3.2, 2024).
How is zero-reference repeatability validated?
Each unit undergoes 50 consecutive homing cycles at 25°C; maximum deviation across all trials is reported in the Certificate of Conformance shipped with the product.
Does the stage support continuous rotation beyond 360°?
Yes—the encoder provides absolute position over unlimited revolutions; no wrap-around or overflow handling is required in host software.
