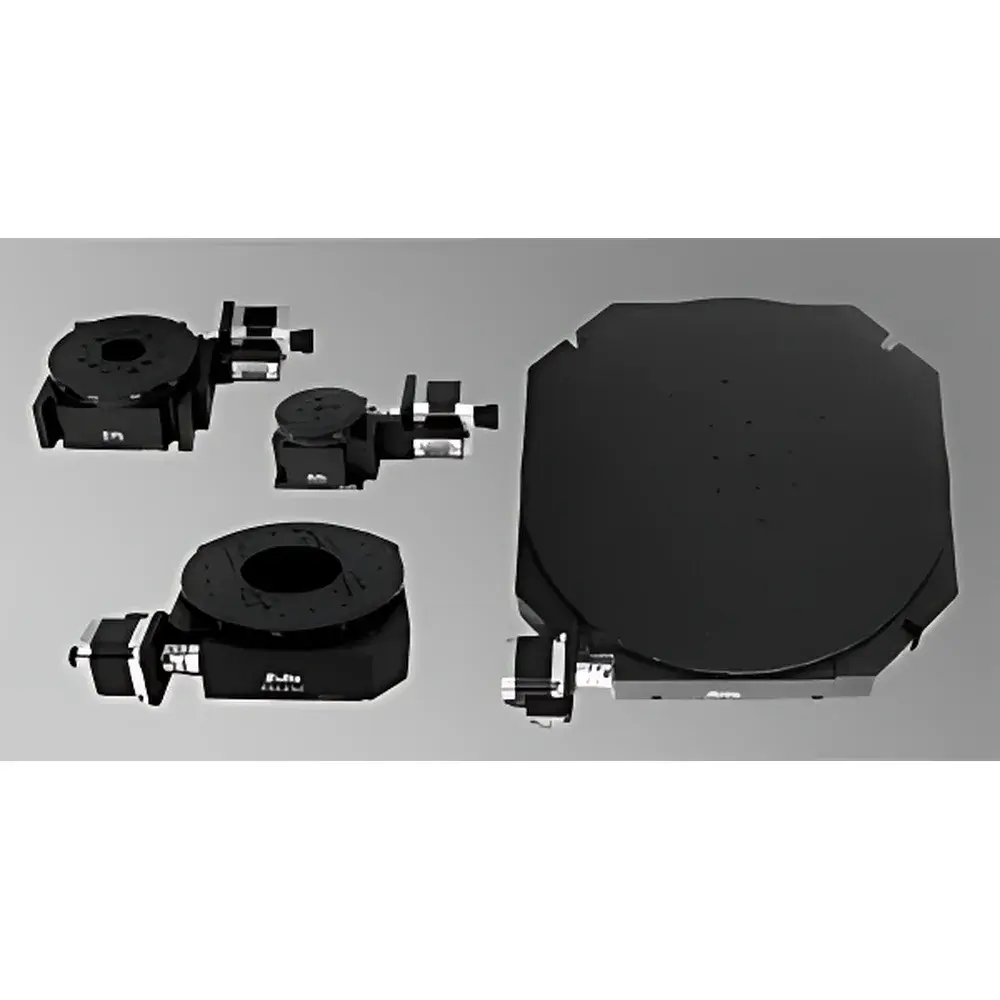

ZOLIX RSA Series Motorized Rotary Stage

Overview

The ZOLIX RSA Series Motorized Rotary Stage is a high-precision, electromechanically actuated angular positioning platform engineered for demanding optical alignment, interferometry, spectroscopic scanning, and automated metrology applications. Based on a robust Couette-type worm-gear transmission architecture with hardened, lapped bronze worm wheels and precision-ground steel worms, the stage delivers exceptional angular stability and minimal backlash—critical for multi-axis optical system integration where sub-arcsecond repeatability directly impacts measurement fidelity. Each model employs a high-torque hybrid stepper motor (1.8° full-step angle), mechanically decoupled from the gear train via a torsionally stiff, zero-backlash imported elastomeric coupling—eliminating torsional wind-up and kinematic errors arising from shaft misalignment or thermal expansion differentials. The monolithic aluminum alloy base and optimized bearing preload ensure long-term geometric integrity under cyclic loading, while the engraved angular scale on the top plate enables rapid manual verification without interrupting closed-loop operation.

Key Features

• Precision worm-gear reduction with gear ratios of 90:1, 180:1, and 720:1—enabling scalable resolution across application requirements
• Micrometer-level angular resolution down to 0.0003125° (achievable via 8× microstepping on the RSA400 model)
• Repeatability certified at <0.003° (10.8 arcseconds) under controlled laboratory conditions per ISO 230-2 Annex B
• Integrated manual override handwheel with torque-limiting clutch—ensuring safe, calibrated manual adjustment without disengaging motor electronics
• Standard digital interface compliant with industry-standard pulse/direction (PUL/DIR) TTL and RS-422 protocols for seamless integration into motion controllers (e.g., Newport ESP300, Thorlabs Kinesis, or custom LabVIEW/Python-based systems)
• Modular motor mounting flange—designed to accept optional servo motor upgrades (e.g., Panasonic MINAS A6 or Sanyo Denki STEP-SERVO™) for closed-loop velocity and position feedback
• Optimized thermal mass distribution and anodized surface finish—minimizing thermal drift during extended dwell or scanning operations

Sample Compatibility & Compliance

The RSA Series supports rigid optical payloads—including mirror mounts, fiber collimators, grating holders, and photonic integrated circuit (PIC) test fixtures—within its specified central load envelope (30–80 kg). All models are designed to maintain positional stability under static and dynamic loading per ISO 10360-2 dimensional measuring instrument standards. Mechanical interfaces conform to standard M4, M6, and 1/4″-20 threaded mounting patterns for universal compatibility with optical tables (e.g., Thorlabs, Newport, or Standa). The stage’s electromagnetic compatibility (EMC) profile meets EN 61326-1:2013 for laboratory equipment; electrical safety complies with IEC 61010-1:2010. No hazardous substances are used in construction—RoHS 2011/65/EU and REACH SVHC declarations are available upon request.

Software & Data Management

The RSA Series operates natively with vendor-agnostic motion control firmware and is fully supported by ZOLIX’s ZMotion SDK (Windows/Linux x64), offering C/C++, Python, MATLAB, and LabVIEW APIs. Position logs, trajectory profiles, and error codes are timestamped and exportable in CSV or HDF5 format—facilitating traceability in GLP/GMP-aligned environments. When integrated with compliant host software, the system supports audit trail generation, user access levels, and electronic signature capability per FDA 21 CFR Part 11 requirements. Firmware updates are delivered via signed binary packages with SHA-256 checksum validation.

Applications

• Laser beam steering and cavity alignment in ultrafast oscillator and amplifier systems
• Automated wavelength scanning in monochromators and tunable filter assemblies
• Angle-resolved photoemission spectroscopy (ARPES) sample goniometers
• Multi-angle reflectance and ellipsometry measurements in thin-film metrology
• Calibration of inertial navigation sensors and fiber-optic gyroscopes
• Robotic optical assembly stations requiring programmable rotational degrees of freedom

FAQ

What is the maximum continuous torque output of the stepper motor in the RSA200 model?

The RSA200 uses a 57-mm frame hybrid stepper motor rated at 2.4 A phase current and delivering 1.2 N·m holding torque (unloaded, 25°C ambient).
Can the RSA stage be operated in vacuum environments?

Standard models are rated for ambient air operation only. Vacuum-compatible variants (with dry-lubricated bearings and outgassing-certified materials) are available under custom order (ZOLIX part prefix “RSA-VAC”).
Is encoder feedback integrated into the base configuration?

No—encoder feedback is not included in the standard stepper-only configuration. However, the mechanical design reserves space and mounting holes for retrofittable optical encoders (e.g., Renishaw RESOLUTE™) or magnetic rotary encoders (e.g., AMS AS5047P) with ≤0.0001° resolution.
How is thermal drift compensated during long-duration experiments?

Thermal compensation is achieved through passive design: low-CTE aluminum alloy housing, symmetric thermal mass distribution, and thermally isolated motor mounting. Active compensation requires external temperature sensor integration via the optional analog input port.
Does ZOLIX provide OEM integration support for custom motion control architectures?

Yes—ZOLIX offers hardware reference designs, signal timing diagrams, and firmware development collaboration for embedded controller integration, including FPGA-based real-time motion sequencing.
