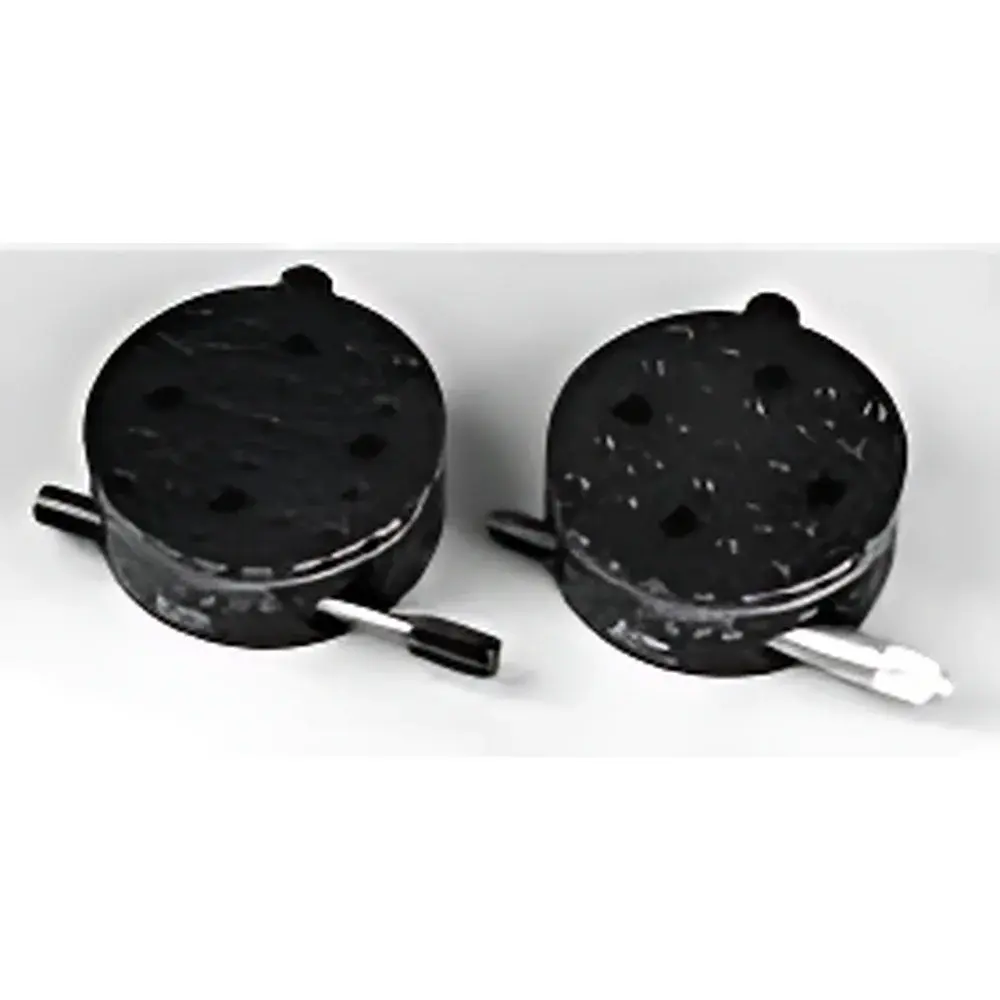

ZOLIX RSM82-1(A) Precision Manual Rotary Stage

Overview

The ZOLIX RSM82-1(A) Precision Manual Rotary Stage is an engineered optical positioning component designed for high-stability angular alignment in research-grade optical laboratories and industrial metrology setups. Based on classical mechanical rotary stage architecture, it operates via manual coarse–fine dual-stage adjustment: a full 360° coarse rotation coupled with ±10° fine-tuning capability, enabling repeatable positioning with angular resolution down to 2 arcminutes (≈0.033°). Its core motion system employs a precision-ground fine-pitch screw actuator—optionally upgraded to a calibrated micrometer drive in the RSM82-1A variant—paired with a preloaded high-accuracy bearing assembly that minimizes axial runout and radial wobble. This mechanical design ensures long-term dimensional stability, low hysteresis, and minimal backlash—critical attributes for interferometric alignment, polarization control, beam steering calibration, and multi-axis goniometric assemblies.

Key Features

• Precision-machined 82 mm diameter aluminum alloy stage platform with standardized M4 and M6 tapped hole patterns (top and bottom) for secure integration into XYθ, XYZ, or XYZθ multi-axis translation systems.
• Dual-scale vernier scale engraved directly onto the base ring: coarse 1° divisions complemented by a secondary vernier scale enabling direct reading to 2 arcminutes without auxiliary optics or digital readouts.
• Optimized bearing architecture using matched angular-contact ball bearings, preloaded to suppress play while maintaining smooth, consistent torque across the full rotation range.
• Modular drive options: RSM82-1 uses a standard fine-thread screw with knurled knob; RSM82-1A substitutes a calibrated micrometer head (0–10 mm travel, 10 µm graduation) for enhanced repeatability in quantitative angular displacement applications.
• No central aperture—preserving maximum structural rigidity and load-bearing integrity; suitable for mounting off-axis optical components including mirrors, waveplates, and fiber collimators.
• Compact footprint (82 mm Ø × ~25 mm height) and low mass (≤0.5 kg) minimize inertial loading in dynamic optical benches and vibration-sensitive configurations.

Sample Compatibility & Compliance

The RSM82-1(A) is compatible with standard optomechanical components adhering to ISO 17025-aligned laboratory practices. Its tapped mounting interface conforms to common industry hole spacing standards (e.g., Thorlabs, Newport), facilitating interoperability in mixed-vendor optical tables. While not certified to specific regulatory frameworks (e.g., FDA 21 CFR Part 11 or ISO 13485), its mechanical traceability—via engraved vernier scale and documented bearing preload specifications—supports GLP-compliant documentation of angular setup parameters in academic and industrial R&D environments. No electrical or software-based compliance dependencies exist; all adjustments are purely mechanical and fully auditable.

Software & Data Management

This is a fully manual, non-motorized stage with no embedded electronics, firmware, or connectivity interfaces. Angular position data is recorded manually via the vernier scale or external measurement tools (e.g., autocollimator, digital theodolite, or laser tracker). For laboratories requiring digital traceability, users may integrate the stage into custom-built metrology workflows using third-party motion controllers or image-based alignment software (e.g., MATLAB-based centroid tracking or Python-controlled camera feedback loops). No proprietary drivers, SDKs, or calibration files are provided or required.

Applications

• Alignment of polarizing elements (linear polarizers, quarter-wave plates) in ellipsometry and Mueller matrix characterization systems.
• Angular calibration reference in spectrometer entrance slit mechanisms and monochromator turret assemblies.
• Coarse/fine orientation control of photodetectors, CCD/CMOS sensors, or fiber-coupled devices during optical coupling efficiency optimization.
• Base rotation module in multi-degree-of-freedom kinematic mounts for adaptive optics testbeds and laser cavity alignment rigs.
• Teaching platforms in university optics labs—demonstrating vernier interpolation principles, mechanical resolution limits, and error sources in manual positioning systems.

FAQ

Is the RSM82-1(A) compatible with vacuum or cleanroom environments?
Yes—its all-metal construction (anodized aluminum body, stainless steel screws and bearings) and absence of lubricants or adhesives make it suitable for Class 1000 cleanrooms and low-outgassing vacuum chambers (up to 10⁻⁵ Torr) when properly cleaned per ASTM E1259-17 protocols.
What is the typical angular repeatability under static loading?
Under 3 kg static load and room-temperature conditions, measured repeatability is ≤±3 arcminutes over 10 consecutive cycles, verified using a calibrated autocollimator traceable to NIST standards.
Can I mount this stage directly onto a breadboard or optical table?
Yes—the underside features four symmetrically arranged M6 threaded holes spaced at 60 mm intervals, matching standard optical table hole patterns (e.g., 25 mm or 1 inch grid pitch) with appropriate adapter plates or clamps.
Does ZOLIX provide calibration certificates for individual units?
Calibration certificates are available upon request as an optional service; they include angular deviation mapping across the full 360° range using interferometric angle measurement equipment, compliant with ISO 17025 requirements when performed by accredited ZOLIX metrology labs.
Is there a motorized version of this stage available?
ZOLIX offers complementary motorized rotary stages (e.g., RMS series) with stepper/servo integration and RS-485/USB control—but the RSM82-1(A) remains strictly manual by design to preserve mechanical simplicity, thermal stability, and EMI immunity in sensitive optical experiments.
